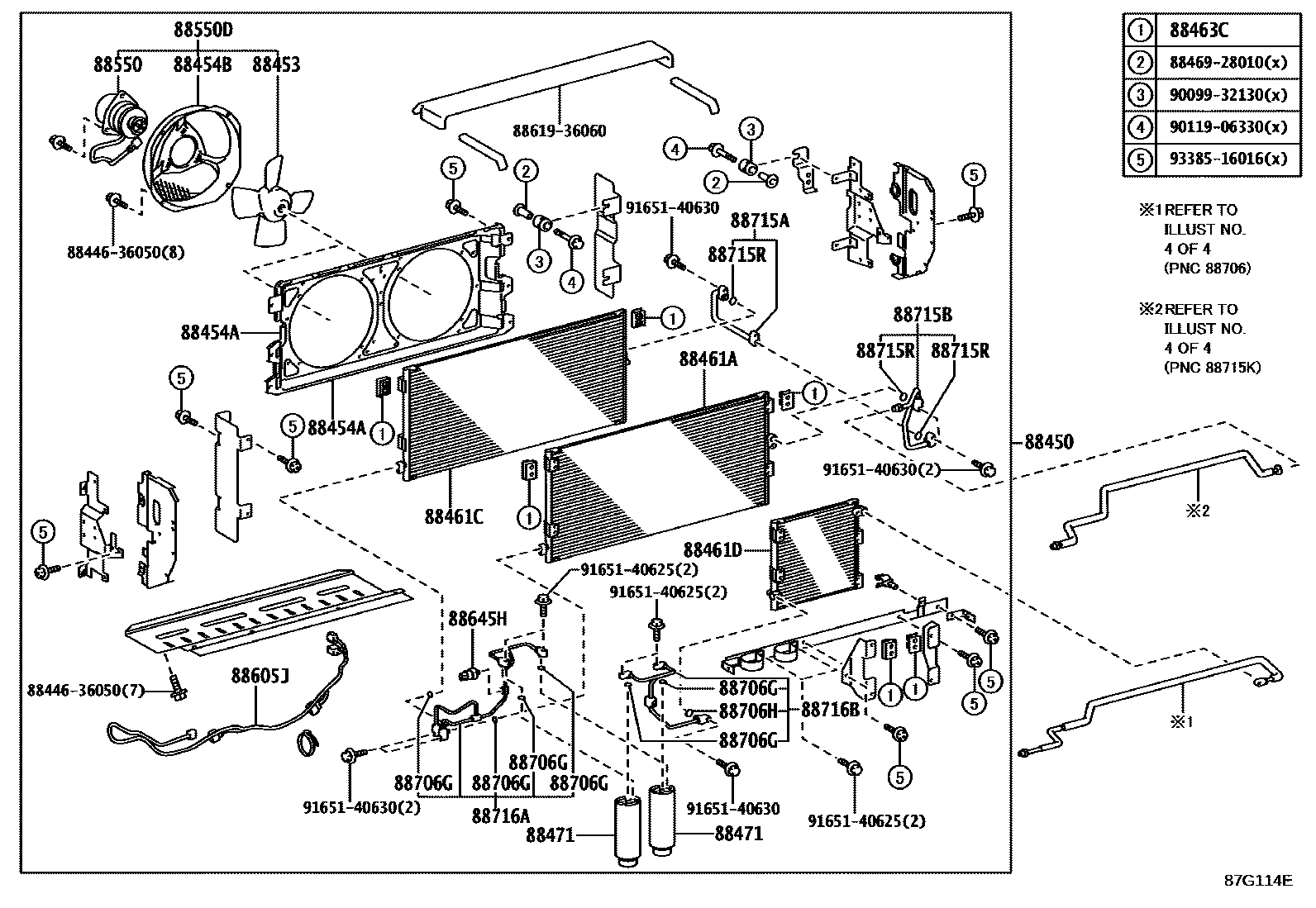

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1CONDENSER 0002 1CONDENSER 0003 1CONDENSER 0004 1CONDENSER 0005 1CONDENSER 0006 1CONDENSER 0007 1CONDENSER 0008 1CONDENSER 0009 1CONDENSER 0010 1CONDENSER BRACKET 0011 1CONDENSER BRACKET 0012 1CONDENSER BRACKET 0013 1CONDENSER BRACKET 0014 1CONDENSER BRACKET 0015 1CONDENSER BRACKET 0016 1PIPING(ROOF) 0017 1PIPING(ROOF) 0018 1PIPING(ROOF) 0019 1PIPING(ROOF) 0020 1PIPING(FLOOR) 0021 1PIPING(FLOOR) 0022 1PIPING(FLOOR) 0023 1PIPING(FLOOR) 0024 1PIPING(FLOOR) 0025 1PIPING(FLOOR) 0026 1PIPING(FLOOR) 0027 1PIPING(FLOOR) 0028 1PIPING(FLOOR) 0029 1PIPING(FLOOR) 0030 1PIPING(FLOOR) 0031 1PIPING(FLOOR) 0032 1PIPING(FLOOR) 0033 1PIPING(FLOOR) 0034 1PIPING(FLOOR) 0035 1PIPING(FLOOR)(1/2) 0036 1PIPING(FLOOR)(1/2) 0037 1PIPING(FLOOR)(2/2) 0038 1PIPING(FLOOR)(2/2) 0039 1PIPING(FLOOR)(1/2) 0040 1PIPING(FLOOR)(2/2) 0041 1PIPING(FLOOR)(1/2) 0042 1PIPING(FLOOR)(2/2)

88450CONDENSER ASSY, W/RECEIVER

main88450-36360iHZB70,TRB60,70,XZB70..WC201701-201908

main88450-36380iHZB60,70,TRB60,70,XZB70,80..WC201908-202001

main88450-V4010iXZB70..6FC;XZB70..02S,25S;HZB70,TRB60..(19S,26S)..WC202001

main88450-V4011iHZB70..23S..GCC;XZB70..(19S,22S)..5F202408-202412

main88460-36190iBZB60201701-201712

88453FAN, COOLING (FOR CONDENSER)

main16361-13030×4iBZB60; XZB60201701-201712

main16361-37110iXZB70..6FC;XZB70..02S,25S;HZB70,TRB60..(19S,26S)..WC201908

88454ASHROUD, FAN

main88454-36130iBZB70201701-202012

main88454-36150iHZB70,TRB60,70,XZB70..WC201701-201908

main88454-36160iXZB70,80..4FC;XZB70..5F..ARL201908-202012

88454BSHROUD, FAN

main88454-36081×2iBB60,XZB60..(20S,26S)..WC201701-201907

main88454-36140×4iBZB60201701-201712

main88454-36170iXZB70,80..4FC;XZB70..5F..ARL201908-202012

NO.1

main88454-36180iXZB70,80..4FC;XZB70..5F..ARL201908-202012

NO.2

88461ACORE, COOLER CONDENSER

main88461-36040iXZB60201701-201712

88461CCORE, COOLER CONDENSER, NO.2

main88461-36020iGDB70,XZB70..RHD..23S..(BTN,GEN)202201-202312

88461DCORE, COOLER CONDENSER, NO.3

main88461-36030iHZB60,70,TRB60,70,XZB70,80..WC201701-202001

88463BRACKET, COOLER CONDENSER, NO.1

main88688-36490×2iXZB70,80..4FC;XZB70..5F..ARL201701-202012

main88688-36740iBZB70201701-202012

88463CBRACKET, COOLER CONDENSER, NO.4

main88463-37370iBB60,XZB60..(20S,26S)..WC201701-201907

88471TANK, RECEIVER AIR CONDITIONER

main88471-50020×2iGDB70..DX..ARL;XZB70..20S..5F;GDB70,XZB80..RHD..(EX,STD)..(ARL,GEN)202201-202512

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main88550-36111×2iHZB70,TRB60,70,XZB70..WC201701-201908

main88550-36220×4iBZB70201701-202012

88550DMOTOR ASSY, BLOWER

main16363-47050iXZB70..6FC;XZB70..02S,25S;HZB70,TRB60..(19S,26S)..WC201908

NO.2

main16363-47060iXZB70..SA;TRB60,70..6F;XZB70..LHD..DX;XZB70..(23S,29S)..STD..WC;GDB60,HZB60,70,TRB70..WC..(BTN,GEN);GDB70..(02S,19S,22S,23S)..(GCC,GEN,SA,TAIW)202201

NO.1

main88306-36060×2iHZB70,TRB60,70,XZB70..WC201701-201908

main88306-36070×2iBZB70201701-202012

88605JHARNESS SUB-ASSY, AIR CONDITIONER WIRING

main88605-36450iBZB70201701-202012

main88605-36460iBB60,XZB60..(20S,26S)..WC201701-201907

main88605-36510iXZB70..SA;TRB60,70..6F;XZB70..LHD..DX;XZB70..(23S,29S)..STD..WC;GDB60,HZB60,70,TRB70..WC..(BTN,GEN);GDB70..(02S,19S,22S,23S)..(GCC,GEN,SA,TAIW)202201

88645HSWITCH, PRESSURE NO.1

main88645-36050iBZB70201701-202012

main88645-60030iXZB70..6FC;XZB70..02S,25S;HZB70,TRB60..(19S,26S)..WC201701

88706PIPE SUB-ASSY, LIQUID

main88706-36160iHZB60,70,TRB60,70,XZB70..LHD..WC201701-202001

main88706-36170iHZB60,70,XZB70,80..RHD..WC201701-202001

88706GRING, O(FOR LIQUID TUBE)

main90099-14119×8iXZB70..SA;XZB70..LHD..DX;XZB70..22S..GEN;HZB70..(23S,25S,30S)..WC;GDB70..ARL,GCC,GEN,SA,TAIW;GDB60,HZB60,TRB70,XZB80..WC..(BTN,GEN);XZB70..(19S,20S,23S,29S)..5F..(EX,STD)..WC202201-202408

ID=6.7,OD=10.3

88706HRING, O, NO.2(FOR LIQUID TUBE)

main90099-14120iBB60,XZB60..(20S,26S)..WC201701-201907

ID=10.8,OD=15.6

88715APIPE, COOLER REFRIGERANT DISCHARGE, A

main88715-36601iBZB60201701-201712

main88715-36740iXZB70..RHD..23S..GEN202501

88715BPIPE, COOLER REFRIGERANT DISCHARGE, B

main88715-36610iBZB70201701-202012

main88715-36760iHZB60,TRB70,XZB80..(5F,6FC)..WC;HZB70,TRB60..(20S,23S,25S,30S)..WC;XZB70..(19S,20S,22S,23S,29S)..5F..WC..(GCC,GEN,SA)201701-202201

88715RRING, O(FOR DISCHARGE TUBE)

main90099-14120×3iTRB60,70..GCC202201-202303

ID=10.8,OD=15.6

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-36511iBZB60201701-201712

main88716-36A80iXZB70,80..4FC;XZB70..5F..ARL201701-202012

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-36260iTRB60,70..GCC202201-202303

main88716-36520iBZB60201701-201712

main88716-36A90iBB60,XZB60..(20S,26S)..WC201701-201907

8844636050BOLT, IDLE PULLEY

main88446-36050

8846928010SWITCH, PRESSURE CONTROL

main88469-28010

8861936060PACKING (FOR COOLER DRIVE SHAFT)

main88619-36060

9009932130

main90099-32130

9011906330

main90119-06330

9165140625

main91651-40625

9165140630

main91651-40630

9338516016

main93385-16016

30 parts on this diagram · 42 diagrams in section
