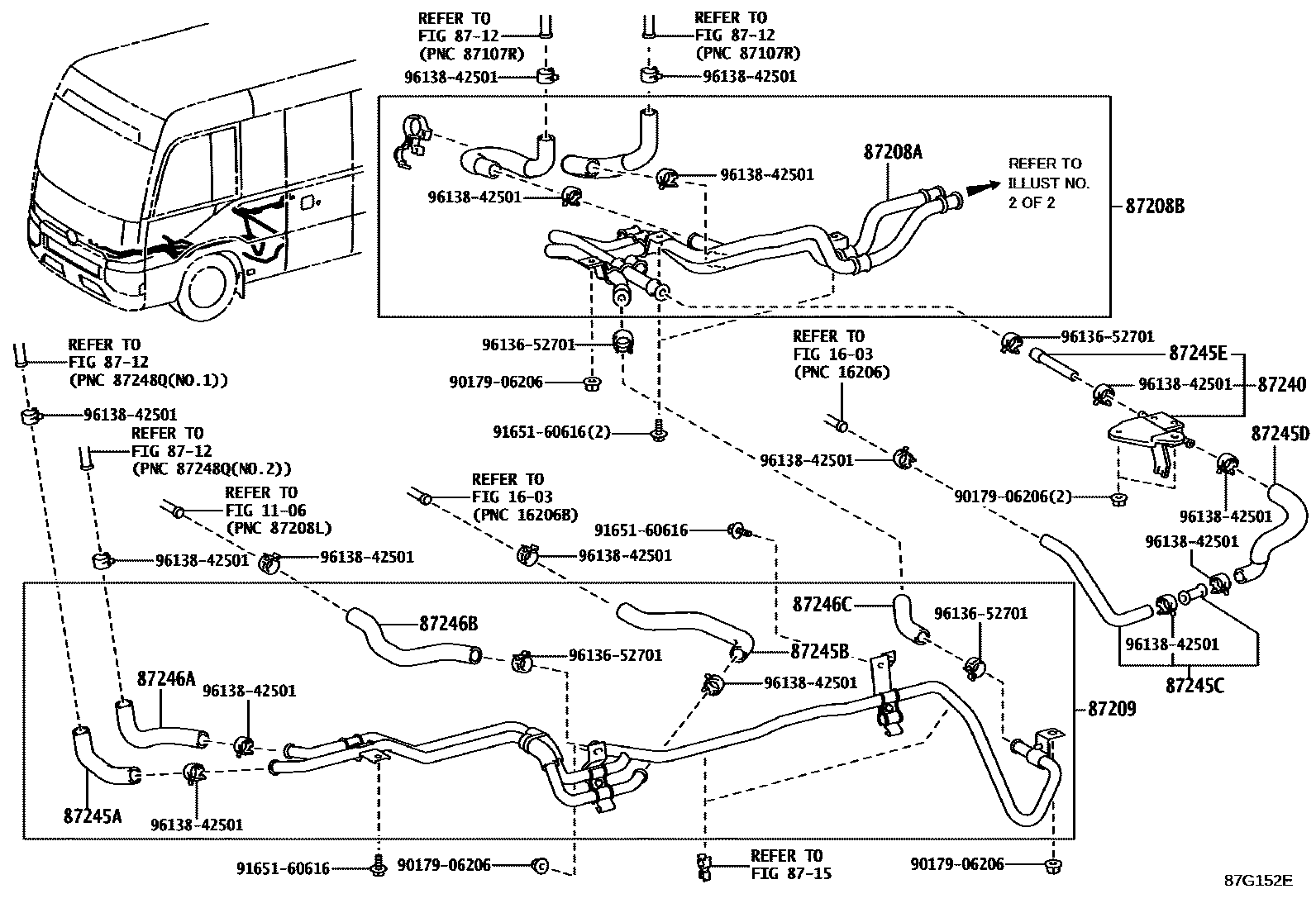

HEATING & AIR CONDITIONING - WATER PIPING

0001 1FRONT 0002 1FRONT 0003 1FRONT 0004 1FRONT 0005 1FRONT 0006 1FRONT ONLY 0007 1FRONT 0008 1FRONT 0009 1FRONT 0010 1FRONT 0011 1FRONT 0012 1FRONT 0013 1FRONT 0014 1FRONT ONLY 0015 1FRONT 0016 1FRONT 0017 1REAR 0018 1REAR 0019 1REAR 0020 1REAR 0021 1REAR 0023 1REAR 0024 1REAR 0025 1REAR 0026 1REAR 0028 1REAR 0029 1VISCOUS HEATER

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8712HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

→ Go to FIG 87-12

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

87208PIPE SUB-ASSY, HEATER WATER

main87208-36K00iXZB70..GCC,TAIW; XZB70..LHD..GEN201701-201908

FRONT HEATER-MANUAL 120W

main87208-36K10iHZB70..23S..GCC202201-202412

main87208-36K30iTRB60,70..6F; TRB70..WC..GEN202201

FRONT HEATER-MANUAL 120W

main87208-36K60iXZB70..6FC..ARL201908

main87208-36K70iXZB70..(23S,25S,30S)..STD..GEN; XZB70..TAIW201908

FRONT HEATER-MANUAL 120W

main87208-V4030supersedes 87208-V4080iGDB70..DX..GEN202201-202401

main87208-V4050iGDB70..LHD202201

main87208-V4080iGDB70..EX;GDB60..BTN202201

main87208-V4090iGDB60,70..RHD..STD..GEN202201

main87208-36372iHZB60,70..RHD202201

FRONT HEATER-MANUAL 120W

main87208-36392iBB60..RHD201701-201907

FRONT HEATER-MANUAL 120W

main87208-36K20iBB60..LHD201701-201907

FRONT HEATER-MANUAL 120W

87208APIPE SUB-ASSY, HEATER WATER, A

main87208-36E60iXZB70..23S..GCC; XZB70..LHD..(23S,29S)..WC..GEN202201

FRONT HEATER-MANUAL 120W

main87208-36F00iTRB60,70..GCC202201-202303

main87208-36F30iHZB60,70..LHD..GEN; HZB70..23S..GCC201701-202201

FRONT HEATER-MANUAL 120W

main87208-36G30iGDB70..DX..GEN202201-202401

main87208-V4110iTRB60,70..6F202501

main87208-36E80iXZB70..RHD..23S..GEN202501

FRONT HEATER-MANUAL 120W

main87208-36E90iBB60..RHD201701-201907

FRONT HEATER-MANUAL 120W

main87208-36F20iHZB60,70..RHD202201

FRONT HEATER-MANUAL 120W

main87208-36J90iHZB70..LHD..30S201701-202101

COSTA RICA SPEC&FRONT HEATER-MANUAL 120W&REAR SEAT-NO.4-NO.7 SEAT=2+2 TYPE, NO.8 SEAT=4S

87208BPIPE SUB-ASSY, HEATER WATER, B

main87208-36E80iGDB70..SA202201

main87208-V4010iGDB70..LHD202201

main87209-36J50iXZB70..ARL201701-202012

main87209-36K30iHZB70..LHD..30S201701-202101

COSTA RICA SPEC&FRONT HEATER-MANUAL 120W&REAR SEAT-NO.4-NO.7 SEAT=2+2 TYPE, NO.8 SEAT=4S

87209HOSE SUB-ASSY, WATER

main87209-36G70iXZB80..5F,6FC;XZB70..RHD..(20S,23S)..5F..(DX,EX)201701-202201

main87209-36J00iXZB70..ARL201701-201908

main87209-36K60iXZB70..ARL201908-202012

main87209-V4040supersedes 87209-V4090iGDB70..ARL,SA202201

main87209-V4060iGDB70..LHD202201

main87209-V4090iGDB70..EX;GDB60..BTN202201

main87209-V4100iGDB60,70..RHD..STD..GEN202201

87240VALVE ASSY, HEATER WATER

main87240-36120iXZB70..23S..GCC;GDB70,TRB60,70..(6F,6FC)..(ARL,GCC,SA,TAIW); XZB70..29S;HZB70..WC..GEN;HZB70..30S..WOC;XZB70..LHD..DX..GEN;HZB60,TRB70..26S,30S202201

FRONT HEATER-MANUAL 120W

87245AHOSE, HEATER WATER, INLET A

main87245-3B422iHZB70..19S; TRB60..GEN201701

FRONT HEATER-MANUAL 120W

main87245-3C500iXZB70..6FC..EX;XZB70..6FC..ARL201701

main87245-3C520iXZB70..19S202201-202412

main87245-V4160iGDB70..RHD..(DX,EX);GDB60,70..(22S,25S)..STD202201

main87245-V4190iGDB70..LHD202201

main87245-3C360iHZB60,70..RHD201701-202201

FRONT HEATER-MANUAL 120W

87245BHOSE, HEATER WATER, INLET B

main87245-36272iHZB70..23S..GCC202201-202412

main87245-36A30iXZB70,80..4FC..EX201701-202012

main87245-36D60iXZB60..GCC201701-201907

main87245-36E00iTRB60,70..6F; TRB70..WC..GEN202201

FRONT HEATER-MANUAL 120W

main87245-36U10iXZB70..ARL201908-202012

main87245-36U20iXZB70..(23S,25S,30S)..STD..GEN; XZB70..TAIW201908

FRONT HEATER-MANUAL 120W

main87245-V4140iGDB70..BTN202201-202312

main87245-V4200iGDB70..LHD202201

main87245-3B432iBB60..RHD201701-201907

FRONT HEATER-MANUAL 120W

main87245-3C541iBB60..LHD201701-201907

FRONT HEATER-MANUAL 120W

87245CHOSE, HEATER WATER ,INLET C

main87209-36A80iXZB60..GCC201701-201907

main87245-36M90iTRB60,70..GCC202201-202303

main87245-3B621iHZB60,70..GEN; HZB70..23S..GCC201701-202201

FRONT HEATER-MANUAL 120W

main87245-V4210iGDB70..LHD202201

main87245-36181iBB60201701-201907

FRONT HEATER-MANUAL 120W

87245DHOSE, HEATER WATER, INLET D

main87245-36263iHZB70..23S..GCC202201-202412

main87245-36A60iXZB60..GCC201701-201907

main87245-36T60iXZB70..ARL201908-202012

87245EHOSE, HEATER WATER, INLET E

main87245-3C410iBB60; XZB60..GCC201701-201907

FRONT HEATER-MANUAL 120W

87246AHOSE, HEATER WATER, OUTLET A

main87245-3C461iHZB60,70,TRB70..LHD..GEN; TRB60,70..GCC;HZB70..23S..GCC201701-202201

FRONT HEATER-MANUAL 120W

main87245-3C490iXZB70..6FC..EX;XZB70..6FC..ARL201701

main87245-3C510iXZB70..19S202201-202412

main87245-V4150iGDB70..RHD..(DX,EX);GDB60,70..(22S,25S)..STD202201

main87245-V4180iGDB70..LHD202201

main87245-3C370iHZB60,70..RHD201701-202201

FRONT HEATER-MANUAL 120W

87246BHOSE, HEATER WATER, OUTLET B

main87245-36D40iXZB70,80..4FC..EX201701-202012

main87245-36D50iXZB70..GCC; XZB70..LHD..(23S,29S)..WC..GEN201701-202201

FRONT HEATER-MANUAL 120W

main87245-36E10iTRB60,70..GCC202201-202303

main87245-3B330iXZB70..6FC..ARL201701

main87245-3B481iHZB70..19S201701

main87245-V4130iGDB70..BTN202201-202312

main87245-V4170iGDB60,70..RHD..STD..GEN202201

main87245-3B442iBB60..RHD201701-201907

FRONT HEATER-MANUAL 120W

main87245-3C451iBB60..LHD201701-201907

FRONT HEATER-MANUAL 120W

87246CHOSE, HEATER WATER, OUTLET C

main87245-36C00iHZB60,70,TRB70..LHD..GEN; TRB60,70..GCC;HZB70..23S..GCC201701-202201

FRONT HEATER-MANUAL 120W

main87245-3C380iBB60; XZB60..GCC201701-201907

FRONT HEATER-MANUAL 120W

main87245-V4110supersedes 87245-V4270iGDB70..23S..GEN;GDB70..ARL,GCC,SA,TAIW202201

main87245-V4270iGDB60,70..20S,25S,26S202201

9017906206

main90179-06206

9165160616

main91651-60616

9613652701

main96136-52701

9613842501

main96138-42501

21 parts on this diagram · 27 diagrams in section
