HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

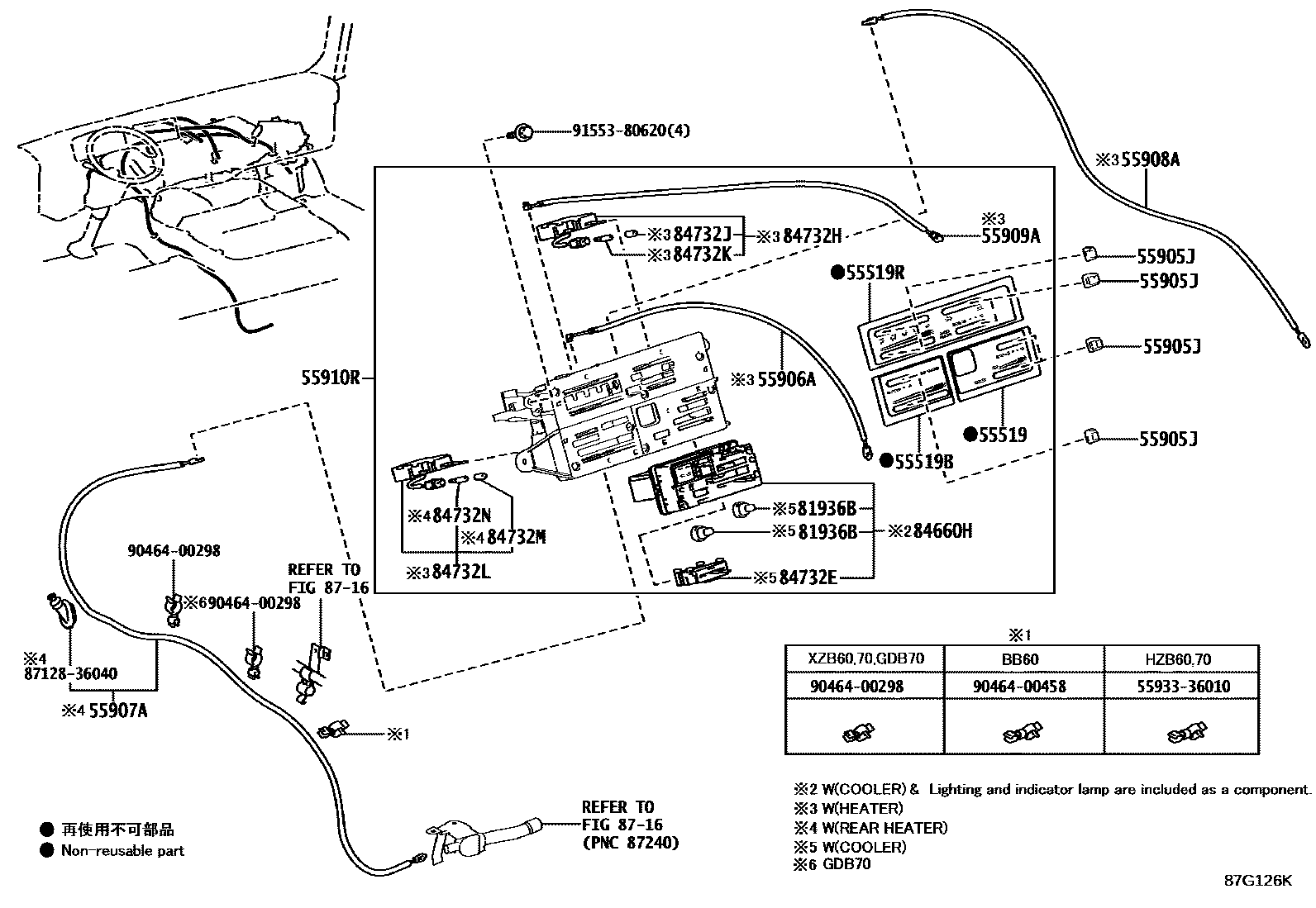

Parts diagram
55519PLATE, HEATER CONTROL NAME
main55519-36030201701-202512
main55519-36040202501
55519BPLATE, HEATER CONTROL NAME
main55519-36080201701-202512
main55519-36100201701-202512
55519RPLATE, HEATER CONTROL NAME
main55519-36050201701-202412
main55519-36070201701-202512
main55519-36090201701-202512
55905JKNOB SUB-ASSY, CONTROL
main55905-36040201701-202512
55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
main55906-36070201701-202512
main55906-36110201701-202412
55907ACABLE SUB-ASSY, WATER VALVE CONTROL
main55907-36120201701-202512
main55907-36130201701-202412
55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL
main55908-36080201701-202512
55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL
main55907-36070201701-202512
main55907-36140201701-202412
55910RCONTROL ASSY, HEATER
main55910-36230201701-202412
main55910-36250201701-202512
main55910-36270201701-202512
main55910-36310201701-202512
main55910-36320201701-202412
main55910-36330202501
main55910-V4010202501
81936BBULB ASSY, COOLER CONTROL
main81936-32010201701-202512
84660HSWITCH ASSY, COOLER CONTROL
main84660-36050201701-202207
main84660-36051202208-202512
84732ESWITCH, COOLER BLOWER
main84732-35010201701-202512
84732HSWITCH, HEATER BLOWER
main84732-36060201701-202512
84732JCAP, HEATER BLOWER SWITCH BULB
main84998-10050201701-202512
84732KBULB, HEATER BLOWER SWITCH
main90981-11014201701-202512
84732LSWITCH, REAR HEATER BLOWER
main84732-36080201701-202512
main84732-36130201701-202512
84732MCAP, REAR HEATER BLOWER SWITCH BULB
main84998-10050201701-202512
84732NBULB, REAR HEATER BLOWER SWITCH
main90981-11014201701-202512
8716HEATING & AIR CONDITIONING - WATER PIPING
→ Go to FIG 87-16
5593336010GUIDE, LEVER, NO.2
main55933-36010
8712836040GROMMET, HEATER
main87128-36040
9046400298
main90464-00298
9046400458
main90464-00458
9155380620
main91553-80620

24 parts on this diagram · 9 diagrams in section
