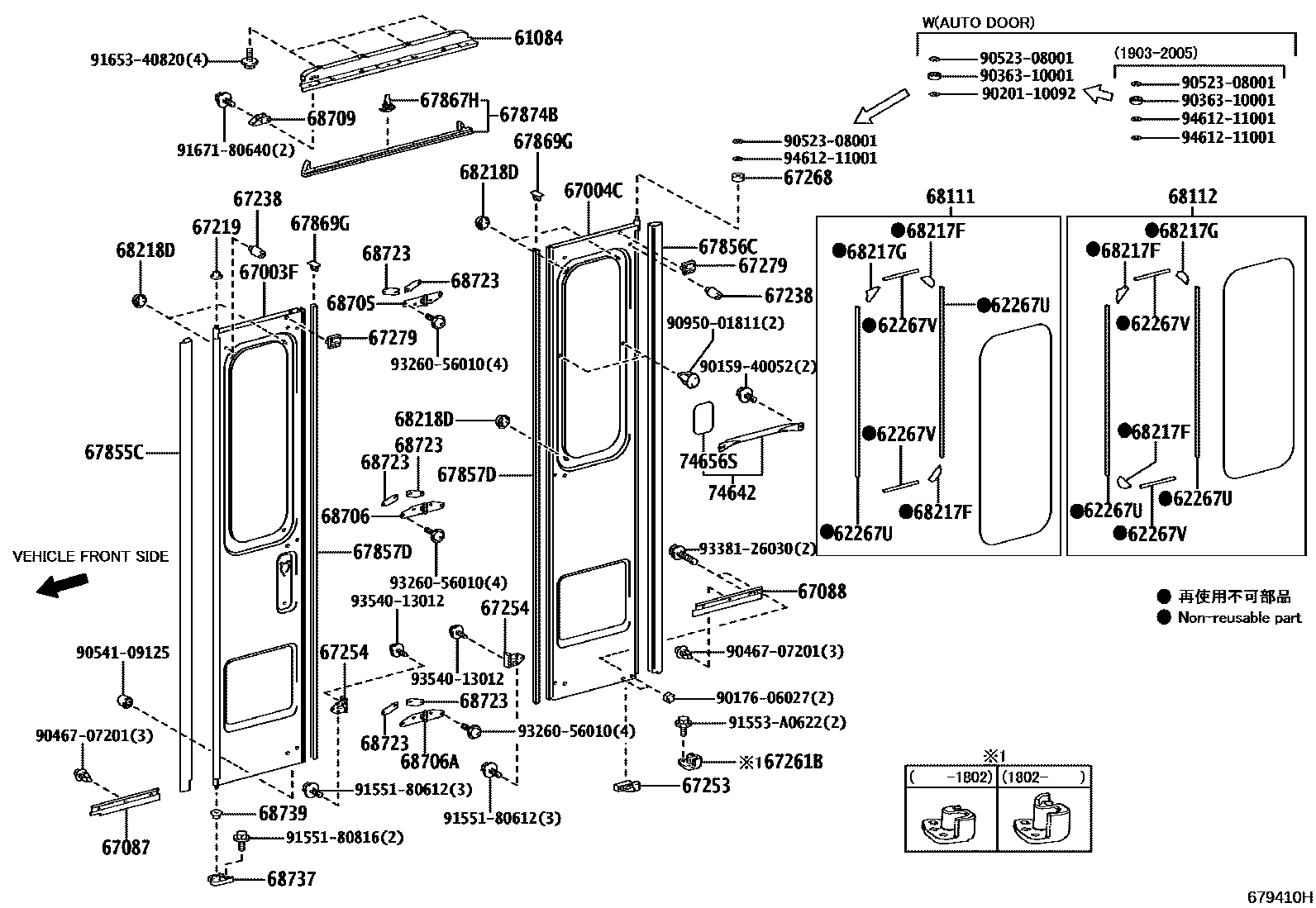

CENTER DOOR PANEL & GLASS
61084RAIL SUB-ASSY, CENTER DOOR
main61084-36030supersedes 61084-36020iHZB60,70,XZB70..RHD..(20S,26S,29S,30S)..5F..(DX,STD); XZB70..22S..GEN202003-202201
CENTER DOOR-FOLDING(AUTO)
62267UDAM, SIDE WINDOW ADHESIVE
62267VDAM, SIDE WINDOW ADHESIVE
67003FPANEL SUB-ASSY, CENTER DOOR, FRONT
main67003-36420supersedes 67003-36470iHZB60,70,XZB70..RHD..(26S,29S,30S); XZB70..22S..GEN201701-202201
CENTER DOOR-FOLDING(AUTO)
CENTER DOOR-FOLDING(AUTO)
CENTER DOOR-FOLDING(AUTO)
67004CPANEL SUB-ASSY, CENTER DOOR, REAR
main67004-36140iHZB60,TRB70..LHD;XZB70..LHD..(19S,23S,29S)..WC;HZB70,TRB60..LHD..(20S,23S,25S,30S)201701-202201
SAUDIARABIA SPEC
67087PLATE SUB-ASSY, CENTER DOOR DUST SEAL, FRONT
67088PLATE SUB-ASSY, CENTER DOOR DUST SEAL, REAR
67219BUSH, CENTER DOOR UPPER BEARING CASE
67238CUSHION, CENTER DOOR
UAE SCHOOL BUS PACKAGE
67253PIECE, CENTER DOOR GUIDE
CENTER DOOR-GLIDING(AUTO)
67254STOPPER, CENTER DOOR, INSIDE NO.1
67261BCASE, CENTER DOOR GUIDE
main67261-36040iBB60,HZB70,TRB60,70,XZB60,70..LHD; TRB70..STD..GCC;HZB70,XZB70..LHD..(23S,29S)..WC..GEN201701-201802
CENTER DOOR-GLIDING(AUTO)
main67261-36041iGDB70,TRB70..(6F,6FC)..DX..GCC; HZB70,XZB70..LHD..DX..GEN;GDB70,TRB70..(6F,6FC)..DX..GCC; TRB60,70..6F;HZB70..30S..WOC;GDB70,HZB60..LHD;HZB70,TRB70..LHD..WC..GEN;XZB70..LHD..(23S,29S)..WC..GEN202201
CENTER DOOR-GLIDING(AUTO); UAE SCHOOL BUS PACKAGE&CENTER DOOR-GLIDING(AUTO)
67268ROLLAR, REAR DOOR, UPPER
67279CUSHION, CENTER DOOR GUIDE
67855CWEATHERSTRIP, CENTER DOOR FRONT
67856CWEATHERSTRIP, CENTER DOOR, REAR
67857DWEATHERSTRIP, CENTER DOOR, CENTER
67867HRETAINER, DOOR WEATHERSTRIP, RH
main67867-12150×36supersedes 67867-50100iGDB70,XZB70..SA; HZB70,XZB70..LHD..DX..GEN;GDB70,TRB70..(6F,6FC)..DX..GCC202201
CENTER DOOR-GLIDING(AUTO)
main67867-50130×8iTRB60,70..6F;HZB70..30S..WOC;GDB70,HZB60..LHD;HZB70,TRB70..LHD..WC..GEN;XZB70..LHD..(23S,29S)..WC..GEN202201
67869GCLIP, DOOR WEATHERSTRIP
67874BWEATHERSTRIP, CENTER DOOR, UPPER NO.2
main67874-36041iTRB60,70..6F;HZB70..30S..WOC;GDB70,HZB60..LHD;HZB70,TRB70..LHD..WC..GEN;XZB70..LHD..(23S,29S)..WC..GEN202201
68111GLASS, CENTER DOOR
main62202-36020iHZB70..30S..WOC;HZB70..LHD..WC..GEN;XZB70..LHD..(23S,29S)..WC..GEN;GDB70,HZB60,TRB70..LHD..(02S,23S,26S,30S)..(GEN,TAIW)202201
68112GLASS, CENTER DOOR, NO.2
main62202-36030supersedes 62202-36020iGDB70..20S..STD;XZB70..20S..5F..STD; GDB70..STD..ARL202201-202512
CENTER DOOR-FOLDING(AUTO)
CENTER DOOR-FOLDING(AUTO)
68217FPIN, CENTER DOOR FIX WINDOW, NO.1
main68217-36160×4iXZB70..29S;HZB70..WC..GEN;HZB70..30S..WOC;XZB70..LHD..DX..GEN;GDB70,TRB60,70..LHD..(6F,6FC);GDB60,HZB60,TRB70..25S,26S,30S202201
68217GPIN, CENTER DOOR FIX WINDOW, NO.2
main68217-36170×2iHZB60,70..23S,25S,26S,30S;TRB60,70..19S,20S,23S,24S,30S;XZB70..(19S,20S,22S,23S,29S)..5F..(DX,STD)..WC..(GCC,GEN)201701-202201
68218DBUSH, CENTER DOOR FIX WINDOW
LT.GRAY,TRIM1#
68705HINGE SUB-ASSY, CENTER DOOR, OUTER NO.1
68706HINGE SUB-ASSY, CENTER DOOR, OUTER NO.1
68706AHINGE SUB-ASSY, CENTER DOOR, OUTER NO.1
68709CASE SUB-ASSY, CENTER DOOR UPPER BEARING
main68709-36010iXZB70..6FC..STD;HZB70,TRB60..19S,26S;XZB70..(02S,23S,25S,30S)..STD..(GEN,TAIW)201701
68723PAD, DOOR UPPER HINGE
68737CASE, CENTER DOOR LOWER BEARING
68739BALL, CENTER DOOR LOWER BEARING
74642GRIP, GLIDE DOOR ASSIST
SAUDIARABIA SPEC
74656SCOVER, GLIDE DOOR ASSIST GRIP
SAUDIARABIA SPEC
9015940052
main90159-40052
9017606027
main90176-06027
9020110092
main90201-10092
9036310001
main90363-10001
9046707201
main90467-07201
9052308001
main90523-08001
9054109125
main90541-09125
9095001811
main90950-01811
9155180612
main91551-80612
9155180816
main91551-80816
91553A0622
main91553-A0622
9165340820
main91653-40820
9167180640
main91671-80640
9326056010
main93260-56010
9338126030
main93381-26030
9354013012
main93540-13012
9461211001
main94612-11001
51 parts on this diagram · 6 diagrams in section
