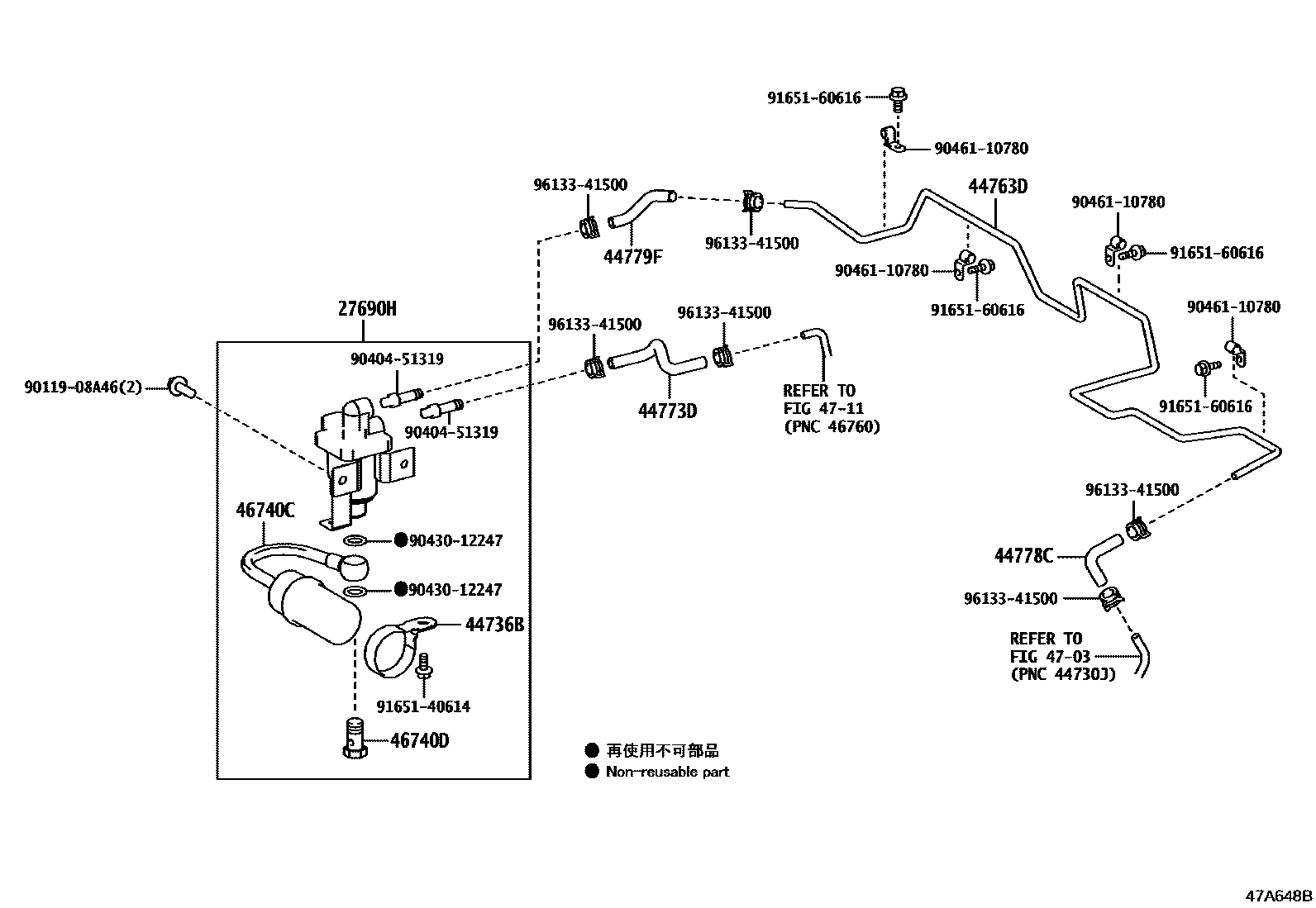

EXHAUST BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1

27690HSOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE)

main27690-56160iN04C..XZB60201701-201712

44736BBRACKET, AIR CLEANER

main44736-36050iXZB60201701-201712

44763DTUBE, HOSE TO HOSE, NO.1

main44763-36043iXZB60201701-201712

main44763-36052iHZB60,70..LHD..GEN; HZB70..23S..GCC; XZB70..LHD..(19S,23S,29S)..WC201701-202201

EXHAUST RETARDER-WITH; FRONT FOG LAMP-WITH

44773DHOSE, SOLENOIDO TO RETARDER

main44773-36170iXZB70..(02S,23S,25S,30S)..STD..(GEN,TAIW)201701

main44773-36190iXZB70..6FC201908

main44773-36180iHZB60,70..GEN; HZB70..23S..GCC201701-202201

EXHAUST RETARDER-WITH; FRONT FOG LAMP-WITH

44778CHOSE, CONNECTOR TO VACUUM RESERVOIR

main44775-36100iXZB60201701-201712

44779FHOSE, CONNECTOR TUBE TO SOLENOID, NO.1

main44779-36121iXZB60201701-201712

46740CCLEANER ASSY, EXHAUST RETARDER AIR

main46740-36090iXZB60201701-201712

46740DBOLT, UNION(FOR EXHAUST RETARDER AIR CLEANER ASSY)

main90401-12097iXZB60201701-201712

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

4711EXHAUST BRAKE ASSEMBLY & VACUUM CYLINDER

→ Go to FIG 47-11

9011908A46

main90119-08A46

9040451319

main90404-51319

9043012247

main90430-12247

9046110780

main90461-10780

9165140614

main91651-40614

9165160616

main91651-60616

9613341500

main96133-41500

17 parts on this diagram · 3 diagrams in section
