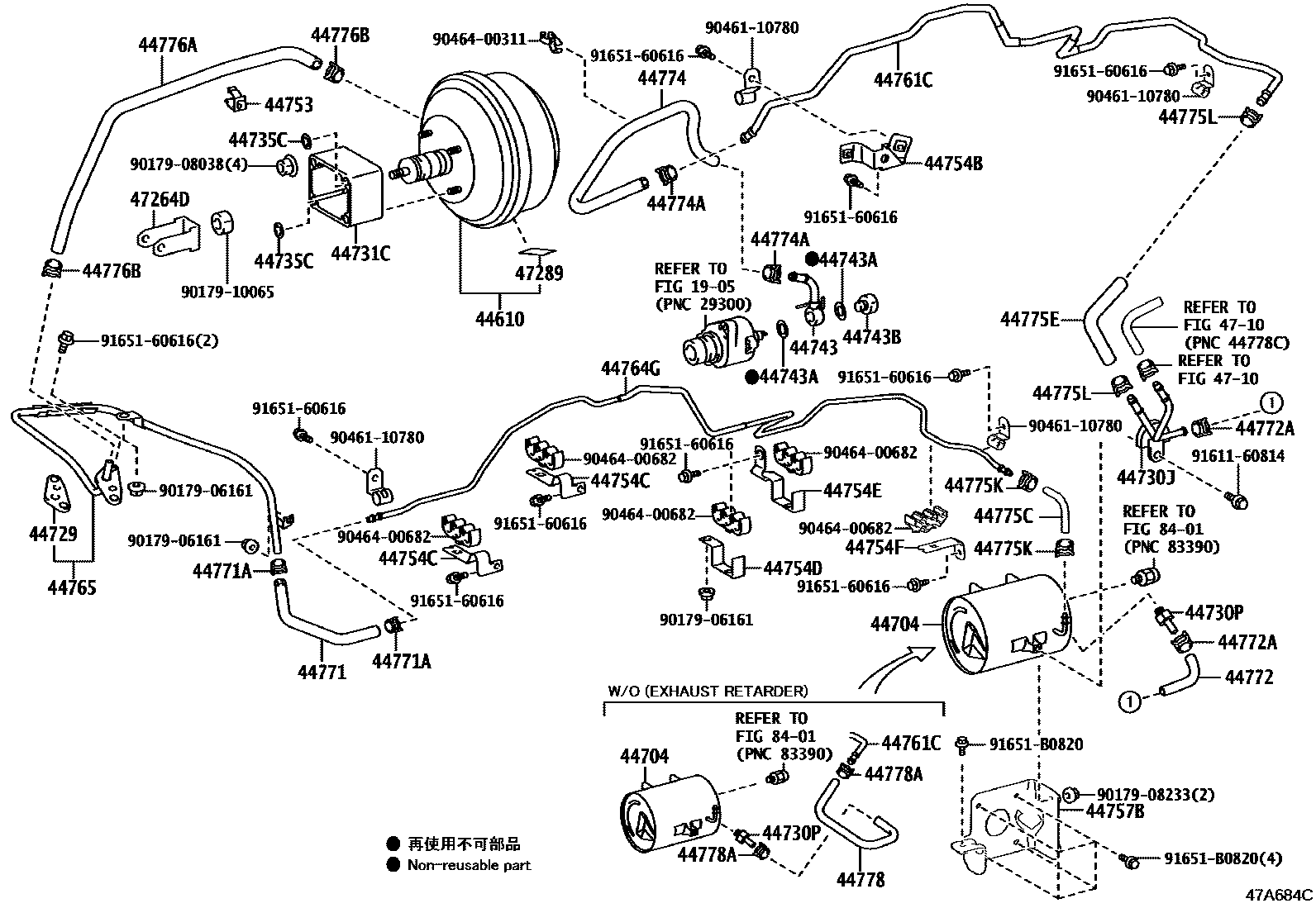

BRAKE BOOSTER & VACUUM TUBE
1905VACUUM PUMP
44610BOOSTER ASSY, BRAKE
FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)
FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH
FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)
FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH
FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH
FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)
FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH
FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)
44704RESERVOIR SUB-ASSY, VACUUM
44729GASKET, VACUUM TUBE
main44729-36020iXZB70..SA;TRB60,70..6F;XZB70..LHD..DX;HZB70..WC..GEN;HZB70..30S..WOC;XZB70..(23S,29S)..STD..WC;GDB60,HZB60,TRB70..25S,26S,30S;GDB70..(02S,19S,22S,23S)..(GCC,GEN,SA,TAIW)201701-202512
44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730JWAY(FOR BOOSTER VACUUM)
FRONT FOG LAMP-WITH
EXHAUST RETARDER-WITH
44730PVALVE ASSY, VACUUM CHECK, NO.1
44731CBRACKET, BRAKE BOOSTER
44735CRING, BOOSTER BRACKET STOPPER
44743UNION(FOR VACUUM PUMP)
44743AGASKET(FOR VACUUM PUMP UNION)
44743BBOLT, UNION(FOR VACUUM PUMP UNION)
44753CLAMP, VACUUM RESERVOIR, NO.2
44754BBRACKET, VACUUM TUBE
44754CBRACKET, VACUUM TUBE, NO.1
FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)
EXHAUST EMISSION CONTROL-EURO 4&FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS& VSC)
FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH
EXHAUST EMISSION CONTROL-EURO 4&FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH
44754DBRACKET, VACUUM TUBE, NO.2
EXHAUST EMISSION CONTROL-EURO 4&FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH
FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH
FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)
EXHAUST EMISSION CONTROL-EURO 4&FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS& VSC)
44754EBRACKET, VACUUM TUBE, NO.3
44754FBRACKET, VACUUM TUBE, NO.4
44757BBRACKET, VACUUM TANK CLAMP, NO.2
44761CTUBE, VACUUM PUMP TO CONNECTOR
44764GTUBE, CONNECTOR TO BRAKE BOOSTER
FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)
FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)&FRONT HEATER-MANUAL 120W
EXHAUST EMISSION CONTROL-EURO 4&FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH
FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH
EXHAUST EMISSION CONTROL-EURO 4&FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS& VSC)
44765TUBE, CONNECTOR TO BRAKE BOOSTER, NO.2
main44765-36310iTRB60,70..6F;HZB70..30S..WOC;GDB70,HZB60..LHD;HZB70,TRB70..LHD..WC..GEN201701-202412
44771HOSE, VACUUM TUBE CONNECTOR
FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)
FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH
44771ACLIP(FOR VACUUM TUBE CONNECTOR HOSE)
44772HOSE, CHECK VALVE TO CONNECTOR TUBE
EXHAUST RETARDER-WITH
FRONT FOG LAMP-WITH
44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
FRONT FOG LAMP-WITH
EXHAUST RETARDER-WITH
44774HOSE, UNION TO CONNECTOR TUBE
EXHAUST EMISSION CONTROL-EURO 4&FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH
44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)
44775CHOSE, CONNECTOR TO WAY
44775EHOSE, WAY TO CONNECTOR
44775KCLIP(FOR CONNECTOR TO 3 WAY HOSE)
44775LCLIP(FOR 3 WAY TO CONNECTOR HOSE)
FRONT FOG LAMP-WITH
EXHAUST RETARDER-WITH
44776HOSE, BRAKE BOOSTER
FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH
FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH
FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)
FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH
EXHAUST EMISSION CONTROL-EURO 4&FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS& VSC)
FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)
EXHAUST EMISSION CONTROL-EURO 4&FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH
main44776-36200iHZB70..30S..WOC;HZB70,TRB70..LHD..WC..GEN;XZB70..LHD..(23S,29S)..WC..GEN202201-202412
FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH
44776AHOSE, VACUUM RESERVOIR TO BRAKE BOOSTER
FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH
FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)
EXHAUST EMISSION CONTROL-EURO 4&FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH
FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH
EXHAUST EMISSION CONTROL-EURO 4&FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS& VSC)
44776BCLIP(FOR VACUUM RESERVOIR TO BRAKE BOOSTER)
EXHAUST EMISSION CONTROL-EURO 4&FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS& VSC),NO.1:REFER ILLUST.
NO.1:REFER ILLUST.
FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC),NO.1:REFER ILLUST.
FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH,NO.1:REFER ILLUST.
main96133-41500iGDB60,HZB60;HZB70..WC..GEN;HZB70..30S..WOC;XZB70..RHD..29S;GDB70..DX..(GEN,SA);XZB70..23S..(GCC,SA)202201
FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH
NO.2:REFER ILLUST.
EXHAUST EMISSION CONTROL-EURO 4&FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS& VSC),NO.2:REFER ILLUST.
FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC),NO.2:REFER ILLUST.
FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH,NO.2:REFER ILLUST.
EXHAUST EMISSION CONTROL-EURO 4&FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH
FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)&FRONT HEATER-MANUAL 120W
44778HOSE, CONNECTOR TO CHECK VALVE
44778ACLIP(FOR CONNECTOR TO CHECK VALVE HOSE)
4710EXHAUST BRAKE TUBE & CLAMP
47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD
FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)
FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH
47289LABEL, BRAKE MASTER CYLINDER ADJUST INFORMATION
FRONT WHEEL BRAKE-DISC(ROTOR = 296MM),NO.1:REFER ILLUST.
NO.1:REFER ILLUST.
FRONT WHEEL BRAKE-DISC(ROTOR = 296MM),NO.2:REFER ILLUST.
NO.2:REFER ILLUST.
8401SWITCH & RELAY & COMPUTER
9017906161
main90179-06161
9017908038
main90179-08038
9017908233
main90179-08233
9017910065
main90179-10065
9046110780
main90461-10780
9046400311
main90464-00311
9046400682
main90464-00682
9161160814
main91611-60814
9165160616
main91651-60616
91651B0820
main91651-B0820
51 parts on this diagram · 15 diagrams in section
