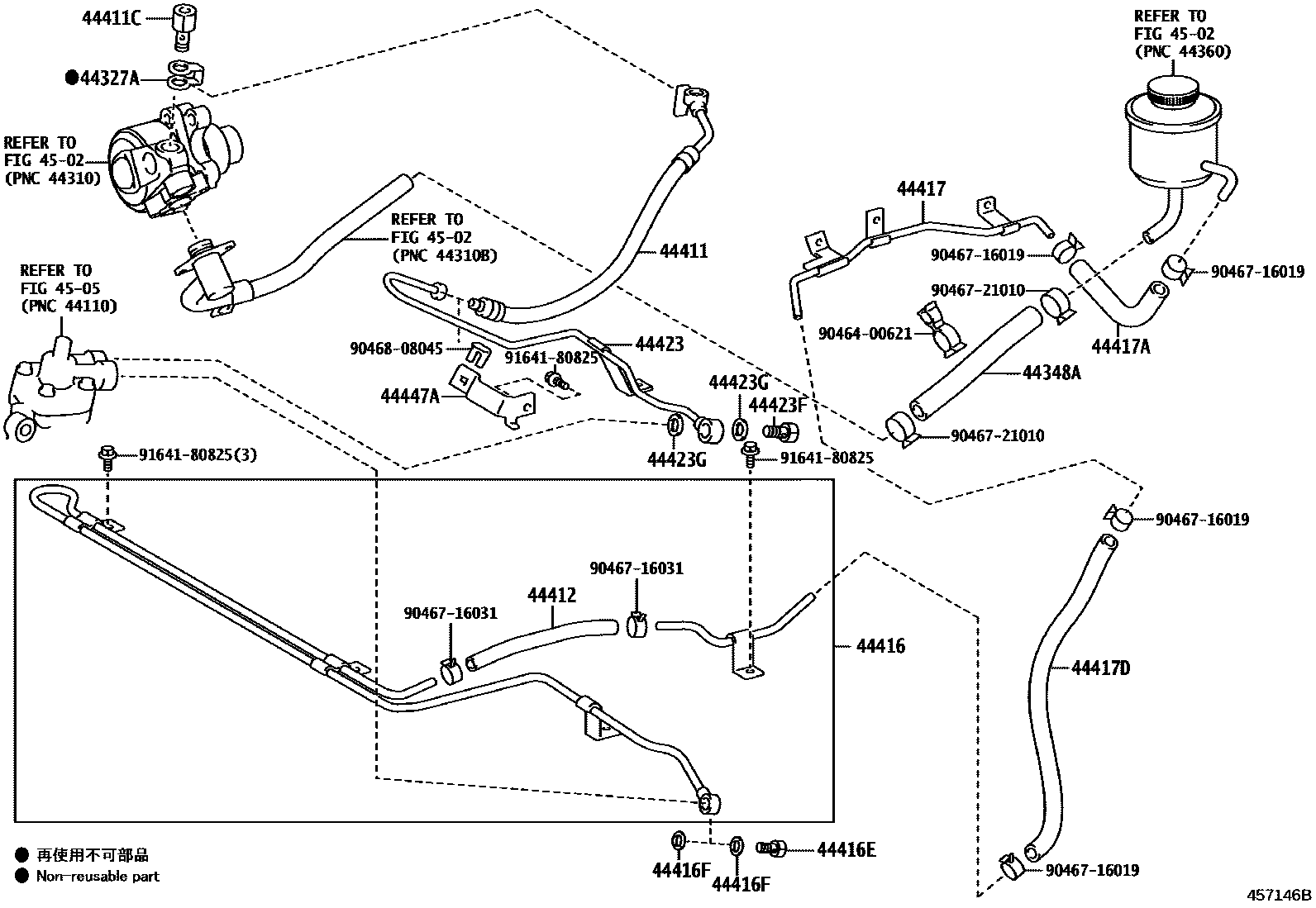

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-30030iXZB70,80..4FC;BZB70,XZB70..(01S,22S)..5F..STD201701-202012

main44327-30040iTRB60,70..6F;TRB70..WC..GEN202201

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-36150iBB60201701-201905

main44348-36151iBB60201905-201907

main44348-36250iHZB70..RHD201701-201903

main44348-36251iHZB60,70..RHD201904-202201

main44348-36260iHZB70..LHD201701-201903

main44348-36261iHZB60,70..LHD..(23S,25S,26S,30S)201904-202201

main44348-36350iBZB70201701-201903

main44348-36351iBZB70201904-202012

main44348-36360iXZB70..(02S,23S,25S,30S)..STD..(GEN,TAIW)201701

main44348-36370iTRB60,70..GCC202201-202303

main44348-36400iXZB70..LHD..(19S,23S,29S)..WC; XZB80..6FC201908-202201

EXHAUST EMISSION CONTROL-EURO 4

main44348-V4010iGDB70..BTN202201-202312

main44348-36380iXZB70..LHD..(GCC,GEN)201701-201908

EXHAUST EMISSION CONTROL-EURO 4

44411HOSE, PRESSURE FEED

main44411-36371iBB60..LHD201701-201907

main44411-36390iHZB70..23S..GCC202201-202412

main44411-36401iBB60..RHD201701-201907

main44411-36410iHZB60,70..RHD202201

main44411-36550iXZB70,80..4FC;XZB70..5F..ARL201701-202012

main44411-36560iXZB70..(02S,23S,25S,30S)..STD..(GEN,TAIW)201701

main44411-36570iTRB60,70..6F;TRB70..WC..GEN202201

main44411-V4010iGDB70..DX..ARL;GDB70..RHD..(EX,STD)..(ARL,GEN)202201-202512

main44411-V4020iGDB70..LHD202201

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-16034iTRB70..WOC202201-202412

main90404-16024iBB60201701-201907

main96341-41603iXZB70..RHD..23S..GEN202501

44412HOSE, RETURN

main90445-18137iXZB70..RHD..23S..GEN202501

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-36351iBZB70201707-202012

main44416-36361iHZB70..23S..WOC202201-202312

main44416-36381iTRB70..WOC202201-202412

main44416-36410iBB60,HZB70..RHD201701-201709

main44416-V4010iGDB60;GDB70..DX..(GEN,SA)202201

main44416-V4020iGDB70..LHD202201

44416EBOLT, UNION(FOR RETURN TUBE)

main90401-14003iBZB60,XZB60201701-201712

44416FGASKET(FOR RETURN TUBE)

main90430-14014×2iBB60,XZB60..20S,26S201701-201907

44417TUBE, RETURN, NO.2

main44417-36210iBB60201701-201907

main44417-V4010iGDB70..LHD202201

44417AHOSE, RETURN TUBE (FOR RETURN TUBE TO RETURN TUBE NO.2)

main90445-18137iGDB70..LHD202201

main90445-18146iBB60201701-201907

44417DHOSE(FOR RETURN TUBE TO RESERVOIR)

main90445-18082iBB60201701-201907

44423TUBE, OIL PUMP TO GEAR BOX

main44423-36241iHZB70..23S..WOC202201-202312

main44423-36312iHZB60,70..RHD202201

44423FBOLT, UNION

main90401-14003iTRB60,70..GCC202201-202303

44423GGASKET, UNION BOLT

main90430-14014×2iBB60,XZB60..20S,26S201701-201907

44447ABRACKET, HOSE SUPPORT, NO.1

main44447-36200iXZB70..RHD..23S..GEN202501

main44447-36210iBB60,XZB60..LHD201701-201907

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

9046400621

main90464-00621

9046716019

main90467-16019

9046716031

main90467-16031

9046721010

main90467-21010

9046808045

main90468-08045

9164180825

main91641-80825

23 parts on this diagram · 10 diagrams in section
