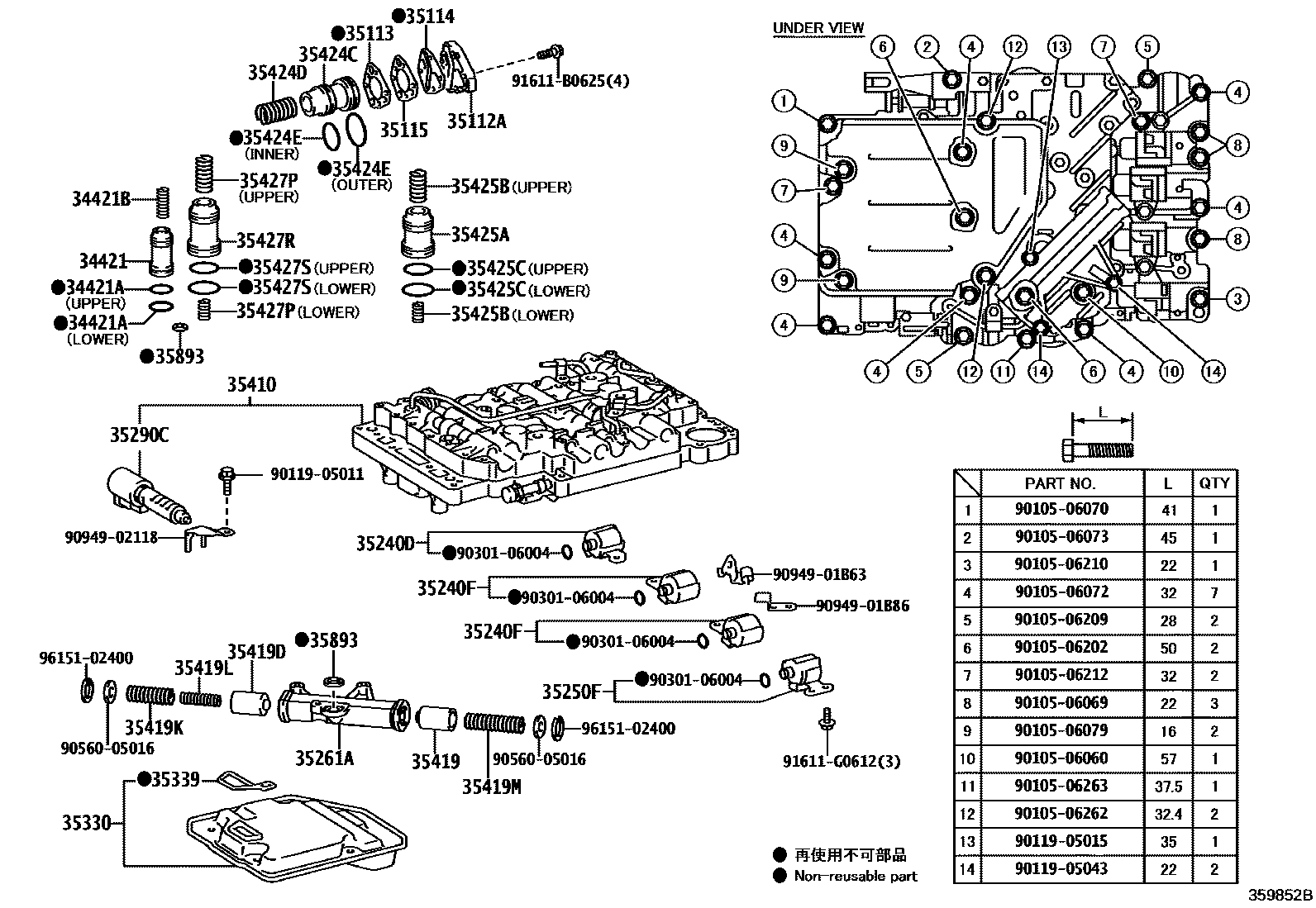

VALVE BODY & OIL STRAINER (ATM)
34421PISTON, OVERDRIVE BRAKE ACCUMULATOR
34421ARING, O (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON)
34421BSPRING (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON)
35112ACOVER, FRONT CLUTCH ACCUMULATOR
35113GASKET, FRONT CLUTCH ACCUMLATOR, NO.2
35114GASKET, FRONT CLUTCH ACCUMLATOR, NO.1
35115PLATE, FRONT CLUTCH ACCUMULATOR
35240DVALVE, SOLENOID(SL)
35250FVALVE, SOLENOID(ST)
35261ACYLINDER, THROTTLE PRESSURE ACCUMULATOR
35290CVALVE, SOLENOID(SLT)
35330STRAINER ASSY, VALVE BODY OIL
35339GASKET, OIL STRAINER
35410BODY ASSY, TRANSMISSION VALVE
35419VALVE, CHECK, NO.1
35419DVALVE, CHECK, NO.2
35419KSPRING, COMPRESSION (FOR CHECK VALVE NO.2)
35419LSPRING, COMPRESSION (FOR CHECK VALVE NO.3)
35419MSPRING, COMPRESSION (FOR CHECK VALVE NO.4)
35424CPISTON, C-1 ACCUMULATOR
35424DSPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)
35425APISTON, C-2 ACCUMULATOR
35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)
35427PSPRING, COMPRESSION, NO.1(FOR B-1 ACCUMULATOR PISTON)
35427RPISTON B-1 ACCUMULATOR
35893GASKET, CENTER SUPPORT APPLY
9010506060
main90105-06060
9010506069
main90105-06069
9010506070
main90105-06070
9010506072
main90105-06072
9010506073
main90105-06073
9010506079
main90105-06079
9010506202
main90105-06202
9010506209
main90105-06209
9010506210
main90105-06210
9010506212
main90105-06212
9010506262
main90105-06262
9010506263
main90105-06263
9011905011
main90119-05011
9011905015
main90119-05015
9011905043
main90119-05043
9030106004
main90301-06004
9056005016
main90560-05016
9094901B63
main90949-01B63
9094901B86
main90949-01B86
9094902118
main90949-02118
91611B0625
main91611-B0625
91611G0612
main91611-G0612
9615102400
main96151-02400
53 parts on this diagram · 5 diagrams in section
