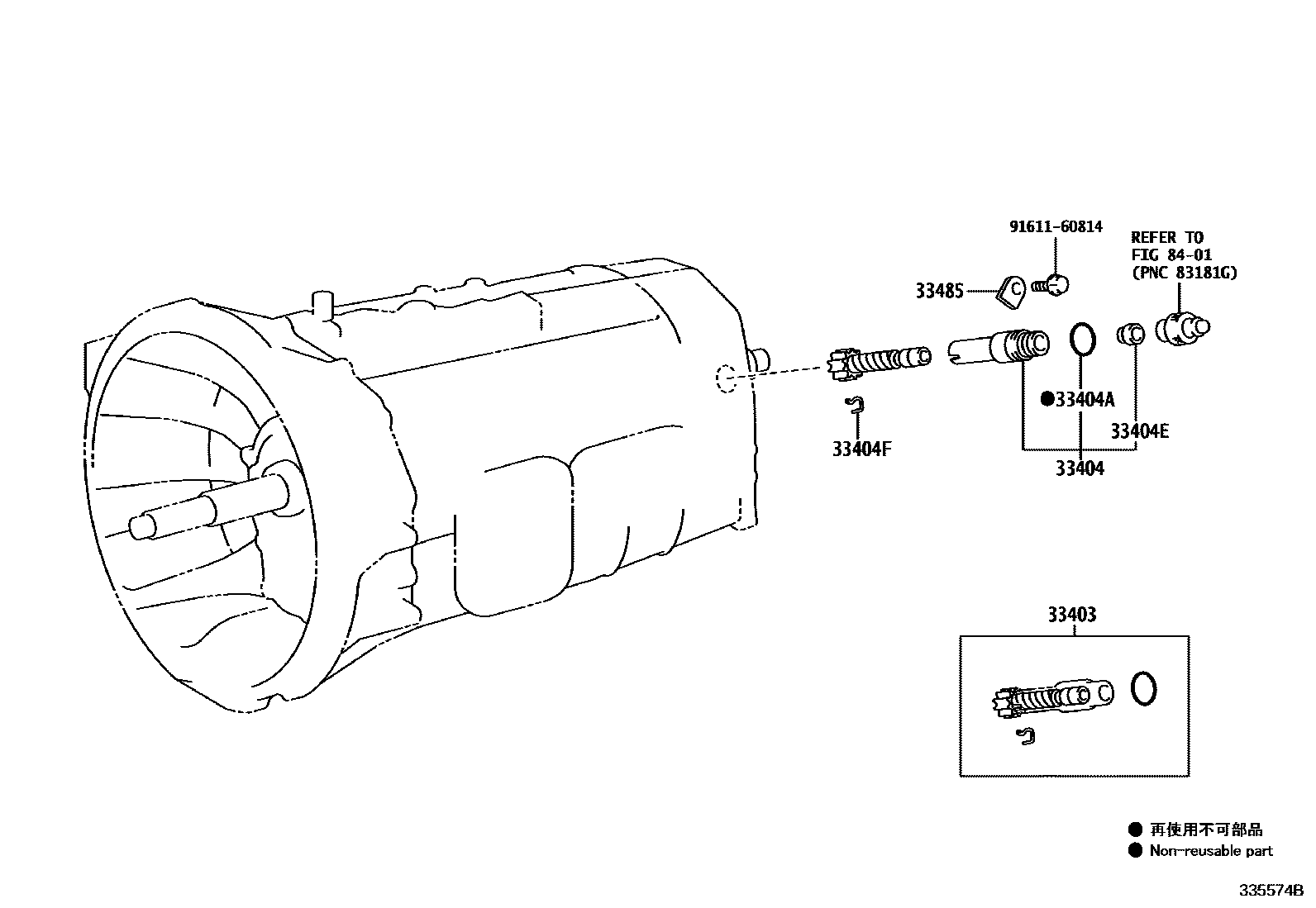

SPEEDOMETER DRIVEN GEAR (MTM)
33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
N=22,MARK 22:6
N=22,MARK 22:6,REAR DIFFERENTIAL-FINAL GEAR RATIO = 5.625&TIRE & DISC WHEEL-700R16-12PR, 5.50F, STEEL
N=22,MARK 22:6,EXHAUST RETARDER-WITH&TIRE & DISC WHEEL-700R16-10PR, 5.50F, STEEL
N=22,MARK 22:6,EXHAUST RETARDER-WITH&TIRE & DISC WHEEL-700R16-12PR, 5.50F, STEEL
N=22,MARK 22:6,TIRE & DISC WHEEL-700R16-10PR, 5.50F, STEEL
N=22,MARK 22:6,TIRE & DISC WHEEL-700R16-12PR, 5.50F, STEEL
N=22,MARK 22:6
N=22,MARK 22:6,REAR DIFFERENTIAL-FINAL GEAR RATIO = 5.625&TIRE & DISC WHEEL-700R16-12PR, 5.50F, STEEL
N=23,MARK 23:6,REAR DIFFERENTIAL-FINAL GEAR RATIO = 5.625&EXHAUST RETARDER-WITH
N=23,MARK 23:6,REAR DIFFERENTIAL-FINAL GEAR RATIO = 5.625
N=23,MARK 23:6,REAR DIFFERENTIAL-FINAL GEAR RATIO = 5.857&TIRE & DISC WHEEL-700R16-12PR, 5.50F, STEEL
N=23,MARK 23:6
N=23,MARK 23:6,EXHAUST RETARDER-WITH
N=24,MARK 24:6
N=25,MARK 25:6
33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)
33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)
33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)
33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)
33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)
8401SWITCH & RELAY & COMPUTER
9161160814
main91611-60814
8 parts on this diagram · 2 diagrams in section
