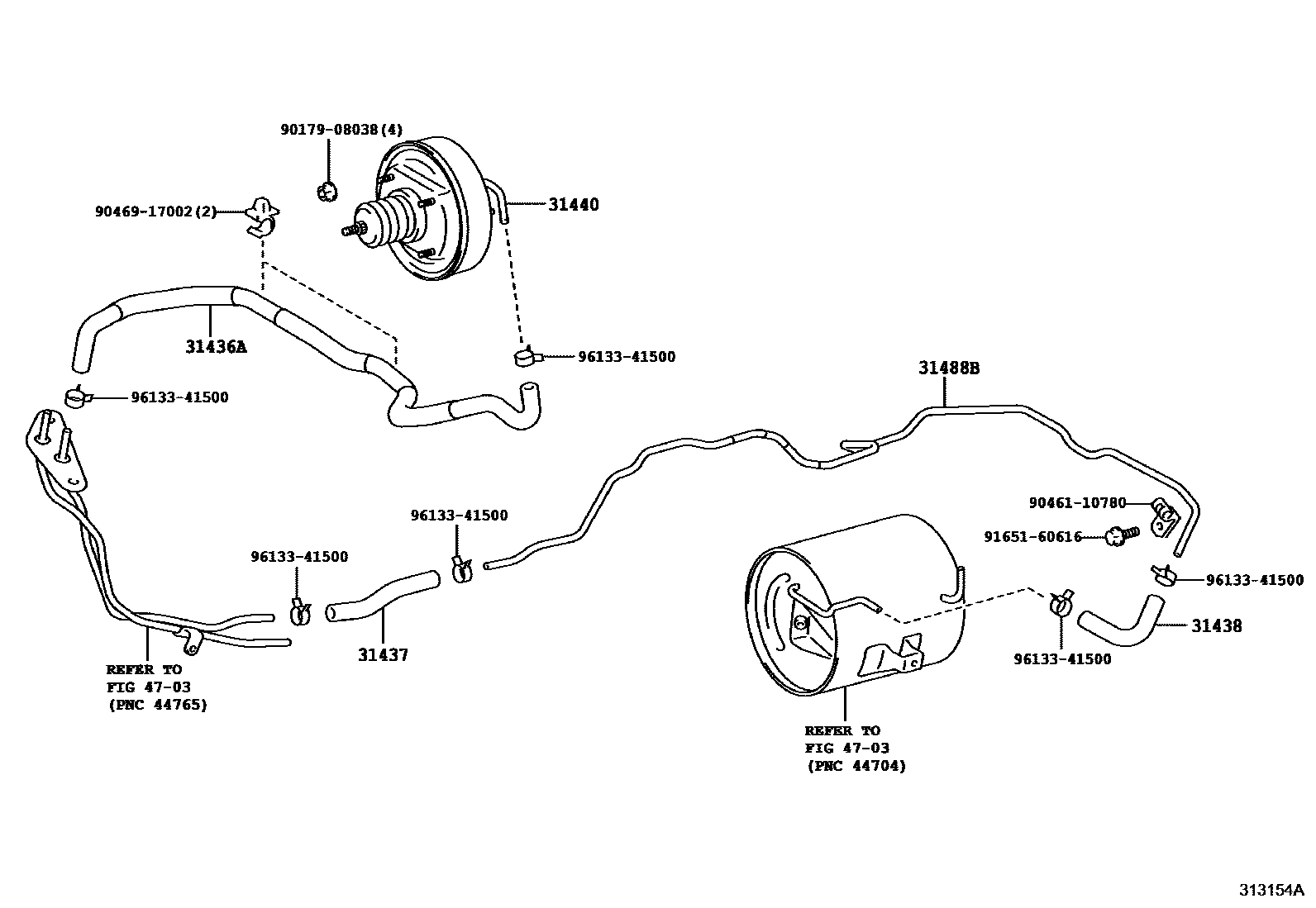

CLUTCH BOOSTER

0001 1 0002 1

31436AHOSE, NO.1(FOR CLUTCH BOOSTER VACUUM)

main31436-36121iXZB70..SA;XZB70..RHD..29S202201

main31436-36150iXZB60..GCC201701-201907

main31436-36160iXZB70..19S202407-202412

31437HOSE, NO.2(FOR CLUTCH BOOSTER VACUUM)

main44771-36310iXZB70..(02S,23S,25S,30S)..STD..(GEN,TAIW)201701

main90445-17141iXZB70,80..RHD..5F..(GEN,SA)201701-202201

31438HOSE, NO.3(FOR CLUTCH BOOSTER VACUUM)

main44775-36100iBZB60,XZB60201701-201712

31440BOOSTER ASSY, CLUTCH W/AIR CLEANER

main31440-36080iXZB70,80..RHD..5F..(GEN,SA)201701-202201

main31440-36090iXZB70..LHD..(19S,23S,29S)..WC201701-202201

31488BTUBE, VACUUM HOSE TO VACUUM HOSE

main31488-36720iBZB70201701-202012

main31488-36740iXZB60201701-201712

main31488-36820supersedes 31488-36780iXZB70..(23S,25S,30S)..STD..GEN; XZB70..TAIW201701

ABS-WITH(ABS & VSC)

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

9017908038

main90179-08038

9046110780

main90461-10780

9046917002

main90469-17002

9165160616

main91651-60616

9613341500

main96133-41500

11 parts on this diagram · 2 diagrams in section
