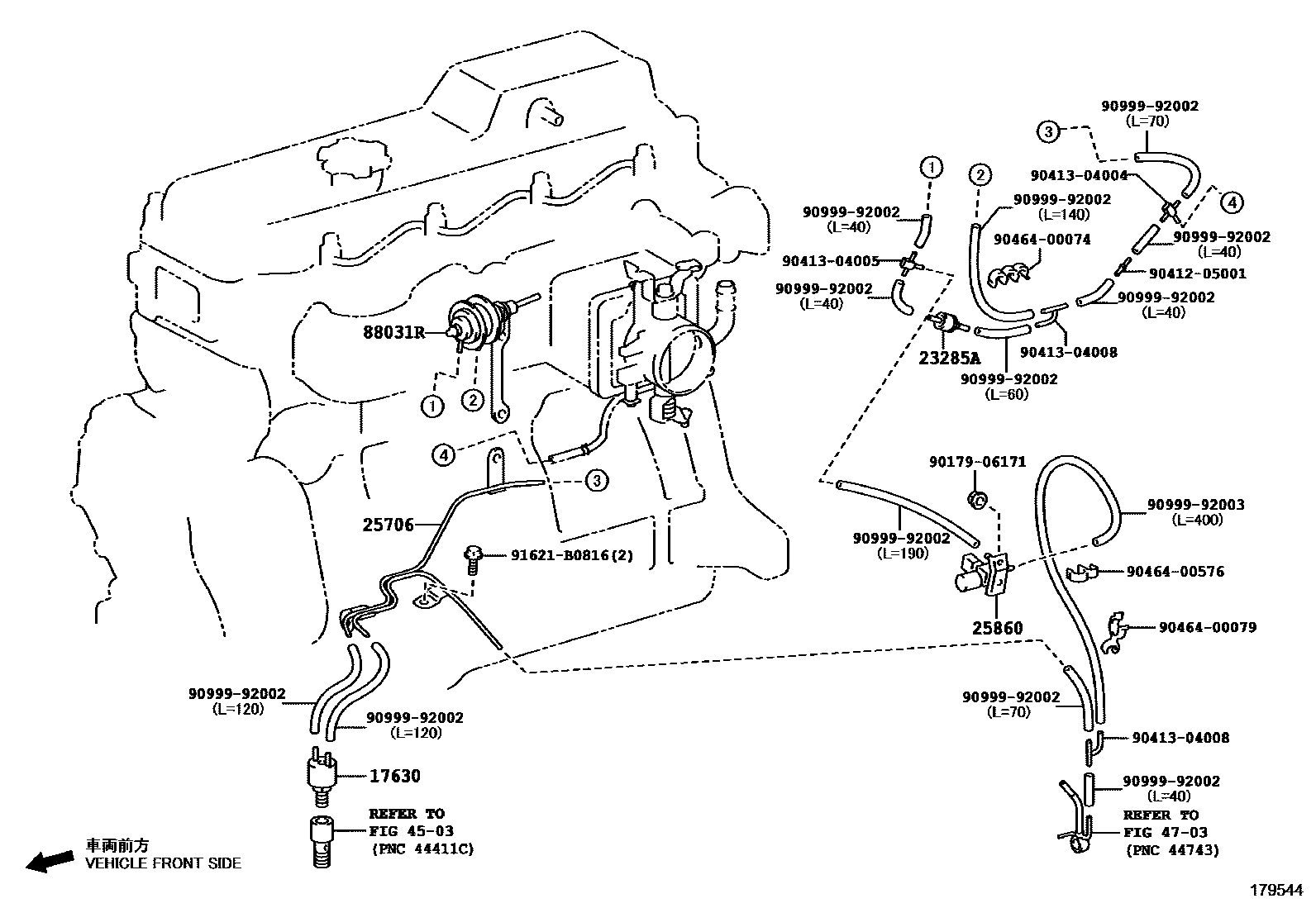

VACUUM PIPING

0001 1 0002 1 0003 1 0004 1 0005 1W(SCV) 0006 1W/O(SCV) 0007 1 0008 1

17630VALVE ASSY, AIR CONTROL

main17630-15010i1HZ..HZB70..23S..GCC201701-202412

23285AVALVE, CHECK, NO.1

main90917-10049i14B..BB60..WC201701-202412

25706PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1

main25706-0E010i1GDFTV..GDB70..DX..ARL;1GDFTV..GDB70..RHD..(EX,STD)..(ARL,GEN)202201-202512

(L)

main25706-11020i1GDFTV..GDB70..ARL,GCC,GEN,TAIW202201-202206

(J)

main25706-58050i14B..BB60201701-201907

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-30070i1GDFTV..GDB70..BTN202201-202512

main25860-58050i14B..BB60..WC201701-201907

4503POWER STEERING TUBE

→ Go to FIG 45-03

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

88031RACTUATOR SET, IDLE-UP

main88031-36100iHZB70..23S..WOC201701-202412

main88031-36120iBB60201701-201907

9017906171

main90179-06171

9041205001

main90412-05001

9041304004

main90413-04004

9041304005

main90413-04005

9041304008

main90413-04008

9046400074

main90464-00074

9046400079

main90464-00079

9046400576

main90464-00576

9099992002

main90999-92002

9099992003

main90999-92003

91621B0816

main91621-B0816

18 parts on this diagram · 8 diagrams in section
