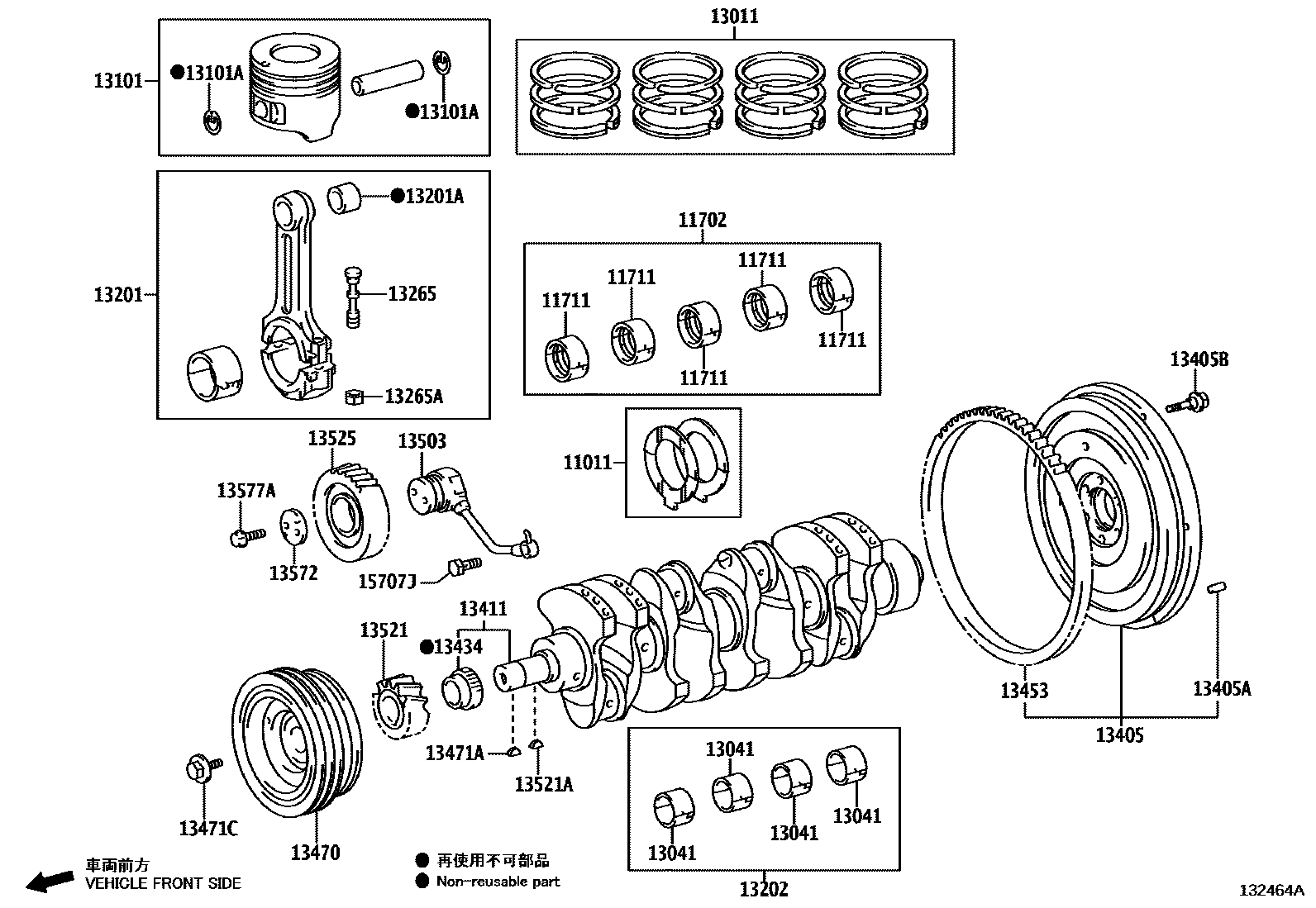

CRANKSHAFT & PISTON

0001 1 0002 1 0003 1 0004 1 0005 1

11011WASHER SET, CRANKSHAFT THRUST

main11011-17010i1HZ..HZB70..23S..WOC201701-202412

STD

main11011-30010i1GDFTV..GDB70..DX..ARL;1GDFTV..GDB70..RHD..(EX,STD)..(ARL,GEN)202201-202512

STD

main11011-58020i1BZFPE..BZB60,70201701-202012

STD

main11011-75020i2TRFE..TRB60..GEN201902-202412

STD

main11011-75021i2TRFE..TRB60,70201701-201901

STD

main11011-E0030iN04C..XZB60201701-202512

STD

main11012-58020i1BZFPE..BZB60,70201701-202012

O/S 0.125

main11013-58020i14B..BB60201701-202012

O/S 0.250

11702BEARING SET, CRANKSHAFT

main11701-11030-02i1GDFTV..GDB70..BTN202201-202512

MARK 2

main11701-11030-03i1GDFTV..GDB70..DX..ARL;1GDFTV..GDB70..RHD..(EX,STD)..(ARL,GEN)202201-202512

MARK 3

main11701-11030-04i1GDFTV..GDB60;1GDFTV..GDB70..(02S,19S,22S,23S)..(GCC,GEN,SA,TAIW)202201-202512

MARK 4

main11701-11030-05i1GDFTV..GDB70..BTN202201-202512

MARK 5

main11701-11030-06i1GDFTV..GDB60;1GDFTV..GDB70..(02S,19S,22S,23S)..(GCC,GEN,SA,TAIW)202201-202512

MARK 6

main11701-78160iN04C..XZB70..GCC;N04C..XZB70..22S..GEN201905-202512

STD

main11701-E0070iN04C..XZB60201701-201905

STD

main11704-17011i1HZ..HZB60,70..23S,25S,26S,30S201701-202412

U/S 0.25

main11704-58010i14B..BB60201701-202012

U/S 0.25

main11704-75033i2TRFE..TRB60,70201701-201712

U/S 0.25

main11704-75034i2TRFE..TRB60..GEN201712-202412

U/S 0.25

main11704-E0040iN04C..XZB60..GCC201701-201908

U/S 0.25

main11704-E0050iN04C..XZB80;N04C..XZB70..20S..5F201908-202512

U/S 0.25

main11705-17011i1HZ..HZB60;1HZ..HZB70..WC..GEN;1HZ..HZB70..30S..WOC201701-202412

U/S 0.50

main11705-58010i1BZFPE..BZB60,70201701-202012

U/S 0.50

main11705-E0040iN04C..XZB60201701-201908

U/S 0.50

main11705-E0050iN04C..XZB70..SA;N04C..XZB70..29S;N04C..XZB70..LHD..DX..GEN201908-202512

U/S 0.50

main11706-E0020iN04C..XZB60..GCC201701-201908

U/S 0.75

main11706-E0040iN04C..XZB70,80..4FC;N04C..XZB70..5F..ARL201908-202512

U/S 0.75

main11707-58010i1BZFPE..BZB60,70201701-202012

U/S 1.00

main11707-E0020iN04C..XZB70201701-201908

U/S 1.00

main11707-E0040iN04C..XZB70..6FC;N04C..XZB70..(02S,23S,25S,30S)..STD..(GEN,TAIW)201908-202512

U/S 1.00

11711BEARING, CRANKSHAFT

main11701-17011-02i1HZ..HZB70..19S201701-202412

MARK 2,REFER REPAIR MANUAL

main11701-17011-03i1HZ..HZB70..19S201701-202412

MARK 3,REFER REPAIR MANUAL

main11701-17011-04i1HZ..HZB70..19S201701-202412

MARK 4,REFER REPAIR MANUAL

main11701-17011-05i1HZ..HZB60;1HZ..HZB70..WC..GEN;1HZ..HZB70..30S..WOC201701-202412

MARK 5,REFER REPAIR MANUAL

main11701-17011-06i1HZ..HZB70..23S..WOC201701-202412

MARK 6,REFER REPAIR MANUAL

main11701-17011-07i1HZ..HZB70..23S..WOC201701-202412

MARK 7,REFER REPAIR MANUAL

main11701-58010-01i1BZFPE..BZB60,70201701-202012

MARK 1,REFER REPAIR MANUAL

main11701-58010-02i1BZFPE..BZB60,70201701-202012

MARK 2,REFER REPAIR MANUAL

main11701-75033-01i2TRFE..TRB60,70201701-201712

MARK 1,REFER REPAIR MANUAL

main11701-75033-02i2TRFE..TRB60,70201701-201712

MARK 2,REFER REPAIR MANUAL

main11701-75033-03i2TRFE..TRB60,70201701-201712

MARK 3,REFER REPAIR MANUAL

main11701-75033-04i2TRFE..TRB60,70201701-201712

MARK 4,REFER REPAIR MANUAL

main11701-75033-05i2TRFE..TRB60,70201701-201712

MARK 5,REFER REPAIR MANUAL

main11701-75034-01i2TRFE..TRB60..GEN201712-202412

MARK 1,REFER REPAIR MANUAL

main11701-75034-02i2TRFE..TRB60..GEN201712-202412

MARK 2,REFER REPAIR MANUAL

main11701-75034-03i2TRFE..TRB60..GEN201712-202412

MARK 3,REFER REPAIR MANUAL

main11701-75034-04i2TRFE..TRB60,70..GCC201712-202412

MARK 4,REFER REPAIR MANUAL

main11701-75034-05i2TRFE..TRB60,70..GCC201712-202412

MARK 5,REFER REPAIR MANUAL

13011RING SET, PISTON

main13011-11201i1GDFTV..GDB60;1GDFTV..GDB70..(02S,19S,22S,23S)..(GCC,GEN,TAIW)202201-202512

STD

main13011-11212i1GDFTV..GDB70..SA202201

STD

main13011-17030i1HZ..HZB70..19S201701-202412

STD

main13011-48040i1BZFPE..BZB60,70201701-202012

STD

main13011-58072i14B..BB60201701-201907

STD

main13011-75110i2TRFE..TRB60..GEN201701-202412

STD

main13013-17030i1HZ..HZB60,70..23S,25S,26S,30S201701-202412

O/S 0.50

main13013-48040i1BZFPE..BZB60,70201701-202012

O/S 0.50

main13013-58072i14B..BB60201701-201907

O/S 0.50

main13013-75110i2TRFE..TRB60,70..6F;2TRFE..TRB70..WC..GEN201701-202412

O/S 0.50

main13014-17030i1HZ..HZB70..23S..GCC201701-202412

O/S 0.75

main13014-48040i1BZFPE..BZB60,70201701-202012

O/S 0.75

main13014-58072i14B..BB60201701-201907

O/S 0.75

main13015-48040i1BZFPE..BZB60,70201701-202012

O/S 1.00

main13015-58072i14B..BB60201701-201907

O/S 1.00

mainS1304E0020iN04C..XZB70..23S..GCC;N04C..XZB70..RHD..23S..GEN201701-202412

STD

mainS1304E0700iN04C..XZB70..6FC..GEN201908-202512

STD

13041BEARING, CONNECTING ROD

main13041-11061-02i1GDFTV..GDB60;1GDFTV..GDB70..(02S,19S,22S,23S)..(GCC,GEN,SA,TAIW)202201-202512

MARK 2

main13041-11061-03i1GDFTV..GDB70..BTN202201-202512

MARK 3

main13041-11061-04i1GDFTV..GDB70..BTN202201-202512

MARK 4

main13041-11061-05i1GDFTV..GDB70..DX..ARL;1GDFTV..GDB70..RHD..(EX,STD)..(ARL,GEN)202201-202512

MARK 5

main13041-11061-06i1GDFTV..GDB70..BTN202201-202512

MARK 6

main13041-17011-02i1HZ..HZB70..23S..WOC201701-202412

MARK 2,REFER REPAIR MANUAL

main13041-17011-03i1HZ..HZB70..23S..GCC201701-202412

MARK 3,REFER REPAIR MANUAL

main13041-17011-04i1HZ..HZB70..19S201701-202412

MARK 4,REFER REPAIR MANUAL

main13041-17011-05i1HZ..HZB70..19S201701-202412

MARK 5,REFER REPAIR MANUAL

main13041-17011-06i1HZ..HZB60,70..23S,25S,26S,30S201701-202412

MARK 6,REFER REPAIR MANUAL

main13041-58050-01i1BZFPE..BZB60,70201701-202012

MARK 1,REFER REPAIR MANUAL

main13041-58050-02i1BZFPE..BZB60,70201701-202012

MARK 2,REFER REPAIR MANUAL

main13041-75070-04i2TRFE..TRB60,70..GCC201701-202412

MARK 4,REFER REPAIR MANUAL

main13041-75070-05i2TRFE..TRB70..WOC201701-202412

MARK 5,REFER REPAIR MANUAL

main13041-75070-06i2TRFE..TRB60,70..19S,20S,23S,24S,30S201701-202412

MARK 6,REFER REPAIR MANUAL

13101PISTON SUB-ASSY, W/PIN

main13101-11191-01i1GDFTV..GDB60;1GDFTV..GDB70..(02S,19S,22S,23S)..(GCC,GEN,SA,TAIW)202201-202512

STD,MARK 1

main13101-11191-02i1GDFTV..GDB70..BTN202201-202512

STD,MARK 2

main13101-17100-01i1HZ..HZB60,70..23S,25S,26S,30S201701-202412

STD,MARK 1,REFER REPAIR MANUAL

main13101-17100-02i1HZ..HZB70..23S..GCC201701-202412

STD,MARK 2,REFER REPAIR MANUAL

main13101-17100-03i1HZ..HZB70..23S..GCC201701-202412

STD,MARK 3,REFER REPAIR MANUAL

main13101-48021-01i1BZFPE..BZB60,70201701-202012

STD,MARK 1,REFER REPAIR MANUAL

main13101-48021-02i1BZFPE..BZB60,70201701-202012

STD,MARK 2,REFER REPAIR MANUAL

main13101-48021-03i1BZFPE..BZB60,70201701-202012

STD,MARK 3,REFER REPAIR MANUAL

main13101-58041-01i14B..BB60201701-201907

STD,MARK 1,REFER REPAIR MANUAL

main13101-58041-02i14B..BB60201701-201907

STD,MARK 2,REFER REPAIR MANUAL

main13101-58041-03i14B..BB60201701-201907

STD,MARK 3,REFER REPAIR MANUAL

main13101-75130i2TRFE..TRB60..GEN201701-202412

STD

main13103-17100i1HZ..HZB60;1HZ..HZB70..WC..GEN;1HZ..HZB70..30S..WOC201701-202412

O/S 0.50

main13103-48021i1BZFPE..BZB60,70201701-202012

O/S 0.50

main13103-58041i14B..BB60201701-201907

O/S 0.50

main13103-75130i2TRFE..TRB60,70..6F;2TRFE..TRB70..WC..GEN201701-202412

O/S 0.50

main13104-17100i1HZ..HZB70..23S..GCC201701-202412

O/S 0.75

main13104-48021i1BZFPE..BZB60,70201701-202012

O/S 0.75

main13104-58041i14B..BB60201701-201907

O/S 0.75

main13105-48021i1BZFPE..BZB60,70201701-202012

O/S 1.00

main13105-58041i14B..BB60201701-201907

O/S 1.00

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90520-22025i2TRFE..TRB60..GEN201701-202412

main90520-32013i1GDFTV..GDB70..DX..ARL;1GDFTV..GDB70..RHD..(EX,STD)..(ARL,GEN)202201-202512

main90521-32004i1HZ..HZB70..23S..WOC201701-202412

main90521-34002i14B..BB60201701-201907

main90521-37007i1BZFPE..BZB60,70201701-202012

mainSZ52037001iN04C..XZB60201701-202512

13201ROD SUB-ASSY, CONNECTING

main13201-0E020-A0i1GDFTV..GDB70..DX..ARL;1GDFTV..GDB70..RHD..(EX,STD)..(ARL,GEN)202201-202512

MARK A,(L)

main13201-0E020-B0i1GDFTV..GDB70..BTN202201-202512

MARK B,(L)

main13201-0E020-C0i1GDFTV..GDB70..DX..ARL;1GDFTV..GDB70..RHD..(EX,STD)..(ARL,GEN)202201-202512

MARK C,(L)

main13201-11050-A0i1GDFTV..GDB70..BTN202201-202512

MARK A,(J)

main13201-11050-B0i1GDFTV..GDB70..DX..ARL;1GDFTV..GDB70..RHD..(EX,STD)..(ARL,GEN)202201-202512

MARK B,(J)

main13201-11050-C0i1GDFTV..GDB70..DX..ARL;1GDFTV..GDB70..RHD..(EX,STD)..(ARL,GEN)202201-202512

MARK C,(J)

main13201-17010i1HZ..HZB70..23S..GCC201701-202412

main13201-49056i1BZFPE..BZB60,70201701-202012

main13201-59266i14B..BB60201701-201907

main13201-79617i2TRFE..TRB60,70..6F;2TRFE..TRB70..WC..GEN201701-202412

13201ABUSH(FOR CONNECTING ROD SMALL END)

main13271-78100iN04C..XZB70..23S..GCC;N04C..XZB70..RHD..23S..GEN201908-202512

main90999-73124i14B..BB60201701-201907

main90999-73126i1HZ..HZB70..23S..GCC201701-202412

main90999-73134i1BZFPE..BZB60,70201701-202012

main90999-73144i2TRFE..TRB60,70..6F;2TRFE..TRB70..WC..GEN201701-202412

mainS132721400iN04C..XZB60..GCC201701-201908

13202BEARING SET, CONNECTING ROD

main13041-78430iN04C..XZB70..23S..GCC;N04C..XZB70..RHD..23S..GEN201905-202512

STD

main13041-E0690iN04C..XZB60,70..02S,19S,20S,22S,23S,25S,29S,30S201701-201905

STD

main13041-E0B00iN04C..XZB70..RHD..23S..GEN201908-202512

U/S 0.25

main13041-E0B10iN04C..XZB80..5F,6FC;N04C..XZB70..(19S,20S,22S,23S,29S)..5F..WC..(GCC,GEN,SA)201908-202512

U/S 0.50

main13041-E0B20iN04C..XZB70..6FC;N04C..XZB70..(02S,23S,25S,30S)..STD..(GEN,TAIW)201908-202512

U/S 0.75

main13041-E0B30iN04C..XZB70,80..4FC;N04C..XZB70..5F..ARL201908-202512

U/S 1.00

main13204-17011i1HZ..HZB70..23S..WOC201701-202412

U/S 0.25

main13204-58050i14B..BB60201701-202012

U/S 0.25

main13204-75070i2TRFE..TRB60..GEN201701-202412

U/S 0.25

main13205-17011i1HZ..HZB60,70..23S,25S,26S,30S201701-202412

U/S 0.50

main13205-58050i1BZFPE..BZB60,70201701-202012

U/S 0.50

main13207-58050i1BZFPE..BZB60,70201701-202012

U/S 1.00

13265BOLT, CONNECTING ROD

main13265-0C010i2TRFE..TRB60,70201904-202005

(L)

main13265-17010i1HZ..HZB70..19S201701-202412

main13265-22031i1GDFTV..GDB70..BTN202201-202512

main13265-28010i2TRFE..TRB60,70201701-201812

main13265-28020i2TRFE..TRB60,70201901-202005

(J)

main13265-28020i2TRFE..TRB60,70..GCC201901-202412

main13265-58020i14B..BB60201701-202012

main13265-E0010iN04C..XZB70..GCC;N04C..XZB70..22S..GEN201701-202512

13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)

main13266-58010i1BZFPE..BZB60,70201701-202012

13405FLYWHEEL SUB-ASSY

main13405-11090i1GDFTV..GDB60;1GDFTV..GDB70..(02S,19S,22S,23S)..(GCC,GEN,SA,TAIW)202201-202512

main13405-17010i1HZ..HZB60;1HZ..HZB70..WC..GEN;1HZ..HZB70..30S..WOC201701-202412

main13405-56041i14B..BB60201701-201907

main13405-58070i1BZFPE..BZB60,70201701-202012

main13405-75060i2TRFE..TRB70..WOC201701-202412

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-05121i1GDFTV..GDB70..DX..ARL;1GDFTV..GDB70..RHD..(EX,STD)..(ARL,GEN)202201-202512

L=15,OD=5

main90250-08054i2TRFE..TRB60,70..6F;2TRFE..TRB70..WC..GEN201701-202412

L=23,OD=8

main90250-10192i1HZ..HZB60;1HZ..HZB70..WC..GEN;1HZ..HZB70..30S..WOC201701-202412

L=22,OD=10

mainSM21201024iN04C..XZB70..RHD..23S..GEN201701-202512

L=24,OD=10

13405BBOLT, FLYWHEEL SETTING

main90105-12169i1HZ..HZB60,70..23S,25S,26S,30S201701-202412

main90910-02116i2TRFE..TRB70..WOC201701-202412

main90913-01015i1BZFPE..BZB60,70201701-202012

mainS134551550iN04C..XZB80..6FC201701-202512

mainS134551820iN04C..XZB60201701-202512

13411CRANKSHAFT

main13401-0C022i2TRFE..TRB70..WOC202401-202412

(L)

main13401-11090i1GDFTV..GDB70..BTN202201-202512

main13401-58051i1BZFPE..BZB60,70201701-202012

main13401-75021i2TRFE..TRB60,70..GCC202005-202401

main13401-75041i2TRFE..TRB60,70201701-202005

main13411-17012i1HZ..HZB60;1HZ..HZB70..WC..GEN;1HZ..HZB70..30S..WOC201701-202412

main13411-78070iN04C..XZB70..6FC;N04C..XZB70..(02S,23S,25S,30S)..STD..(GEN,TAIW)201905-202512

main13411-E0071iN04C..XZB60,70..02S,19S,20S,22S,23S,25S,29S,30S201701-201905

13434SPLINE, OIL PUMP DRIVE

main13519-56011i14B..BB60201701-202012

13453GEAR, FLYWHEEL RING

main13453-17010i1HZ..HZB60,70..23S,25S,26S,30S201701-202412

main13453-20010i2TRFE..TRB60,70..6F;2TRFE..TRB70..WC..GEN201701-202412

main13453-56021i14B..BB60201701-201907

main13453-E0080iN04C..XZB70..SA;N04C..XZB70..29S;N04C..XZB70..LHD..DX..GEN201701-202512

13470PULLEY ASSY, CRANKSHAFT

main13470-48020i1BZFPE..BZB60,70201701-202012

main13470-58032i14B..BB60201701-201907

main13470-E0361iN04C..XZB70,80..4FC;N04C..XZB70..5F..ARL201701-202512

13471PULLEY, CRANKSHAFT

main13408-17040i1HZ..HZB70..19S201701-202412

main13408-75050i2TRFE..TRB60,70..6F;2TRFE..TRB70..WC..GEN201701-202412

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main90280-05005i2TRFE..TRB60..GEN201701-202201

main90280-05005i2TRFE..TRB60,70..GCC202201-202401

(J)

main90280-T0003i2TRFE..TRB70..WOC202401-202412

(L)

main95161-30416i14B..BB60201701-202012

main95161-30516i1HZ..HZB70..19S201701-202412

mainSM17101028iN04C..XZB70..23S..GCC;N04C..XZB70..RHD..23S..GEN201701-202512

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90105-16041i2TRFE..TRB60,70..6F;2TRFE..TRB70..WC..GEN201701-202412

main90105-24001i1HZ..HZB70..19S201701-202412

main90119-18003i1GDFTV..GDB70..BTN202201-202512

main90901-19032i14B..BB60201701-202012

13503SHAFT SUB-ASSY, IDLE GEAR

main13504-58010i14B..BB60201701-202012

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-11050i1GDFTV..GDB60;1GDFTV..GDB70..(02S,19S,22S,23S)..(GCC,GEN,SA,TAIW)202201-202512

main13521-17010i1HZ..HZB70..23S..WOC201701-202412

main13521-56030i1BZFPE..BZB60,70201701-202012

main13521-75021i2TRFE..TRB60,70..19S,20S,23S,24S,30S201701-202412

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main95161-30516i1HZ..HZB70..23S..WOC201701-202512

main95161-30519i1BZFPE..BZB60,70201701-202012

13525GEAR, IDLE, NO.1

main13508-56010i14B..BB60201701-201907

main13520-48010i1BZFPE..BZB60,70201701-202012

main13525-17010i1HZ..HZB70..23S..WOC201701-202412

13572PLATE, IDLE GEAR THRUST

main13572-17021i1HZ..HZB60;1HZ..HZB70..WC..GEN;1HZ..HZB70..30S..WOC201701-202412

main13572-56020i1BZFPE..BZB60,70201701-202012

13577ABOLT, HEXAGON(FOR IDLE GEAR BOLT LOCK)

main90105-10194i14B..BB60201701-202012

15707JBOLT, UNION(FOR OIL PIPE)

main90401-10026i1BZFPE..BZB60,70201701-202012

29 parts on this diagram · 5 diagrams in section
