STARTER

0001 112V 2.5KW, 24V 4.5KW 0002 112V 2.5KW, 24V 4.5KW 0003 112V 1.4KW 0005 112V 2.0KW 0007 112V 2.5KW 0008 124V 5.0KW 0010 112V 2.7KW 0011 112V 2.5KW,24V 4.5KW 0012 112V 2.5KW 0013 112V 2.5KW, 24V 4.5KW 0014 112V 1.4KW

28011CLUTCH SUB-ASSY, STARTER

main28011-17020i1HZ..HZB50..RHD..SRF;1HZ..HZB50..RHD..WOC..GEN;1HZ..HZB50..RHD..(20S,22S)..GEN199301-201501

main28011-51060iN04C..XZB40,5#..ARL,GEN,TAIW200908-201501

main28011-54010i14B,1BZFPE..BB42,BZB40,50199301-201501

main28011-75120i3RZFE..RZB40,50..HRF..GEN199309-200012

12V 2.0KW,CHINA SPEC

main28011-75120i3RZFE..RZB40,50..CHI200012-200211

main28011-76070i2TRFE..TRB40,50199309-201501

main28011-78111iN04C..XZB50..IV200608-201311

28011ABALL, STARTER CLUTCH

main90099-12009i15BFT..BB50..WOC..5F;15BFT..BB50..EX..GEN;1HZ..HZB50..RHD..SRF;1HZ..HZB50..RHD..(20S,22S)..GEN;14B,3RZFE..BB42,RZB40..WOC..GCC;14B,1HZ..BB42,HZB50..RHD..HRF..WOC..G199301-201007

28100STARTER ASSY

main28100-17030i1HZ..HZB50199301-199705

24V 4.5KW

main28100-17040i1HZ..HZB50..RHD..SRF;1HZ..HZB50..WOC..GEN199301-199705

12V 2.5KW

main28100-17050i1HZ..HZB50..RHD..SRF;1HZ..HZB50..RHD..WOC..GEN;1HZ..HZB50..RHD..(20S,22S)..GEN199705-200905

24V 4.5KW

main28100-17051i1HZ..HZB50200906-201501

24V 4.5KW

main28100-17060i1HZ..HZB50..RHD..SRF;1HZ..HZB50..RHD..WOC..GEN199705-200905

12V 2.5KW

main28100-17061i1HZ..HZB50..WOC200906-201501

12V 2.5KW

main28100-56290i14B,15BFT,3B..BB4#,5#199301-199808

24V 4.5KW

main28100-56291i15BFTE..BB5#199808-200905

24V 4.5KW

main28100-56292i14B..BB42..LHD..HRF200906-201501

24V 4.5KW

main28100-56300i14B..BB42..WOC199301-199808

12V 2.5KW

main28100-56301i14B..BB42..WOC199808-200905

12V 2.5KW

main28100-56302i14B..BB42..WOC200906-201501

12V 2.5KW

main28100-56311i1BZFPE..BZB40,50..STD200108-200905

12V 2.5KW

main28100-56312i1BZFPE..BZB40,50200906-201501

12V 2.5KW

main28100-75090i3RZFE..RZB40..HRF..GCC199309-200906

12V 1.4KW

main28100-75091i2TRFE..TRB40,50200907-201501

12V 1.4KW

main28100-75120i3RZF..RZB40,50..GEN199309-199907

12V 2.0KW,CHINA SPEC

main28100-75120i3RZFE..RZB40,50..CHI199907-200211

12V 2.0KW

main28100-78112iN04C..XZB5#..GEN200608-200610

24V 5.0KW

main28100-78113iN04C..XZB50..STD..GEN200610-201311

24V 5.0KW

main28100-78150iN04C..XZB40,5#..ARL,GEN,TAIW200908-201501

12V 2.7KW

28110HOUSING ASSY, STARTER DRIVE

main28110-56130i14B,15BFT,3B..BB4#,5#199301-199808

main28110-56131i15BFTE..BB5#199808-201007

main28110-56151i1BZFPE..BZB40,50..STD200108-201007

main28110-75090i3RZFE..RZB40..WOC..GEN;3RZFE..RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)199309-201007

main28110-75120i3RZF..RZB40,50..GEN199309-200012

12V 2.0KW,CHINA SPEC

main28110-75120i3RZFE..RZB40,50..CHI200012-200211

main28110-78150iN04C..XZB40,5#..ARL,GEN,TAIW200908-201501

main28115-17020i1HZ..HZB50199301-200906

28118PLATE(FOR STARTER YOKE)

main28118-77090i14B,3B,1HZ#..BB4#,HZB50199301-201007

28119COVER, STARTER END FRAME

main28119-46080i14B,3B,1HZ#..BB4#,HZB50199301-199705

24V 4.5KW

main28199-46080i1HZ..HZB50..RHD..SRF;1HZ..HZB50..WOC..GEN199301-200408

12V 2.5KW

main28199-46080i1HZ..HZB50..HRF..WC;1HZ..HZB50..WOC..ARL;14B,15BFT,3B..BB4#,5#;1HZ..HZB50..LHD..SRF..WC199705-201007

28120YOKE ASSY, STARTER

main28120-47040i14B,1HZ..BB42,HZB50..WOC200906-201501

12V 2.5KW

main28120-51060iN04C..XZB40,5#201501

main28120-51060iN04C..XZB40,5#..ARL,GEN,TAIW200908-201501

12V 3.0KW

main28120-54380i3RZF..RZB40,50..GEN199309-200012

12V 2.0KW,CHINA SPEC

main28120-54380i3RZFE..RZB40,50..CHI200012-200211

main28120-56071i15BFT..BB50..EX..IV200008-200408

main28120-56071i1HZ..HZB50..ARL199301-200906

24V 4.5KW

main28120-56081i14B..BB42..WOC..GCC;1HZ..HZB50..RHD..SRF;14B,1HZ..BB42,HZB50..RHD..HRF..WOC..GEN199301-200408

main28120-56081i14B,1HZ..BB42,HZB50..WOC200408-200906

12V 2.5KW

main28120-56231i1BZFPE..BZB40,50200108-201501

main28120-66040i2TRFE..TRB40,50199402-201501

main28120-74070i3RZF..RZB40,50199309-199402

main28120-77090i14B,15BFT,1HZ..BB42,50,HZB50200906-201501

24V 4.5KW

main28120-78110iN04C..XZB50..WOC;N04C..XZB50..STD..WC..(EUR,GEN)200608-200909

24V 5.0KW

main28120-78111iN04C..XZB50..IV200909-201311

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-17030i14B,3B,1HZ#..BB4#,HZB50199301-199304

main28130-56260i1BZFPE..BZB40,50200108-201007

main28130-56300i15BFT..BB50..WOC..6F;15BFT..BB50..STD..WC..IV199304-201007

main28130-64170i3RZFE..RZB40..WOC..GCC;3RZFE..RZB40..22S..GEN199309-201007

main28130-75120i3RZF..RZB40,50..GEN199309-200012

12V 2.0KW,CHINA SPEC

main28130-75120i3RZFE..RZB40,50..CHI200012-200211

main28130-78110iN04C..XZB50..IV201104-201311

28139WIRE, LEAD, NO.1(FOR STARTER)

main28139-54250i14B,15BFT,3B..BB4#,50199301-199611

main28139-54251i1HZ#..HZB50199411-199907

main28139-56290i15BFTE..BB5#;14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC;15BFT..BB50..STD..GEN..CBU..5F199711-201007

main28139-56310i1BZFPE..BZB40,50..STD200108-201007

28140HOLDER ASSY, STARTER BRUSH

main28140-54380i3RZFE..RZB40,50..HRF..GEN199309-200012

12V 2.0KW,CHINA SPEC

main28140-54380i3RZFE..RZB40,50..CHI200012-200211

main28140-76070i3RZFE..RZB40..WOC..GCC;3RZFE..RZB40..22S..GEN199309-201501

main28140-77090i14B..BB42..WC..GCC;14B..BB42..SRF..GEN;1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;14B..BB42..LHD..HRF..WOC;1HZ..HZB50..LHD..SRF..WC;15BFTE,1BZFPE..BB5#,BZB40,50;15BFT199301-201501

main28140-78110iN04C..XZB50..WOC;N04C..XZB50..STD..WC..(EUR,GEN)200608-201311

main28140-78150iN04C..XZB40,5#200908-201501

28150SWITCH ASSY, MAGNET STARTER

main28150-17030i1HZ#..HZB50199301-199705

24V 4.5KW

main28150-17040i1HZ..HZB50..RHD..SRF;1HZ..HZB50..WOC..GEN199301-199705

main28150-17050i1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC199705-201501

24V 4.5KW

main28150-17060i1HZ..HZB50..RHD..SRF;1HZ..HZB50..RHD..WOC..GEN199705-201501

12V 2.5KW

main28150-51060iN04C..XZB40,5#..ARL,GEN,TAIW200908-201501

main28150-56290i14B..BB42..RHD..SRF..WC200008-201501

main28150-56290i14B,15BFT,3B..BB4#,5#199301-201501

24V 4.5KW

main28150-56300i14B..BB42..WOC199301-200408

main28150-56300i14B..BB42..WOC200408-201501

12V 2.5KW

main28150-56310i1BZFPE..BZB40,50200108-201501

main28150-75090i3RZF..RZB40,50199309-199402

main28150-75120i3RZF..RZB40,50..HRF..GEN199309-200012

12V 2.0KW,CHINA SPEC

main28150-75120i3RZFE..RZB40,50..CHI200012-200211

main28150-75130i2TRFE..TRB40,50199402-201501

28159BCOVER, MAGNET SWITCH

main28159-17030i15BFT,1HZ..BB50,HZB50..ARL,CHI199301-201007

main28159-54380i3RZFE..RZB40,50..HRF..GEN199309-200012

CHINA SPEC

main28159-54380i3RZFE..RZB40,50..CHI200012-200211

main28159-55050i3RZFE..RZB40..WOC..GCC;3RZFE..RZB40..22S..GEN199309-201007

main28159-56310i1BZFPE..BZB40,50200108-201007

28160ARMATURE ASSY, STARTER

main28160-47040i1HZ..HZB50..RHD..SRF;14B,1HZ..BB42,HZB50..WOC..(GCC,GEN)199301-200303

12V 2.5KW

main28160-51060iN04C..XZB40,5#..ARL,GEN,TAIW200908-201501

12V 3.0KW

main28160-51060iN04C..XZB40,5#201501

main28160-54140i1BZFPE..BZB40,50;14B,1HZ..BB42,HZB50..WOC200303-201501

12V 2.5KW

main28160-74070i2TRFE..TRB40,50200708-201501

main28160-74070i3RZFE..RZB40..WOC..GEN;3RZFE..RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)199309-200708

12V 1.4KW

main28160-75120i3RZF..RZB40,50..HRF..GEN199309-200012

12V 2.0KW,CHINA SPEC

main28160-75120i3RZFE..RZB40,50..CHI200012-200211

main28160-77090i14B,15BFT,3B,1HZ..BB4#,5#,HZB50199301-201501

24V 4.5KW

main28160-78110iN04C..XZB40,59;N04C..XZB50..(20S,21S)..WC200608-201311

24V 5.0KW

28160ABEARING, STARTER ARMATURE

main90099-10107i14B..BB42..WC..GCC;14B..BB42..SRF..GEN;1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;14B..BB42..LHD..HRF..WOC;1HZ..HZB50..LHD..SRF..WC;15BFTE,1BZFPE..BB5#,BZB40,50;15BFT199301-201007

FRONT

main90099-10119i14B,15BFT,1BZFPE,1HZ..BB42,50,BZB40,50,HZB50..STD199301-201007

REAR

main90099-10196i3RZFE..RZB40..WOC..GEN;3RZFE..RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)199309-201007

FRONT

main90099-10197i2TRFE..TRB40,50199309-201007

REAR

main90099-10208i3RZF..RZB40,50..HRF..GEN199309-200012

12V 2.0KW,CHINA SPEC,FRONT

main90099-10208i3RZFE..RZB40,50..CHI200012-200211

FRONT

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-76070i3RZF..RZB40,50199309-201007

main28165-77090i14B,15BFT,1BZFPE..BB42,50,BZB40,50..STD199301-201007

28175AGASKET, MAGNET SWITCH COVER

main28175-54380i3RZFE..RZB40,50..CHI200012-200211

main28175-54380i3RZFE..RZB40,50..HRF..GEN199309-200012

CHINA SPEC

main28175-55050i3RZF..RZB40,50199309-201007

main28175-56310i14B,3B,1HZ#..BB4#,HZB50199301-201007

28199COVER, STARTER

main28199-54190i15BFT..BB50..WOC..6F;15BFT..BB50..STD..WC..IV199301-201007

main28199-74110i3RZFE,2TRFE..RZB40,50,TRB40,50199309-201007

main28199-78110iN04C..XZB50..WOC;N04C..XZB50..STD..WC..(EUR,GEN)200610-201106

mainS281991100iN04C..XZB50..IV201106-201311

28222WASHER, STARTER IDLE GEAR CLUTCH

main28222-77090i15BFT..BB50..WOC..6F;15BFT..BB50..STD..WC..IV199301-201007

28226STARTER KIT, BATTERY TERMINAL

main28226-17030i1HZ..HZB50199508-201007

24V

main28226-17030i15BFT..BB50..WOC..6F;15BFT..BB50..STD..WC..IV199907-200608

main28226-17030i15BFT..BB50;14B,1BZFPE..BB42,BZB40,50..STD..WC200408-201007

24V 4.5KW

main28226-22050i3RZFE..RZB40..HRF..GCC199907-201007

main28226-54320i14B,3B,1HZ..BB4#,HZB50199301-199508

main28226-54320i14B,15BFT,3B..BB4#,50199508-200906

12V

main28226-54380i3RZFE..RZB40,50..CHI200012-200211

main28226-54380i3RZF..RZB40,50..GEN199309-200008

CHINA SPEC

main28226-64200i3RZF..RZB40,50199309-199907

12V

28226ASTARTER KIT, MOTOR TERMINAL

main28226-54220i1HZ#..HZB50199301-201007

main28226-56300i14B..BB42..WOC..GCC;15BFT..BB50..WOC..5F;15BFT..BB50..EX..GEN;14B..BB42..RHD..HRF..WOC;14B,15BFT..BB4#,50..17S,19S,22S199301-201007

main28226-72010i3RZFE..RZB40,50..CHI200012-200211

main28226-72010i3RZF..RZB40,50..GEN199309-200012

CHINA SPEC

main28226-74070i3RZFE..RZB40..WOC..GEN;3RZFE..RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)199309-201007

28228ROLLER, STARTER IDLE GEAR CLUTCH

main28228-26040i3RZFE..RZB40..WOC..GCC;3RZFE..RZB40..22S..GEN199309-201007

main28228-56080i14B,15BFT,1BZFPE..BB42,50,BZB40,50..STD199301-201007

28229RETAINER, STARTER IDLE GEAR

main28229-56080i14B,3B,1HZ#..BB4#,HZB50199301-201007

main28229-74070i3RZF..RZB40,50199309-201007

28235PLUNGER, MAGNET SWITCH

main28235-17030i14B..BB42..WC..GCC;14B..BB42..SRF..GEN;1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;14B..BB42..LHD..HRF..WOC;1HZ..HZB50..LHD..SRF..WC;15BFTE,1BZFPE..BB5#,BZB40,50;15BFT199301-201007

main28235-54380i3RZF..RZB40,50..HRF..GEN199309-200012

CHINA SPEC

main28235-54380i3RZFE..RZB40,50..CHI200012-200211

main28235-55050i3RZF..RZB40,50199309-201007

28254PINION, STARTER IDLE GEAR

main28254-64130i3RZFE..RZB40,50..HRF..GEN199907-200012

CHINA SPEC

main28254-64130i3RZF..RZB40,50..GEN199309-199907

12V 2.0KW,CHINA SPEC

main28254-64130i3RZFE..RZB40,50..CHI200012-200211

main28254-74070i3RZFE..RZB40..HRF..GCC199309-201007

main28254-77090i15BFTE..BB5#;1BZFPE..BZB50..EX199301-201007

9009221001

main90092-21001

9009900158

main90099-00158

9009900254

main90099-00254

9009901436

main90099-01436

9009902205

main90099-02205

9009902325

main90099-02325

9009904207

main90099-04207

9009904297

main90099-04297

9009904473

main90099-04473

9017910195

main90179-10195

9111241465

main91112-41465

9111261465

main91112-61465

9331915008

main93319-15008

9411541400

main94115-41400

9413061400

main94130-61400

9451100600

main94511-00600

9451101000

main94511-01000

9451101400

main94511-01400

9453101400

main94531-01400

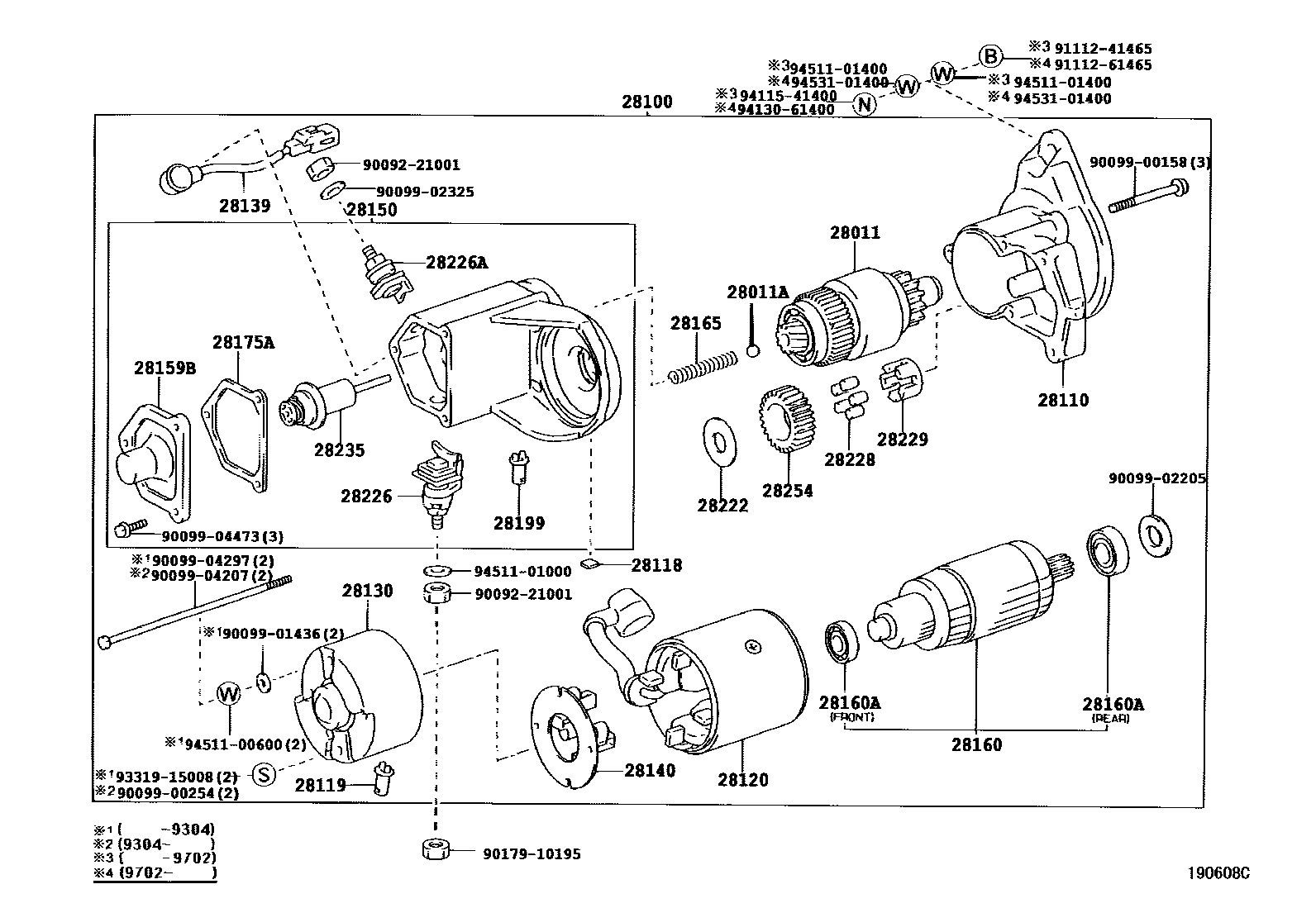

43 parts on this diagram · 11 diagrams in section
