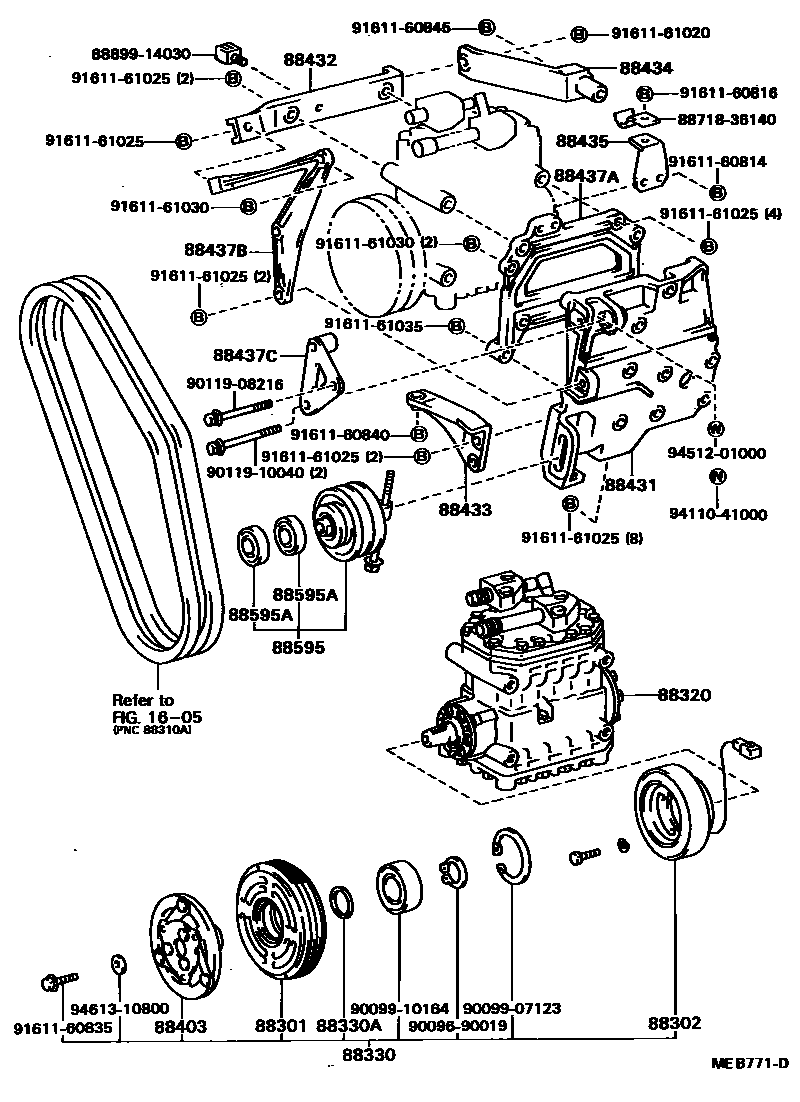

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0005 1 0007 1 0008 1 0010 1 0011 1 0012 1 0013 1

1605V-BELT

→ Go to FIG 16-05

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-36010iBB20..RHD..STD..HRF..GEN198405-198408

HONG KONG SPEC

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-36100iBB20..RHD..STD..HRF..GEN198405-198408

HONG KONG SPEC

main88411-36110iRB20..WC198205-198408

main88411-36120iBB20..15S;BB2#,HB30..WC198408-198808

main88411-36130iFB30,RB20..WC198408-198808

88320COMPRESSOR ASSY, COOLER

main88320-36040iRB20..WC198205-198408

main88320-36050iBB20..RHD..STD..HRF..GEN198405-198408

HONG KONG SPEC

main88320-36170iRB20..WC198408-198706

main88320-36171iRB20..WC198706-198808

main88320-36180iBB20..RHD..STD..HRF..GEN198408-198510

HONG KONG SPEC

main88320-36181iBB2#,FB30,HB30..WC198706-198808

main88320-36250iBB2#,FB30,HB30..WC198808-199301

main88320-36260iRB20..WC198808-199301

main88320-36310iHZB30..WC199001-199301

main88320-36320iHDB30..EUR199109-199301

88330CLUTCH ASSY, MAGNET

main88410-36140iRB20..WC198205-198408

main88410-36150iBB20..WC198205-198408

main88410-36180iFB30,RB20..WC198408-198808

main88410-36190iBB20..RHD..STD..HRF..GEN198408-198510

HONG KONG SPEC

main88410-36240iBB2#,HB30..WC198808-199301

main88410-36250iFB30,RB20..WC198808-199301

main88410-36320iHZB30..WC199001-199301

88330AWASHER (FOR MAGNET CLUTCH)

main90099-01181×6iBB20,RB20..WC198205-198408

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-36010iBB20..15S;BB2#,FB30,HB30,RB20..WC198408-198808

main88403-36020iBB20..RHD..STD..HRF..GEN198405-198408

HONG KONG SPEC

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-36150iRB20..WC198205-198408

main88431-36170iBB20..WC198205-198408

main88431-36210iRB20..WC198408-198808

main88431-36220iBB20..RHD..STD..HRF..GEN198408-198510

HONG KONG SPEC

main88431-36230iHB30..WC198610-198808

main88431-36280iFB30..WC198610-198808

main88431-36420iBB2#..WC198808-198909

main88431-36421iBB21..WC198909-199301

main88431-36430iHB30..WC198808-199001

main88431-36440iRB20..WC198808-199301

main88431-36450iFB30..WC198808-199301

main88431-36510iHZB30..WC199001-199301

88432BRACKET, COMPRESSOR MOUNTING, NO.2

main88434-36100iRB20..WC198205-198408

main88434-36140iFB30..WC198610-198808

main88434-36150iFB30..WC198808-199301

88433BRACKET, COMPRESSOR MOUNTING, NO.3

main88434-36120iRB20..WC198205-198408

88434BRACKET, COMPRESSOR MOUNTING, NO.4

main88434-36130iRB20..WC198205-198408

88435BRACKET, COMPRESSOR MOUNTING, NO.5

main88688-36090iRB20..WC198205-198408

88437AATTACHMENT, COMPRESSOR

main88437-36050iRB20..WC198205-198408

main88437-36070iBB20..WC198205-198408

main88437-36100iRB20..WC198408-198808

88437BATTACHMENT, COMPRESSOR, NO.1

main88437-36080iRB20..WC198205-198408

88437CATTACHMENT, COMPRESSOR, NO.2

main88437-36090iRB20..WC198205-198408

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-36090iBB20..RHD..STD..HRF..GEN198405-198510

HONG KONG SPEC

main88440-36110iFB30..WC198610-199111

main88440-36130iBB2#,FB30,RB20..WC199111-199301

88595ABEARING (FOR COOLER IDLE PULLEY)

main90099-10129×2iBB20..RHD..STD..HRF..GEN198405-198510

HONG KONG SPEC

8871836140PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-36140

8889914030COVER, EVAPORATOR

main88899-14030

9009690019

main90096-90019

9009907123

main90099-07123

9009910164

main90099-10164

9011908216

main90119-08216

9011910040

main90119-10040

9161160814

main91611-60814

9161160816

main91611-60816

9161160835

main91611-60835

9161160840

main91611-60840

9161160845

main91611-60845

9161161020

main91611-61020

9161161025

main91611-61025

9161161030

main91611-61030

9161161035

main91611-61035

9411041000

main94110-41000

9451201000

main94512-01000

9461310800

main94613-10800

36 parts on this diagram · 11 diagrams in section
