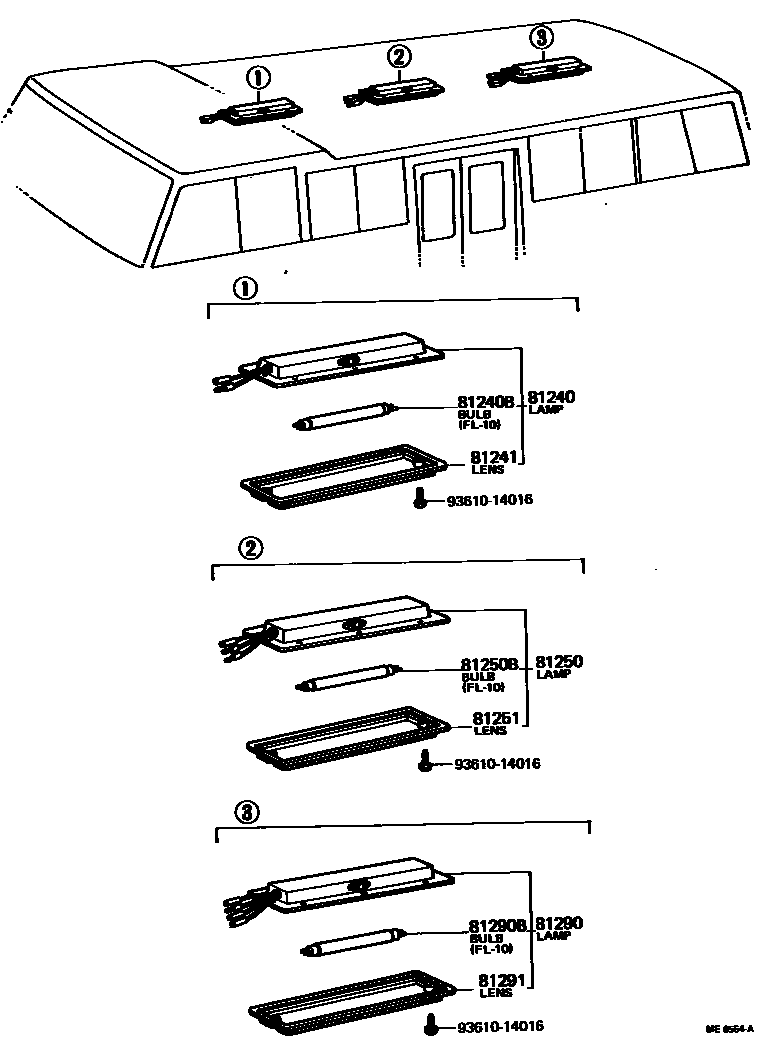

INTERIOR LAMP
81240LAMP ASSY, ROOM, NO.1
12V
24V
12V
81240BBULB, ROOM LAMP, NO.1
FLUORESCENT LANP,MARK FL-10
81241LENS, ROOM LAMP, NO.1
81250LAMP ASSY, ROOM, NO.2
12V
24V
12V
81250BBULB, ROOM LAMP, NO.2
FLUORESCENT LANP,MARK FL-10
81251LENS, ROOM LAMP, NO.2
81290LAMP ASSY, ROOM, NO.3
81290BBULB, ROOM LAMP, NO.3
FLUORESCENT LANP,MARK FL-10
81291LENS, ROOM LAMP, NO.3(FOR REAR)
9361014016
main93610-14016
10 parts on this diagram · 3 diagrams in section
