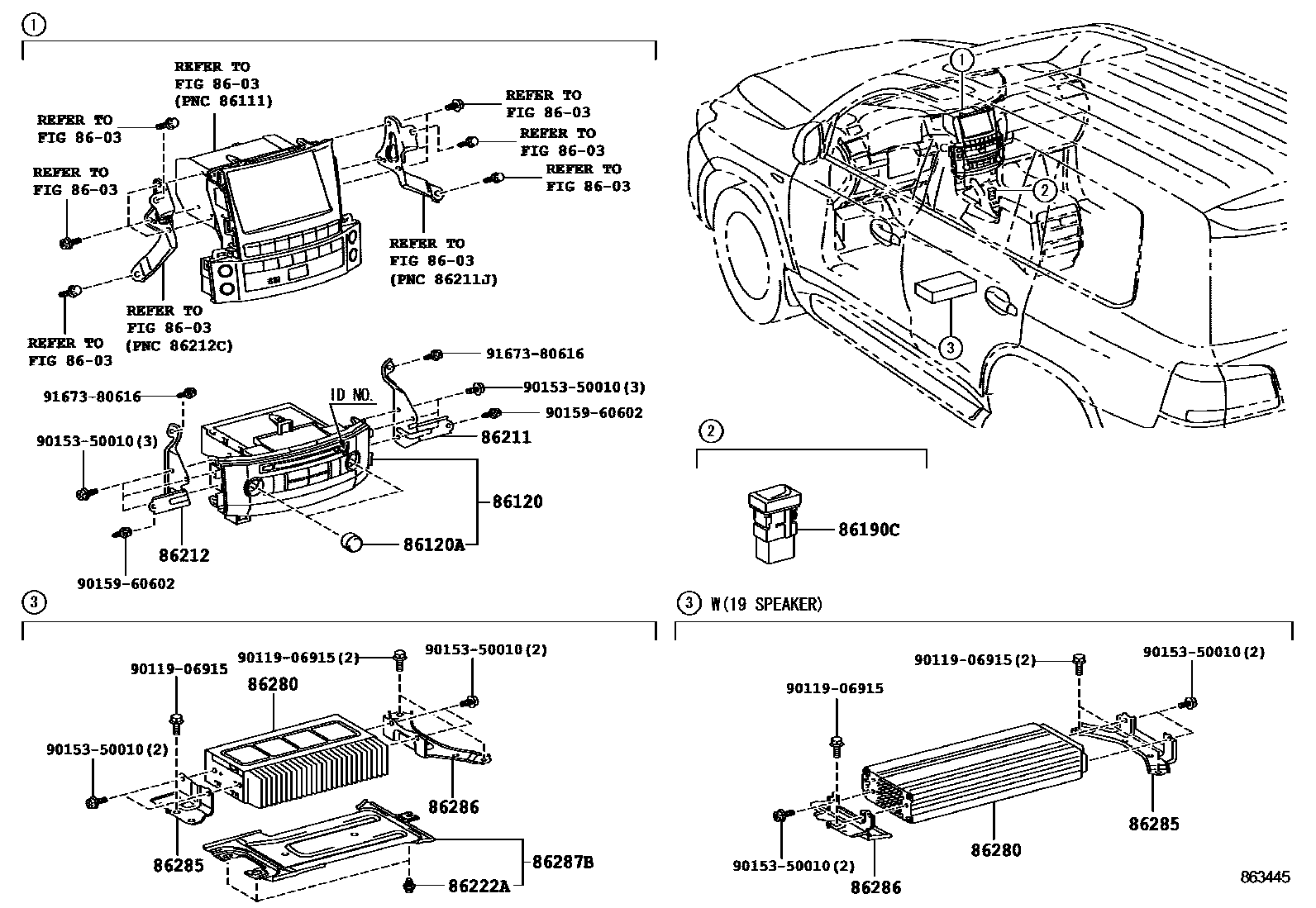

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

86120RECEIVER ASSY, RADIO

main86120-60A30i200711-200907

PIONEER,ID=P7518

main86120-60G40i200907-201201

PIONEER,ID=P7554

main86120-60J50i200907-201201

PIONEER,ID=P7551

main86120-60B00supersedes 86120-60B30i200711-200907

PIONEER,ID=P7516,AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/SW+19SPEAKER

main86120-60B20supersedes 86120-60B30i200711-200907

PIONEER,ID=P7519,PHILIPPINES SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM+19SPEAKER

main86120-60B40supersedes 86120-60A90i200711-200907

PIONEER,ID=P7520,INDONESIA SPEC&EMV & NAVIGATION SYSTEM-WITHOUT

main86120-60G70supersedes 86120-60G60i200907-201201

PIONEER,ID=P7552,AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM+*MAR19SPEAKER

main86120-60J10supersedes 86120-60G60i200907-201201

PIONEER,ID=P7555,PHILIPPINES SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM+*MAR19SPEAKER

main86120-60J60i200907-201008

PIONEER,ID=P7556,BRUNEI SPEC&EMV & NAVIGATION SYSTEM-WITHOUT; PIONEER,ID=P7556,INDONESIA SPEC&EMV & NAVIGATION SYSTEM-WITHOUT

main86120-60K80i200911-201008

PIONEER,ID=P8650,SOUTH AFRICA SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH)

86120AKNOB, RADIO RECEIVER SWITCH

main90010-22058×2i200711-201201

main90010-22088×2i201201-201301

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-12020i200711-200907

main86190-48010i200711-200907

main86190-53051i201509

main86190-60040i201301-201509

main86190-60050i201201-201301

86211BRACKET, RADIO, NO.1

main86211-60240i200711-201201

main86211-60340i201201-201509

main86211-60460i201509

86212BRACKET, RADIO, NO.2

main86212-60240i200711-201201

main86212-60340i201201-201509

main86212-60460i201509

86222ACLIP, RADIO RECEIVER BRACKET NO.1

main90467-10161×3i200711-201201

AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM+*MAR19SPEAKER; AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM+19SPEAKER; AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/SW+19SPEAKER

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-0W190supersedes 86280-60400i200711-200907

AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM+19SPEAKER; AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/SW+19SPEAKER

main86280-0W780supersedes 86280-60500i200907-201201

AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM+*MAR19SPEAKER

main86280-0WA40supersedes 86280-60520i201201-201509

AUDIO(FOR OVERSEAS MARKET)-EMV + DVD + AM/FM + *MAR 19SPEAKER

main86280-0WD70i201509-201710

AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & *MAR & 19SPEAKER

main86280-0WD71i201711-201909

AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & *MAR & 19SPEAKER; SOUTH AFRICA SPEC&

main86280-60590i201509

main86280-60690i201910

AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & *MAR & 19SPEAKER; SOUTH AFRICA SPEC&

main86280-60400supersedes 86280-60520i200711-200907

AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM+*MAR19SPEAKER; AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM+19SPEAKER; AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/SW+19SPEAKER

main86280-60500supersedes 86280-60520i200907-201201

AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM+*MAR19SPEAKER; AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM+19SPEAKER; AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/SW+19SPEAKER

86285BRACKET, AMPLIFIER, NO.1

main86285-60150supersedes 86285-60160i200711-201201

main86285-60200i201509

main86285-60160supersedes 86285-60200i200711-200907

AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM+*MAR19SPEAKER; AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM+19SPEAKER; AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/SW+19SPEAKER

86286BRACKET, AMPLIFIER, NO.2

main86286-60050supersedes 86286-60070i201201-201509

AUDIO(FOR OVERSEAS MARKET)-EMV + DVD + AM/FM + *MAR 19SPEAKER

main86286-60070i201509

86287BCOVER, AMPLIFIER

main86287-60070i201509

9011906915

main90119-06915

9015350010

main90153-50010

9015960602

main90159-60602

9167380616

main91673-80616

RADIO RECEIVER & AMPLIFIER & CONDENSER
