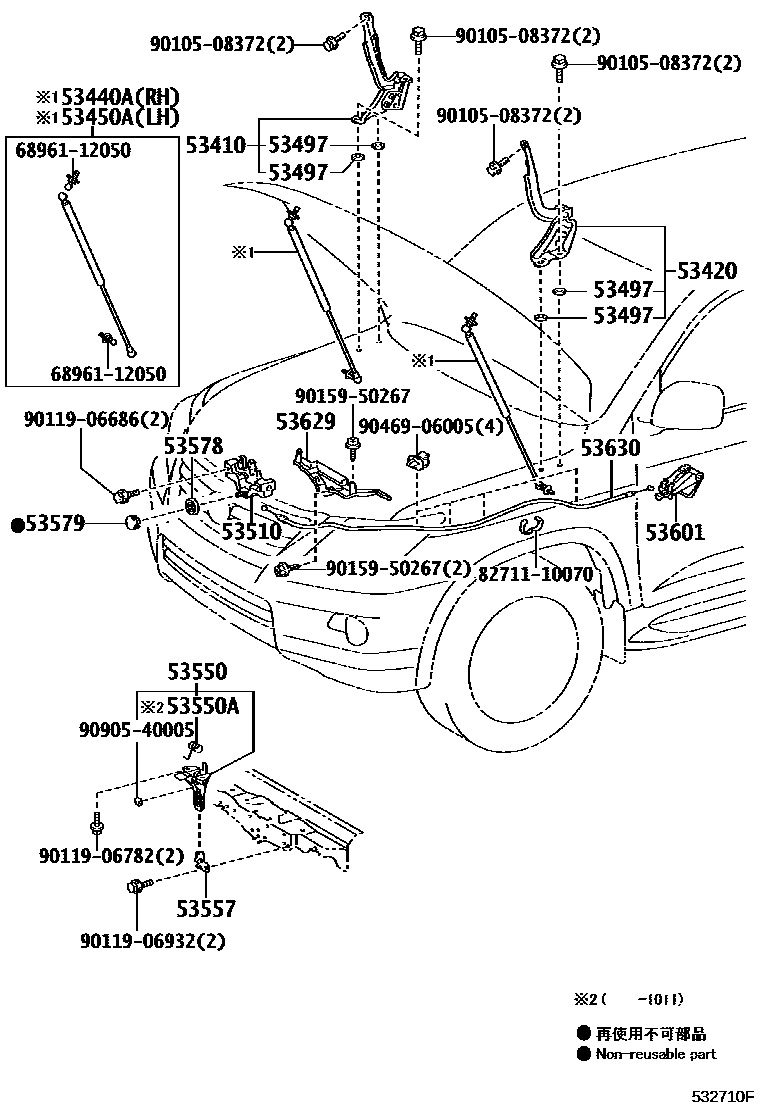

HOOD LOCK & HINGE

0001 1 0002 1 0003 1 0004 1

53410HINGE ASSY, HOOD, RH

main53410-60060iURJ20#201201-201509

main53410-60110iURJ201,VDJ201201509-201807

main53410-60150iURJ201,VDJ201201808

53420HINGE ASSY, HOOD, LH

main53420-60050iURJ20#201201-201509

main53420-60090iURJ201,VDJ201201509-201807

main53420-60140iURJ201,VDJ201201808

53440ASUPPORT ASSY, HOOD, RH

main53440-0W350iURJ201201509

main53440-0W360iVDJ201201509

main53440-69095iURJ201200711-201201

main53440-69155iURJ20#201207-201509

53450ASUPPORT ASSY, HOOD, LH

main53450-0W320iURJ201201509

main53450-0W330iVDJ201201509

main53450-69095iURJ201200711-201201

main53450-69155iURJ20#201207-201509

53497PAD, HOOD HINGE, NO.1

main53497-50020×4iURJ201200711-201201

T=1.0

53510LOCK ASSY, HOOD

main53510-60260iURJ201..ARL200711-200907

main53510-60270iURJ201..LHD201201-201509

main53510-60330iURJ20#..ARL201201-201509

main53510-60390iURJ201,VDJ201..LHD201509

main53510-60400iURJ201,VDJ201..ARL201509

53550HOOK ASSY, HOOD AUXILIARY CATCH

main53550-60070iURJ201,VDJ201201509

main53550-60100iURJ201200711-201010

main53550-60101iURJ201201011-201201

53550ASPRING, TORSION(FOR HOOD LOCK HOOK)

main90508-18096iURJ201200711-201011

53557CATCH, HOOD AUXILIARY HOOK

main53557-60010iURJ201200711-201201

53578NUT, HOOD LOCK

main53578-50010iURJ201200711-201201

53579CAP, HOOD LOCK NUT

main53579-50010iURJ201200711-201201

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52010-A1iURJ201200711-201201

IVORY,TRIM0#

main53601-52010-A4iURJ201,VDJ201..ARL,GCC201509

IVORY,TRIM02

main53601-52010-B6iURJ201200711-201008

MD.GRAY,TRIM1#

main53601-52010-C0iURJ20#..ARL; URJ201..CHI; URJ201..GCC201201-201509

BLACK,TRIM2#,3#,4#,5#; BLACK,TRIM2#,4#,5#; BLACK,TRIM2#,5#

main53601-52010-C1iURJ201..CHI201612-202006

BLACK,TRIM2#,3#,4#

53629COVER, HOOD LOCK CONTROL CABLE

main53629-60060iURJ20#..ARL201201-201509

main53629-60070iURJ201..LHD201201-201509

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-60140iURJ201200711-201201

main53630-60200iURJ201,VDJ201..ARL201509

main53630-60210iURJ201,VDJ201..LHD201509

6896112050BOLT, BACK DOOR STAY

main68961-12050

8271110070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-10070

9010508372

main90105-08372

9011906686

main90119-06686

9011906782

main90119-06782

9011906932

main90119-06932

9015950267

main90159-50267

9046906005

main90469-06005

9090540005

main90905-40005

23 parts on this diagram · 4 diagrams in section
