AIR BAG

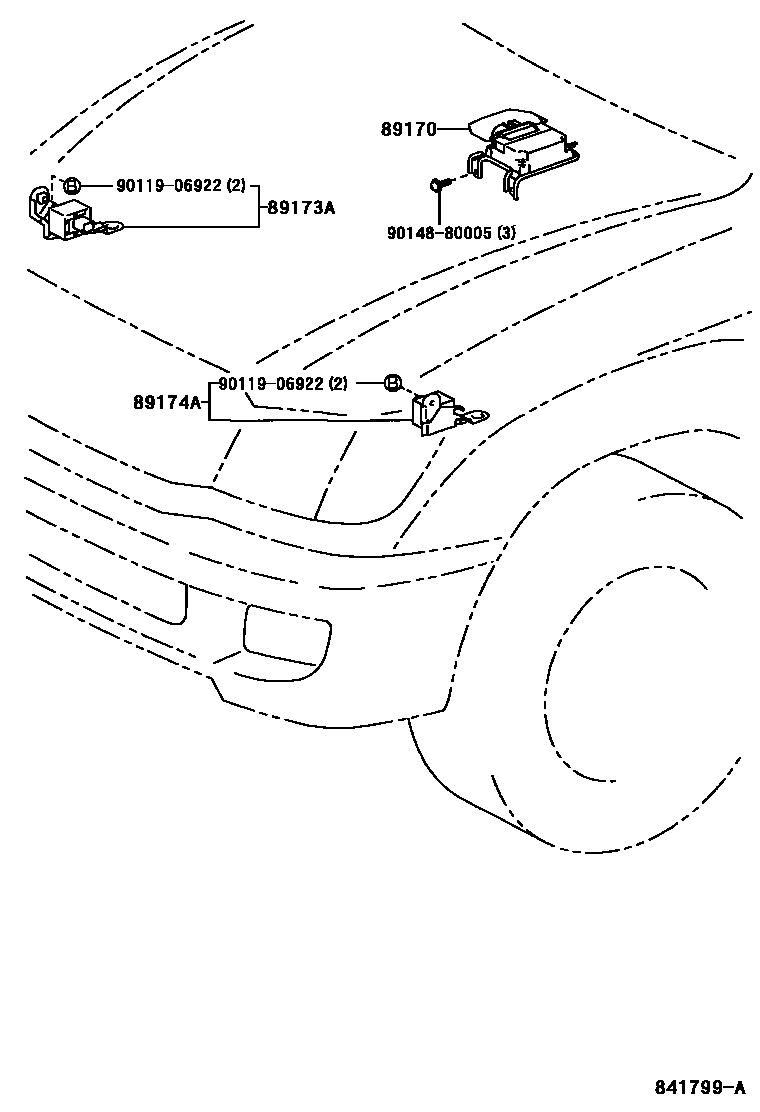

Parts diagram

89170SENSOR ASSY, AIRBAG

main89170-60030i199801-199907

main89170-60031i199907-200208

main89170-60050i199801-199907

main89170-60051i199907-200208

main89170-60170i200505-200605

main89170-60171i200605

main89170-60180i200208-200505

main89170-60181i200605

89173ASENSOR, AIRBAG, FRONT RH

main89173-69045i199801-200208

main89173-69105i200208-200505

89174ASENSOR, AIRBAG, FRONT LH

main89174-69035i199801-200208

main89174-69105i200208-200505

9011906922

main90119-06922

9014880005

main90148-80005

5 parts on this diagram · 2 diagrams in section
