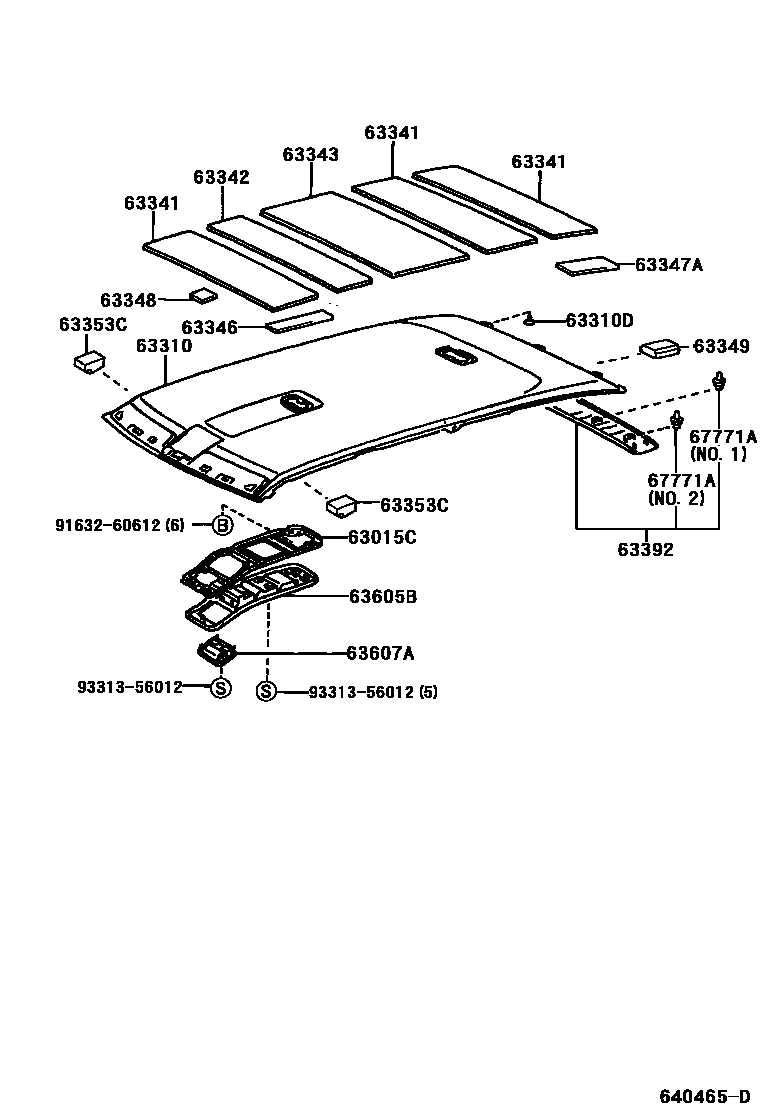

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1W(MOON ROOF) 0003 1

63015CBRACKET SUB-ASSY, ROOF CONSOLE

main63015-60010iUZJ100199801-199908

main63015-60011iUZJ100199908-200008

main63183-60030iUZJ100200505

63310HEADLINING ASSY, ROOF

main63310-60510-A1iUZJ100199801-199808

W(MOON ROOF),IVORY,TRIM4#

main63310-60510-B1iUZJ100199801-199808

W(MOON ROOF),MEDIUM GRAY,TRIM1#

main63310-60511-A1iUZJ100199808-200208

W(MOON ROOF),IVORY,TRIM4#

main63310-60511-B1iUZJ100199808-200208

W(MOON ROOF),MEDIUM GRAY,TRIM1#

main63310-60520-A1iUZJ100199801-199808

IVORY,TRIM4#

main63310-60520-B1iUZJ100199801-199808

MEDIUM GRAY,TRIM1#

main63310-60521-A1iUZJ100199808-200008

IVORY,TRIM4#

main63310-60521-B1iUZJ100199808-200008

MEDIUM GRAY,TRIM1#

main63310-6A090-A0iUZJ100..RHD200208-200505

IVORY,TRIM0#

main63310-6A090-B0iUZJ100..RHD200208-200505

STONE,TRIM1#

main63310-6A091-A0iUZJ100..RHD200609-200708

IVORY,TRIM0#

main63310-6A091-B0iUZJ100..RHD200609-200708

STONE,TRIM1#

main63310-6A180-A0iUZJ100..LHD200208-200505

IVORY,TRIM0#

main63310-6A180-B0iUZJ100..LHD200505-200610

STONE,TRIM1#

main63310-6A181-A0iUZJ100..LHD200611-200708

IVORY,TRIM0#

main63310-6A181-B0iUZJ100..LHD200611-200708

STONE,TRIM1#

63310DCLIP, ROOF HEADLINING

main90467-05021-C0×5iUZJ100199801-200208

BLACK,TRIM1#,4#

63341PAD, ROOF SILENCER, NO.1

main63341-60060×2iUZJ100199801-199811

W(MOON ROOF)

main63342-60060×2iUZJ100199811-199906

W(MOON ROOF)

main63342-60061×3iUZJ100199906-200008

63342PAD, ROOF SILENCER, NO.2

main63342-60060iUZJ100199801-199906

main63342-60061iUZJ100199906-200008

63343PAD, ROOF SILENCER, NO.3

main63343-60040iUZJ100199801-200008

63346PAD, ROOF SILENCER, NO.6

main63346-60010×2iUZJ100199801-200208

63347APAD, ROOF SILENCER, NO.7

main63347-60010iUZJ100199801-200208

63348PAD, ROOF SILENCER, NO.8

main63348-60010×2iUZJ100199801-200008

63349PAD, ROOF SILENCER, NO.9

main63349-60020iUZJ100199907-200208

main63349-60030iUZJ100200208-200505

63353CPAD, ROOF HEADLINING, CENTER

main63353-60040iUZJ100..LHD199907-200008

main63354-60030iUZJ100..RHD199907-200008

63392TRIM, ROOF HEADLINING, REAR

main63392-60060-A0iUZJ100199801-200208

IVORY,TRIM4#

main63392-60060-B0iUZJ100199801-200208

MD. GRAY,TRIM1#

main63392-60061-A1iUZJ100200208-200505

IVORY,TRIM0#

main63392-60061-B1iUZJ100200208-200505

STONE,TRIM1#

main63392-60062-A1iUZJ100200611-200708

IVORY,TRIM0#

main63392-60062-B1iUZJ100200611-200708

STONE,TRIM1#

63605BBOX SUB-ASSY, ROOF CONSOLE

main63605-60010-A0iUZJ100199801-199808

IVORY,TRIM4#

main63605-60010-B0iUZJ100199801-199808

MD.GRAY,TRIM1#

main63605-60011-A0iUZJ100199808-200008

IVORY,TRIM4#

main63605-60011-B0iUZJ100199808-200008

MD.GRAY,TRIM1#

63607APLATE SUB-ASSY, MAP LAMP

main63607-60020-A0iUZJ100..RHD199801-200008

W(GARAGE DOOR OPENER),IVORY,TRIM4#

main63607-60020-B0iUZJ100..RHD199801-200008

W(GARAGE DOOR OPENER),MD.GRAY,TRIM1#

main63607-60030-A0iUZJ100199801-199808

IVORY,TRIM4#

main63607-60030-B0iUZJ100199801-199808

MD.GRAY,TRIM1#

main63607-60031-A0iUZJ100199808-200008

IVORY,TRIM4#

main63607-60031-B0iUZJ100199808-200008

MD.GRAY,TRIM1#

main63607-60050-A0iUZJ100..RHD199801-200208

W(GARAGE DOOR OPENER & MOON ROOF),IVORY,TRIM4#

main63607-60050-B0iUZJ100..RHD199801-200208

W(GARAGE DOOR OPENER & MOON ROOF),MD.GRAY,TRIM1#

main63607-60060-A0iUZJ100199801-200208

W(MOON ROOF),IVORY,TRIM4#

main63607-60060-B0iUZJ100199801-200208

W(MOON ROOF),MD.GRAY,TRIM1#

main63607-60230-A0iUZJ100200208-200407

IVORY,TRIM0#

main63607-60230-B0iUZJ100200208-200407

STONE,TRIM1#

main63607-60231-A0iUZJ100200505-200708

IVORY,TRIM0#

main63607-60231-B0iUZJ100200408-200505

STONE,TRIM1#

67771ARETAINER, ROOF HEADLINING

main67771-12050×3iUZJ100199809-200102

NO.1

main67771-89104×2iUZJ100199809-200102

NO.2

9163260612

main91632-60612

9331356012

main93313-56012

17 parts on this diagram · 3 diagrams in section
