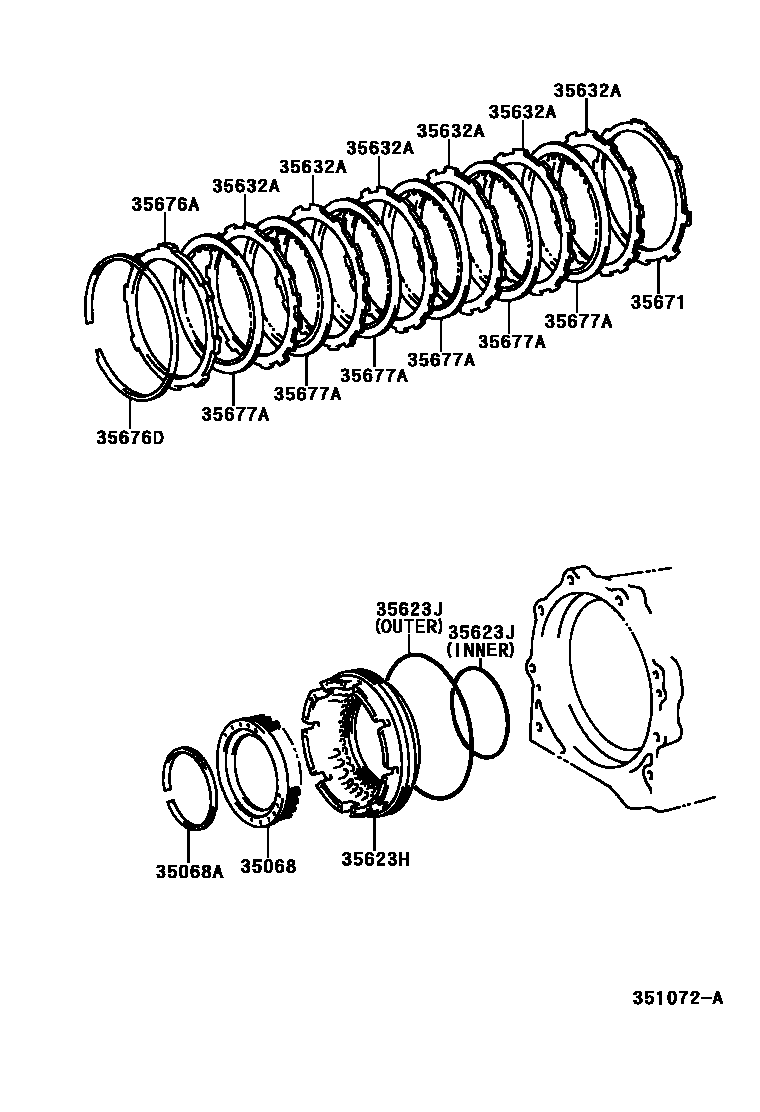

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

0001 1A442F 0002 1A750F

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-36010iUZJ100199801-200208

main35068-60010iUZJ100200505

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-61001iUZJ100200505

main90520-87001iUZJ100199801-200208

35623HPISTON, 1ST & REVERSE BRAKE

main35623-60040iUZJ100199801-200208

main35623-60050iUZJ100200208-200505

main35623-60060iUZJ100200608

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-94002iUZJ100199801-200208

INNER

main90301-99030iUZJ100199801-200208

OUTER

main90301-99087iUZJ100200208-200505

35632APLATE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35632-60070×6iUZJ100199801-200208

35671PLATE, BRAKE CUSHION

main35671-36010iUZJ100199801-200208

35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35676-60050iUZJ100199801-200208

T=6.65

main35676-60060iUZJ100199801-200208

T=7.05

main35676-60070iUZJ100199801-200208

T=7.45

35676DRING, HOLE SNAP (FOR 1ST & REVERSE BRAKE FLANGE)

main90521-99109iUZJ100199801-200208

main90521-99131iUZJ100200208-200505

35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35633-60030×6iUZJ100199801-200208

9 parts on this diagram · 2 diagrams in section
