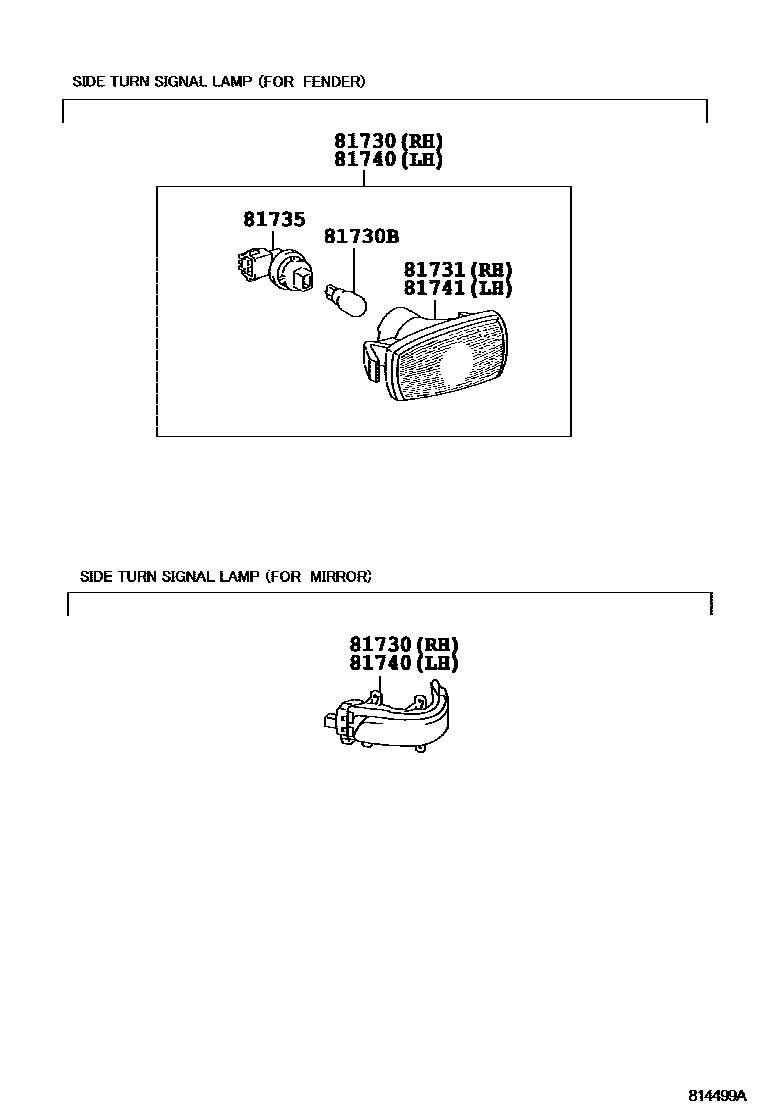

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

81730LAMP ASSY, SIDE TURN SIGNAL, RH

main81730-51011iGRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G200709-201201

*504,FOR FENDER

main81730-53011iURJ200200709-201201

*503,FOR FENDER

main81730-60120iURJ202..VX..GEN;VDJ200..RHD..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);URJ202,VDJ200..(08S,09S)..(GX,GXR)..GCC..LUB201508-202104

FOR MIRR0R

81730BBULB (FOR SIDE TURN SIGNAL LAMP)

main99132-12050×2iGRJ200..RHD..05S200709-200907

12V 5W

81731LENS, SIDE TURN SIGNAL LAMP, RH

main81731-51011iGRJ200..RHD..05S200709-200907

FRAME NO.=5XXXXXX

main81731-53011iGRJ200,VDJ200..K201109-201201

81735SOCKET AND WIRE, SIDE TURN SIGNAL LAMP

main90075-60001×2iGRJ200,VDJ200..K201109-201201

main90075-60005×2iGRJ200..RHD..05S200709-200907

FRAME NO.=5XXXXXX

81740LAMP ASSY, SIDE TURN SIGNAL, LH

main81730-51011iGRJ200..RHD..05S200709-200907

*504,FOR FENDER

main81730-53011iURJ200200709-201201

*503,FOR FENDER

main81740-60090iGRJ200..5F..LUB;URJ202..VX..GCC;URJ202..VXR..GEN;URJ202..(GXR,VX)..ARL;VDJ200..LHD..5F..GEN..LUB;VDJ200..(05S,08S)..(GX,VX,VXR)..GCC..LUB201508-202103

FOR MIRR0R

81741LENS, SIDE TURN SIGNAL LAMP, LH

main81731-51011iGRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G200709-201201

FRAME NO.=5XXXXXX

main81731-53011iGRJ200,VDJ200..SOB201508-202103

6 parts on this diagram · 1 diagram in section
