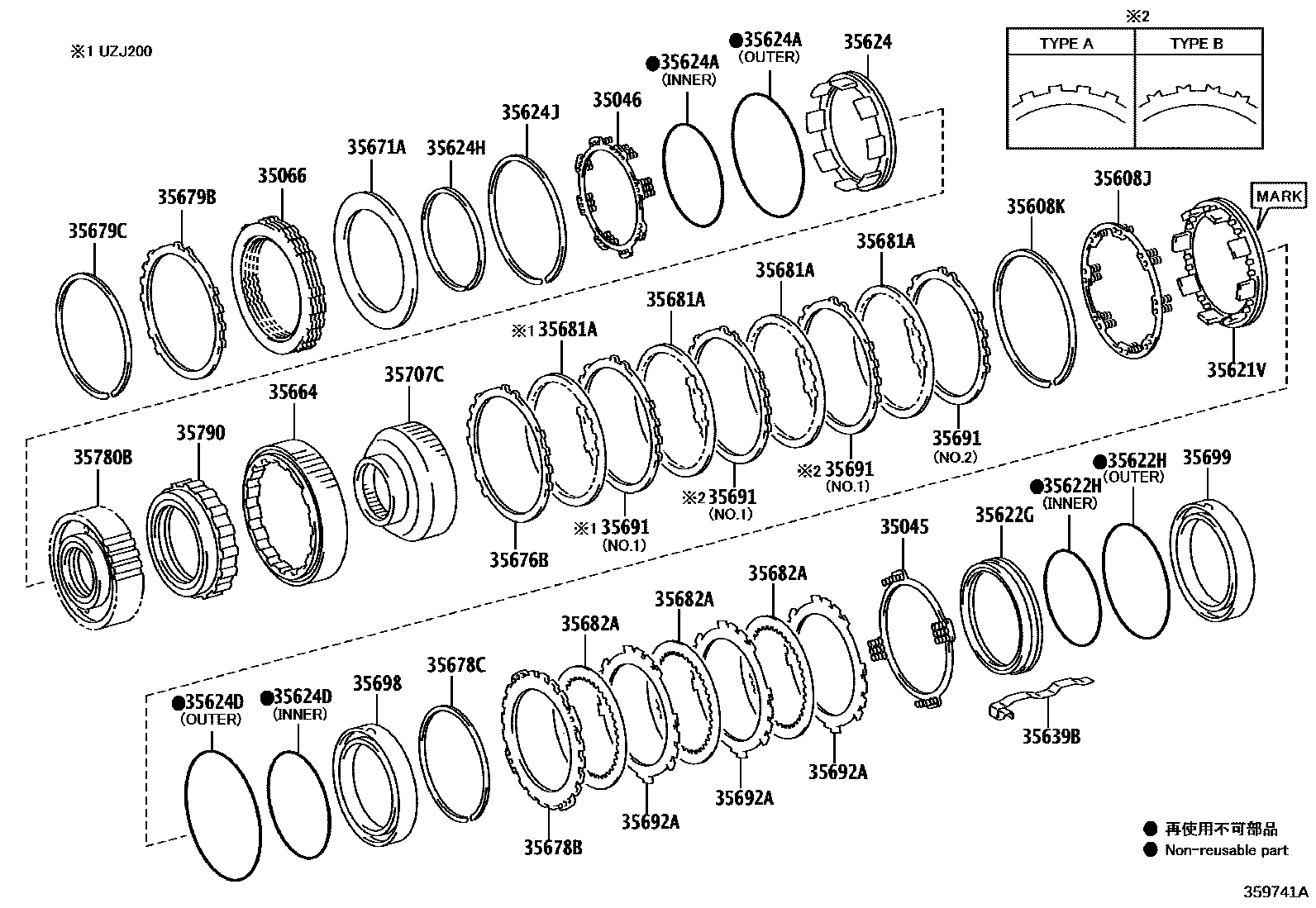

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)
35045SPRING SUB-ASSY, BRAKE PISTON RETURN,NO.2
(L)
35046SPRING SUB-ASSY, BRAKE PISTON RETURN, NO.3
(L)
35066DISC SET, 2ND BRAKE
TYPE B:REFER 35-01
TYPE A:REFER 35-01
35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN
35608JSPRING SUB-ASSY, BRAKE PISTON RETURN
(L)
35608KRING, SNAP (FOR BRAKE PISTON RETURN SPRING)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
(L)
35621VPISTON, BRAKE, NO.1
MARK 060
MARK 070
35622GPISTON, BRAKE, NO.2
35622HRING, O (FOR BRAKE PISTON NO.2)
INNER
OUTER
OUTER
INNER
CENTER
INNER
INNER
OUTER
OUTER
35624PISTON, 2ND BRAKE
main35624-34010iURJ202..VX..GEN;URJ202..VXR..(ARL,GCC);VDJ200..6FC..(ARL,GEN)..LUB;URJ202,VDJ200..(08S,09S)..6FC..(GX,GXR)..GCC201508-202104
35624ARING, O (FOR 2ND BRAKE PISTON)
INNER
OUTER
main90301-99116iURJ202..VX..GCC;URJ202..VXR..GEN;VDJ200..05S..6FC;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC201508-202103
INNER
main90301-99177iURJ202..VX..GCC;URJ202..VXR..GEN;VDJ200..05S..6FC;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC201508-202103
OUTER
35624DRING, O (FOR BRAKE PISTON NO.4)
INNER
OUTER
INNER
OUTER
INNER
35624HRING, SNAP (FOR 2ND BRAKE PISTON)
(L)
35624JRING, HOLE SNAP (FOR 2ND BRAKE PISTON)
35639BSPRING, BRAKE PLATE STOPPER
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
35664CYLINDER, 2ND BRAKE
35671APLATE, BRAKE CUSHION
35676BFLANGE, BRAKE, NO.1
T=2.0,MARK 0,(L)
T=2.2,MARK 1,(L)
T=2.4,MARK 2,(L)
T=2.6,MARK 3,(L)
T=2.0,MARK 0
T=2.2,MARK 1
T=2.4,MARK 2
T=2.6,MARK 3
T=2.0,MARK 0
main35676-60130iURJ202..VX..GEN;URJ202..VXR..(ARL,GCC);VDJ200..6FC..(ARL,GEN)..LUB;URJ202,VDJ200..(08S,09S)..6FC..(GX,GXR)..GCC201508-202104
T=2.2,MARK 1
T=2.4,MARK 2
T=2.6,MARK 3
T=1.4,MARK 4
T=1.6,MARK 5
T=1.8,MARK 6
T=4.5
T=4.6
T=4.7
T=4.8
T=4.9
T=5.0
T=5.1
T=4.9
T=5.0
T=5.1
T=5.2
T=5.3
T=5.4
T=5.5
T=5.6
T=5.7
T=5.8
35678BFLANGE, BRAKE, NO.2
T=4.6,(L)
T=4.6
T=4.6,(J)
T=9.8
T=9.9
T=10.0
T=10.1
T=10.2
T=10.3
T=10.4
T=10.5
T=10.6
T=10.7
T=10.8
T=3.8,REAR
T=2.0,FRONT
T=2.1,FRONT
T=2.2,FRONT
T=2.3,FRONT
T=2.4,FRONT
T=2.5,FRONT
T=2.6,FRONT
T=2.7,FRONT
T=2.8,FRONT
35678CRING, SNAP (FOR BRAKE NO.2)
main90520-99132iURJ202..VX..GCC;URJ202..VXR..GEN;VDJ200..05S..6FC;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC201508-202103
(L)
35679BFLANGE, BRAKE, NO.3
(L),NO.1
(L),NO.2
(J),NO.1
(J),NO.2
35679CRING, SNAP (FOR BRAKE NO.3)
(L)
35681ADISC, BRAKE, NO.1
(L)
35682ADISC, BRAKE, NO.2
(L)
35691PLATE, BRAKE, NO.1
(L)
NO.1 & NO.2
main35691-60020×4iURJ202..VX..GEN;URJ202..VXR..(ARL,GCC);VDJ200..6FC..(ARL,GEN)..LUB;URJ202,VDJ200..(08S,09S)..6FC..(GX,GXR)..GCC201508-202104
NO.1
NO.1
NO.1,TYPE B:REF ILL.
35692APLATE, BRAKE, NO.2
(L)
35698CYLINDER, BRAKE, NO.1
35699CYLINDER, BRAKE, NO.2
35707CRACE SUB-ASSY, 1 WAY CLUTCH, INNER
main35707-0C030iURJ202..VX..GEN;URJ202..VXR..(ARL,GCC);VDJ200..6FC..(ARL,GEN)..LUB;URJ202,VDJ200..(08S,09S)..6FC..(GX,GXR)..GCC201508-202104
35780BCLUTCH ASSY, 1 WAY N0.2
TYPE B:REFER 35-01
35790CLUTCH ASSY, 1 WAY
(L)
31 parts on this diagram · 4 diagrams in section
