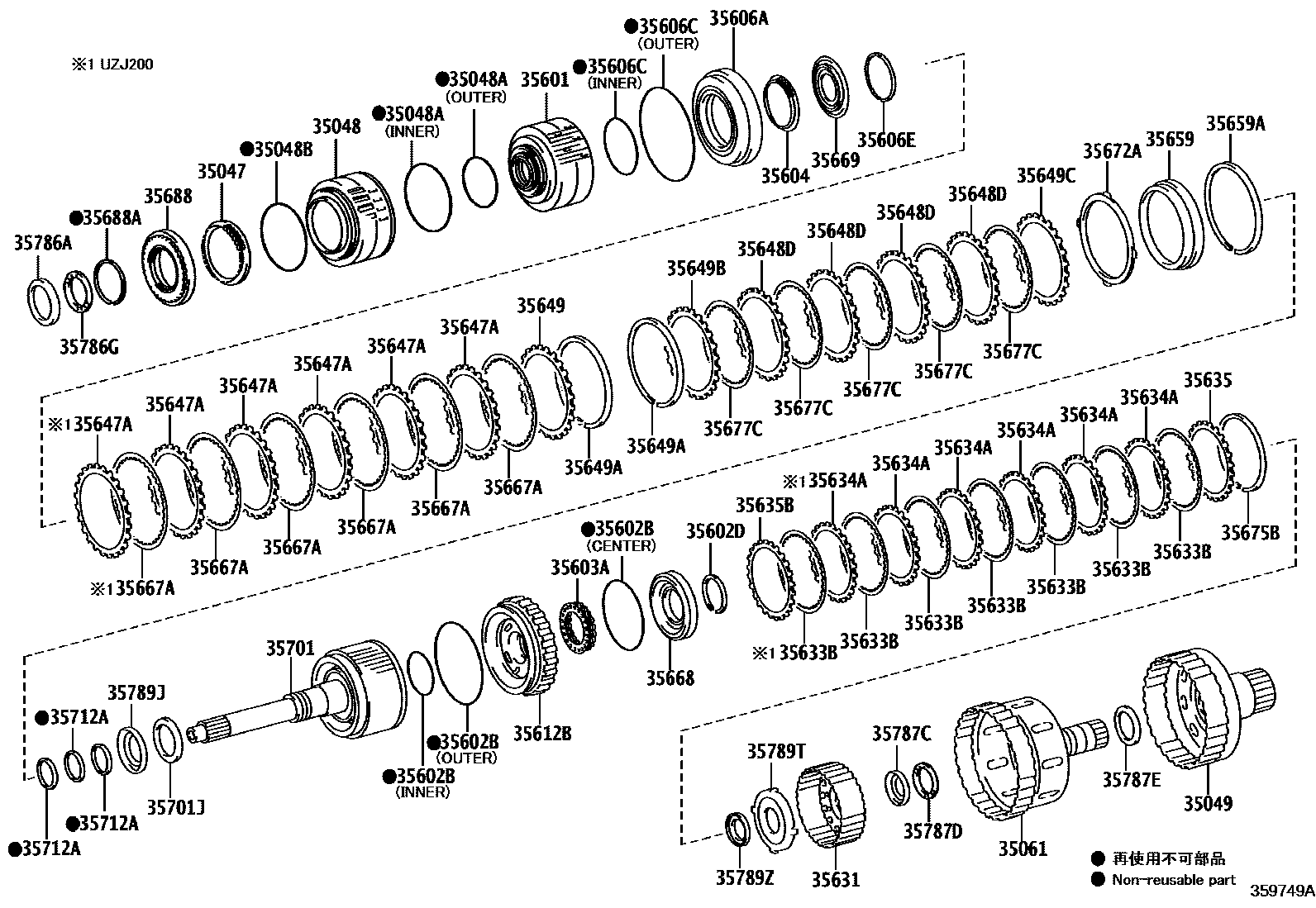

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)
35047SPRING SUB-ASSY, REVERSE CLUTCH RETURN
(L)
REAR
FRONT
35048PISTON SUB-ASSY, REVERSE CLUTCH
35048ARING, O (FOR REVERSE CLUTCH PISTON)
OUTER
INNER
35048BRING, O (FOR REVERSE CLUTCH PISTON)
35049HUB SUB-ASSY, REVERSE CLUTCH
35061HUB SUB-ASSY, FORWARD CLUTCH
35601DRUM SUB-ASSY, CLUTCH
35602BRING, O (FOR FORWARD CLUTCH PISTON)
INNER
INNER
main90301-99084iURJ202..VX..GCC;URJ202..VXR..GEN;VDJ200..05S..6FC;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC201508-202103
CENTER
OUTER
35602DRING, SHAFT SNAP(FOR FORWARD CLUTCH PISTON RETURN SPRING)
35603ASPRING SUB-ASSY, FORWARD CLUTCH RETURN
(L)
35604SPRING SUB-ASSY, DIRECT CLUTCH RETURN
(L)
35606APISTON SUB-ASSY, DIRECT CLUTCH
35606CRING, O (FOR DIRECT CLUTCH PISTON)
INNER
INNER
OUTER
OUTER
35606ERING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON RETURN SPRING)
(J)
(L)
35612BPISTON, FORWARD CLUTCH
35631HUB, CLUTCH(FOR MULTIPLE DISC CLUTCH)
35633BDISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
TYPE B:REFER 35-01
TYPE B:REFER 35-01
main35633-60110×6iURJ202..VX..GEN;URJ202..VXR..(ARL,GCC);VDJ200..6FC..(ARL,GEN)..LUB;URJ202,VDJ200..(08S,09S)..6FC..(GX,GXR)..GCC201508-202104
35634APLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
T=1.8,(L)
T=1.8
T=1.8
T=1.8
T=3.0
35635FLANGE, FORWARD CLUTCH
T=3.0,MARK 0,(L)
T=3.1,MARK 1,(L)
T=3.2,MARK 2,(L)
T=3.3,MARK 3,(L)
T=3.4,MARK 4,(L)
T=3.5,MARK 5,(L)
T=3.6,MARK 6,(L)
T=3.7,MARK 7,(L)
T=3.8,MARK 8,(L)
T=3.9,MARK A,(L)
T=4.0,MARK B,(L)
T=4.1,MARK C,(L)
T=4.4,MARK 0
T=4.5,MARK 1
T=4.6,MARK 2
T=4.7,MARK 3
T=4.8,MARK 4
T=4.9,MARK 5
T=5.0,MARK 6
T=5.1,MARK 7
T=5.2,MARK 8
T=3.0,MARK 0
T=3.1,MARK 1
T=3.2,MARK 2
T=3.3,MARK 3
T=3.4,MARK 4
T=3.5,MARK 5
T=3.6,MARK 6
T=3.7,MARK 7
T=3.8,MARK 8
T=3.9,MARK 9
T=4.0,MARK A
T=3.0 MARK 0,(J)
T=3.1 MARK 1
T=3.2 MARK 2,(J)
T=3.3 MARK 3,(J)
T=3.4 MARK 4,(J)
T=3.5 MARK 5
T=3.6 MARK 6
T=3.7 MARK 7,(J)
T=3.8 MARK 8
T=3.9 MARK A
T=4.0 MARK B
T=4.1 MARK C
T=3.0
T=3.1
T=3.2
T=3.3
T=3.4
T=3.5
T=3.6
T=3.7
T=3.8
T=3.9
T=4.0
T=4.1
T=4.2
35635BFLANGE, FORWARD CLUTCH
T=3.0,MARK 0
35647APLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)
(L)
35648DPLATE, CLUTCH, NO.3
(L)
35649FLANGE, REVERSE CLUTCH
T=3.0,MARK 2
T=3.1.MARK 3
T=3.2,MARK 4
T=3.3,MARK 5
T=3.4,MARK 6
T=3.5,MARK 7
T=3.6,MARK 8
T=3.7,MARK 9
T=3.8,MARK A
T=3.8
T=3.9
T=4.0
T=4.1
T=4.2
T=4.3
T=4.4
T=4.5
T=4.6
T=4.7
T=4.8
35649ARING, HOLE SNAP(FOR REVERSE CLUTCH FLANGE)
(L)
35649BFLANGE, REVERSE CLUTCH
T=2.4 MARK 0,(L)
T=3.0,MARK 2
T=2.4 MARK 0
35649CFLANGE, REVERSE CLUTCH
T=2.4 MARK 0,(L)
T=2.5 MARK 1,(L)
T=2.6 MARK 2,(L)
T=2.7 MARK 3,(L)
T=2.8 MARK 4,(L)
T=2.9 MARK 5,(L)
T=3.0 MARK 6,(L)
T=3.1 MARK 7,(L)
T=3.2 MARK 8,(L)
T=3.3 MARK A,(L)
T=3.4 MARK B,(L)
T=3.5 MARK C,(L)
T=2.8,MARK 0
T=2.9,MARK 1
T=3.0,MARK 2
T=3.1.MARK 3
T=3.2,MARK 4
T=3.3,MARK 5
T=3.4,MARK 6
T=3.5,MARK 7
T=3.6,MARK 8
T=3.7,MARK 9
T=3.8,MARK A
T=2.4 MARK 0
T=2.5 MARK 1,(J)
T=2.6 MARK 2,(J)
main35649-60150iURJ202..VX..GCC;URJ202..VXR..GEN;VDJ200..05S..6FC;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC201508-202103
T=2.7 MARK 3
T=2.8 MARK 4,(J)
main35649-60170iURJ202..VX..GCC;URJ202..VXR..GEN;VDJ200..05S..6FC;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC201508-202103
T=2.9 MARK 5
T=3.0 MARK 6
T=3.1 MARK 7
T=3.2 MARK 8,(J)
T=3.3 MARK A
T=3.4 MARK B,(J)
T=3.5 MARK C,(J)
35659SLEEVE, REVERSE CLUTCH REACTION
35659ARING, SNAP (FOR REVERSE CLUTCH REACTION SLEEVE)
(L)
35667ADISK, DIRECT CLUTCH
TYPE B:REFER 35-01
TYPE B:REFER 35-01
main35667-60050×5iURJ202..VX..GEN;URJ202..GXR..GCC;URJ202..VXR..(ARL,GCC); VDJ200..6FC..(ARL,GEN)..LUB;VDJ200..(08S,09S)..6FC..(GX,GXR)..GCC201508-202104
35668BALANCER, CLUTCH, NO.1
35669BALANCER, CLUTCH, NO.2
(L)
35672PLATE, CLUTCH CUSHION
(L)
main35672-34030iURJ202..VX..GEN;URJ202..VXR..(ARL,GCC);VDJ200..6FC..(ARL,GEN)..LUB;URJ202,VDJ200..(08S,09S)..6FC..(GX,GXR)..GCC201508-202104
35672APLATE, CLUTCH CUSHION (FOR DIRECT MULTIPLE DISC CLUTCH)
(L)
main35672-34040iURJ202..VX..GCC;URJ202..VXR..GEN;VDJ200..05S..6FC;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC201508-202103
35675BRING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE)
(L)
35677CDISC, REAR CLUTCH
(L)
(J)
35688BALANCER, CLUTCH, NO.3
35688ARING, SNAP (FOR REVERSE CLUTCH RETURN SPRING)
(L)
35701SHAFT SUB-ASSY, INPUT
(L)
(J)
35701JBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT FRONT)
(L)
35712ARING, INPUT SHAFT OIL SEAL
35786ARACE, THRUST BEARING, NO.1
(L)
35786GBEARING,THRUST NEEDLE ROLLER
(L)
35787CRACE, THRUST BEARING, NO.2
35787DBEARING, THRUST NEEDLE ROLLER
(L)
35787EBEARING, THRUST NEEDLE ROLLER
main90374-46002iURJ202..VX..GEN;URJ202..VXR..(ARL,GCC);VDJ200..6FC..(ARL,GEN)..LUB;URJ202,VDJ200..(08S,09S)..6FC..(GX,GXR)..GCC201508-202104
(L)
35789JRACE, THRUST BEARING (FOR INPUT SHAFT FRONT)
35789TRACE, THRUST BEARING (INPUT SHAFT REAR)
(L),NO.1
(L),NO.2
NO.1
main35789-60060iURJ202..VX..GEN;URJ202..VXR..(ARL,GCC);VDJ200..6FC..(ARL,GEN)..LUB;URJ202,VDJ200..(08S,09S)..6FC..(GX,GXR)..GCC201508-202104
NO.2
35789ZBEARING, THRUST NEEDLE ROLLER
(J)
(L)
48 parts on this diagram · 5 diagrams in section
