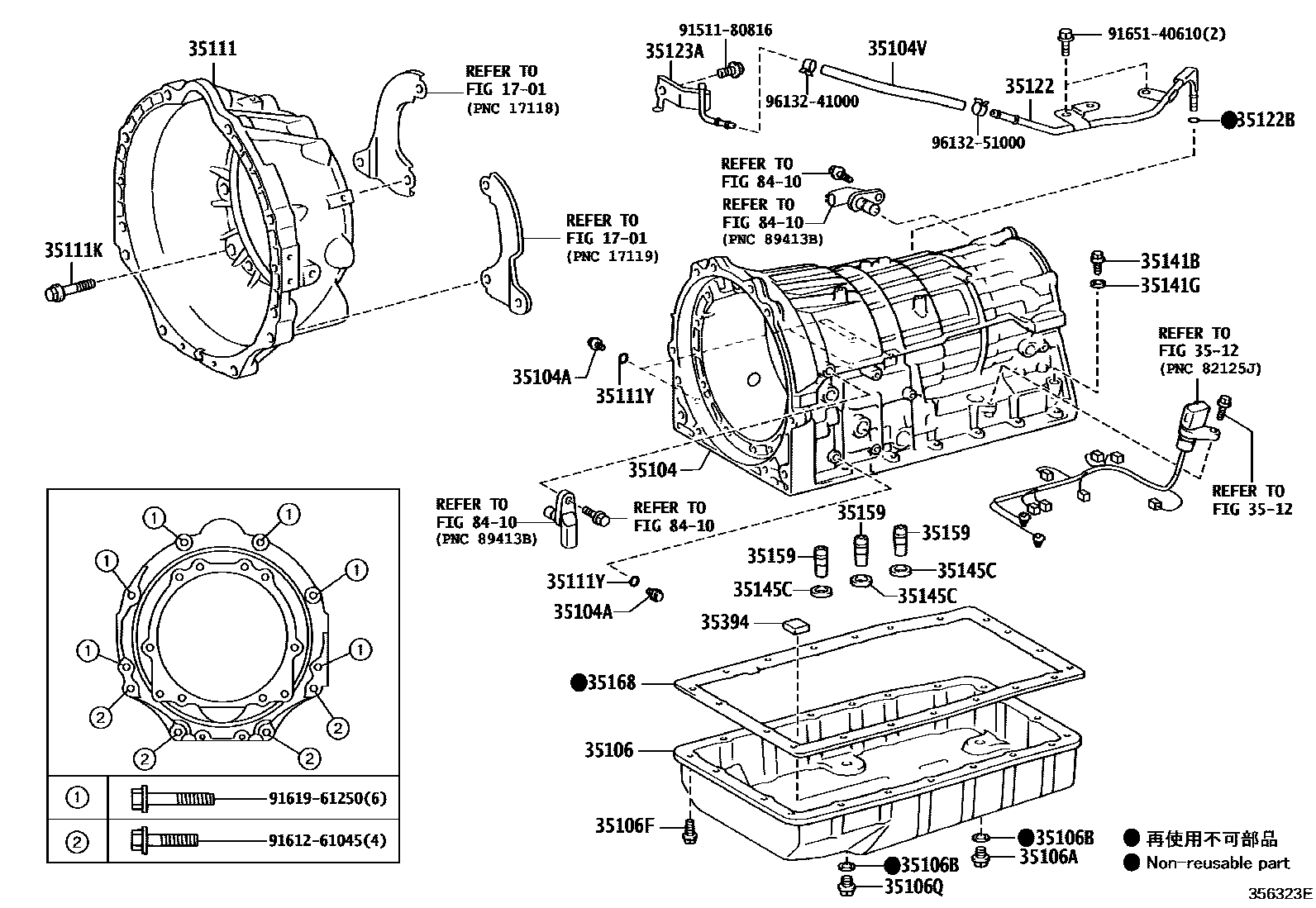

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A750F 0002 1AB60F 0003 1A750F 0004 1AB60F 0005 1AB60F 0006 1AE80F 0007 1AC60F

1701MANIFOLD

→ Go to FIG 17-01

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-0C030iURJ200201201-201508

(L)

main35104-60221iGRJ200..5FC201201-201508

main35104-60250iVDJ200..6FC..G200709-201201

main35104-60260iURJ200201508-202104

main35104-71020iGRJ200..6FC201708-202104

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001×5iGRJ200..5FC;URJ202..VX..GEN;URJ202..VXR..(ARL,GCC);VDJ200..6FC..(ARL,GEN)..LUB;URJ202,VDJ200..(08S,09S)..6FC..(GX,GXR)..GCC201508-202104

main90341-14018×2iURJ200201508-202104

main90341-A0001×5iURJ200201007-201201

(L)

35104VHOSE (FOR BREATHER PLUG)

main35121-48010iVDJ200..6FC..G200709-201201

main35121-48030iURJ202..VX..GCC;URJ202..VXR..GEN;URJ202..(GXR,VX)..ARL201508-202103

main35121-60050iVDJ200..6FC..(ARL,GEN)..LUB;VDJ200..(08S,09S)..6FC..(GX,GXR)..GCC201508-202104

main35121-60060iGRJ200..6FC201708-202104

main35121-71010iGRJ200..5FC201508-201707

main90445-10020iURJ200201201-201508

main90445-11154iGRJ200..5FC200709-201201

main90447-11076iURJ200201508-202104

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-0C030iURJ200201007-201201

(L)

main35106-60180iGRJ200..5FC201201-201508

main35106-60200iURJ200201508-202104

main35106-60220iURJ202,VDJ200..6FC201508-202002

main35106-71050iGRJ200..6FC201708-202104

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10011iVDJ200..ARL..K201109-201201

main90341-10024iURJ200201508-202104

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010×2iURJ202..VX..GEN;URJ202..VXR..(ARL,GCC);VDJ200..6FC..(ARL,GEN)..LUB;GRJ200,URJ202..ATM..(GX,GXR)..GCC;VDJ200..(08S,09S)..6FC..(GX,GXR)..GCC201508-202104

main35178-60010iURJ200201508-202104

35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90119-06173×20iGRJ200,UZJ200..5FC200709-201201

main90119-06A02×11iURJ200; URJ202..VX..GEN;URJ202..VXR..(ARL,GCC);VDJ200..6FC..(ARL,GEN)..LUB;URJ202,VDJ200..(08S,09S)..6FC..(GX,GXR)..GCC201508-202104

main90119-A0401×12iURJ200201307-201402

(L)

main91611-B0625×12iURJ202,VDJ200..6FC..G201109-201402

35106QPLUG (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90341-10021iURJ202..VX..GCC;URJ202..VXR..GEN;VDJ200..05S..6FC;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC201508-202103

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-0C050iURJ200201007-201201

(L)

main35111-60170iGRJ200..5FC201201-201508

main35111-60180iUZJ200200709-201201

main35111-60190iURJ200201201-201508

(J)

main35111-60200iVDJ200..ARL..K201109-201201

main35111-60220iURJ202..VX..GCC;URJ202..VXR..GEN;URJ202..(GXR,VX)..ARL201508-202103

main35111-60230iURJ200201508-202104

main35111-60240iGRJ200..6FC201708-202104

35111KBOLT (FOR TRANSMISSION HOUSING & CASE SETTING)

main90105-08479×2iURJ200201508-202104

*8-1.25PX35-30,NO.1

main90105-08482×16iURJ200201508-202104

*8-1.25PX30-27.5,NO.2

main90119-08C62iGRJ200..6FC201708-202104

*8-1.25PX30-23.5

main90119-10232×6iGRJ200..5FC; URJ200201201-201508

*10-1.5PX35-30,(J); *10-1.5PX35-30,NO.1

main90119-10947×2iGRJ200..6FC201708-202104

*10-1.50PX35-29.3,NO.3:REFER ILLUST.

main90119-12378×2iGRJ200..5FC201201-201508

*12-1.75PX38-30,NO.2

main90119-A0272×14iURJ200201201-201508

*10-1.5PX35-29.3,(L)

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196×5iGRJ200..5FC;URJ202..VX..GEN;URJ202..VXR..(ARL,GCC);VDJ200..6FC..(ARL,GEN)..LUB;URJ202,VDJ200..(08S,09S)..6FC..(GX,GXR)..GCC201508-202104

3512VALVE BODY & OIL STRAINER (ATM)

→ Go to FIG 35-12

35122TUBE, BREATHER (FOR AUTOMATIC TRANSAXLE)

main35122-60020iGRJ200..5FC201201-201508

main35122-60090iURJ202..VX..GCC;URJ202..VXR..GEN;URJ202..(GXR,VX)..ARL201508-202103

main35122-60120iVDJ200..05S..6FC;VDJ200..(VX,VXR)..GCC201508-202103

35122BRING, O (FOR AUTOMATIC TRANSAXLE BREATHER TUBE UNION)

main90301-04014iGRJ200,URJ200,UZJ200,VDJ200..ATM..G200709-201201

main90301-08015iGRJ200..6FC201708-202104

35123ASKIRT, TRANSMISSION BREATHER

main35123-60100iGRJ200..5FC200709-201201

main35123-60110iUZJ200200709-201201

main35123-60130iGRJ200..ATM201508-202104

35141BPLUG (FOR AUTOMATIC TRANSMISSION CASE)

main90341-14011iGRJ200,URJ200,UZJ200,VDJ200..ATM..G200709-201201

main90341-24017iURJ200201508-202104

35141GRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-11030iURJ202..VX..GCC;URJ202..VXR..GEN;VDJ200..05S..6FC;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC201508-202103

main90301-20013iURJ200201508-202104

35145CGASKET, TRANSAXLE CASE

main35145-60020×3iGRJ200,URJ200,UZJ200,VDJ200..ATM..G200709-201201

35159GASKET, BRAKE DRUM

main35159-0C020iURJ200201007-201201

NO.2

main35159-0C030×2iURJ200201201-201508

(L),NO.1

main35159-60010×3iGRJ200..5FC201201-201508

main35159-60020iVDJ200..ARL..K201109-201201

NO.2

main35159-60030×2iURJ202..VX..GCC;URJ202..VXR..GEN;VDJ200..05S..6FC;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC201508-202103

NO.1

main35159-71010×2iGRJ200..6FC201708-202104

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-34010iVDJ200..6FC200709-200905

main35168-34020iVDJ200..ARL..K201109-201201

main35168-60010iGRJ200,UZJ200..5FC200709-201201

main35168-60030iURJ200201508-202104

main35168-71010iGRJ200..6FC201708-202104

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×4iGRJ200,URJ20#,VDJ200..ATM..G201109-201508

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

9151180816

main91511-80816

9161261045

main91612-61045

9161961250

main91619-61250

9165140610

main91651-40610

9613241000

main96132-41000

9613251000

main96132-51000

29 parts on this diagram · 7 diagrams in section
