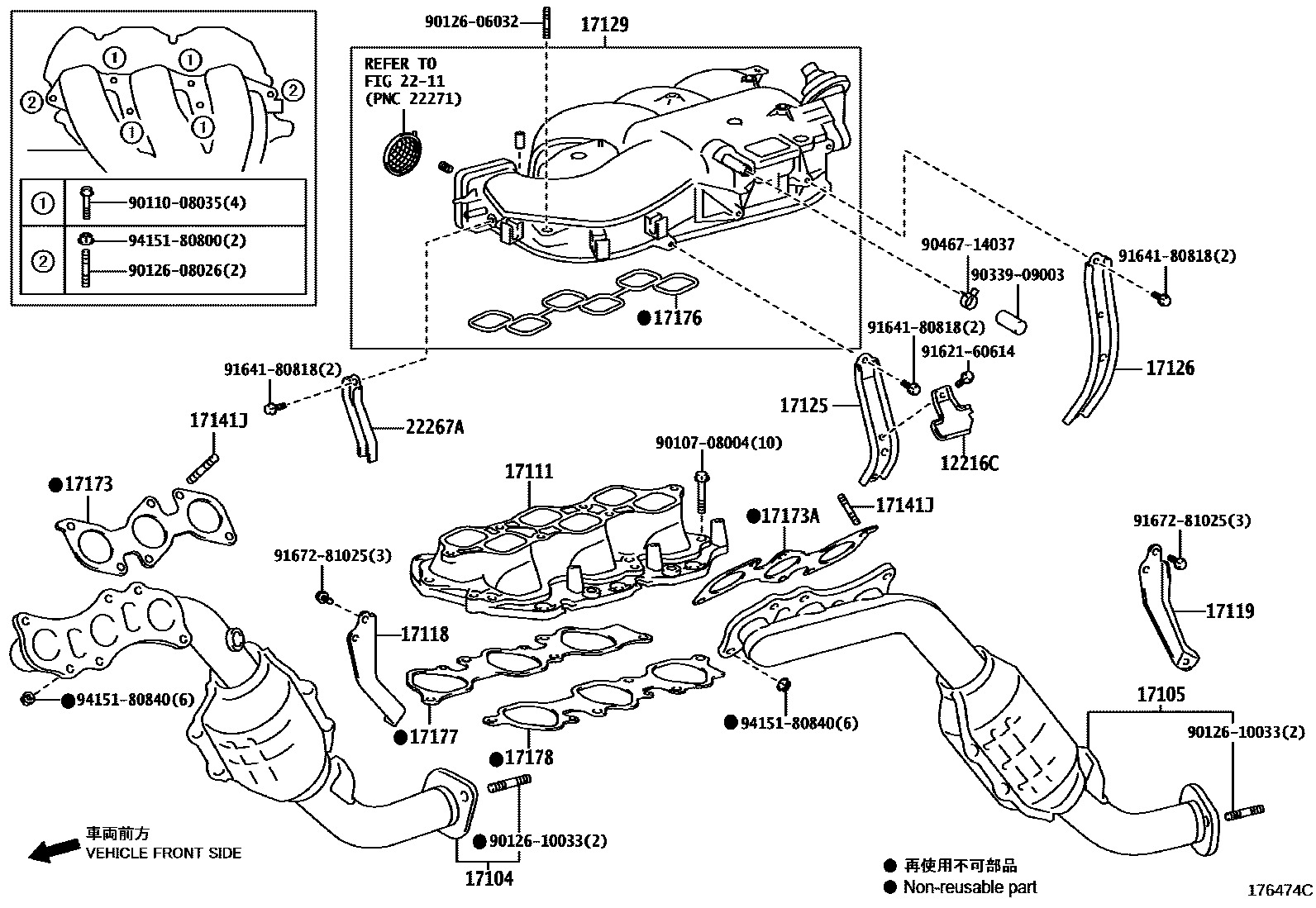

MANIFOLD
12216CPLATE, OIL BAFFLE
17104MANIFOLD SUB-ASSY, EXHAUST, RH
COMOROS ISLANDS & IVORY COAST SPEC
NIGERIA SPEC
AZERBAIJAN, GEORGIA, ARMENIA SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP5, WITH(OBD); KAZAKHSTAN SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP5, WITH(OBD)
17105MANIFOLD SUB-ASSY, EXHAUST, LH
AZERBAIJAN, GEORGIA, ARMENIA SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP5, WITH(OBD); KAZAKHSTAN SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP5, WITH(OBD)
17111MANIFOLD, INTAKE
main17111-51020i1VDFTV..VDJ200..09S..SOB;1VDFTV..VDJ200..(VX,VXR)..GCC;1VDFTV..VDJ200..05S..(ARL,GCC);1VDFTV..VDJ200..LHD..5F..GEN..LUB201508-202103
17118STAY, MANIFOLD
main17118-38030i1URFE..URJ202..VX..GEN;1URFE..URJ202..GXR..GCC;1URFE..URJ202..VXR..(ARL,GCC)201508-202104
main17118-51020supersedes 17118-51030i1VDFTV..VDJ200..09S..SOB;1VDFTV..VDJ200..LHD..5F..GEN..LUB;1VDFTV..VDJ200..(05S,08S)..(GX,VX,VXR)..GCC; 1VDFTV..VDJ200..ARL..SOB201508-202103
SOUTH AFRICA SPEC
17119STAY, MANIFOLD, NO.2
main17119-38030i1URFE..URJ202..VX..GEN;1URFE..URJ202..GXR..GCC;1URFE..URJ202..VXR..(ARL,GCC)201508-202104
17125STAY, SURGE TANK, NO.1
17126STAY, SURGE TANK, NO.2
17129TANK, INTAKE AIR SURGE
17141MANIFOLD, EXHAUST
17141JBOLT, STUD(FOR EXHAUST MANIFOLD, RH)
17173GASKET, EXHAUST MANIFOLD TO HEAD
main17173-38020i1URFE..URJ202..VX..GCC;1URFE..URJ202..VXR..GEN;1URFE..URJ202..(GXR,VX)..ARL201508-202103
main17173-51020supersedes 17173-51030i1VDFTV..VDJ200..09S..SOB;1VDFTV..VDJ200..LHD..5F..GEN..LUB;1VDFTV..VDJ200..(05S,08S)..(GX,VX,VXR)..GCC; 1VDFTV..VDJ200..ARL..SOB201508-202103
SOUTH AFRICA SPEC
17173AGASKET, EXHAUST MANIFOLD TO HEAD, LH
17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
main17177-51011×2i1VDFTV..VDJ200..09S..SOB;1VDFTV..VDJ200..(VX,VXR)..GCC;1VDFTV..VDJ200..05S..(ARL,GCC);1VDFTV..VDJ200..LHD..5F..GEN..LUB201508-202103
17178GASKET, INTAKE MANIFOLD TO HEAD, NO.2
main17171-38030i1URFE..URJ202..VX..GCC;1URFE..URJ202..VXR..GEN;1URFE..URJ202..(GXR,VX)..ARL201508-202103
2211FUEL INJECTION SYSTEM
22267ABRACKET, THROTTLE BODY
9010708004
main90107-08004
9011008035
main90110-08035
9012606032
main90126-06032
9012608026
main90126-08026
9012610033
main90126-10033
9033909003
main90339-09003
9046714037
main90467-14037
9162160614
main91621-60614
9164180818
main91641-80818
9167281025
main91672-81025
9415180800
main94151-80800
9415180840
main94151-80840
30 parts on this diagram · 13 diagrams in section
