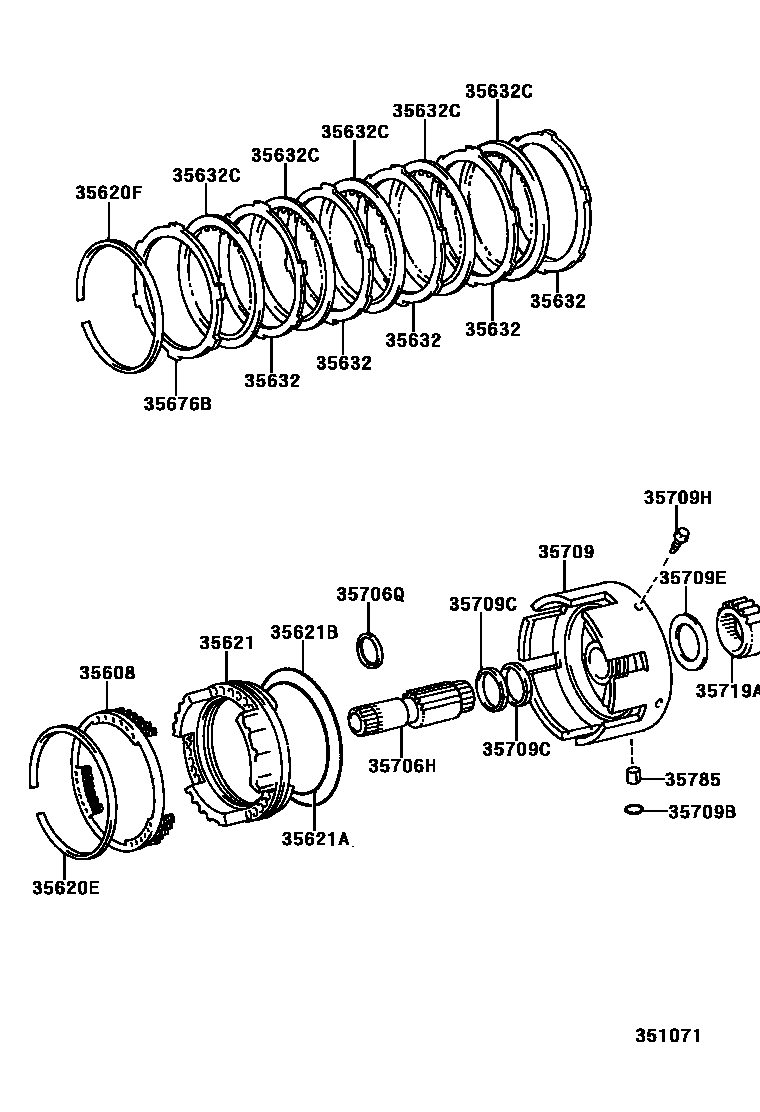

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)
35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN
35620ERING, HOLE SNAP (FOR BRAKE PISTON RETURN SPRING)
35620FRING, HOLE SNAP (FOR BRAKE NO.1 FLANGE)
35621PISTON, BRAKE, NO.1
35621ARING, O (FOR BRAKE PISTON OUTER)
35621BRING, O (FOR BRAKE PISTON INNER)
35632CDISC, CLUTCH (FOR BRAKE)
35676BFLANGE, BRAKE, NO.1
T=5.0
T=5.2
T=5.4
T=5.6
T=2.0,MARK 0
T=2.2,MARK 1
T=2.4,MARK 2
T=2.6,MARK 3
35706HGEAR SUB-ASSY, PLANETARY SUN
35706QRING, SHAFT SNAP (FOR FRONT PLANETARY SUN GEAR)
35709SUPPORT SUB-ASSY, CENTER
35709BRING, O (FOR CENTER SUPPORT)
35709CRING, OIL SEAL (FOR CENTER SUPPORT)
35709EWASHER (FOR CENTER SUPPORT)
T=1.5
T=1.8
T=2.1
T=2.4
T=2.7
35709HBOLT (FOR CENTER SUPPORT)
35719AGEAR, REAR PLANETARY SUN
35785RETAINER, CENTER SUPPORT RING
18 parts on this diagram · 3 diagrams in section
