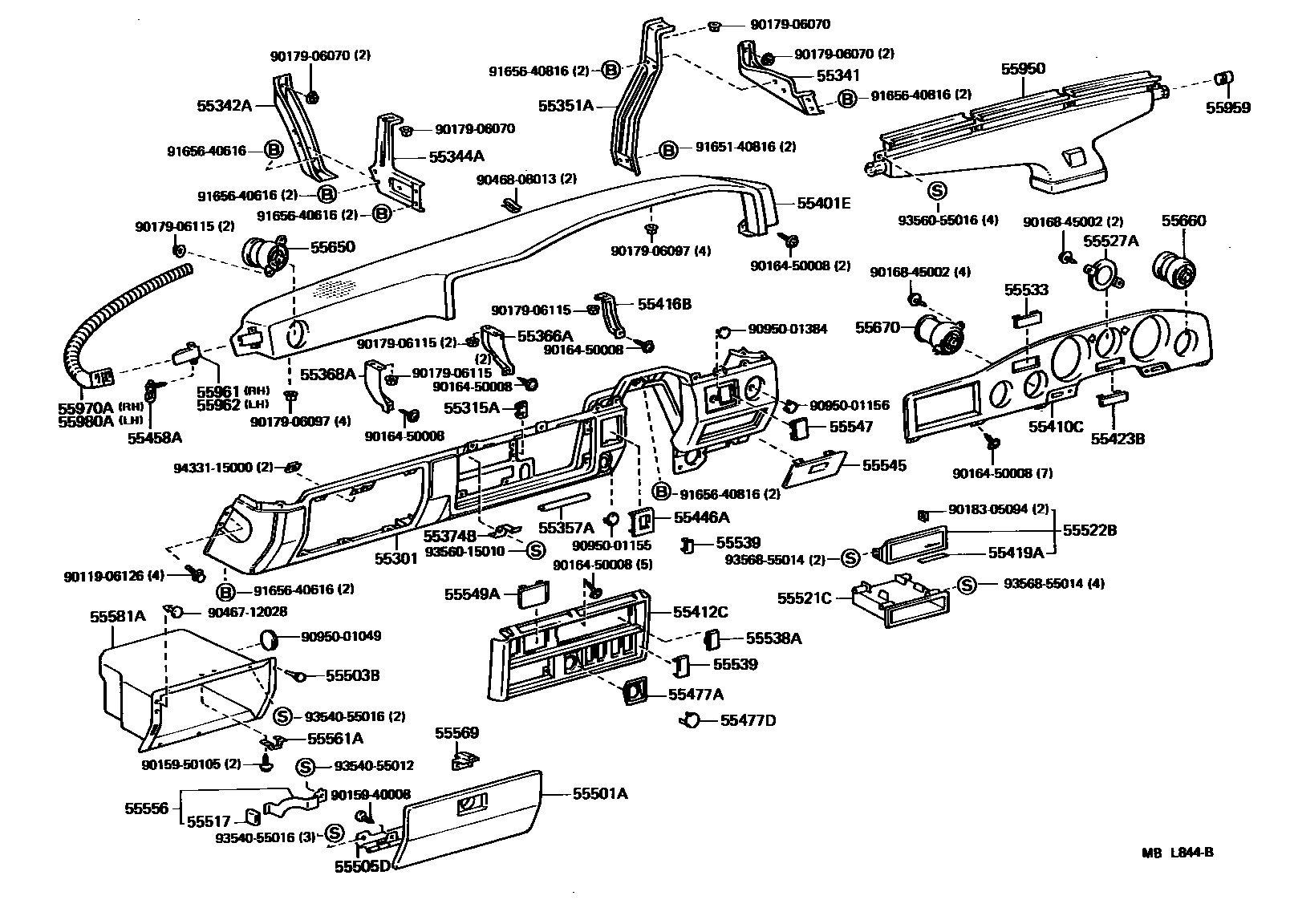

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55301PANEL SUB-ASSY, INSTRUMENT

main55301-90A69-03iFJ62,HJ60..RHD..GX..GEN; FJ62..LUB..ARL; HJ6#..SRF..GX..ARL; HJ61..HRF198708-199001

SHADOW GRAY,TRIM1#; W(ASSIST GLIP),SHADOW GRAY,TRIM1#

main55301-90A69-05iBJ60,FJ62,HJ60..RHD..GEN; FJ62,HJ6#..ARL198708-199001

SEPIA BROWN,TRIM4#; W(ASSIST GLIP),SEPIA BROWN,TRIM4#

main55301-90A71-03iFJ62,HJ60..RHD..GX..GEN198708-199001

SHADOW GRAY,TRIM1#

main55301-90A71-05iBJ60,FJ62,HJ60..RHD..GEN198708-199001

SEPIA BROWN,TRIM4#

main55301-90A74-03iBJ60,HJ60..LHD..(GX,VX);FJ62..LHD..(GX,VX)..GEN198708-199203

SHADOW GRAY,TRIM1#

main55301-90A74-05iFJ62..STD..ME;FJ62..LHD..GEN;BJ60,HJ60..LHD198708-199203

SEPIA BROWN,TRIM4#

main55301-90A75-03iFJ62..(GX,VX)..ME198708-199001

SHADOW GRAY,TRIM1#

main55301-90A75-05iFJ62..(GX,VX)..ME198708-199001

SEPIA BROWN,TRIM4#

55315ASPACER, INSTRUMENT PANEL, NO.1

main55315-90A00iHJ61..4FC;HJ61..5F..GX;BJ60,FJ62,HJ60198708-199203

55341BRACE, INSTRUMENT PANEL, NO.1

main55341-90A00iHJ61..4FC;HJ61..5F..GX;BJ60,FJ62,HJ60..RHD198708-199001

main55341-90A02iBJ60,FJ62,HJ60..LHD198708-199203

55342ABRACE, INSTRUMENT PANEL TO COWL, NO.2

main55342-90A00iHJ61..4FC;HJ61..5F..GX;BJ60,FJ62,HJ60..RHD198708-199001

main55342-90A01iBJ60,FJ62,HJ60..LHD198708-199203

55344ABRACE, INSTRUMENT PANEL TO COWL, NO.3

main55344-90A00iHJ61..4FC;HJ61..5F..GX;BJ60,FJ62,HJ60..RHD198708-199001

main55344-90A01iBJ60,FJ62,HJ60..LHD198708-199203

55351ABRACE, INSTRUMENT PANEL TO FLOOR

main55351-90A00iHJ61..4FC;HJ61..5F..GX;BJ60,FJ62,HJ60..RHD198708-199001

main55351-90A01iBJ60,FJ62,HJ60..LHD..GEN198708-199203

main55351-90A03iBJ60,FJ62,HJ60..ME198708-199001

55357APROTECTOR, EDGE, NO.1

main55357-90A00iHJ61..4FC;HJ61..5F..GX;BJ60,FJ62,HJ60198708-199203

55366ABRACKET, RADIO MOUNTING, NO.1

main55366-90A02iBJ60,FJ62,HJ6#198708-199203

55368ABRACKET, RADIO MOUNTING, NO.2

main55368-90A03iBJ60,FJ62,HJ6#198708-199203

55374BBRACKET, INSTRUMENT PANEL

main55374-90A00iHJ61..4FC;HJ61..5F..GX;BJ60,FJ62,HJ60..RHD198708-199001

main55374-90A01iBJ60,FJ62,HJ60..LHD198708-199203

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-90A04-03iFJ62,HJ6#..RHD..LUB198708-199001

SHADOW GRAY,TRIM1#

main55401-90A04-05iBJ60,FJ62,HJ60..RHD; HJ61198708-199001

SEPIA BROWN,TRIM4#

main55401-90A05-05iBJ60,FJ62,HJ60..LHD198708-199203

SEPIA BROWN,TRIM4#

main55401-90A06-03iFJ62..RHD..GX..GEN198708-198710

COLD SPEC,SHADOW GRAY,TRIM1#

main55401-90A06-05iFJ62..RHD..GEN198708-198710

COLD SPEC,SEPIA BROWN,TRIM4#

main55401-90A07-03iFJ62..LHD..(GX,VX)..GEN198708-198710

COLD SPEC,SHADOW GRAY,TRIM1#

main55401-90A07-05iFJ62..LHD..GEN198708-198710

COLD SPEC,SEPIA BROWN,TRIM4#

55410CPANEL ASSY, INSTRUMENT CLUSTER FINISH

main55410-90G25iBJ60,FJ62,HJ60..RHD..GEN198708-198710

main55410-90G26iBJ60..RHD; FJ62,HJ6#..ARL; FJ62,HJ60..RHD..GEN198708-198710

W(TILT STEERING)

main55410-90G27iBJ60,FJ62,HJ60..LHD..GEN198708-198710

main55410-90G28iBJ60,FJ62,HJ60..LHD..GEN; BJ60,FJ62..ME198708-198710

W(TILT STEERING)

55412CPANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.1

main55412-90A09-03iFJ62,HJ6#..RHD..LUB198708-199001

SHADOW GRAY,TRIM1#

main55412-90A09-05iBJ60,FJ62,HJ6#..RHD198708-199001

SEPIA BROWN,TRIM4#

main55412-90A10-03iBJ60,FJ62,HJ60..LHD..(GX,VX)198708-199203

SHADOW GRAY,TRIM1#

main55412-90A10-05iBJ60,FJ62,HJ60..LHD198708-199203

SEPIA BROWN,TRIM4#

55416BBRACKET, INSTRUMENT PAD, NO.2

main55416-90A00iHJ61..4FC;HJ61..5F..GX;BJ60,FJ62,HJ60..RHD198708-199001

main55416-90A01iBJ60,FJ62,HJ60..LHD198708-199203

55419ACUSHION, INSTRUMENT CLUSTER FINISH PANEL

main55419-14020×2iFJ62..(STD,VX)..ME;FJ62..(GX,STD)..GEN;BJ60,HJ60..(GX,STD)..(GEN,ME)198708-199203

55423BCOVER, INSTRUMENT CLUSTER FINISH PANEL

main55423-90A00iHJ60..GEN;BJ60,FJ62..ARL,GEN198708-198808

55446ABASE, SWITCH HOLE, NO.1

main55446-90A01-06iBJ60,HJ60;FJ62..5F..VX..ME;FJ62,HJ61..MTM..(GX,STD)198708-199203

SEPIA BROWN,TRIM4#

main55446-90A01-13iBJ60,HJ60..GX,VX;FJ62..5F..VX..ME;FJ62,HJ61..MTM..GX198708-199203

SHADOW GRAY,TRIM1#

main55446-90A02-06iFJ62,HJ61..4FC;FJ62,HJ61..5F..VX..ARL; HJ60..GX,VX;HJ60..RHD..STD;FJ62..5F..VX..ME;BJ60,FJ62,HJ61..MTM..(GX,STD)198708-199203

SEPIA BROWN,TRIM4#; W(ONE TOUCH 2-4 SELECTOR),SEPIA BROWN,TRIM4#

main55446-90A02-13iBJ60,HJ60..GX,VX;FJ62..5F..VX..ME;FJ62,HJ61..MTM..GX; FJ62,HJ61..4FC;FJ62,HJ61..5F..VX..ARL198708-199203

SHADOW GRAY,TRIM1#; W(ONE TOUCH 2-4 SELECTOR),SHADOW GRAY,TRIM1#

55458ACAP, INSTRUMENT PANEL SAFETY PAD

main55458-90A00×2iHJ61..4FC;HJ61..5F..GX;BJ60,FJ62,HJ60198708-199203

55477ABEZEL, CIGARETTE LIGHTER HOLE

main55477-87001iBJ60,FJ62,HJ6#198708-199203

55477DCOVER, CIGARETTE LIGHTER HOLE

main55477-10010-01iBJ60,FJ62,HJ60..STD; BJ60,HJ60..ME198708-199001

BLACK,TRIM1#,4#; BLACK,TRIM4#

55501ADOOR SUB-ASSY, GLOVE COMPARTMENT

main55501-90A00-06iHJ60..ARL,GEN;BJ60,FJ62,HJ61198708-199203

SEPIA BROWN,TRIM4#

main55501-90A00-23iHJ60..LUB;BJ60,FJ62,HJ61..GX,VX198708-199203

SHADOW GRAY,TRIM1#

55503BCUSHION(FOR GLOVE COMPARTMENT)

main90541-03015×2iHJ60..ARL,GEN;BJ60,FJ62,HJ61198708-199203

55505DHINGE SUB-ASSY, GLOVE COMPARTMENT DOOR

main55505-90A00iHJ60..ARL,GEN;BJ60,FJ62,HJ61198708-199203

55517STOPPER, GLOVE COMPARTMENT DOOR ARM

main55517-14010iHJ60..ARL,GEN;BJ60,FJ62,HJ61198708-199203

55521CCOVER, STEREO OPENING

main55521-14050-01iBJ60,FJ62,HJ60..STD; FJ62..(GX,VX)..GEN;BJ60,HJ60..(GX,VX)..(GEN,ME)198708-199203

BLACK,TRIM1#,4#; BLACK,TRIM4#

55522BCOVER, RADIO TUNER OPENING

main55522-32010iFJ62..(STD,VX)..ME;FJ62..(GX,STD)..GEN;BJ60,HJ60..(GX,STD)..(GEN,ME)198708-199203

55527ACOVER, METER OPENING

main55527-90A00iHJ60..STD..ARL;FJ62..(GX,STD)..GEN;BJ60,HJ60..(GX,STD)..(GEN,ME);FJ62..5F..SRF..SOB..(GX,STD)..(ARL,ME)198708-199203

55533COVER, AUTO CLOCK HOLE

main55533-90A00iFJ62..STD..ME;BJ60,HJ6#..GX,STD;FJ62..(GX,STD)..(ARL,GEN)198708-199203

55538ACOVER, COOLER SWITCH HOLE

main55538-22010iBJ60,HJ61;FJ62..STD..ME;FJ62,HJ60..ARL,GEN198708-199203

55539COVER, SPARE SWITCH HOLE

main55539-32010-01iBJ60,FJ62,HJ6#..GX,VX; BJ60,FJ62,HJ60..STD; BJ60,HJ6#..GX;FJ62..GX..(ARL,GEN);FJ62..5F..SRF..SOB..GX..ME198708-198712

BLACK,TRIM1#,4#; BLACK,TRIM4#

main55539-32010-11×2iFJ62199008

BLACK,TRIM1#,4#

55545COVER, FUSE BOX OPENING

main55545-90A01-03iHJ6#..GX,VX;FJ62..5F..VX;FJ62..5F..GX..(GEN,ME);FJ62..(4F,4FC)..(GX,VX)198808-199203

SHADOW GRAY,TRIM1#

main55545-90A01-06iBJ60,HJ6#;FJ62..GEN,ME;FJ62..4FC..GX..ARL;FJ62..(STD,VX)..ARL198808-199203

SEPIA BROWN,TRIM4#

55547COVER, REMOTE CONTROL MIRROR HOLE

main55547-90A00iBJ60,HJ6#;FJ62..GX,STD;FJ62..VX..(ARL,GEN)198708-199203

55549ACOVER, REAR COOLER SWITCH HOLE

main55549-90A00iBJ60,FJ62,HJ6#198708-199203

55556ARM, GLOVE COMPARTMENT DOOR CHECK

main55556-90A00iBJ60,FJ62,HJ6#..RHD198708-199001

main55556-90A01iBJ60,FJ62..LHD;HJ60..LHD..GEN198708-199203

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-90A00iBJ60,FJ62,HJ6#198708-199203

55569COVER, GLOVE COMPARTMENT DOOR LOCK

main55569-90A00-03iFJ62199001-199203

GRAY,TRIM1#

main55569-90A00-06iBJ60,FJ62,HJ6#198708-199203

SEPIA BROWN,TRIM4#

main55569-90A00-23iBJ60,FJ62,HJ6#..GX,VX198708-199001

SHADOW GRAY,TRIM1#

55581ACOMPARTMENT, GLOVE

main55581-90A04iBJ60,FJ62,HJ6#..RHD198708-199001

main55581-90A05iBJ60,FJ62..LHD;HJ60..LHD..GEN198708-199203

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-90A02iBJ60,FJ62,HJ6#..ARL,GEN198708-199203

main55650-90A03iBJ60,FJ62,HJ60..ME198708-199001

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-90A00iBJ60,FJ62,HJ6#..ARL,GEN198708-199203

main55660-90A01iBJ60,FJ62,HJ60..ME198708-199001

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-90A02×2iBJ60,FJ62,HJ6#..ARL,GEN198708-199203

main55670-90A03×2iBJ60,FJ62,HJ60..ME198708-199001

55950NOZZLE ASSY, DEFROSTER

main55950-90A00iBJ60,FJ62,HJ6#..RHD198708-198805

main55950-90A01iBJ60,FJ62,HJ60..LHD198708-198805

main55950-90A02iBJ60,FJ62,HJ6#..RHD198805-199001

main55950-90A03iBJ60,FJ62,HJ60..LHD198805-199203

55959COVER, DEFROSTER NOZZLE OPENING, NO.1

main55959-14010×2iBJ60,FJ62,HJ6#198708-199203

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-90A00-03iFJ62..(GX,VX)..GEN198708-199203

GRAY,TRIM1#

main55961-90A00-16iFJ62..GEN198708-199203

SEPIA BROWN,TRIM4#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55961-90A00-03iFJ62..(GX,VX)..GEN198708-199203

GRAY,TRIM1#

main55961-90A00-16iFJ62..GEN198708-199203

SEPIA BROWN,TRIM4#

55970ADUCT ASSY, SIDE DEFROSTER, RH

main55970-90A00iFJ62..GEN198708-199203

55980ADUCT ASSY, SIDE DEFROSTER, LH

main55980-90A00iFJ62..GEN198708-199203

9011906126

main90119-06126

9015940008

main90159-40008

9015950105

main90159-50105

9016450008

main90164-50008

9016845002

main90168-45002

9017906070

main90179-06070

9017906097

main90179-06097

9017906115

main90179-06115

9018305094

main90183-05094

9046712028

main90467-12028

9046808013

main90468-08013

9095001049

main90950-01049

9095001155

main90950-01155

9095001156

main90950-01156

9095001384

main90950-01384

9165140816

main91651-40816

9165640616

main91656-40616

9165640816

main91656-40816

9354055012

main93540-55012

9354055016

main93540-55016

9356015010

main93560-15010

9356055016

main93560-55016

9356855014

main93568-55014

9433115000

main94331-15000

70 parts on this diagram · 2 diagrams in section
