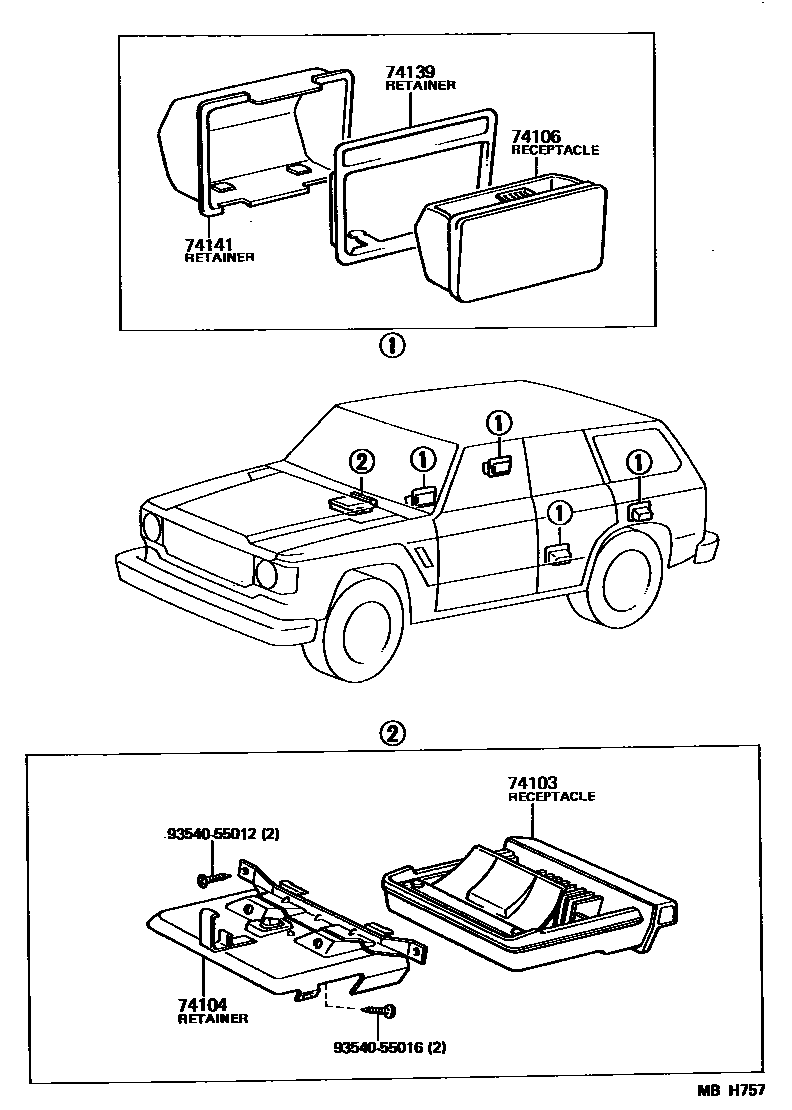

ASH RECEPTACLE

74103RECEPTACLE SUB-ASSY, ASH, NO.1

main74102-90A00-01iFJ6#,HJ6#..WGG; FJ6#..LHD..WGV198210-198708

BLACK,BLACK,TRIM1#

main74102-90A00-05iBJ60,FJ6#,HJ6#198008-198708

BEIGE,BEIGE,TRIM4#

74104RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1

main74104-90A00iBJ60,FJ6#,HJ6#198008-198708

74106RECEPTACLE SUB-ASSY, ASH, NO.2

main74105-10010-10×4iFJ62,HJ60..HRF198411-198510

SEPIA BROWN,SEPIA BROWN,TRIM4#

main74105-10010-13×4iBJ60,FJ60..LHD..WGV; FJ60,HJ60..WGG198210-198411

GRAY,GRAY,TRIM1#

main74105-10010-26×4iBJ60,FJ60,HJ60198008-198411

DARK BROWN,BROWN,TRIM4#

74139RETAINER, REAR ASH RECEPTACLE, OUTER

main74135-10030×4iBJ60,FJ60,HJ60198008-198411

74141RETAINER, REAR ASH RECEPTACLE, INNER

main74137-10030×4iBJ60,FJ60,HJ60198008-198411

9354055012

main93540-55012

9354055016

main93540-55016

7 parts on this diagram · 1 diagram in section
