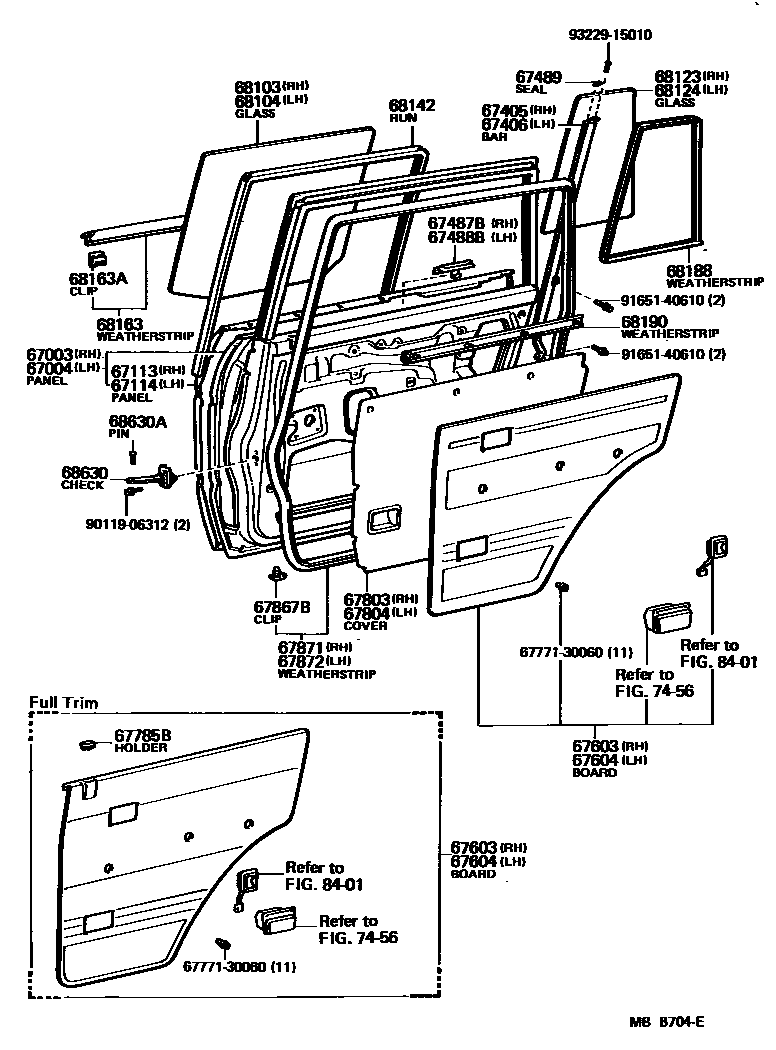

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
W/MAGNET LOCK
W/MAGNET LOCK
W/OVER FENDER
W/MAGNET LOCK & OVER FENDER
W/MAGNET LOCK
W/OVER FENDER
W/MAGNET LOCK & OVER FENDER
67004PANEL SUB-ASSY, REAR DOOR, LH
W/MAGNET LOCK
W/MAGNET LOCK
W/OVER FENDER
W/MAGNET LOCK & OVER FENDER
W/MAGNET LOCK
W/OVER FENDER
W/MAGNET LOCK & OVER FENDER
67113PANEL, REAR DOOR, OUTER RH
W/OVER FENDER
W/OVER FENDER
67114PANEL, REAR DOOR, OUTER LH
W/OVER FENDER
W/OVER FENDER
67405BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67406BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67487BSEAL, REAR DOOR DIVISION BAR, RH
67488BSEAL, REAR DOOR DIVISION BAR, LH
67489SEAL, REAR DOOR DIVISION BAR
RH
LH
67603BOARD SUB-ASSY, REAR DOOR TRIM, RH
SHADOW GRAY,GRAY,TRIM1#
DARK BROWN,BROWN,TRIM4#
SHADOW GRAY,GRAY,TRIM1#
DARK BROWN,BROWN,TRIM4#
MIDDLE EAST SPEC
SEMI TRIM,SEPIA BROWN,SEPIA BROWN,TRIM4#
FULL TRIM,SHADOW GRAY,SHADOW GRAY,TRIM1#; SHADOW GRAY,SHADOW GRAY,TRIM1#
FULL TRIM,SEPIA BROWN,SEPIA BROWN,TRIM4#; SEPIA BROWN,SEPIA BROWN,TRIM4#
DLX PACKAGE,SHADOW GRAY,SHADOW GRAY,TRIM1#
DLX PACKAGE,SEPIA BROWN,SEPIA BROWN,TRIM4#
FULL TRIM,W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1#; W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1#
FULL TRIM,W/*PW,SEPIA BROWN,SEPIA BROWN,TRIM4#; W/*PW,SEPIA BROWN,SEPIA BROWN,TRIM4#
DLX PACKAGE,W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1#
DLX PACKAGE,W/*PW,SEPIA BROWN,SEPIA BROWN,TRIM4#
SEMI TRIM,W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1#
SEMI TRIM,W/*PW,SEPIA BROWN,SEPIA BROWN,TRIM4#
DLX PACKAGE,W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1#
DLX PACKAGE,W/*PW,SEPIA BROWN,SEPIA BROWN,TRIM4#
*DLP W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1#; *DLP,W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1#
*DLP W/*PW,SEPIA BROWN,SEPIA BROWN,TRIM4#
FULL TRIM,SHADOW GRAY,SHADOW GRAY,TRIM1#; SHADOW GRAY,SHADOW GRAY,TRIM1#
FULL TRIM,SEPIA BROWN,SEPIA BROWN,TRIM4#; SEPIA BROWN,SEPIA BROWN,TRIM4#
FULL TRIM,W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1#; W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1#
FULL TRIM,W/*PW,SEPIA BROWN,SEPIA BROWN,TRIM4#; W/*PW,SEPIA BROWN,SEPIA BROWN,TRIM4#
67604BOARD SUB-ASSY, REAR DOOR TRIM, LH
SHADOW GRAY,GRAY,TRIM1#
DARK BROWN,BROWN,TRIM4#
FULL TRIM,SHADOW GRAY,GRAY,TRIM1#; SHADOW GRAY,GRAY,TRIM1#
DARK BROWN,BROWN,TRIM4#
MIDDLE EAST SPEC
SEMI TRIM,SEPIA BROWN,SEPIA BROWN,TRIM4#
FULL TRIM,SEPIA BROWN,SEPIA BROWN,TRIM4#; SEPIA BROWN,SEPIA BROWN,TRIM4#
DLX PACKAGE,SHADOW GRAY,SHADOW GRAY,TRIM1#
DLX PACKAGE,SEPIA BROWN,SEPIA BROWN,TRIM4#
FULL TRIM,W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1#; W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1#
FULL TRIM,W/*PW,SEPIA BROWN,SEPIA BROWN,TRIM4#; W/*PW,SEPIA BROWN,SEPIA BROWN,TRIM4#
DLX PACKAGE,W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1#
DLX PACKAGE,W/*PW,SEPIA BROWN,SHADOW GRAY,TRIM4#
SEMI TRIM,W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1#
SEMI TRIM,W/*PW,SEPIA BROWN,SEPIA BROWN,TRIM4#
DLX PACKAGE,W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1#
DLX PACKAGE,W/*PW,SEPIA BROWN,SEPIA BROWN,TRIM4#
*DLP,W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1#
*DLP,W/*PW,SEPIA BROWN,SEPIA BROWN,TRIM4#
FULL TRIM,SHADOW GRAY,SHADOW GRAY,TRIM1#; SHADOW GRAY,SHADOW GRAY,TRIM1#
FULL TRIM,SEPIA BROWN,SEPIA BROWN,TRIM4#; SEPIA BROWN,SEPIA BROWN,TRIM4#
FULL TRIM,W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1#; W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1#
FULL TRIM,W/*PW,SEPIA BROWN,SEPIA BROWN,TRIM4#; W/*PW,SEPIA BROWN,SEPIA BROWN,TRIM4#
67785BHOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR)
FULL TRIM
67803COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH
67804COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH
67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
*TEM,T=4.0,*TEM,T=4.0
*TT,T=4.0,*TT,T=4.0
*TEM,T=4.0,BRONZE,BRONZE,*TEM,T=4.0
68104GLASS SUB-ASSY, REAR DOOR, LH
*TEM,T=4.0,*TEM,T=4.0
*TT,T=4.0,*TT,T=4.0
*TEM,T=4.0,BRONZE,BRONZE,*TEM,T=4.0
68123GLASS, REAR DOOR WINDOW, RH
*TEM,T=4.0,*TEM,T=4.0
*TT,T=4.0,*TT,T=4.0
*TEM,T=4.0,BRONZE,BRONZE,*TEM,T=4.0
68124GLASS, REAR DOOR WINDOW, LH
*TEM,T=4.0,*TEM,T=4.0
*TT,T=4.0,*TT,T=4.0
*TEM,T=4.0,BRONZE,BRONZE,*TEM,T=4.0
68142RUN, REAR DOOR GLASS
68163WEATHERSTRIP, REAR DOOR GLASS, OUTER
RH
RH
LH
LH
68163ACLIP(FOR REAR DOOR GLASS OUTER WEATHERSTRIP)
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
RH
LH
68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
68630CHECK ASSY, REAR DOOR
68630APIN(FOR REAR DOOR CHECK)
7456ASH RECEPTACLE
8401SWITCH & RELAY & COMPUTER
6777130060WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-30060
9011906312
main90119-06312
9165140610
main91651-40610
9322915010
main93229-15010
34 parts on this diagram · 1 diagram in section
