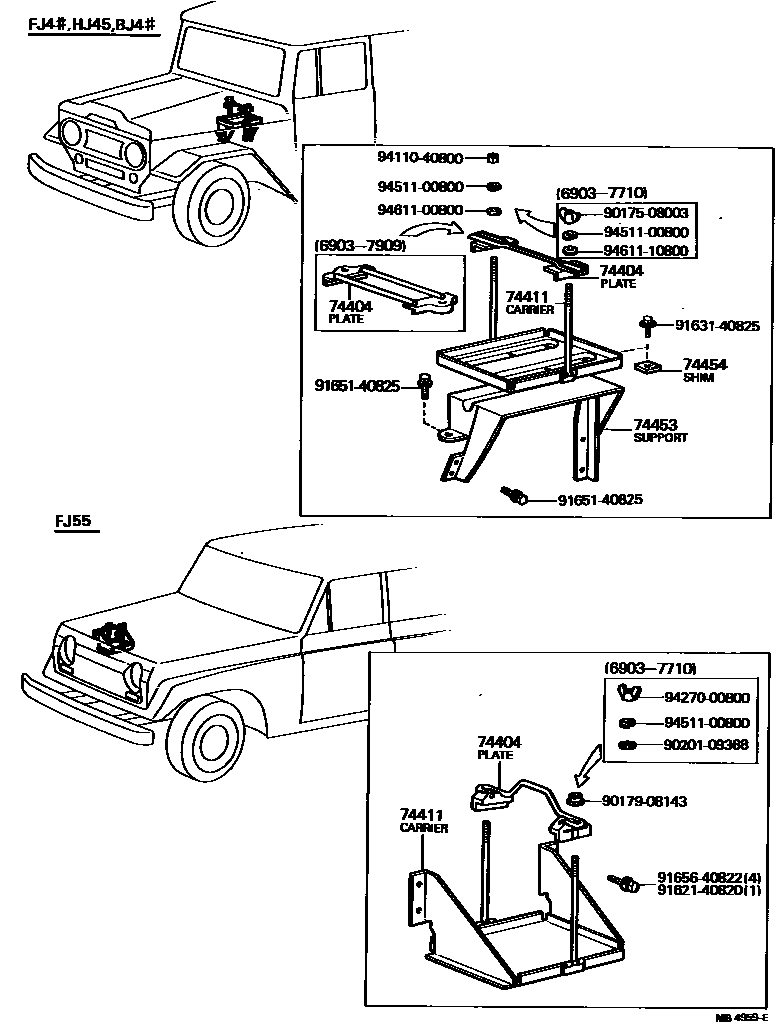

BATTERY CARRIER

74404PLATE SUB-ASSY, BATTERY SET

main74404-60030iFJ4#,55196903-197303

FOR N50

main74404-60050iFJ4#,55,HJ45196903-197303

FOR N70Z

main74404-60060iBJ4#,HJ45..EUR; BJ4#..ARL,GEN;HJ45..VKC..GEN;HJ45..PIC..(ARL,GEN); FJ4#197909-198007

FOR N50Z; FOR N50Z,70Z; FOR N70Z

main74404-90351iFJ55197303-198007

FOR N50,70Z

74411CARRIER, BATTERY

main74401-90351iFJ55196903-197501

FOR N50

main74401-90353iFJ55196903-197501

FOR N70Z

main74401-90356iFJ55197501-198007

FOR N50

main74401-90357iFJ55197501-197709

FOR N70Z

main74401-90360iFJ55197709-198007

FOR N70Z

main74403-60011×2iBJ4#..EUR,GEN; FJ40,43;FJ45..ARL,GEN;FJ45..(PIC,TP)..EUR197901-198007

FOR N50Z

main74403-60050×2iBJ4#,FJ4#,HJ45196903-197901

FOR N70Z

main74403-60080iHJ45..EUR197901-198007

FOR N50Z

main74403-60090iHJ45..EUR197901-198007

FOR N70ZX2

74453SUPPORT, BATTERY CARRIER

main74401-60011iFJ4#196903-197209

main74401-60020iBJ40..ARL;FJ4#,HJ45197209-197901

BATTERY 12V

main74401-60021iFJ4#; HJ45..VKC..GEN;HJ45..PIC..(ARL,GEN)197901-198007

main74401-60030iBJ4#..EUR,GEN197402-197901

RH.

main74401-60031iBJ4#..EUR,GEN197901-198007

RH.

main74401-60040iHJ45..EUR197901-198007

main74401-60050iFJ40,45..RHD..(PIC,V)197901-198007

W/COOLER

main74401-60060iFJ4#..LHD..GEN197901-198007

W/COOLER

main74402-60010iBJ4#197402-198007

LH.

74454SHIM (FOR BATTERY CARRIER SUPPORT)

main52321-55010×8iBJ4#,FJ4#,HJ45196903-198007

9017508003

main90175-08003

9017908143

main90179-08143

9020109368

main90201-09368

9162140820

main91621-40820

9163140825

main91631-40825

9165140825

main91651-40825

9165640822

main91656-40822

9411040800

main94110-40800

9427000800

main94270-00800

9451100800

main94511-00800

9461100800

main94611-00800

9461110800

main94611-10800

16 parts on this diagram · 1 diagram in section
