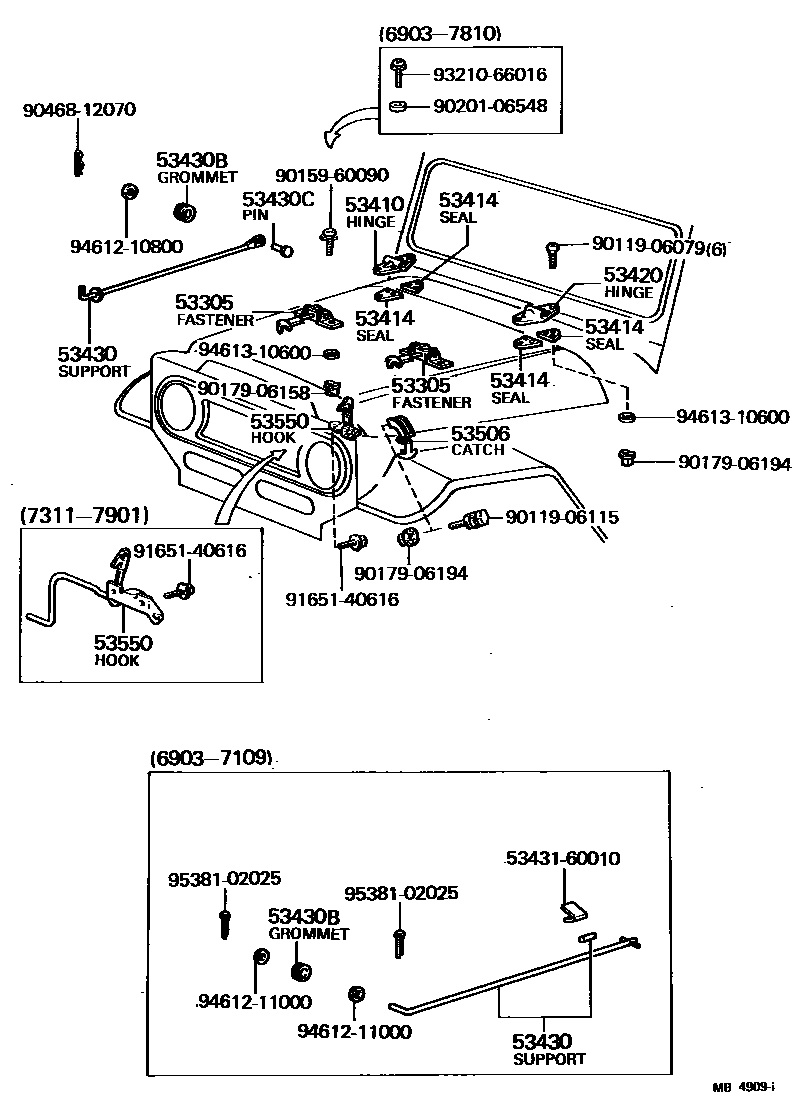

HOOD LOCK & HINGE

0001 1 0002 1

53305FASTENER SUB-ASSY, HOOD

main53304-60020×2iBJ4#,FJ4#,HJ45196903-197903

main53504-90300×2iBJ4#,FJ4#,HJ45197903-198007

main53504-90301×2iBJ4#,FJ4#,HJ45..GEN197908-198007

CHROME PLATED

53410HINGE ASSY, HOOD, RH

main53410-60010iBJ4#,FJ4#,HJ45196903-197409

main53410-90300iBJ4#,FJ4#,HJ45197409-197804

main53410-90301iBJ4#,FJ4#,HJ45197804-198007

main53410-90351iFJ55196903-198007

53414SEAL, HOOD HINGE

main53412-60010×4iFJ4#196903-197102

main53412-90300×4iBJ4#,FJ4#,HJ45197102-198007

53420HINGE ASSY, HOOD, LH

main53410-60010iBJ4#,FJ4#,HJ45196903-197409

main53410-90300iBJ4#,FJ4#,HJ45197409-197804

main53410-90301iBJ4#,FJ4#,HJ45197804-198007

main53410-90351iFJ55196903-198007

53430SUPPORT ASSY, HOOD

main53401-90351iFJ55196903-197112

main53403-60010iFJ4#196903-197109

main53403-90300iBJ4#,FJ4#,HJ45197109-197709

main53403-90301iHJ45197709-198007

main53451-90352iFJ55197112-197501

main53451-90353iFJ55197501-197901

main53451-90354iFJ55197901-198007

53430BGROMMET(FOR HOOD SUPPORT)

main90480-14053iFJ4#,55197109-197112

main90480-16060iBJ4#,FJ4#,HJ45197112-198007

main90480-20023iFJ4#196903-197109

53430CPIN, W/HOLE(FOR HOOD SUPPORT)

main90240-08007iFJ4#,55196903-197112

53506CATCH SUB-ASSY, HOOD

main53506-60010×2iFJ4#196903-197109

main53506-90300×2iBJ4#,FJ4#,HJ45197109-198007

main53506-90304×2iBJ4#,FJ4#,HJ45..GEN197908-198007

CHROME PLATED

53550HOOK ASSY, HOOD AUXILIARY CATCH

main53505-90303iBJ4#,FJ4#,HJ45197901-198007

main53550-90300iFJ4#197311-197505

main53550-90301iBJ4#,HJ45197311-197505

main53550-90303iBJ4#,FJ4#,HJ45197505-197901

main53550-90351iFJ55196903-198007

5343160010SPACER, HOOD HINGE, LOWER

main53431-60010

9011906079

main90119-06079

9011906115

main90119-06115

9015960090

main90159-60090

9017906158

main90179-06158

9017906194

main90179-06194

9020106548

main90201-06548

9046812070

main90468-12070

9165140616

main91651-40616

9321066016

main93210-66016

9461210800

main94612-10800

9461211000

main94612-11000

9461310600

main94613-10600

9538102025

main95381-02025

23 parts on this diagram · 2 diagrams in section
