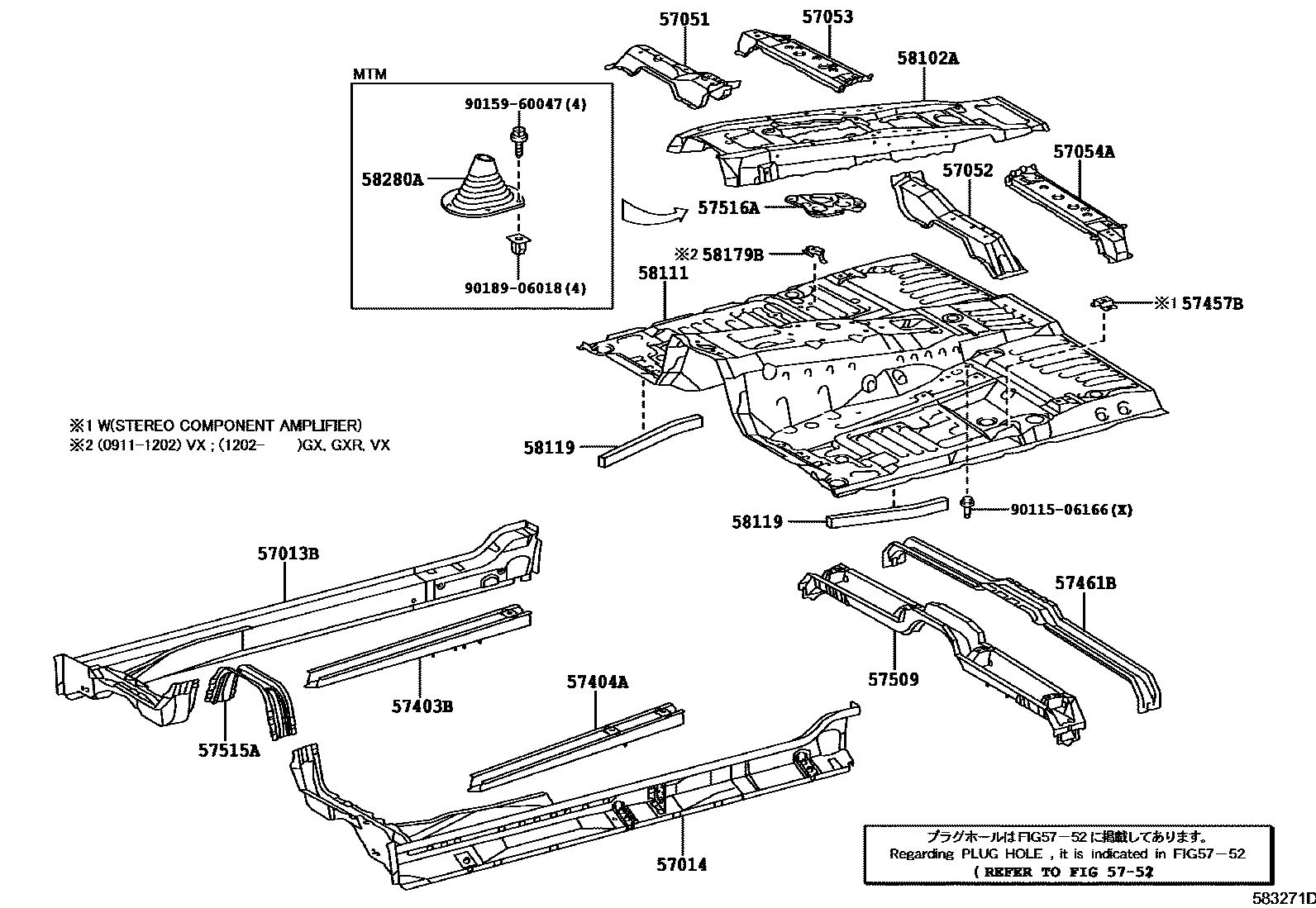

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1

57013BMEMBER SUB-ASSY, FLOOR, FRONT RH

main57013-60010200712-201601

57014MEMBER SUB-ASSY, FLOOR, FRONT LH

main57014-60010200712-201601

57051MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-60060200712-201601

main57051-60061200907-201108

57052MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-60060200712-201601

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-60050200712-201601

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-60010200712-201601

57403BREINFORCE SUB-ASSY, FLOOR SIDE, INNER RH

main57403-60060200712-201601

main57417-60080200907-201108

57404AREINFORCE SUB-ASSY, FLOOR SIDE, INNER LH

main57404-60060200712-201601

57457BBRACKET, FRONT SEAT, FRONT

main57457-60030200712-201207

57461BMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1

main57461-60020200712-201601

57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER

main57509-60090200712-201601

57515AREINFORCEMENT, FRONT FLOOR, CENTER

main57515-60030200712-201601

57516ARETAINER, FRONT FLOOR REINFORCEMENT, FRONT

main57516-60010200712-201601

5752HOLE PLUG

→ Go to FIG 57-52

58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR

main58102-60090200712-201601

58111PAN, FRONT FLOOR

main58111-60A40200712-201011

main58111-60A41201012-201207

main58111-60B10200712-201011

main58111-60B11201012-201601

main58111-60B50200712-200811

main58111-60B70201601

58119PLATE, FRONT FLOOR SIDE, FRONT

main58119-60070200712-201601

58179BBRACKET, ACCELERATOR CABLE CLAMP

main58179-60020200911-201601

58280ABOOT ASSY, SHIFT LEVER

main58280-60390200712-200811

9011506166

main90115-06166

9015960047

main90159-60047

9018906018

main90189-06018

22 parts on this diagram · 2 diagrams in section
