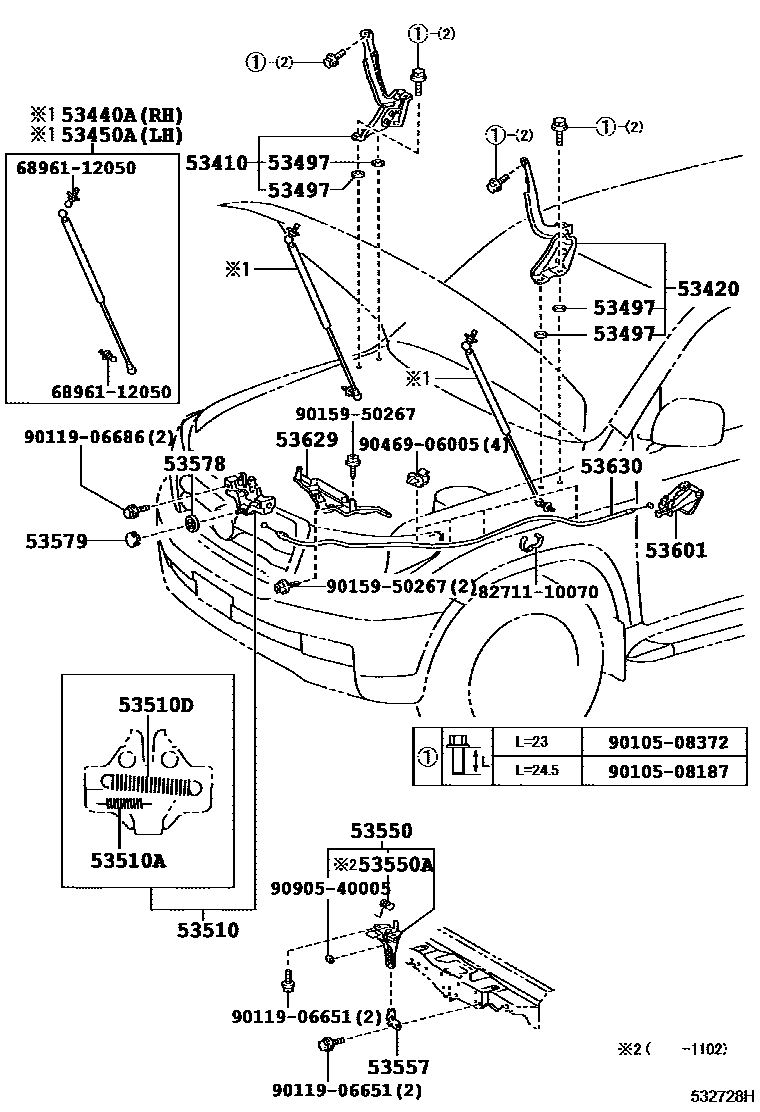

HOOD LOCK & HINGE

0001 1 0002 1

53410HINGE ASSY, HOOD, RH

main53410-60060iGRJ200..5F200712-200811

main53410-60110iGRJ200,URJ202201601-201612

53420HINGE ASSY, HOOD, LH

main53420-60050iGRJ200..5F200712-200811

main53420-60090iGRJ200,URJ202201601-201612

53440ASUPPORT ASSY, HOOD, RH

main53440-0W340iGRJ200,URJ202201601

main53440-69085iGRJ200..5F200712-200811

main53440-69145iGRJ200,URJ202201208-201601

53450ASUPPORT ASSY, HOOD, LH

main53450-0W310iGRJ200,URJ202201601

main53450-69085iGRJ200..5F200712-200811

main53450-69145iGRJ200,URJ202201208-201601

53497PAD, HOOD HINGE, NO.1

main53497-50020×4iGRJ200..5F200712-200811

T=1.0

53510LOCK ASSY, HOOD

main53510-60270iGRJ200..5F200712-200811

main53510-60390iGRJ200,URJ202201601

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09050iGRJ200..5F200712-200811

WD=0.9,CW=20.5

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-18068iGRJ200,UZJ200..5FC200712-201202

WD=1.8,CW=18

53550HOOK ASSY, HOOD AUXILIARY CATCH

main53550-60090iGRJ200..5F200712-200811

main53550-60091iGRJ200,UZJ200201102-201202

main53550-60110iGRJ200,URJ202201601

53550ASPRING, TORSION(FOR HOOD LOCK HOOK)

main90508-18096iGRJ200..5F200712-200811

53557CATCH, HOOD AUXILIARY HOOK

main53557-60010iGRJ200..5F200712-200811

53578NUT, HOOD LOCK

main53578-50010iGRJ200..5F200712-200811

53579CAP, HOOD LOCK NUT

main53579-50010iGRJ200..5F200712-200811

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52010-A3iGRJ200,URJ202201202-201601

SHELL,TRIM0#

main53601-52010-A8iGRJ200,URJ202201601-201612

FLAXEN,TRIM0#

main53601-52010-E5iGRJ200,UZJ200..5FC200712-201202

DK. BROWN,TRIM4#

53629COVER, HOOD LOCK CONTROL CABLE

main53629-60070iGRJ200,URJ202201202-201601

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-0G030iGRJ200,URJ202201202-201601

main53630-0G040iGRJ200,URJ202201601

main53630-60140iGRJ200..5F200712-200811

6896112050BOLT, BACK DOOR STAY

main68961-12050

8271110070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-10070

9010508187

main90105-08187

9010508372

main90105-08372

9011906651

main90119-06651

9011906686

main90119-06686

9015950267

main90159-50267

9046906005

main90469-06005

9090540005

main90905-40005

25 parts on this diagram · 2 diagrams in section
