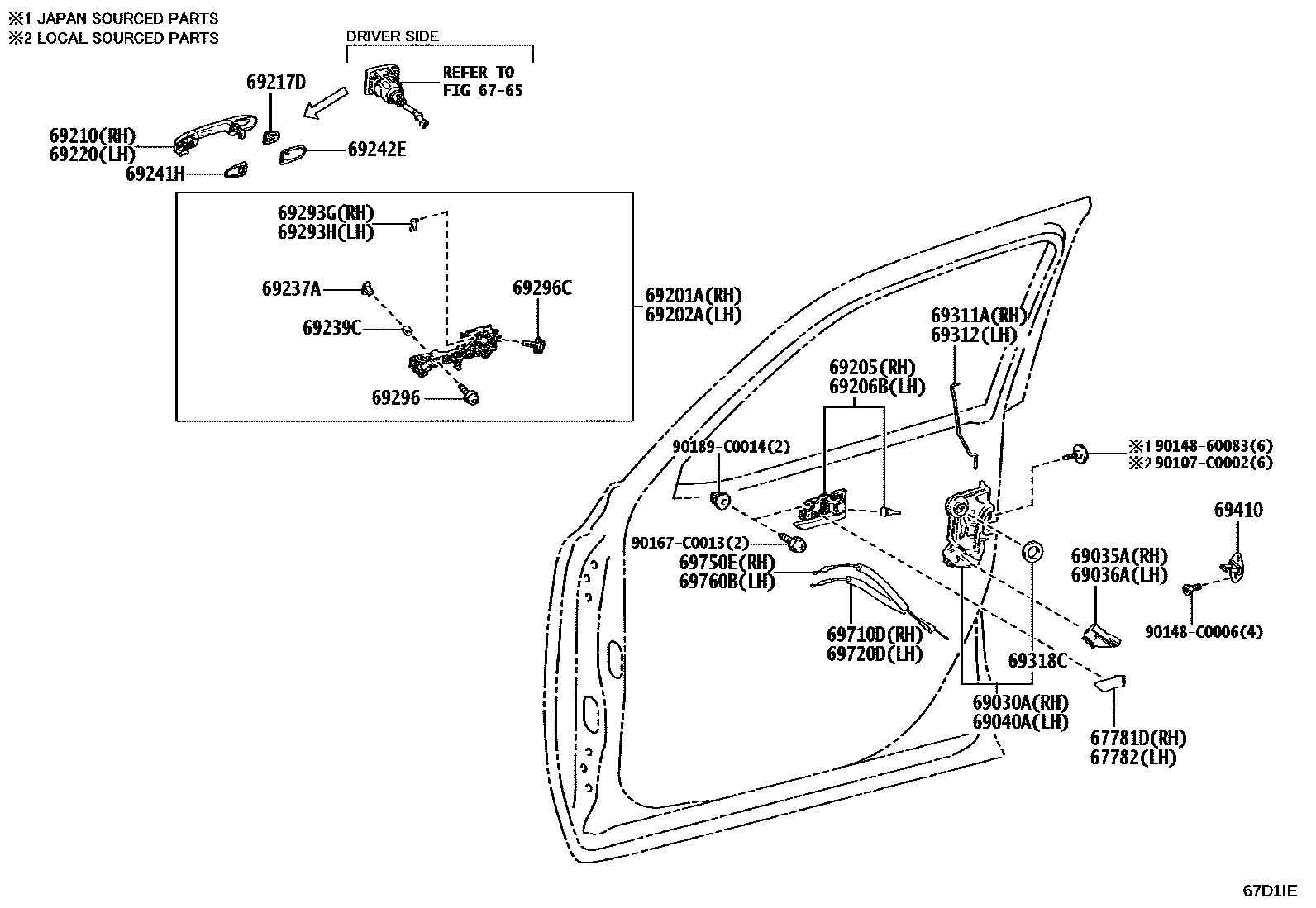

FRONT DOOR LOCK & HANDLE
6765LOCK CYLINDER SET
67781DCOVER, FRONT DOOR TRIM, UPPER RH
BLACK,TRIM1#,2#; BLACK,TRIM2#; BLACK,TRIM2#,4#
67782COVER, FRONT DOOR TRIM, UPPER LH
BLACK,TRIM1#,2#; BLACK,TRIM2#; BLACK,TRIM2#,4#
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM2#
BLACK,TRIM1#,2#; BLACK,TRIM2#,4#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM2#
BLACK,TRIM1#,2#; BLACK,TRIM2#,4#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
PLATINUM WHITE PEARL MC.,089
DK.GRAY,1L7
BLACK MC.,089 ,1L7 ,209 ,4V8; BLACK MC.,209; DIGITAL KEY-WITH,BLACK MC.,089 ,209 ,4V8
AVANT-GARDE BRONZE ME.,4V8
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
BLACK
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
PLATINUM WHITE PEARL MC.,089
DK.GRAY,1L7
BLACK MC.,089 ,1L7 ,209 ,4V8; BLACK MC.,209; DIGITAL KEY-WITH,BLACK MC.,089 ,209 ,4V8
AVANT-GARDE BRONZE ME.,4V8
69237ANUT, FRONT DOOR HANDLE
69239CBUSH, FRONT DOOR HANDLE
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69296SCREW, DOOR INSIDE HANDLE
69296CSCREW, DOOR INSIDE HANDLE
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
90107C0002
main90107-C0002
9014860083
main90148-60083
90148C0006
main90148-C0006
90167C0013
main90167-C0013
90189C0014
main90189-C0014
35 parts on this diagram · 1 diagram in section
