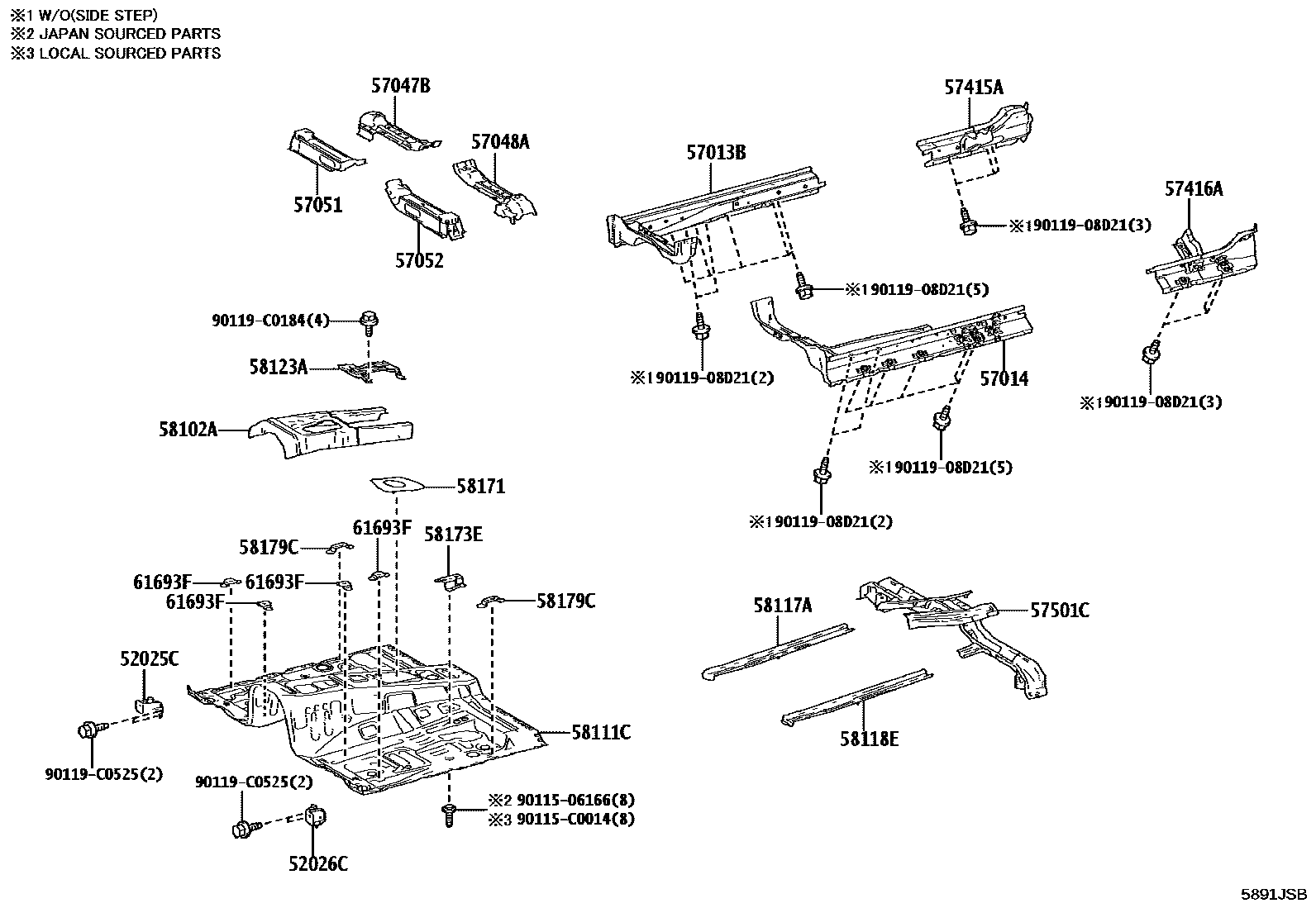

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1FLOOR PANEL 0002 1SIDE STEP

52025CEXTENSION SUB-ASSY, FRONT BUMPER, NO.2 RH

main52025-60070iTJH251202407

52026CEXTENSION SUB-ASSY, FRONT BUMPER, NO.2 LH

main52026-60070iTJH251202407

57013BMEMBER SUB-ASSY, FLOOR, FRONT RH

main57013-0G010iTJH251202407

57014MEMBER SUB-ASSY, FLOOR, FRONT LH

main57014-0G010iTJH251202407

57047BBRACKET SUB-ASSY, FLOOR HOUSING SEAT ANCHOR, RH

main57047-60030iTJH251202407

57048ABRACKET SUB-ASSY, FLOOR HOUSING SEAT ANCHOR, LH

main57048-60030iTJH251202407

57051MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-60100iTJH251202407

57052MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-60100iTJH251202407

57415ARAIL SUB-ASSY, FLOOR SIDE, REAR RH

main57403-60080iTJH251202407

57416ARAIL SUB-ASSY, FLOOR SIDE, REAR LH

main57404-60070iTJH251202407

57501CBRACE SUB-ASSY, FRONT FLOOR, CENTER

main57501-60040iTJH251202407

58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR

main58102-60130iTJH251202407

58111CPAN, FRONT FLOOR

main58111-0G040iTJH251202407

58117AREINFORCEMENT, FRONT FLOOR SIDE, RH

main58117-60050iTJH251202407

58118EBRACKET, JACK SET

main58118-60040iTJH251202407

58123ASUPPORT, SHIFT & SELECT LEVER

main58123-0G010iTJH251202407

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-0G010iTJH251202407

58173EBRACKET, WIRING HARNESS, NO.3

main58173-0G010iTJH251202407

58179CBRACKET, CLAMP FLOOR

main58179-0G020×2iTJH251202407

61693FBRACKET, FRONT FLOOR

main58523-0G010×4iTJH251202407

9011506166

main90115-06166

90115C0014

main90115-C0014

9011908D21

main90119-08D21

90119C0184

main90119-C0184

90119C0525

main90119-C0525

25 parts on this diagram · 2 diagrams in section
