CAMERA & REAR MONITOR DISPLAY

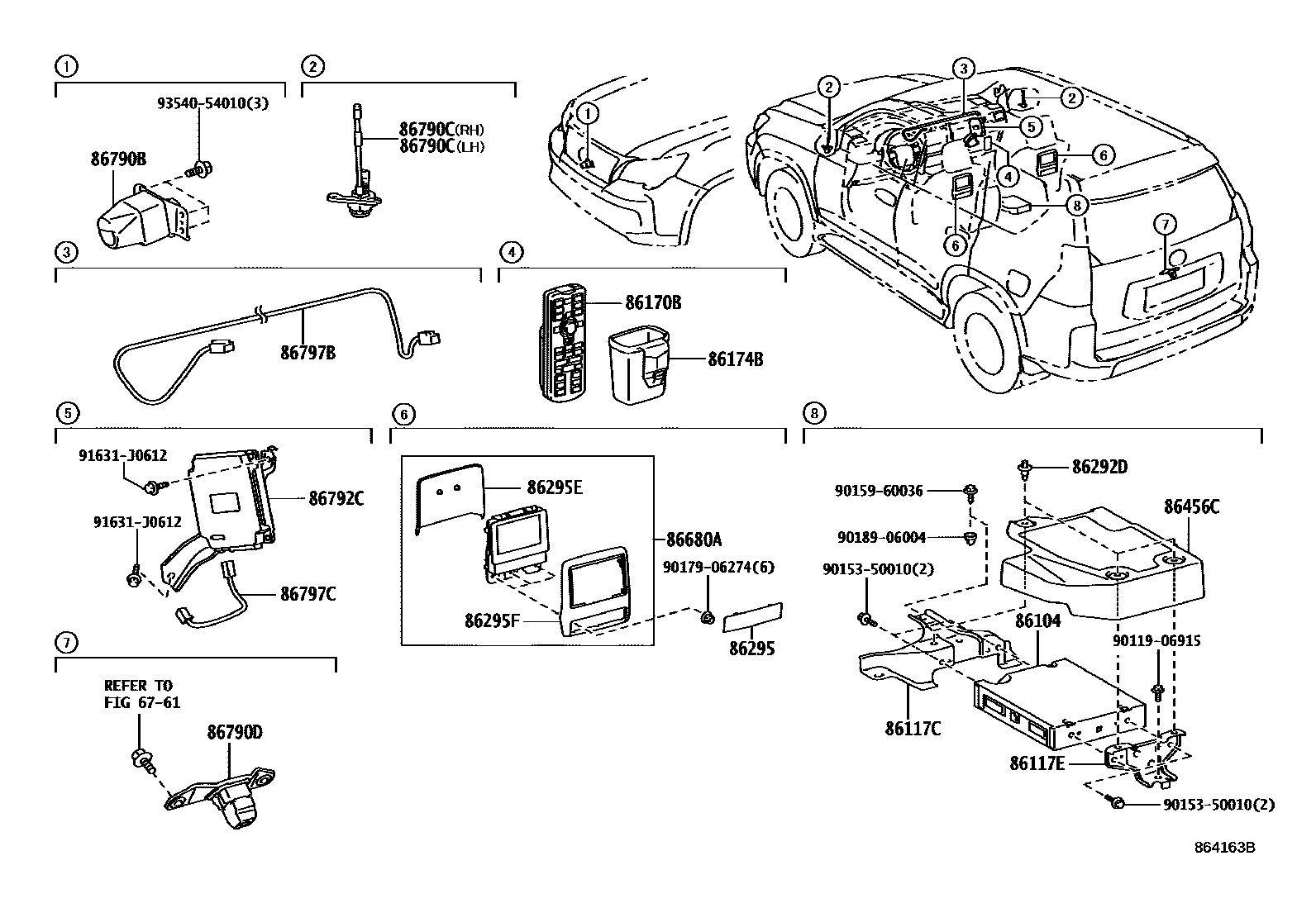

Parts diagram
6761BACK DOOR PANEL & GLASS
→ Go to FIG 67-61
86104CONTROLLER SUB-ASSY, MULTI-DISPLAY
main86104-48031i200911-201308
REAR SEAT ENTERTAINMENT-WITH
main86104-60020i201308-201310
REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE)
main86104-60021i201310-201408
REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE)
main86104-60040i201408-201908
REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE)
86117CBRACKET, MULTI-DISPLAY CONTROLLER, NO.2
main86117-60100i201308-201711
REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE)
main86117-60110i200911-201308
REAR SEAT ENTERTAINMENT-WITH
86117EBRACKET, MULTI-DISPLAY CONTROLLER, NO.3
main86118-60070i201308-201711
REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),NO.1
main86118-60080i200911-201308
REAR SEAT ENTERTAINMENT-WITH
main86118-60090i201908-202108
REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),NO.2
86170BSWITCH & VOLUME ASSY, TELEVISION
main86170-48020i200911-201308
REAR SEAT ENTERTAINMENT-WITH
main86170-48080i201908-202108
REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE)
main86170-60090i201908-202108
PHILIPPINES SPEC&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE)
main86170-60200i201309-201711
REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE)
86174BCASE, SWITCH & VOLUME
main86174-60050-A0i201908-202108
PHILIPPINES SPEC&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#; REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#
main86174-60050-C0i201908-202108
PHILIPPINES SPEC&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),BLACK,TRIM2#; REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),BLACK,TRIM2#
main86174-60050-E0i201308-201908
REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SEPIA,TRIM4#
86292DCLIP(FOR TELEVISION SET COVER)
main90467-07076-C0×3i200911-201308
REAR SEAT ENTERTAINMENT-WITH,BLACK
86295BASE, TELEVISION
main86295-48080-A1×2i201308-201508
PRE-COLLISION SYSTEM-WITH(*MRT)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#; SEAT HEATER-WITHOUT&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#
main86295-48080-C0×2i200911-201308
PRE-COLLISION SYSTEM-WITH(*MRT)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2#; PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR SEATENTERTAINMENT-WITH,BLACK,TRIM2#; REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2#; SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2#
main86295-48080-E0×2i201308-201908
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SEPIA,TRIM4#; REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SEPIA,TRIM4#; SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SEPIA,TRIM4#
86295EBASE, TELEVISION, NO.2
main86295-48070-A1×2i200911-201308
PRE-COLLISION SYSTEM-WITH(*MRT)&REAR SEAT ENTERTAINMENT-WITH,ECRU,TRIM0#; PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR SEATENTERTAINMENT-WITH,ECRU,TRIM0#; REAR SEAT ENTERTAINMENT-WITH,ECRU,TRIM0#; SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR SEAT ENTERTAINMENT-WITH,ECRU,TRIM0#
main86295-48070-C0×2i200911-201308
PRE-COLLISION SYSTEM-WITH(*MRT)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2#; PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR SEATENTERTAINMENT-WITH,BLACK,TRIM2#; REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2#; SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2#
main86295-48070-E0×2i200911-201308
PRE-COLLISION SYSTEM-WITH(*MRT)&REAR SEAT ENTERTAINMENT-WITH,SEPIA,TRIM4#; PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR SEATENTERTAINMENT-WITH,SEPIA,TRIM4#; REAR SEAT ENTERTAINMENT-WITH,SEPIA,TRIM4#; SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR SEAT ENTERTAINMENT-WITH,SEPIA,TRIM4#
86295FBASE, TELEVISION, NO.3
main86295-48060-A1×2i201308-201310
PRE-COLLISION SYSTEM-WITH(*MRT)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#; PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#; REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#; SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#; SEAT HEATER-WITHOUT&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#
main86295-48060-C0×2i200911-201308
PRE-COLLISION SYSTEM-WITH(*MRT)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2#; PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR SEATENTERTAINMENT-WITH,BLACK,TRIM2#; REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2#; SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2#
main86295-48060-E0×2i200911-201308
PRE-COLLISION SYSTEM-WITH(*MRT)&REAR SEAT ENTERTAINMENT-WITH,SEPIA,TRIM4#; PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR SEATENTERTAINMENT-WITH,SEPIA,TRIM4#; REAR SEAT ENTERTAINMENT-WITH,SEPIA,TRIM4#; SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR SEAT ENTERTAINMENT-WITH,SEPIA,TRIM4#
main86295-60050-A0×2i201310-201508
PRE-COLLISION SYSTEM-WITH(*MRT)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#; SEAT HEATER-WITHOUT&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#
main86295-60050-C0×2i201310-201908
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),BLACK,TRIM2#; REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),BLACK,TRIM2#; SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),BLACK,TRIM2#
main86295-60050-E0×2i201310-201908
PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SEPIA,TRIM4#; REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SEPIA,TRIM4#; SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SEPIA,TRIM4#
86456CCOVER, MULTI-MEDIA MODULE
main86456-60020i200911-201308
REAR SEAT ENTERTAINMENT-WITH
86680ADISPLAY ASSY, TELEVISION
main86430-48011-A1×2i200911-201308
PANASONIC,PRE-COLLISION SYSTEM-WITH(*MRT)&REAR SEAT ENTERTAINMENT-WITH,ECRU,TRIM0#; PANASONIC,PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR SEAT ENTERTAINMENT-WITH,ECRU,TRIM0#; PANASONIC,REAR SEAT ENTERTAINMENT-WITH,ECRU,TRIM0#; PANASONIC,SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR SEAT ENTERTAINMENT-WITH,ECRU,TRIM0#
main86430-48011-C0×2i200911-201308
PANASONIC,PRE-COLLISION SYSTEM-WITH(*MRT)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2#; PANASONIC,PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2#; PANASONIC,REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2#; PANASONIC,SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2#
main86430-48011-E0×2i200911-201308
PANASONIC,PRE-COLLISION SYSTEM-WITH(*MRT)&REAR SEAT ENTERTAINMENT-WITH,SEPIA,TRIM4#; PANASONIC,PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR SEAT ENTERTAINMENT-WITH,SEPIA,TRIM4#; PANASONIC,REAR SEAT ENTERTAINMENT-WITH,SEPIA,TRIM4#; PANASONIC,SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR SEAT ENTERTAINMENT-WITH,SEPIA,TRIM4#
main86430-60090-A0×2i201308-201310
TOYOTA BOSHOKU,PRE-COLLISION SYSTEM-WITH(*MRT)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#; TOYOTA BOSHOKU,PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#; TOYOTA BOSHOKU,REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#; TOYOTA BOSHOKU,SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER &PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#; TOYOTA BOSHOKU,SEAT HEATER-WITHOUT&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#
main86430-60090-C0×2i201308-201310
TOYOTA BOSHOKU,PRE-COLLISION SYSTEM-WITH(*MRT)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),BLACK,TRIM2#; TOYOTA BOSHOKU,PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),BLACK,TRIM2#; TOYOTA BOSHOKU,REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),BLACK,TRIM2#; TOYOTA BOSHOKU,SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER &PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),BLACK,TRIM2#; TOYOTA BOSHOKU,SEAT HEATER-WITHOUT&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),BLACK,TRIM2#
main86430-60090-E0×2i201308-201310
TOYOTA BOSHOKU,PRE-COLLISION SYSTEM-WITH(*MRT)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SEPIA,TRIM4#; TOYOTA BOSHOKU,PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SEPIA,TRIM4#; TOYOTA BOSHOKU,REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SEPIA,TRIM4#; TOYOTA BOSHOKU,SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER &PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SEPIA,TRIM4#; TOYOTA BOSHOKU,SEAT HEATER-WITHOUT&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SEPIA,TRIM4#
main86430-60100-A0×2i201309-201711
TOYOTA BOSHOKU,REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#
main86430-60100-C0×2i201309-201711
TOYOTA BOSHOKU,REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),BLACK,TRIM2#
main86430-60100-E0×2i201309-201711
TOYOTA BOSHOKU,REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SEPIA,TRIM4#
main86430-60110-A0×2i201310-201408
PANASONIC,PRE-COLLISION SYSTEM-WITH(*MRT)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#; PANASONIC,PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#; PANASONIC,REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#; PANASONIC,SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#; PANASONIC,SEAT HEATER-WITHOUT&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#
main86430-60110-C0×2i201310-201408
PANASONIC,PRE-COLLISION SYSTEM-WITH(*MRT)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),BLACK,TRIM2#; PANASONIC,PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),BLACK,TRIM2#; PANASONIC,REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),BLACK,TRIM2#; PANASONIC,SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),BLACK,TRIM2#; PANASONIC,SEAT HEATER-WITHOUT&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),BLACK,TRIM2#
main86430-60110-E0×2i201310-201408
PANASONIC,PRE-COLLISION SYSTEM-WITH(*MRT)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SEPIA,TRIM4#; PANASONIC,PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SEPIA,TRIM4#; PANASONIC,REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SEPIA,TRIM4#; PANASONIC,SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SEPIA,TRIM4#; PANASONIC,SEAT HEATER-WITHOUT&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SEPIA,TRIM4#
main86430-60120-A0×2i201408-201508
PANASONIC,PRE-COLLISION SYSTEM-WITH(*MRT)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#; PANASONIC,SEAT HEATER-WITHOUT&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0#
main86430-60120-C0×2i201408-201908
PANASONIC,PRE-COLLISION SYSTEM-WITH(*MRT)&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),BLACK,TRIM2#; PANASONIC,REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),BLACK,TRIM2#; PANASONIC,SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),BLACK,TRIM2#
main86430-60120-E0×2i201408-201508
PANASONIC,PRE-COLLISION SYSTEM-WITH(*MRT)&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SEPIA,TRIM4#; PANASONIC,SEAT HEATER-WITHOUT&REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SEPIA,TRIM4#
86790BCAMERA ASSY, TELEVISION, FR
main86790-60170i200911-201109
BACK MONITOR (REAR TELEVISION CAMERA)-WITH(AROUND MONITOR); BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR)
main86790-60171i201110-201206
BACK MONITOR (REAR TELEVISION CAMERA)-WITH(AROUND MONITOR); BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR)
main86790-60200i201308-201711
BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR); BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR)
main86790-60460i202108
BACK MONITOR-MULTI-TELLAIN MONITOR(EXCEPT USA)
main867B0-60180i201908-202108
BACK MONITOR-MULTI-TELLAIN MONITOR(EXCEPT USA)
86790CCAMERA ASSY, TELEVISION, SIDE
main86790-60150i200911-201308
BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),LH
main86790-60160i200911-201206
BACK MONITOR (REAR TELEVISION CAMERA)-WITH(AROUND MONITOR); BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),RH
main86790-60220i201308-201908
BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR),LH
main86790-60230i201308-201711
BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR),RH; BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR),RH
main86790-60430i202108
BACK MONITOR-MULTI-TELLAIN MONITOR(EXCEPT USA),LH
main86790-60440i202108
BACK MONITOR-MULTI-TELLAIN MONITOR(EXCEPT USA),RH
main867B0-60130i201908-202108
BACK MONITOR-MULTI-TELLAIN MONITOR(EXCEPT USA),LH
main867B0-60140i201908-202108
BACK MONITOR-MULTI-TELLAIN MONITOR(EXCEPT USA),RH
86790DCAMERA ASSY, TELEVISION, RR
main86790-60120i200911-201206
main86790-60121i201303-201309
main86790-60240i201308-201504
main86790-60241i201505-201711
main86790-60180supersedes 86790-60241i201308-201407
BACK MONITOR-WITH
main86790-60181supersedes 86790-60241i201407-201504
BACK MONITOR-WITH
main86790-60182supersedes 86790-60241i201505-201908
BACK MONITOR-WITH
main86790-60300supersedes 86790-60241i201908-202108
BACK MONITOR-*BM & LEXUS DISPLAY AUDIO(EXCEPT USA)
main86790-60450supersedes 867B0-60270i202108
BACK MONITOR-MULTI-TELLAIN MONITOR(EXCEPT USA)
main867B0-60150supersedes 86790-60241i201908-202108
BACK MONITOR-MULTI-TELLAIN MONITOR(EXCEPT USA)
86792CCOMPUTER, PARKING ASSIST
main86792-60420i200911-201107
AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(AROUND MONITOR)
main86792-60421i201108-201205
AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)
main86792-60422i201206-201308
AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)
main86792-60430i200911-201107
AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR)
main86792-60431i201108-201205
AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR)
main86792-60432i201206-201308
AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR)
main86792-60440i200911-201108
CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(AROUND MONITOR)
main86792-60450i200911-201107
CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR)
main86792-60451i201108-201205
CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR)
main86792-60452i201206-201308
CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR)
main86792-60470i201002-201107
AUDIO-EMV,DVD CHANGER,17SPEAKER
main86792-60471i201108-201205
AUDIO-EMV,DVD CHANGER,17SPEAKER
main86792-60472i201206-201308
AUDIO-EMV,DVD CHANGER,17SPEAKER
main86792-60580i201308-201908
BACK MONITOR-WITH(W/GUIDE & MULTI-TELLAIN MONITOR); BACK MONITOR-WITH(WITH/GUIDE & AROUND MONITOR)
main86792-60690i201908-202007
BACK MONITOR-MULTI-TELLAIN MONITOR(EXCEPT USA)
main86792-60830i202008-202108
BACK MONITOR-MULTI-TELLAIN MONITOR(EXCEPT USA)
main86792-60860i202108
BACK MONITOR-MULTI-TELLAIN MONITOR(EXCEPT USA)
86797BWIRE, PARKING ASSIST
main86797-60110i200911-201308
86797CWIRE, PARKING ASSIST
main86797-60190i200911-201308
AUDIO-EMV,DVD CHANGER,17SPEAKER; AUDIO-EMV,DVD CHANGER,17SPEAKER&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR); BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR)
9011906915
main90119-06915
9015350010
main90153-50010
9015960036
main90159-60036
9017906274
main90179-06274
9018906004
main90189-06004
91631J0612
main91631-J0612
9354054010
main93540-54010

25 parts on this diagram · 3 diagrams in section
