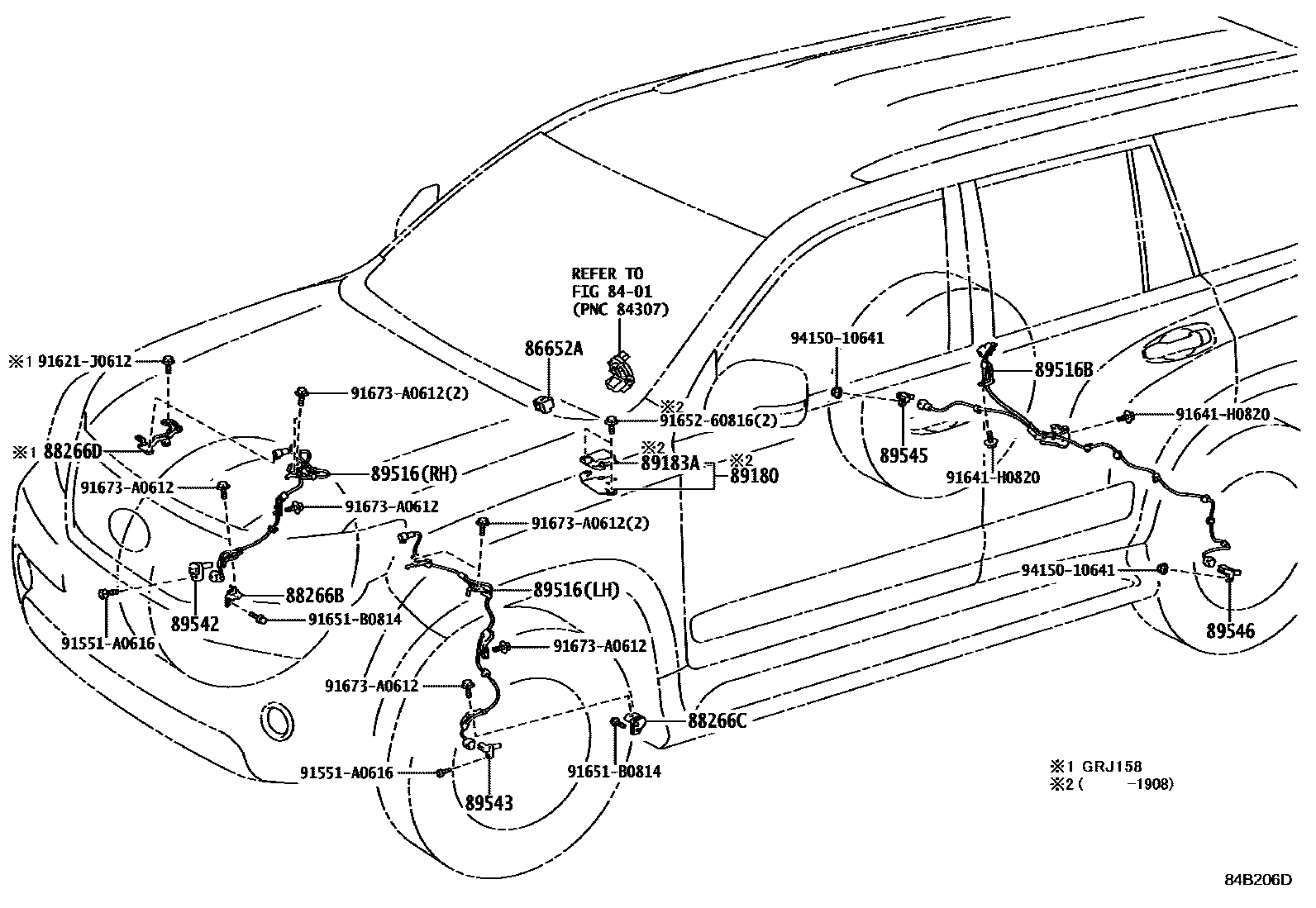

ABS & VSC

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

86652ABUZZER ASSY, SKID CONTROL

main86652-50010iURJ150200911-201008

88266BCLAMP, SKID CONTROL SENSOR, NO.1

main88266-60770iURJ150..CHI200911-201206

main88266-60A00iGRJ158,URJ150201304-201308

88266CCLAMP, SKID CONTROL SENSOR, NO.2

main88266-60780iURJ150..CHI200911-201206

main88266-60A10iGRJ158,URJ150201304-201308

88266DCLAMP, SKID CONTROL SENSOR, NO.3

main88266-60790iGRJ158201206-201309

89180SENSOR ASSY, YAWRATE

main89180-35030iURJ150..CHI200911-201206

89183ASENSOR, YAWRATE

main89183-48030iGRJ158201308-201711

89516WIRE, SKID CONTROL SENSOR

main89516-60260iGRJ158201308-201711

RH

main89516-60270iGRJ158201308-201711

LH

main89516-60280iURJ150201206-201308

SOUTH/CENTRAL AMERICA SPEC,RH

main89516-60290iURJ150201308-201908

*CSA(EXCEPT ELSALVADOR),LH

89516BWIRE, SKID CONTROL SENSOR

main89516-60300iURJ150..CHI200911-201206

89542SENSOR, SPEED, FRONT RH

main89542-60050iURJ150201908

89543SENSOR, SPEED, FRONT LH

main89543-60050iURJ150..CHI200911-201206

89545SENSOR, SPEED, REAR RH

main89542-60050iURJ150..CHI200911-201206

89546SENSOR, SPEED, REAR LH

main89543-60050iURJ150..CHI200911-201206

91551A0616

main91551-A0616

91621J0612

main91621-J0612

91641H0820

main91641-H0820

91651B0814

main91651-B0814

9165260816

main91652-60816

91673A0612

main91673-A0612

9415010641

main94150-10641

20 parts on this diagram · 1 diagram in section
