58371FCOVER, REAR FLOOR STEP, NO.1

main58371-60240-C0×4i200911-201206

BLACK,TRIM2#

main58371-60240-E0×4i200911-201206

SEPIA,TRIM0#,4#

main58371-60241-C0×4i201908

BLACK,TRIM0#,2#,4#

main58371-60241-E0×4i201308-201309

SEPIA,TRIM0#,4#

58410RBOARD ASSY, DECK

main58410-60010-C1i200911-201308

BLACK,TRIM2#

main58410-60010-E0i200911-201309

SEPIA,TRIM0#,4#

main58410-60011-C1i201908

BLACK,TRIM0#,2#,4#

main58410-60011-E0i201904-201908

SEPIA,TRIM0#,4#

58410SCLIP, DECK BOARD

main90467-10167×2i201308-201908

58416GBRACKET, DECK BOARD, NO.1 RH

main58458-60010i200911-201206

58417BOARD, REAR FLOOR, NO.3

main58417-60040-C1supersedes 58417-60020-C0i200911-201206

PKG.TRAY TRIM&TONEAU CVR.-W(TONEAU COVER SLIDE TYPE),BLACK,TRIM2#

main58417-60040-E1supersedes 58417-60021-E0i200911-201305

PKG.TRAY TRIM&TONEAU CVR.-W(TONEAU COVER SLIDE TYPE),SEPIA,SEPIA,SEPIA,TRIM0#,4#

main58417-60041-C1supersedes 58417-60021-C0i201908

PACKAGE TRAY TRIM & TONEAU COVER-WITH(TONEAU COVER SLIDE TYPE),BLACK,TRIM0#,2#,4#

main58417-60041-E1supersedes 58417-60021-E0i201308-201908

PACKAGE TRAY TRIM & TONEAU COVER-WITH(TONEAU COVER SLIDE TYPE),SEPIA,TRIM0#,4#

58417DBRACKET, DECK BOARD, NO.1 LH

main58459-60010i200911-201206

58418ABOARD, REAR FLOOR, NO.4

main58418-60020-C1supersedes 58418-60011-C0i200911-201305

PKG.TRAY TRIM&TONEAU CVR.-W(TONEAU COVER SLIDE TYPE),BLACK,TRIM2#

main58418-60020-E1supersedes 58418-60010-E0i200911-201206

PKG.TRAY TRIM&TONEAU CVR.-W(TONEAU COVER SLIDE TYPE),SEPIA,SEPIA,SEPIA,TRIM0#,4#

main58418-60021-C1supersedes 58418-60011-C0i201908

PACKAGE TRAY TRIM & TONEAU COVER-WITH(TONEAU COVER SLIDE TYPE),BLACK,TRIM0#,2#,4#

main58418-60021-E1supersedes 58418-60011-E0i201308-201908

PACKAGE TRAY TRIM & TONEAU COVER-WITH(TONEAU COVER SLIDE TYPE),SEPIA,TRIM0#,4#

58435ESILENCER, FRONT FLOOR, CENTER

main58435-60040i200911-201309

58439DREINFORCEMENT, DECK BOARD BRACKET

main58439-60010i200911-201206

58449CLIP, DECK BOARD

main90467-10188×2i200911-201206

58510DCARPET ASSY, FLOOR, FRONT

main58510-60K31-C0supersedes 58510-60K21-C0i201206-201309

BLACK,TRIM2#

main58510-60K31-E0supersedes 58510-60K21-E0i201206-201309

SEPIA,TRIM0#,4#

main58510-60V20-C0supersedes 58510-60V10-C0i201309-201711

BLACK,TRIM2#

main58510-60V20-E0supersedes 58510-60V10-E0i201309-201711

SEPIA,TRIM0#,4#

main58510-60K30-C0supersedes 58510-60K20-C0i200911-201107

COOL BOX-WITH,BLACK,TRIM2#

main58510-60K30-E0supersedes 58510-60K20-E0i200911-201107

COOL BOX-WITH,SEPIA,TRIM0#,4#

58533ACOVER, FLOOR CARPET, CENTER RH

main58533-60061-C0i201206-201305

BLACK,TRIM2#

main58533-60061-E0i201206-201305

SEPIA,TRIM0#,4#

main58533-60062-C0i201306-201309

BLACK,TRIM2#

main58533-60062-E0i201306-201309

SEPIA,TRIM0#,4#

main58533-60060-C0i200911-201107

COOL BOX-WITH,BLACK,TRIM2#

main58533-60060-E0i200911-201107

COOL BOX-WITH,SEPIA,TRIM0#,4#

58564HCLIP(FOR REAR FLOOR CARPET)

main90467-09206×5i200911-201206

58574APLATE, REAR FLOOR MAT SUPPORT, REAR

main58574-60130-C0i200911-201309

BLACK,TRIM2#

main58574-60130-E0i201308-201711

SEPIA,TRIM0#,4#

58624CPAD, CENTER FLOOR SILENCER, RH

main58624-60150i200911-201308

main58624-60160i201908

58625CPAD, CENTER FLOOR SILENCER, LH

main58625-60060i200911-201206

main58625-60070i201707-201908

6451INSIDE TRIM BOARD

→ Go to FIG 64-51

66310DHOOK ASSY, ROPE

main66310-30011-C0×2i200911-201206

BLACK,TRIM2#

main66310-30011-C1×2i201908

BLACK,TRIM0#,2#,4#

main66310-30011-E2×2i200911-201206

SEPIA,TRIM0#,4#

67933PLATE, QUARTER SCUFF, INNER RH

main67933-60020-C0i200911-201206

BLACK,TRIM2#

main67933-60020-E0i200911-201306

SEPIA,TRIM0#,4#

main67933-60022-C0i201306-201308

BLACK,TRIM2#

main67933-60022-E0i201306-201308

SEPIA,TRIM0#,4#

main67933-60023-C0i201908

BLACK,TRIM0#,2#,4#

main67933-60023-E0i201308-201908

SEPIA,TRIM0#,4#

67934PLATE, QUARTER SCUFF, INSIDE LH

main67934-60020-C0i200911-201306

BLACK,TRIM2#

main67934-60020-E0i200911-201206

SEPIA,TRIM0#,4#

main67934-60022-C0i201306-201309

BLACK,TRIM2#

main67934-60022-E0i201306-201309

SEPIA,TRIM0#,4#

main67934-60023-C0i201308-201711

BLACK,TRIM2#

main67934-60023-E0i201308-201711

SEPIA,TRIM0#,4#

9011906897

main90119-06897

9011906951

main90119-06951

9046707117

main90467-07117

9046710161

main90467-10161

9162140616

main91621-40616

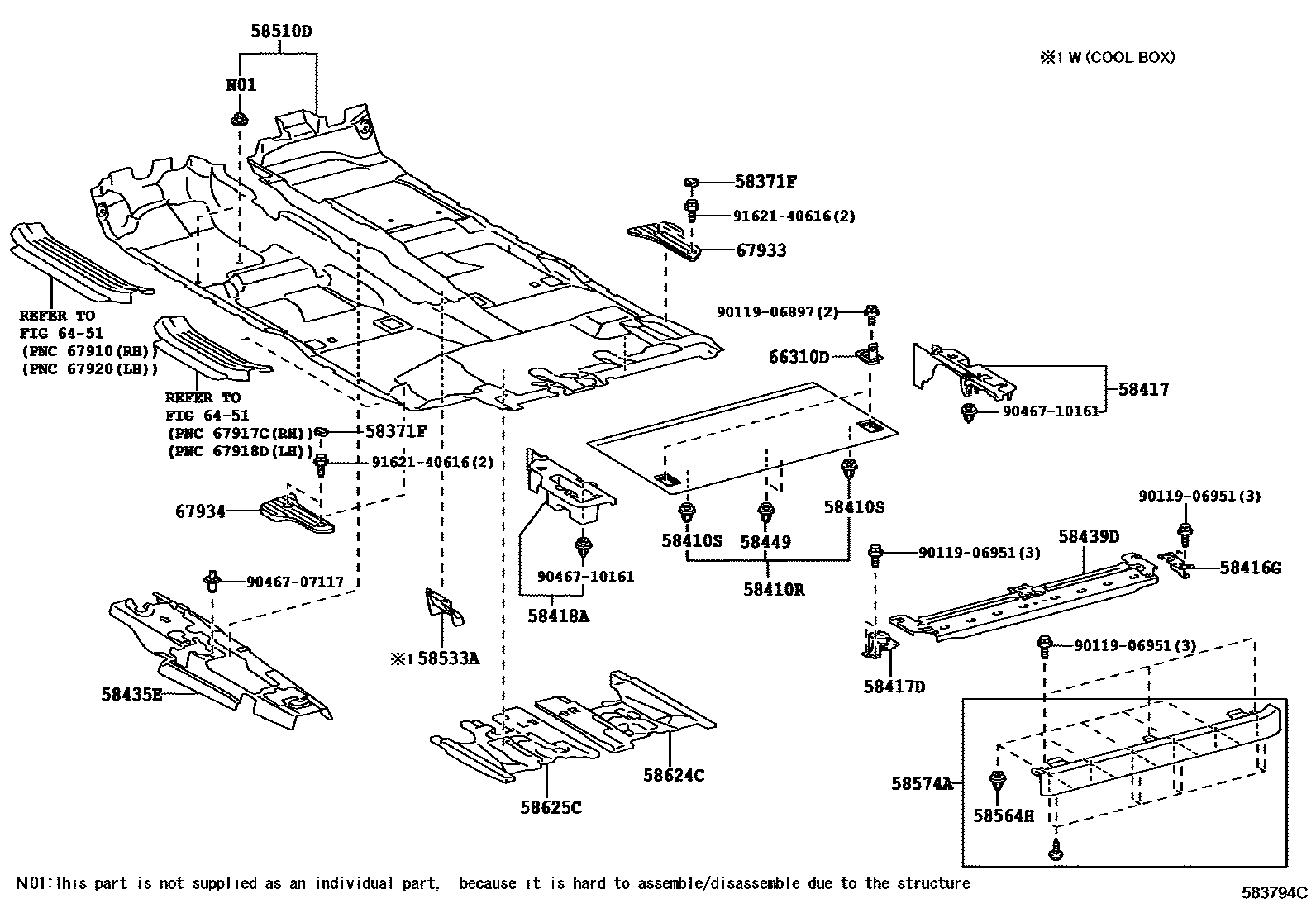

FLOOR MAT & SILENCER PAD
