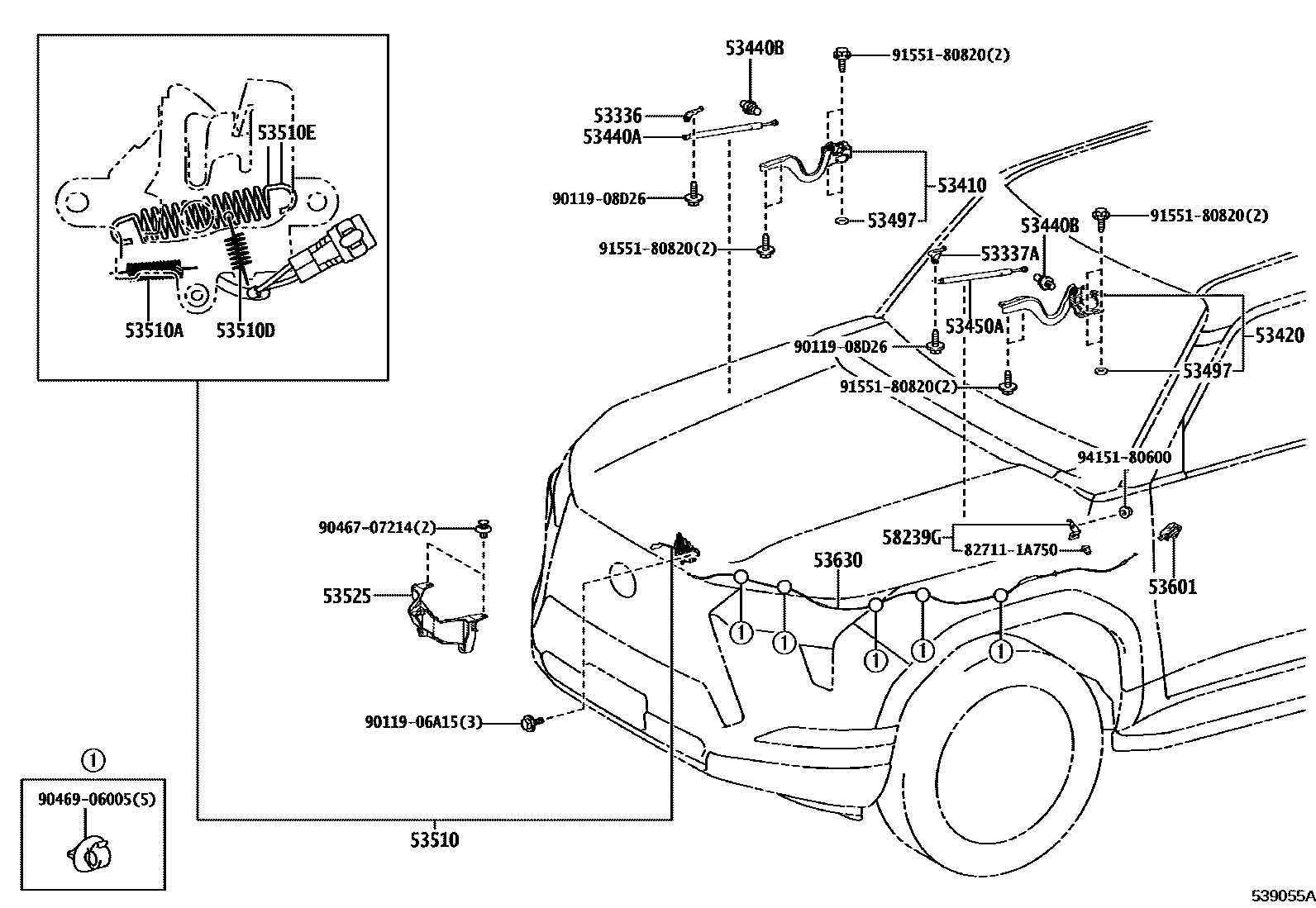

HOOD LOCK & HINGE

0001 1 0002 1

53336BRACKET, HOOD STAY, RH

main53336-60030iTJH252,VJA252202402

53337ABRACKET, HOOD STAY, LH

main53337-60020iTJH252,VJA252202402

53410HINGE ASSY, HOOD, RH

main53410-60270iTJH252,VJA252202402

53420HINGE ASSY, HOOD, LH

main53420-60210iTJH252,VJA252202402

53440ASUPPORT ASSY, HOOD, RH

main53440-0W590iTJH252,VJA252202402

53440BBOLT, HOOD SUPPORT, NO.1

main68961-20051×2iTJH252,VJA252202402

53450ASUPPORT ASSY, HOOD, LH

main53440-0W590iTJH252,VJA252202402

53497PAD, HOOD HINGE, NO.1

main53497-50020×2iTJH252,VJA252202402

T=1.0

53510LOCK ASSY, HOOD

main53510-60570iVJA252..ARL202402

main53510-60580iTJH252,VJA252..LHD202402

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iTJH252,VJA252202402

WD=0.9,CW=21

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063iTJH252,VJA252202402

WD=1.2,CW=8.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-16077iTJH252,VJA252202402

WD=1.6,CW=12

53525PROTECTOR, HOOD LOCK RELEASE LEVER

main53525-60100iTJH252,VJA252202402

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-30110-C0iTJH252,VJA252202402-202404

BLACK,TRIM1#,2#,4#

main53601-62010-C0iTJH252,VJA252202405

BLACK,TRIM1#,2#,4#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-60260iVJA252..ARL202402

main53630-60270iTJH252,VJA252..LHD202402

58239GBRACKET, CABLE CLAMP

main58239-60030iTJH252,VJA252..LHD202402

827111A750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A750

9011906A15

main90119-06A15

9011908D26

main90119-08D26

9046707214

main90467-07214

9046906005

main90469-06005

9155180820

main91551-80820

9415180600

main94151-80600

23 parts on this diagram · 2 diagrams in section
