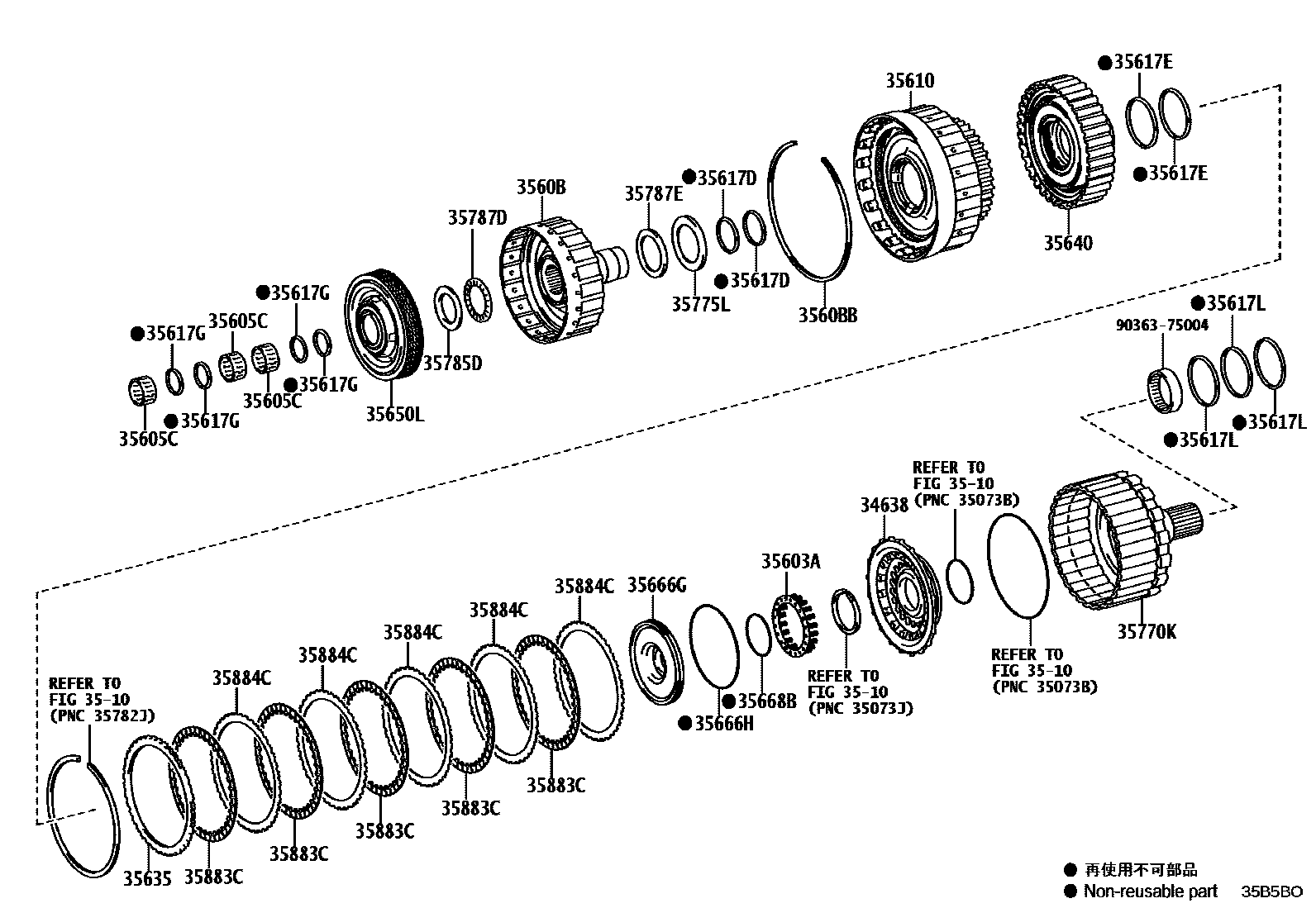

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)
34638PISTON, C-4 CLUTCH
3510PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
35603ASPRING SUB-ASSY, FORWARD CLUTCH RETURN
35605CBEARING, NEEDLE ROLLER
3560BDRUM SUB-ASSY, C-2
3560BBRING, HOLE SNAP(FOR C-2 DRUM)
35617LRING, CLUTCH DRUM OIL SEAL, NO.3
35635FLANGE, FORWARD CLUTCH
T=4.3
T=4.4
T=4.5
T=4.6
T=4.7
T=4.8
T=4.9
T=5.0
T=5.1
35650CLUTCH ASSY, REAR MULTIPLE DISC
35666GBALANCER, C-4 CLUTCH
35666HRING, O(FOR C-4 CLUTCH BALANCER)
35668BRING, O(FOR CLUTCH BALANCER)
35770KSHAFT ASSY, OUTPUT
35775LRACE, THRUST BEARING, NO.5
35785DRACE, THRUST BEARING, NO.4
35787DBEARING, THRUST NEEDLE ROLLER
35787EBEARING, THRUST NEEDLE ROLLER
35883CDISC, CLUTCH, NO.4
35884CPLATE, CLUTCH, NO.4
9036375004
main90363-75004
26 parts on this diagram · 2 diagrams in section
