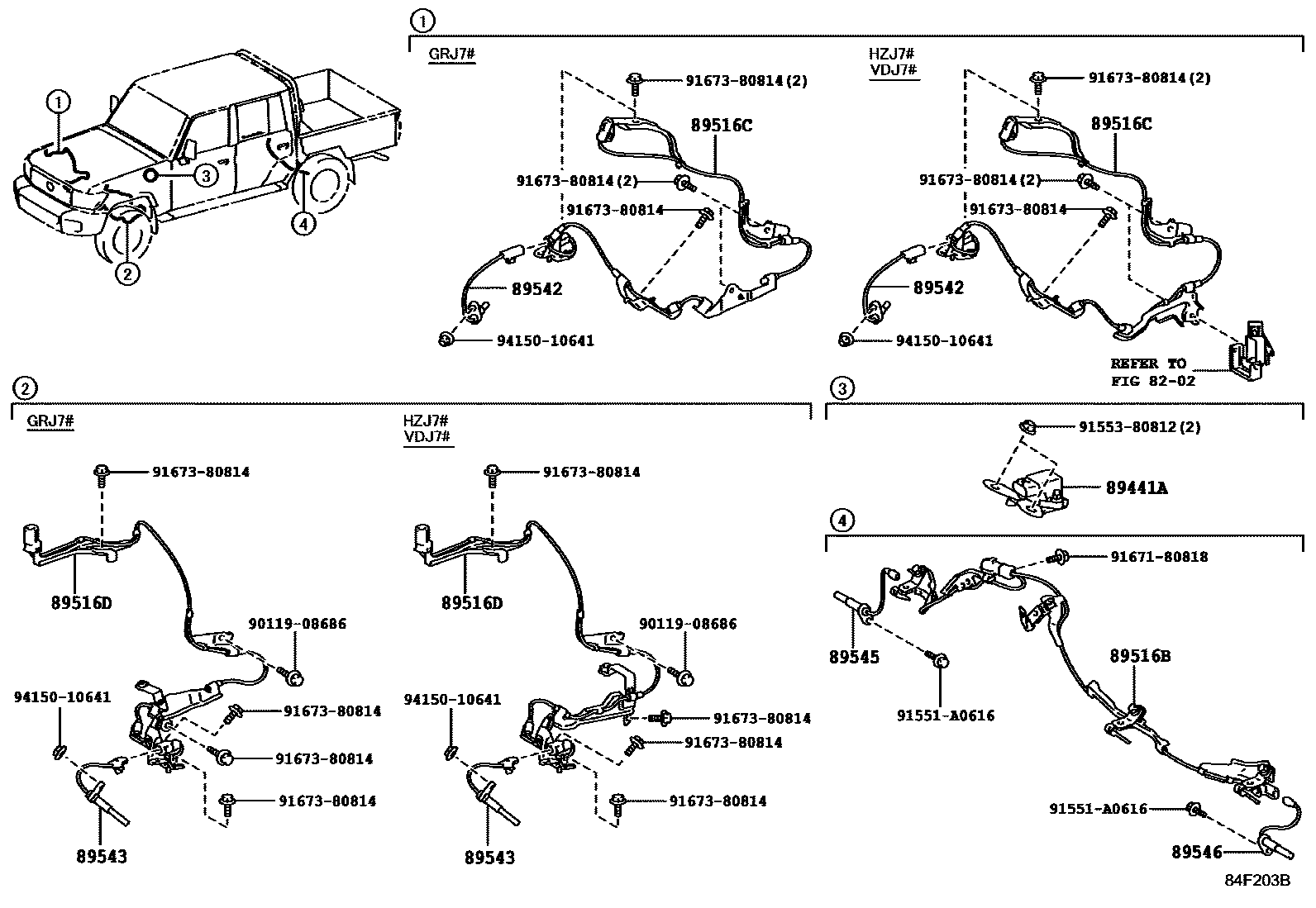

ABS & VSC

0001 1 0002 1 0003 1 0004 1 0005 1

8202WIRING & CLAMP

→ Go to FIG 82-02

89441ASENSOR, DECELERATION

main89440-60160201208-202508

89516BWIRE, SKID CONTROL SENSOR

main89516-60480201205-201407

main89516-60490201608-201701

main89516-60500201608-201701

main89516-60550201408-201608

main89516-60600201701-202508

main89516-60610201701-202004

main89516-60611202004-202508

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-60440201408-201608

main89516-60460201208-201608

main89516-60510201608-202309

main89516-60530202309-202508

main89516-60560201608-202309

main89516-60580201608-202508

main89516-60630202309

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-60450201408-201608

main89516-60470201208-201608

main89516-60520201608-202309

main89516-60570201608-202508

main89516-60590201608-202508

main89516-60620201701-202409

89542SENSOR, SPEED, FRONT RH

main89542-60060201208-202508

89543SENSOR, SPEED, FRONT LH

main89543-60030201208-202508

89545SENSOR, SPEED, REAR RH

main89545-60040201208-202508

main89545-60050201701-202508

89546SENSOR, SPEED, REAR LH

main89546-60040201208-202508

main89546-60050201701-202508

9011908686

main90119-08686

91551A0616

main91551-A0616

9155380812

main91553-80812

9167180818

main91671-80818

9167380814

main91673-80814

9415010641

main94150-10641

15 parts on this diagram · 5 diagrams in section
