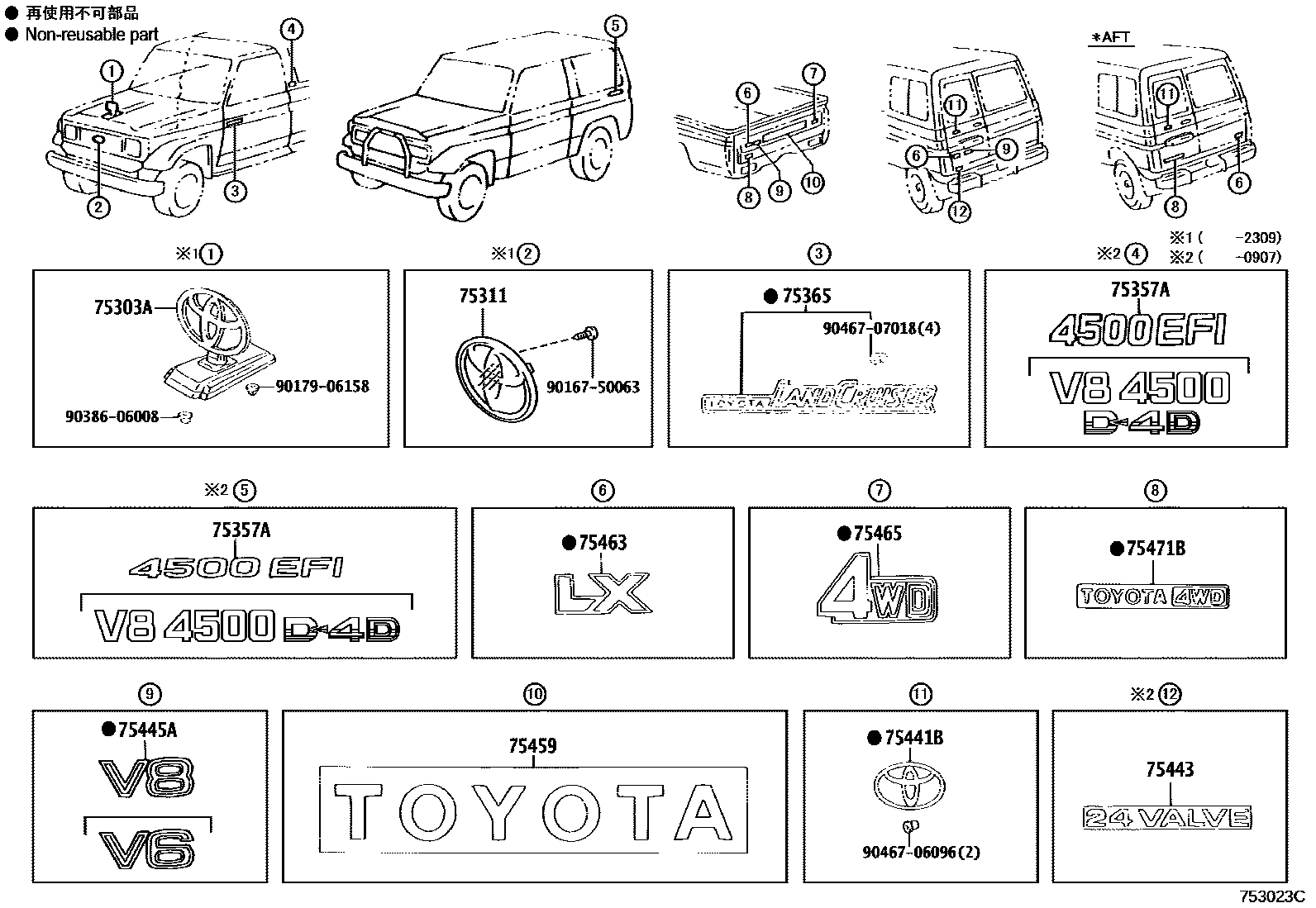

EMBLEM & NAME PLATE
75303AEMBLEM SUB-ASSY, HOOD
MODEL SYMBOL MARK-WITH
75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
main75310-33080iGRJ7#,HZJ7#,VDJ7#..GCC,GEN; GRJ79..LX;VDJ79..CBU;HZJ76,79..RHD;HZJ79..LHD..PIC..CBU;GRJ71,76,79,VDJ76..(DCB,HT)..GCC; VDJ76..GCC;GRJ7#,HZJ7#,VDJ78,79..GCC,GEN; VDJ79..CBU;HZJ76,79..RHD;GRJ71,76,VDJ76..GCC;HZJ79..LHD..PIC..CBU202209-202309
70TH PACKAGE(BLACK BUMPER)&RADIATOR GRILLE-70TH PACKAGE; 70TH PACKAGE(BODY COLOR BUMPER) & PLATED&RADIATOR GRILLE-70TH PACKAGE; 70TH PACKAGE(BODY COLOR BUMPER)&RADIATOR GRILLE-70TH PACKAGE; RADIATOR GRILLE-WITHOUT(FOR DOP)
75357AMARK, SIDE PANEL, NO.2
DARK SILVER,4E9; DARK SILVER,4E9 ,4R3
GOLD,058 ,1F7 ,1G3 ,1G6 ,3Q3 ,8H6; GOLD,058 ,8H6
DARK SILVER,4E9 ,4R3
GOLD,058 ,1F7 ,1G3 ,1G6 ,3Q3 ,8H6
DARK SILVER MN004,4E9; DARK SILVER MN004,4E9 ,4R3
GOLD YRM450A,058 ,1F7 ,1G3 ,3Q3 ,8H6; GOLD YRM450A,058 ,8H6
DARK SILVER MN004,4E9 ,4R3
GOLD YRM450A,058 ,1F7 ,1G3 ,3Q3 ,8H6
75365EMBLEM, FRONT FENDER
75441BPLATE, BACK DOOR NAME
75443PLATE, BACK DOOR NAME, NO.3
24 VALVE; 24 VALVE,AUXILIARY FUEL TANK-WITH(1 TANK), BACK DOOR
75445APLATE, BACK DOOR NAME, NO.5
V6; V6,AUXILIARY FUEL TANK-WITH(1 TANK), BACK DOOR
V8
75459MARK, TAIL GATE
BRAND NAME MARK-WITH(TAIL GATE TOYOTA MARK),WHITE,1F7 ,1G3 ,3Q3 ,4E9 ,4R3 ,8H6
BRAND NAME MARK-WITH(TAIL GATE TOYOTA MARK),RED,058
75463PLATE, REAR NAME, NO.4 (GRADE MARK)
LX; LX,LO GRADE PACKAGE
75465PLATE, REAR NAME, NO.5 (MECHANISM)
4WD
75471BPLATE, REAR BODY NAME, NO.1
AUXILIARY FUEL TANK-WITH(1 TANK), BACK DOOR
9016750063
main90167-50063
9017906158
main90179-06158
9038606008
main90386-06008
9046706096
main90467-06096
9046707018
main90467-07018
16 parts on this diagram · 1 diagram in section
