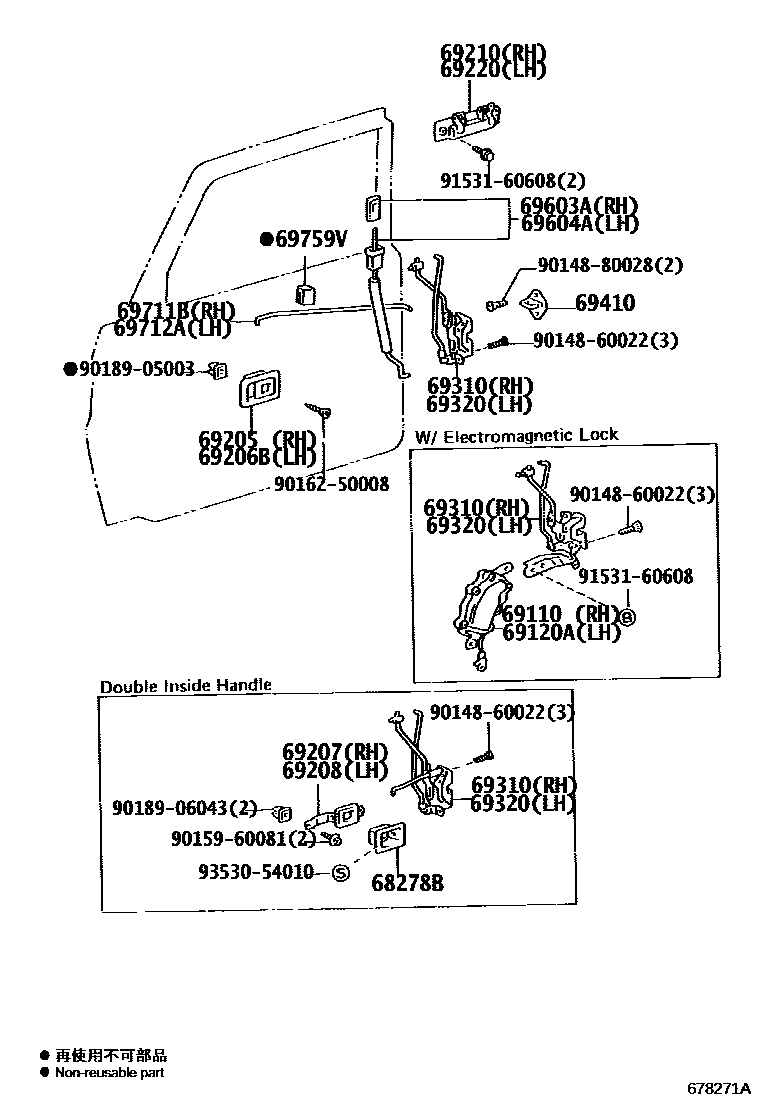

FRONT DOOR LOCK & HANDLE
68278BBEZEL, DOOR INSIDE HANDLE
FRONT SEAT-BENCH SEAT,BLUE GRAY,TRIM1#; REAR SEAT-TRANSVERSE SEAT,BLUE GRAY,TRIM1#
REAR SEAT-TRANSVERSE SEAT,MD.OAK,TRIM4#
69110ACTUATOR ASSY, FRONT DOOR LOCK, RH
POWER DOOR LOCK-WITH
WIRELESS DOOR LOCK-WITH&POWER WINDOW-WITH
main69110-60270iGDJ71,79,GRJ71,79..LHD..(HT,PIC)..LX; GRJ79..PIC..STD..GCC;GRJ71,79..LHD..(HT,PIC)..GEN..CBU;GDJ78,79,GRJ78,HZJ71,78,79..LHD..(HT,PIC)..STD..CBU; GRJ79..PIC..STD..GCC;GRJ79..LHD..PIC..GEN..CBU;GDJ78,79,GRJ71,78,HZJ71,78,79..LHD..(HT,PIC)..STD..CBU202309
POWER DOOR LOCK-WITH; POWER DOOR LOCK-WITH&WIRELESS DOOR LOCK-WITH
POWER DOOR LOCK-WITH
69120AACTUATOR ASSY, FRONT DOOR LOCK, LH
POWER DOOR LOCK-WITH
main69120-60040supersedes 69120-60050iGDJ71,79,GRJ71,79..LHD..(HT,PIC)..LX; GRJ79..PIC..STD..GCC;GRJ71,79..LHD..(HT,PIC)..GEN..CBU;GDJ78,79,GRJ78,HZJ71,78,79..LHD..(HT,PIC)..STD..CBU202309
POWER DOOR LOCK-WITH&WIRELESS DOOR LOCK-WITH
POWER WINDOW-WITH; WIRELESS DOOR LOCK-WITH&POWER WINDOW-WITH
main69120-60050iGRJ71,79..LX; GRJ71..STD..GEN;GRJ78,HZJ71,78..LHD;GRJ79..PIC..STD..GCC; GRJ78,HZJ78..LHD..GEN201208-201608
POWER DOOR LOCK-WITH; POWER DOOR LOCK-WITH&REAR SEAT-TRANSVERSE SEAT
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
main69205-10040-B7iGDJ71,78,79,L78,L79,GRJ71,78,79,HZJ71,78,79..HT,PIC,SOT; GDJ71,79,GRJ71,79..(HT,PIC)..LX..GCC; GDJ78,HZJ78..RHD..5F; GDJ79,GRJ79..PIC..LX;GDJ71,GRJ71..6FC..GCC202309
*UGP(EXCEPT REAR BUMPER, SIDE STEP),BLUE GRAY,TRIM1#; BLUE GRAY,TRIM1#; FRONT SEAT-SEPARATE SEAT&REAR SEAT-TRANSVERSE SEAT(UNITED FOLDING),BLUE GRAY,TRIM1#; UP GRADE PACKAGE,BLUE GRAY,TRIM1#
main69205-10040-E1iGDJ71,79,GRJ71,79..(HT,PIC)..LX..GCC; GDJ78,HZJ78..RHD..5F; GDJ79,GRJ79..PIC..LX;GDJ71,GRJ71..6FC..GCC; GDJL78..6FC;GDJ71,78,79,GRJ71,78,79,HZJ71,78,79..(HT,PIC)..(GCC,GEN)202309
*UGP(EXCEPT REAR BUMPER, SIDE STEP),MD.OAK,TRIM4#; FRONT SEAT-SEPARATE SEAT&REAR SEAT-TRANSVERSE SEAT(UNITED FOLDING),MD.OAK,TRIM4#; MD.OAK,TRIM4#; UP GRADE PACKAGE,MD.OAK,TRIM4#
BLUE GRAY,TRIM1#
main69205-20040-E1iGDJ76,79,GRJ76,79,HZJ76,79..(DCB,HT)..(GCC,GEN); GDJ76,79,GRJ76,79..(DCB,HT)..LX..GCC; HZJ76202309
*UGP(EXCEPT REAR BUMPER, SIDE STEP),LIGHT OAK,TRIM4#; LIGHT OAK,TRIM4#; UP GRADE PACKAGE(WITHOUT REAR FOG LAMP),LIGHT OAK,TRIM4#; UP GRADE PACKAGE,LIGHT OAK,TRIM4#
*UGP(EXCEPT REAR BUMPER, SIDE STEP),MD.OAK,TRIM4#; UP GRADE PACKAGE,MD.OAK,TRIM4#
*UGP(EXCEPT REAR BUMPER, SIDE STEP),BLACK,TRIM2#; UP GRADE PACKAGE(WITHOUT REAR FOG LAMP),BLACK,TRIM2#; UP GRADE PACKAGE,BLACK,TRIM2#
*UGP(EXCEPT REAR BUMPER, SIDE STEP),MD.OAK,TRIM4#; UP GRADE PACKAGE(WITHOUT REAR FOG LAMP),MD.OAK,TRIM4#; UP GRADE PACKAGE,MD.OAK,TRIM4#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLUE GRAY,TRIM1#; FRONT SEAT-SEPARATE SEAT&REAR SEAT-TRANSVERSE SEAT,BLUE GRAY,TRIM1#
MD.OAK,TRIM4#
BLUE GRAY,TRIM1#
LIGHT OAK,TRIM4#
*UGP(EXCEPT REAR BUMPER, SIDE STEP),MD.OAK,TRIM4#; UP GRADE PACKAGE,MD.OAK,TRIM4#
*UGP(EXCEPT REAR BUMPER, SIDE STEP),BLACK,TRIM2#; UP GRADE PACKAGE(WITHOUT REAR FOG LAMP),BLACK,TRIM2#; UP GRADE PACKAGE,BLACK,TRIM2#
*UGP(EXCEPT REAR BUMPER, SIDE STEP),MD.OAK,TRIM4#; UP GRADE PACKAGE(WITHOUT REAR FOG LAMP),MD.OAK,TRIM4#; UP GRADE PACKAGE,MD.OAK,TRIM4#
69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
REAR SEAT-TRANSVERSE SEAT,BLUE GRAY,TRIM1#
REAR SEAT-TRANSVERSE SEAT(UNITED FOLDING),MD.OAK,TRIM4#
69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
FRONT SEAT-BENCH SEAT,BLUE GRAY,TRIM1#; REAR SEAT-TRANSVERSE SEAT,BLUE GRAY,TRIM1#
FRONT SEAT-BENCH SEAT,MD.OAK,TRIM4#; REAR SEAT-TRANSVERSE SEAT,MD.OAK,TRIM4#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
PLATED
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
PLATED
69310LOCK ASSY, FRONT DOOR, RH
POWER DOOR LOCK-WITH; POWER DOOR LOCK-WITH&WIRELESS DOOR LOCK-WITH
WIRELESS DOOR LOCK-WITH&POWER WINDOW-WITH
main69310-60070supersedes 69030-60230iHZJ78,79..GEN;GRJ76,VDJ76..LHD;GRJ71,78,79,HZJ71,76,VDJ78,79,L78,L79..STD..(CBU,IV); HZJ78..RHD; VDJ76,L76..RHD201608-202309
FRONT SEAT-SEPARATE SEAT&REAR SEAT-TRANSVERSE SEAT; POWER DOOR LOCK-WITHOUT
POWER DOOR LOCK-WITH
main69310-60091iGRJ71,79,VDJ79..LHD..LX; HZJ78,79..LHD..(HT,PIC)..GEN..CBU;GRJ71,78,79,HZJ71,VDJ78..LHD..(HT,PIC)..STD..CBU201608-202309
POWER DOOR LOCK-WITH; POWER DOOR LOCK-WITH&WIRELESS DOOR LOCK-WITH
POWER DOOR LOCK-WITH
POWER DOOR LOCK-WITH&REAR SEAT-TRANSVERSE SEAT; POWER DOOR LOCK-WITH&WIRELESS DOOR LOCK-WITH&REAR SEAT-TRANSVERSE SEAT
FRONT SEAT-BENCH SEAT; REAR SEAT-TRANSVERSE SEAT
69320LOCK ASSY, FRONT DOOR, LH
POWER DOOR LOCK-WITH; POWER DOOR LOCK-WITH&WIRELESS DOOR LOCK-WITH
POWER DOOR LOCK-WITH&WIRELESS DOOR LOCK-WITH
POWER DOOR LOCK-WITH
main69320-60091iGRJ71,78,79,HZJ71,78,79..LHD..(HT,PIC)..STD..CBU; GRJ71,79..LX; GRJ71..STD..GEN;GRJ78,HZJ71,78..LHD;GRJ79..PIC..STD..GCC; GRJ78,HZJ78..LHD..GEN201208-201608
POWER DOOR LOCK-WITH; POWER DOOR LOCK-WITH&REAR SEAT-TRANSVERSE SEAT; POWER DOOR LOCK-WITH&WIRELESS DOOR LOCK-WITH; POWER DOOR LOCK-WITH&WIRELESS DOOR LOCK-WITH&REAR SEAT-TRANSVERSE SEAT
POWER DOOR LOCK-WITH
POWER DOOR LOCK-WITH&REAR SEAT-TRANSVERSE SEAT(UNITED FOLDING); POWER DOOR LOCK-WITH&WIRELESS DOOR LOCK-WITH&REAR SEAT-TRANSVERSE SEAT(UNITED FOLDING)
REAR SEAT-TRANSVERSE SEAT
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69603AROD SUB-ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
BLUE GRAY,TRIM1#
main69603-60010-C0iVDJ76;VDJ79..DCB..LX..GCC; VDJ79..DCB..STD..GCC; VDJL76;VDJL79..DCB..STD202309-202409
BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#
LIGHT OAK,TRIM4#
BLUE GRAY,TRIM1#
main69603-90K00-C0iHZJ71..HT;GRJ71,78,79,HZJ78,79,VDJ78,79..(HT,PIC,SOT)..STD; HZJ71..SOT201208-201608
BLACK,TRIM1#; BLACK,TRIM1#,4#
LIGHT OAK,TRIM4#
main69603-90K02-B0iGRJ71,79..LX;GRJ79,HZJ79..RHD;GRJ71,HZJ79..(HT,PIC)..GCC; VDJ78,79..LX200701-201208
BLUE GRAY,TRIM1#; POWER DOOR LOCK-WITH,BLUE GRAY,TRIM1#
BLACK,TRIM1#
main69603-90K02-E0iGRJ71,79..LX;GRJ79,HZJ79..RHD;GRJ71,HZJ79..(HT,PIC)..GCC; VDJ78,79..LX200701-201208
LIGHT OAK,TRIM4#; POWER DOOR LOCK-WITH,LIGHT OAK,TRIM4#
69604AROD SUB-ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
BLUE GRAY,TRIM1#
main69604-60010-C0iVDJ76;VDJ79..DCB..LX..GCC; VDJ79..DCB..STD..GCC; VDJL76;VDJL79..DCB..STD202309-202409
BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#
LIGHT OAK,TRIM4#
BLUE GRAY,TRIM1#
main69604-90K00-C0iGDJ79..PIC..IV;GDJL78..5F..STD;GDJL79,GRJ71,HZJ71..(PIC,SOT)..STD; GDJL78..6FC..STD;GDJ78,79,GRJ71,78,79,HZJ71,78,79..(HT,PIC)..STD..(GCC,GEN)202309
BLACK,TRIM1#; BLACK,TRIM1#,4#
LIGHT OAK,TRIM4#
main69604-90K02-B0iGRJ71,79..LX;GRJ79,HZJ79..RHD;GRJ71,HZJ79..(HT,PIC)..GCC; VDJ78,79..LX200701-201208
BLUE GRAY,TRIM1#; POWER DOOR LOCK-WITH,BLUE GRAY,TRIM1#
main69604-90K02-C0supersedes 69604-90K00-C0iVDJ78,79..(HT,PIC)..STD..GCC; VDJ79..PIC..LX..GCC; VDJL78..LX; VDJL78..STD; VDJL79..PIC..STD202309-202409
BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#; POWER DOOR LOCK-WITH,BLACK,TRIM1#,4#; POWER WINDOW-WITH,BLACK,TRIM1#,2#; POWER WINDOW-WITH,BLACK,TRIM1#,4#
main69604-90K02-E0iGRJ71,79..LX;GRJ79,HZJ79..RHD;GRJ71,HZJ79..(HT,PIC)..GCC; VDJ78,79..LX200701-201208
LIGHT OAK,TRIM4#; POWER DOOR LOCK-WITH,LIGHT OAK,TRIM4#
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
FRONT SEAT-BENCH SEAT; REAR SEAT-TRANSVERSE SEAT
69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH
REAR SEAT-TRANSVERSE SEAT(UNITED FOLDING)
69759VSILENCER, FRONT DOOR LOCK LINK
9014860022
main90148-60022
9014880028
main90148-80028
9015960081
main90159-60081
9016250008
main90162-50008
9018905003
main90189-05003
9018906043
main90189-06043
9153160608
main91531-60608
9353054010
main93530-54010
25 parts on this diagram · 1 diagram in section
