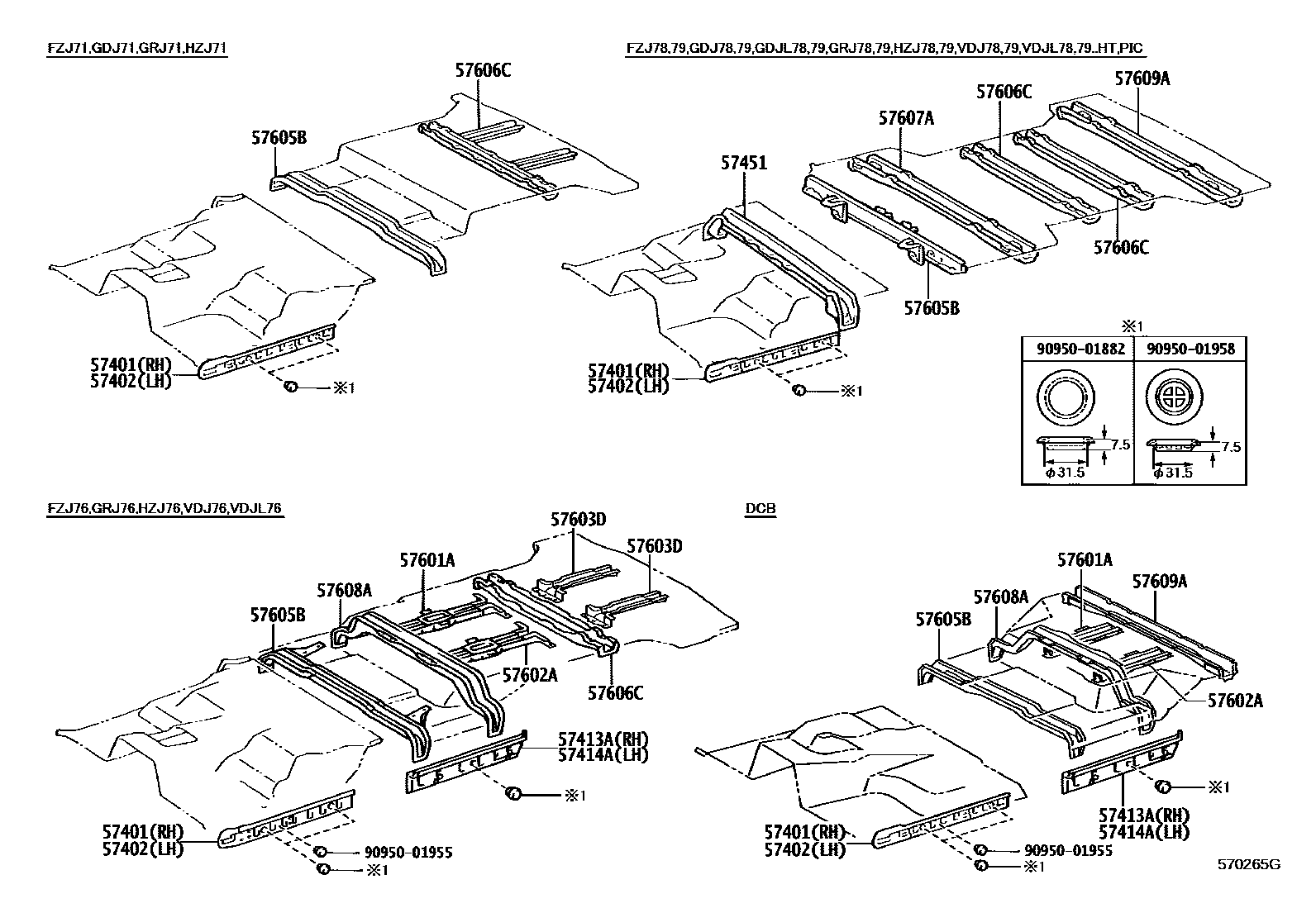

FLOOR MEMBER
57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57413AMEMBER, FLOOR SIDE, INNER REAR RH
57414AMEMBER, FLOOR SIDE, INNER REAR LH
57451MEMBER, FRONT FLOOR CROSS
FRONT SEAT-BENCH SEAT
main57408-60080iGRJ79,VDJ79..PIC..GCC;GRJ79,HZJ79..RHD..PIC; GRJ79..RHD..PIC; HZJ78..RHD; HZJ79..RHD..PIC; VDJ78,79..RHD..(HT,PIC)..CBU201608-201907
CKD PACKAGE(BANGLADESH)&HEATER-WITH(BOOST VENTILATOR)&FRONT SEAT-SEPARATE SEAT; CKD PACKAGE(KENYA)&FRONT SEAT-SEPARATE SEAT; CKD PACKAGE(PORTUGAL)&FRONT SEAT-SEPARATE SEAT; FRONT SEAT-SEPARATE SEAT; SOUTH AFRICA SPEC&CKD PACKAGE(PORTUGAL)&FRONT SEAT-SEPARATE SEAT; SOUTH AFRICA SPEC&FRONT SEAT-SEPARATE SEAT&REAR SEAT-TRANSVERSE SEAT
main57408-60081supersedes 57408-60071iGDJ79..PIC..5F..STD;GRJ79,HZJ79..RHD..PIC;GRJ79..PIC..5F..STD..GCC; GDJL78;GDJ79,GRJ79..PIC..5F..LX;GDJ78,79,GRJ78,79..(HT,PIC)..6FC..CBU; GRJ79..LHD..PIC..GEN..CBU; HZJ78..RHD; HZJ79..LHD..PIC..CBU202309
EGYPT SPEC&FRONT SEAT-SEPARATE SEAT; EGYPT SPEC&FRONT SEAT-SEPARATE SEAT&SEAT BELT WARNING-WITH(DRIVER & PASSENGER); FRONT SEAT-SEPARATE SEAT; GHANA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO2&HIGH ALTITUDE COMPENSATOR-WITH&HEATER-WITH(FRONT & ALUMI CORE)&FRONT SEAT-SEPARATE SEAT; SOUTH AFRICA SPEC&FRONT SEAT-SEPARATE SEAT&REAR SEAT-TRANSVERSE SEAT(UNITED FOLDING)
57601AMEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57602AMEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57603DMEMBER SUB-ASSY, REAR FLOOR SIDE REAR, CENTER
57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
AUXILIARY FUEL TANK-WITH(1 TANK), BACK DOOR&FRONT SEAT-BENCH SEAT; FRONT SEAT-BENCH SEAT
AUXILIARY FUEL TANK-WITH(1 TANK), BACK DOOR&REAR SEAT-TRANSVERSE SEAT; AUXILIARY FUEL TANK-WITH(1 TANK), BACK DOOR&REAR SEAT-TRANSVERSE SEAT&REAR SEAT BELT-3 POINT TYPE(*ELR) X 2 & 2POINT TYPE X 1; REAR SEAT-TRANSVERSE SEAT; REAR SEAT-TRANSVERSE SEAT&REAR SEAT BELT-3 POINT TYPE(*ELR) X 2 & 2POINT TYPE X 1
main57605-60210supersedes 57605-60230iVDJ79..DCB..STD..GCC; VDJL79..DCB..STD;VDJ79..DCB..LX..GCC202309-202409
BAHRAIN SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)&FRONTSEAT-SEPARATE SEAT; FRONT SEAT-SEPARATE SEAT; IRAQ SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)&FRONT SEAT-SEPARATE SEAT; JORDAN SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)&FRONT SEAT-SEPARATE SEAT; KUWAIT SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)&FRONT SEAT-SEPARATE SEAT; OMAN SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)&FRONT SEAT-SEPARATE SEAT; QATAR SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)&FRONT SEAT-SEPARATE SEAT; SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)&FRONT SEAT-SEPARATE SEAT; UAE SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)&FRONT SEAT-SEPARATE SEAT; YEMEN SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)&FRONT SEAT-SEPARATE SEAT
main57605-60230iGRJ76,VDJ76..GCC; HZJ79..LHD..DCB..GEN;GRJ76,79,HZJ76,VDJ79..LHD..(DCB,HT)..STD201608-202309
AUXILIARY FUEL TANK-WITH(1 TANK), BACK DOOR&FRONT SEAT-BENCH SEAT; FRONT SEAT-BENCH SEAT
FRONT SEAT-BENCH SEAT
AUXILIARY FUEL TANK-WITH(1 TANK), BACK DOOR&FRONT SEAT-BENCH SEAT; FRONT SEAT-BENCH SEAT
SPECIAL EDITION
57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
REAR
AUXILIARY FUEL TANK-WITH(1 TANK), BACK DOOR&FRONT SEAT-SEPARATE SEAT&REAR SEAT-TRANSVERSE SEAT; AUXILIARY FUEL TANK-WITH(1 TANK), BACK DOOR&REAR SEAT-TRANSVERSE SEAT; FRONT SEAT-SEPARATE SEAT&REAR SEAT-TRANSVERSE SEAT; REAR SEAT-TRANSVERSE SEAT
FRONT
REAR
REAR SEAT BELT-2 POINT TYPE X 8,REAR
57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3
REAR SEAT BELT-2 POINT TYPE X 8
57608AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4
57609AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5
REAR SEAT BELT-2 POINT TYPE X 8
BAHRAIN SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)&REAR SEAT-WITHOUT; IRAQ SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)&REAR SEAT-WITHOUT; KUWAIT SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)&REAR SEAT-WITHOUT; OMAN SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)&REAR SEAT-WITHOUT; QATAR SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)&REAR SEAT-WITHOUT; REAR SEAT-WITHOUT; SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)&REAR SEAT-WITHOUT; UAE SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)&REAR SEAT-WITHOUT; YEMEN SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)&REAR SEAT-WITHOUT
9095001882
main90950-01882
9095001955
main90950-01955
9095001958
main90950-01958
16 parts on this diagram · 3 diagrams in section
