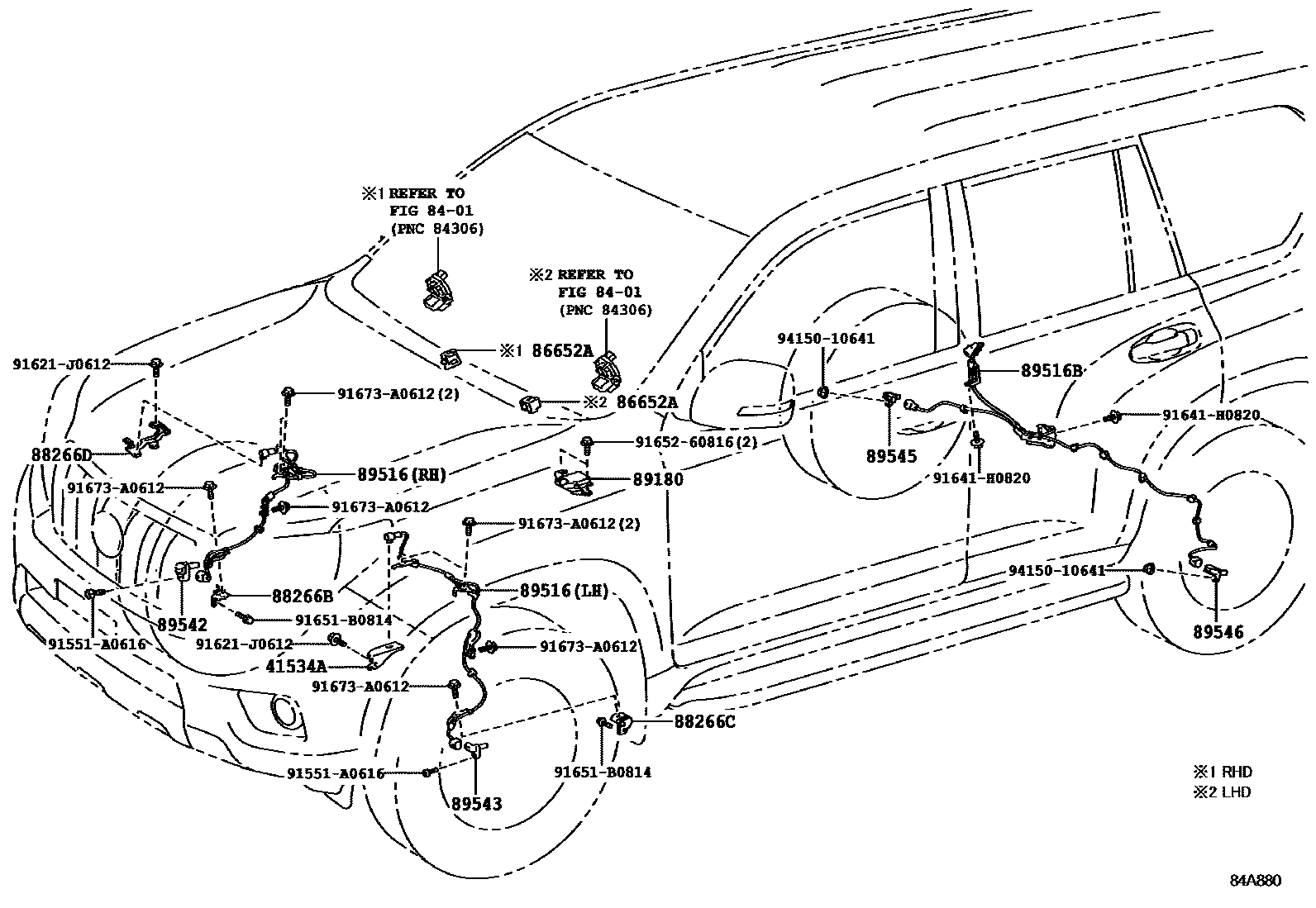

ABS & VSC
41534ABRACKET, FRONT DIFFERENTIAL BREATHER
8401SWITCH & RELAY & COMPUTER
86652ABUZZER ASSY, SKID CONTROL
88266BCLAMP, SKID CONTROL SENSOR, NO.1
88266CCLAMP, SKID CONTROL SENSOR, NO.2
88266DCLAMP, SKID CONTROL SENSOR, NO.3
89180SENSOR ASSY, YAWRATE
89516WIRE, SKID CONTROL SENSOR
RH
BELIZE SPEC,LH; LH
main89516-60280supersedes 89516-60270iGRJ150,KDJ150,LJ150,TRJ150..GEN; GRJ150,KDJ150..ARL; GRJ150..GEN; LJ150..LHD; TRJ150..GEN201110-201308
ARGENTINA SPEC,RH; CHILE SPEC,RH; EGYPT SPEC,RH; RH; RUSSIA SPEC,RH; SOUTH AMERICA SPEC(EURO 3 CONFORMITY),RH; UKURAINE SPEC,RH
main89516-60290iGDJ150,GRJ150,KDJ150,TRJ15#..ARL,GCC; GRJ150..6FC..GEN; GRJ150..6FC..GEN;KDJ150..LHD..GEN; KDJ150..LHD..GEN; KDJ150..RHD; KDJ150..RHD;GRJ150,LJ150,TRJ150..GEN; LJ150..LHD; TRJ150..GEN201506
ARGENTINA SPEC,LH; CHILE SPEC,LH; EGYPT SPEC,LH; LH; PHILIPPINES SPEC,LH; RUSSIA SPEC,LH; SOUTH AFRICA SPEC,LH; SOUTH AMERICA SPEC(EURO 3 CONFORMITY),LH; SOUTH AMERICA SPEC(EURO 4 REGULATION),LH; UKRAINE SPEC,LH
RH
89516BWIRE, SKID CONTROL SENSOR
89542SENSOR, SPEED, FRONT RH
89543SENSOR, SPEED, FRONT LH
89545SENSOR, SPEED, REAR RH
89546SENSOR, SPEED, REAR LH
91551A0616
main91551-A0616
91621J0612
main91621-J0612
91641H0820
main91641-H0820
91651B0814
main91651-B0814
9165260816
main91652-60816
91673A0612
main91673-A0612
9415010641
main94150-10641
20 parts on this diagram · 1 diagram in section
