SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE & TRANSMISSION 0005 1ENGINE & TRANSMISSION 0006 1ENGINE & TRANSMISSION 0007 1ENGINE & TRANSMISSION 0008 1ENGINE & TRANSMISSION 1/2 0009 1ENGINE & TRANSMISSION 2/2 0010 1ENGINE ROOM 0011 1ENGINE ROOM RELAY BLOCK 0012 1ENGINE ROOM RELAY BLOCK 0013 1ENGINE ROOM RELAY BLOCK 0014 1COWL 0015 1COWL 0016 1INSTRUMENT PANEL 1/2 0017 1INSTRUMENT PANEL 1/2 0018 1INSTRUMENT PANEL 1/2 0019 1INSTRUMENT PANEL 1/2 0020 1INSTRUMENT PANEL 2/2 0021 1INSTRUMENT PANEL 2/2 0022 1INSTRUMENT PANEL 2/2 0023 1INSTRUMENT PANEL 2/2 0024 1STEERING 0025 1SEAT 0026 1DOOR & ROOF 0027 1DOOR & ROOF 0028 1FLOOR & BACK DOOR 0029 1FLOOR & BACK DOOR

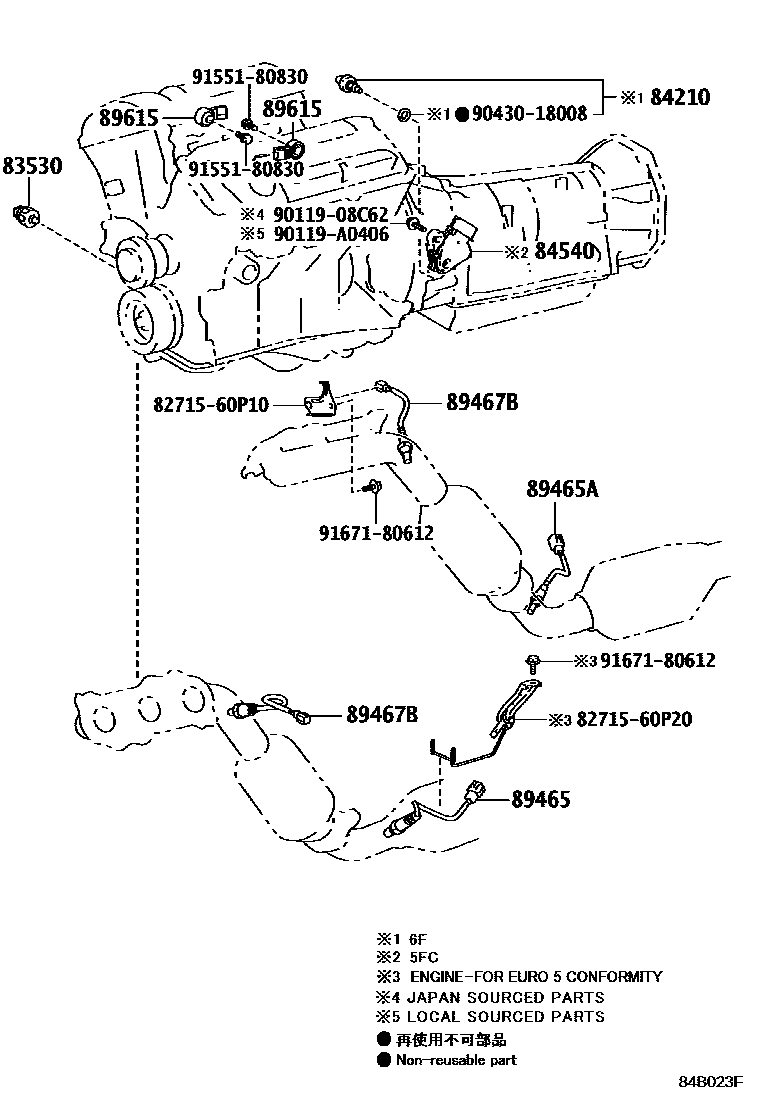

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iGRJ150,TRJ15#200908-201104

main83530-28020iGRJ150,TRJ15#201104-201708

DENSO

main83530-60010iKDJ150..ARL,GEN;KDJ150..5FC..GCC200908-201708

main83530-60020iTRJ150..LHD;GRJ150,TRJ155201104-201708

YAZAKI

main83530-60030iLJ150200908-201708

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iTRJ150..RHD;KDJ150..6F..GCC200908-201206

main84210-52050iGRJ150,LJ150,TRJ150..MTM201206-201708

main84210-60040iGDJ150,KDJ150..6F201506-201708

84540SWITCH ASSY, NEUTRAL START

main84540-04010iKDJ150..5FC201308-201708

(L)

main84540-35050iTRJ15#..4FC200908-201506

main84540-35060iKDJ150..5FC200908-201506

main84540-60050iGDJ150,GRJ150,TRJ15#..6FC201506-201708

main84540-71010iKDJ150..5FC200908-201308

main84540-71010iKDJ150..5FC201308-201708

(J)

89465SENSOR, OXYGEN

main89465-60430iGRJ150..6F200908-201506

main89465-60440iTRJ15#..LHD200908-201506

main89465-60480iTRJ15#201506

main89465-60500iGRJ150..6FC201506

89465ASENSOR, OXYGEN NO.2

main89465-60320iGRJ150200908-201506

main89465-60410iGRJ150..6FC201506

89467BSENSOR, AIR FUEL RATIO

main89467-60050iTRJ150..RHD200908-201205

main89467-60060iGRJ150200908-201506

main89467-60110iTRJ15#201206-201506

main89467-60170iTRJ15#201506

main89467-71120iGDJ150201506

89615SENSOR, KNOCK CONTROL

main89615-20090iTRJ150..RHD200908-201506

8271560P10BRACKET,WIRING HARNESS CLAMP

main82715-60P10

8271560P20BRACKET,WIRING HARNESS CLAMP

main82715-60P20

9011908C62

main90119-08C62

90119A0406

main90119-A0406

9043018008

main90430-18008

9155180830

main91551-80830

9167180612

main91671-80612

14 parts on this diagram · 29 diagrams in section
