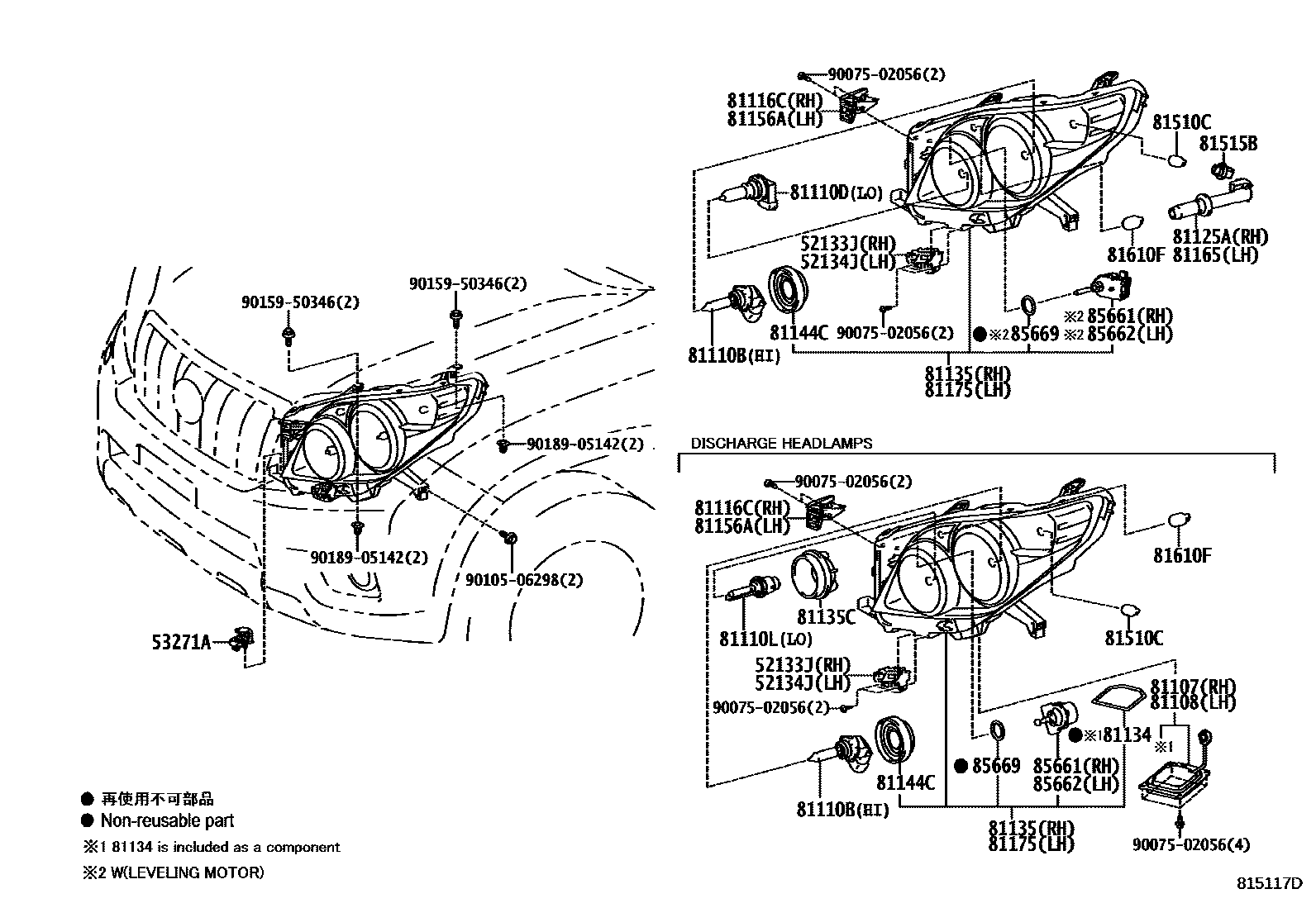

HEADLAMP
52133JREINFORCEMENT, FRONT BUMPER BAR, RH
52134JREINFORCEMENT, FRONT BUMPER BAR, LH
53271ABRACKET, HEADLAMP MOUNTING
81107COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH
VX PACKAGE&HEAD LAMP LEVELING DEVICE-WITH(AUTO); VX PACKAGE&HEADLAMP-LO BEAM:DISCHARGE & AFS; VX-L PACKAGE&HEAD LAMP LEVELING DEVICE-WITH(AUTO); VX-L PACKAGE&HEADLAMP-LO BEAM:DISCHARGE & AFS
main81107-12A81iGRJ150,KDJ150..5FC..GCC;GRJ150,KDJ150..6F..(ARL,GCC); GRJ150..5FC..GEN;KDJ150..LHD..GEN; GRJ150..6F..ARL;KDJ150..6F..(ARL,GCC);GRJ150,KDJ150..5FC..GCC201007-201110
VX PACKAGE&HEAD LAMP LEVELING DEVICE-WITH(AUTO); VX PACKAGE&HEADLAMP-LO BEAM:DISCHARGE & AFS; VX-L PACKAGE&HEAD LAMP LEVELING DEVICE-WITH(AUTO); VX-L PACKAGE&HEADLAMP-LO BEAM:DISCHARGE & AFS
main81107-60G60iGRJ150,KDJ150,TRJ150..ARL,GCC; GRJ150,KDJ150,TRJ150..GEN; GRJ150..ARL; KDJ150..LHD..GEN;GRJ150,TRJ150..(4FC,5F,5FC)..GEN; TRJ150..GCC; TRJ150..GEN201308-201506
CHINA SPEC&HEADLAMP-LED; HEADLAMP-LED; HEADLAMP-LED&HEAD LAMP LEVELING DEVICE-WITH(AUTO); HONG KONG SPEC&HEADLAMP-LED; KAZAKHSTAN,GEORGIA,AZORES SPEC&HEADLAMP-LED&HEAD LAMP LEVELING DEVICE-WITH(AUTO); PAKISTAN SPEC&HEADLAMP-LED; RUSSIA SPEC&HEADLAMP-LED&HEAD LAMP LEVELING DEVICE-WITH(AUTO); SOUTH AFRICA SPEC&HEADLAMP-LED; SOUTH AMERICA SPEC(EURO 3 CONFORMITY)&HEADLAMP-LED; UKURAINE SPEC&HEADLAMP-LED&HEAD LAMP LEVELING DEVICE-WITH(AUTO)
81108COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH
VX PACKAGE&HEAD LAMP LEVELING DEVICE-WITH(AUTO); VX PACKAGE&HEADLAMP-LO BEAM:DISCHARGE & AFS; VX-L PACKAGE&HEAD LAMP LEVELING DEVICE-WITH(AUTO); VX-L PACKAGE&HEADLAMP-LO BEAM:DISCHARGE & AFS
main81107-12A81iGRJ150,KDJ150..5FC..GCC;GRJ150,KDJ150..6F..(ARL,GCC); GRJ150..5FC..GEN;KDJ150..LHD..GEN; GRJ150..6F..ARL;KDJ150..6F..(ARL,GCC);GRJ150,KDJ150..5FC..GCC201007-201110
VX PACKAGE&HEAD LAMP LEVELING DEVICE-WITH(AUTO); VX PACKAGE&HEADLAMP-LO BEAM:DISCHARGE & AFS; VX-L PACKAGE&HEAD LAMP LEVELING DEVICE-WITH(AUTO); VX-L PACKAGE&HEADLAMP-LO BEAM:DISCHARGE & AFS
main81107-60G60iGRJ150,KDJ150,TRJ150..ARL,GCC; GRJ150,KDJ150,TRJ150..GEN; GRJ150..ARL; KDJ150..LHD..GEN;GRJ150,TRJ150..(4FC,5F,5FC)..GEN; TRJ150..GCC; TRJ150..GEN201308-201506
CHINA SPEC&HEADLAMP-LED; HEADLAMP-LED; HEADLAMP-LED&HEAD LAMP LEVELING DEVICE-WITH(AUTO); HONG KONG SPEC&HEADLAMP-LED; KAZAKHSTAN,GEORGIA,AZORES SPEC&HEADLAMP-LED&HEAD LAMP LEVELING DEVICE-WITH(AUTO); PAKISTAN SPEC&HEADLAMP-LED; RUSSIA SPEC&HEADLAMP-LED&HEAD LAMP LEVELING DEVICE-WITH(AUTO); SOUTH AFRICA SPEC&HEADLAMP-LED; SOUTH AMERICA SPEC(EURO 3 CONFORMITY)&HEADLAMP-LED; UKURAINE SPEC&HEADLAMP-LED&HEAD LAMP LEVELING DEVICE-WITH(AUTO)
81110BBULB(FOR HEADLAMP, NO.1)
12V65W(SAE),60W(ECE)
81110DBULB(FOR HEADLAMP, NO.2)
12V 55W,HALOGEN
12V 55W,HALOGEN
81110LBULB, DISCHARGE HEADLAMP
main90981-20024×2iGRJ150,KDJ150..5FC..GCC;GRJ150,KDJ150..6F..(ARL,GCC); GRJ150..5FC..GEN;KDJ150..LHD..GEN; GRJ150..6F..ARL;KDJ150..6F..(ARL,GCC);GRJ150,KDJ150..5FC..GCC200908-201110
42V 35W,VX PACKAGE&HEAD LAMP LEVELING DEVICE-WITH(AUTO); 42V 35W,VX PACKAGE&HEADLAMP-LO BEAM:DISCHARGE & AFS; 42V 35W,VX-L PACKAGE&HEAD LAMP LEVELING DEVICE-WITH(AUTO); 42V 35W,VX-L PACKAGE&HEADLAMP-LO BEAM:DISCHARGE & AFS
81116CBRACKET, HEADLAMP, RH
81125CORD, HEADLAMP
81125ACORD, HEADLAMP, RH
81134GASKET, HEADLAMP
main90075-23002iGRJ150,KDJ150,TRJ150..ARL,GCC; GRJ150,KDJ150,TRJ150..GEN; GRJ150..ARL; KDJ150..LHD..GEN;GRJ150,TRJ150..(4FC,5F,5FC)..GEN; TRJ150..GCC; TRJ150..GEN201308-201506
CHINA SPEC&HEADLAMP-LED; HEADLAMP-LED; HEADLAMP-LED&HEAD LAMP LEVELING DEVICE-WITH(AUTO); HONG KONG SPEC&HEADLAMP-LED; KAZAKHSTAN,GEORGIA,AZORES SPEC&HEADLAMP-LED&HEAD LAMP LEVELING DEVICE-WITH(AUTO); PAKISTAN SPEC&HEADLAMP-LED; RUSSIA SPEC&HEADLAMP-LED&HEAD LAMP LEVELING DEVICE-WITH(AUTO); SOUTH AFRICA SPEC&HEADLAMP-LED; SOUTH AMERICA SPEC(EURO 3 CONFORMITY)&HEADLAMP-LED; UKURAINE SPEC&HEADLAMP-LED&HEAD LAMP LEVELING DEVICE-WITH(AUTO)
main90075-68007iGRJ150,KDJ150..5FC..GCC;GRJ150,KDJ150..6F..(ARL,GCC); GRJ150..5FC..GEN;KDJ150..LHD..GEN; GRJ150..6F..ARL;KDJ150..6F..(ARL,GCC);GRJ150,KDJ150..5FC..GCC200908-201110
VX PACKAGE&HEAD LAMP LEVELING DEVICE-WITH(AUTO); VX PACKAGE&HEADLAMP-LO BEAM:DISCHARGE & AFS; VX-L PACKAGE&HEAD LAMP LEVELING DEVICE-WITH(AUTO); VX-L PACKAGE&HEADLAMP-LO BEAM:DISCHARGE & AFS
81135UNIT ASSY, HEADLAMP, RH
HEAD LAMP LEVELING DEVICE-WITH(MANUAL)
main81130-60E40iGRJ150,KDJ150,LJ150,TRJ150..LHD..GEN; KDJ150..5FC..GCC;GRJ150,TRJ15#..GCC200908-201308
HEAD LAMP LEVELING DEVICE-WITH(MANUAL)
main81130-60J00supersedes 81130-60G80iGRJ150,KDJ150,LJ150,TRJ150..LHD..GEN; GRJ150,KDJ150,TRJ15#..GCC201506
HEAD LAMP LEVELING DEVICE-WITH(MANUAL)
HEAD LAMP LEVELING DEVICE-WITH(MANUAL)
VX PACKAGE&HEAD LAMP LEVELING DEVICE-WITH(AUTO); VX PACKAGE&HEADLAMP-LO BEAM:DISCHARGE & AFS; VX-L PACKAGE&HEAD LAMP LEVELING DEVICE-WITH(AUTO); VX-L PACKAGE&HEADLAMP-LO BEAM:DISCHARGE & AFS
main81145-60E70iGRJ150,KDJ150..GCC; GRJ150..5FC..GEN;KDJ150..LHD..GEN; KDJ150..GCC;GRJ150..5FC..GCC200908-201110
VX PACKAGE&HEAD LAMP LEVELING DEVICE-WITH(AUTO); VX PACKAGE&HEADLAMP-LO BEAM:DISCHARGE & AFS; VX-L PACKAGE&HEAD LAMP LEVELING DEVICE-WITH(AUTO); VX-L PACKAGE&HEADLAMP-LO BEAM:DISCHARGE & AFS
HEADLAMP-LED&HEAD LAMP LEVELING DEVICE-WITH(AUTO); HONG KONG SPEC&HEADLAMP-LED; PAKISTAN SPEC&HEADLAMP-LED; SOUTH AFRICA SPEC&HEADLAMP-LED; SOUTH AMERICA SPEC(EURO 3 CONFORMITY)&HEADLAMP-LED
HEADLAMP-LED
HEADLAMP-LED; HEADLAMP-LED&HEAD LAMP LEVELING DEVICE-WITH(AUTO)
GEORGIA,AZORES,TAJIKISTAN,ARMENIA SPEC&HEADLAMP-LED&HEAD LAMP LEVELING DEVICE-WITH(AUTO); HEADLAMP-LED; RUSSIA SPEC&HEADLAMP-LED&HEAD LAMP LEVELING DEVICE-WITH(AUTO); UKRAINE SPEC&HEADLAMP-LED&HEAD LAMP LEVELING DEVICE-WITH(AUTO)
81135CCOVER, HEADLAMP BACK, NO.1
main81135-3A150×2iGRJ150,KDJ150..5FC..ARL; GRJ150..6F..GCC;GRJ150,KDJ150..5FC..ARL; GRJ150..6F..GEN;KDJ150..RHD..GEN200908-201308
VX PACKAGE&HEAD LAMP LEVELING DEVICE-WITH(AUTO); VX PACKAGE&HEADLAMP-LO BEAM:DISCHARGE & AFS; VX-L PACKAGE&HEAD LAMP LEVELING DEVICE-WITH(AUTO); VX-L PACKAGE&HEADLAMP-LO BEAM:DISCHARGE & AFS
81144COVER, HEADLAMP, NO.1
main90075-65006×4iGRJ150,KDJ150,LJ150,TRJ15#; GRJ150,KDJ150,TRJ150..ARL,GCC; GRJ150,KDJ150,TRJ150..GEN; GRJ150..ARL; KDJ150..LHD..GEN;GRJ150,TRJ150..(4FC,5F,5FC)..GEN; TRJ150..GCC; TRJ150..GEN201308-201506
CHINA SPEC&HEADLAMP-LED; HEADLAMP-LED; HEADLAMP-LED&HEAD LAMP LEVELING DEVICE-WITH(AUTO); HONG KONG SPEC&HEADLAMP-LED; KAZAKHSTAN,GEORGIA,AZORES SPEC&HEADLAMP-LED&HEAD LAMP LEVELING DEVICE-WITH(AUTO); PAKISTAN SPEC&HEADLAMP-LED; RUSSIA SPEC&HEADLAMP-LED&HEAD LAMP LEVELING DEVICE-WITH(AUTO); SOUTH AFRICA SPEC&HEADLAMP-LED; SOUTH AMERICA SPEC(EURO 3 CONFORMITY)&HEADLAMP-LED; UKURAINE SPEC&HEADLAMP-LED&HEAD LAMP LEVELING DEVICE-WITH(AUTO)
81144CCOVER, HEADLAMP SOCKET
main90075-65006×4iGRJ150,KDJ150..5FC..ARL; GRJ150..6F..GCC;GRJ150,KDJ150..5FC..ARL; GRJ150..6F..GEN;KDJ150..RHD..GEN; TRJ150..LHD;KDJ150..ARL,GEN;KDJ150..5FC..GCC;GRJ150,LJ150,TRJ155200908-201308
VX PACKAGE&HEAD LAMP LEVELING DEVICE-WITH(AUTO); VX PACKAGE&HEADLAMP-LO BEAM:DISCHARGE & AFS; VX-L PACKAGE&HEAD LAMP LEVELING DEVICE-WITH(AUTO); VX-L PACKAGE&HEADLAMP-LO BEAM:DISCHARGE & AFS
main81135-60G60×2iGRJ150,KDJ150,TRJ150..ARL,GCC; GRJ150,KDJ150,TRJ150..GEN; GRJ150..ARL; KDJ150..LHD..GEN;GRJ150,TRJ150..(4FC,5F,5FC)..GEN; TRJ150..GCC; TRJ150..GEN201308-201506
CHINA SPEC&HEADLAMP-LED; HEADLAMP-LED; HEADLAMP-LED&HEAD LAMP LEVELING DEVICE-WITH(AUTO); HONG KONG SPEC&HEADLAMP-LED; KAZAKHSTAN,GEORGIA,AZORES SPEC&HEADLAMP-LED&HEAD LAMP LEVELING DEVICE-WITH(AUTO); PAKISTAN SPEC&HEADLAMP-LED; RUSSIA SPEC&HEADLAMP-LED&HEAD LAMP LEVELING DEVICE-WITH(AUTO); SOUTH AFRICA SPEC&HEADLAMP-LED; SOUTH AMERICA SPEC(EURO 3 CONFORMITY)&HEADLAMP-LED; UKURAINE SPEC&HEADLAMP-LED&HEAD LAMP LEVELING DEVICE-WITH(AUTO)
81156ABRACKET, HEADLAMP, LH
81165CORD, HEADLAMP, LH
81175UNIT ASSY, HEADLAMP, LH
HEAD LAMP LEVELING DEVICE-WITH(MANUAL)
main81170-60J00supersedes 81170-60G80iGRJ150,KDJ150,LJ150,TRJ150..LHD..GEN; GRJ150,KDJ150,TRJ15#..GCC201506
HEAD LAMP LEVELING DEVICE-WITH(MANUAL)
HEAD LAMP LEVELING DEVICE-WITH(MANUAL)
VX PACKAGE&HEAD LAMP LEVELING DEVICE-WITH(AUTO); VX PACKAGE&HEADLAMP-LO BEAM:DISCHARGE & AFS; VX-L PACKAGE&HEAD LAMP LEVELING DEVICE-WITH(AUTO); VX-L PACKAGE&HEADLAMP-LO BEAM:DISCHARGE & AFS
main81185-60E30iGRJ150,KDJ150..GCC; GRJ150..5FC..GEN;KDJ150..LHD..GEN; KDJ150..GCC;GRJ150..5FC..GCC200908-201110
VX PACKAGE&HEAD LAMP LEVELING DEVICE-WITH(AUTO); VX PACKAGE&HEADLAMP-LO BEAM:DISCHARGE & AFS; VX-L PACKAGE&HEAD LAMP LEVELING DEVICE-WITH(AUTO); VX-L PACKAGE&HEADLAMP-LO BEAM:DISCHARGE & AFS
HEADLAMP-LED&HEAD LAMP LEVELING DEVICE-WITH(AUTO); HONG KONG SPEC&HEADLAMP-LED; PAKISTAN SPEC&HEADLAMP-LED; SOUTH AFRICA SPEC&HEADLAMP-LED; SOUTH AMERICA SPEC(EURO 3 CONFORMITY)&HEADLAMP-LED
HEADLAMP-LED
HEADLAMP-LED; HEADLAMP-LED&HEAD LAMP LEVELING DEVICE-WITH(AUTO)
GEORGIA,AZORES,TAJIKISTAN,ARMENIA SPEC&HEADLAMP-LED&HEAD LAMP LEVELING DEVICE-WITH(AUTO); HEADLAMP-LED; RUSSIA SPEC&HEADLAMP-LED&HEAD LAMP LEVELING DEVICE-WITH(AUTO); UKRAINE SPEC&HEADLAMP-LED&HEAD LAMP LEVELING DEVICE-WITH(AUTO)
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
12V 21W,AMBER
81515BSOCKET, FRONT TURN SIGNAL LAMP
81610FBULB(FOR CLEARANCE LAMP)
12V 5W
12V 5W
85661MOTOR, HEADLAMP LEVELING, RH
HEAD LAMP LEVELING DEVICE-WITH(MANUAL)
VX PACKAGE&HEAD LAMP LEVELING DEVICE-WITH(AUTO); VX PACKAGE&HEADLAMP-LO BEAM:DISCHARGE & AFS; VX-L PACKAGE&HEAD LAMP LEVELING DEVICE-WITH(AUTO); VX-L PACKAGE&HEADLAMP-LO BEAM:DISCHARGE & AFS
main85661-28011iGDJ150,GRJ150,KDJ150,TRJ150..ARL,GCC; GRJ150,KDJ150,TRJ150..GEN; GRJ150..ARL; TRJ150..GEN201506
GEORGIA,AZORES,TAJIKISTAN,ARMENIA SPEC&HEADLAMP-LED&HEAD LAMP LEVELING DEVICE-WITH(AUTO); HEADLAMP-LED; HEADLAMP-LED&HEAD LAMP LEVELING DEVICE-WITH(AUTO); HONG KONG SPEC&HEADLAMP-LED; PAKISTAN SPEC&HEADLAMP-LED; RUSSIA SPEC&HEADLAMP-LED&HEAD LAMP LEVELING DEVICE-WITH(AUTO); SOUTH AFRICA SPEC&HEADLAMP-LED; SOUTH AMERICA SPEC(EURO 3 CONFORMITY)&HEADLAMP-LED; UKRAINE SPEC&HEADLAMP-LED&HEAD LAMP LEVELING DEVICE-WITH(AUTO)
85662MOTOR, HEADLAMP LEVELING, LH
HEAD LAMP LEVELING DEVICE-WITH(MANUAL)
VX PACKAGE&HEAD LAMP LEVELING DEVICE-WITH(AUTO); VX PACKAGE&HEADLAMP-LO BEAM:DISCHARGE & AFS; VX-L PACKAGE&HEAD LAMP LEVELING DEVICE-WITH(AUTO); VX-L PACKAGE&HEADLAMP-LO BEAM:DISCHARGE & AFS
main85691-28011iGRJ150,KDJ150..5FC..ARL; GRJ150..6F..GCC;GRJ150,KDJ150..5FC..ARL; GRJ150..6F..GEN;KDJ150..RHD..GEN200909-201308
VX PACKAGE&HEAD LAMP LEVELING DEVICE-WITH(AUTO); VX PACKAGE&HEADLAMP-LO BEAM:DISCHARGE & AFS; VX-L PACKAGE&HEAD LAMP LEVELING DEVICE-WITH(AUTO); VX-L PACKAGE&HEADLAMP-LO BEAM:DISCHARGE & AFS
85669PACKING, HEADLAMP LEVELING MOTOR BASE
HEAD LAMP LEVELING DEVICE-WITH(MANUAL); VX PACKAGE&HEAD LAMP LEVELING DEVICE-WITH(AUTO); VX-L PACKAGE&HEAD LAMP LEVELING DEVICE-WITH(AUTO)
9007502056
main90075-02056
9010506298
main90105-06298
9015950346
main90159-50346
9018905142
main90189-05142
29 parts on this diagram · 3 diagrams in section
