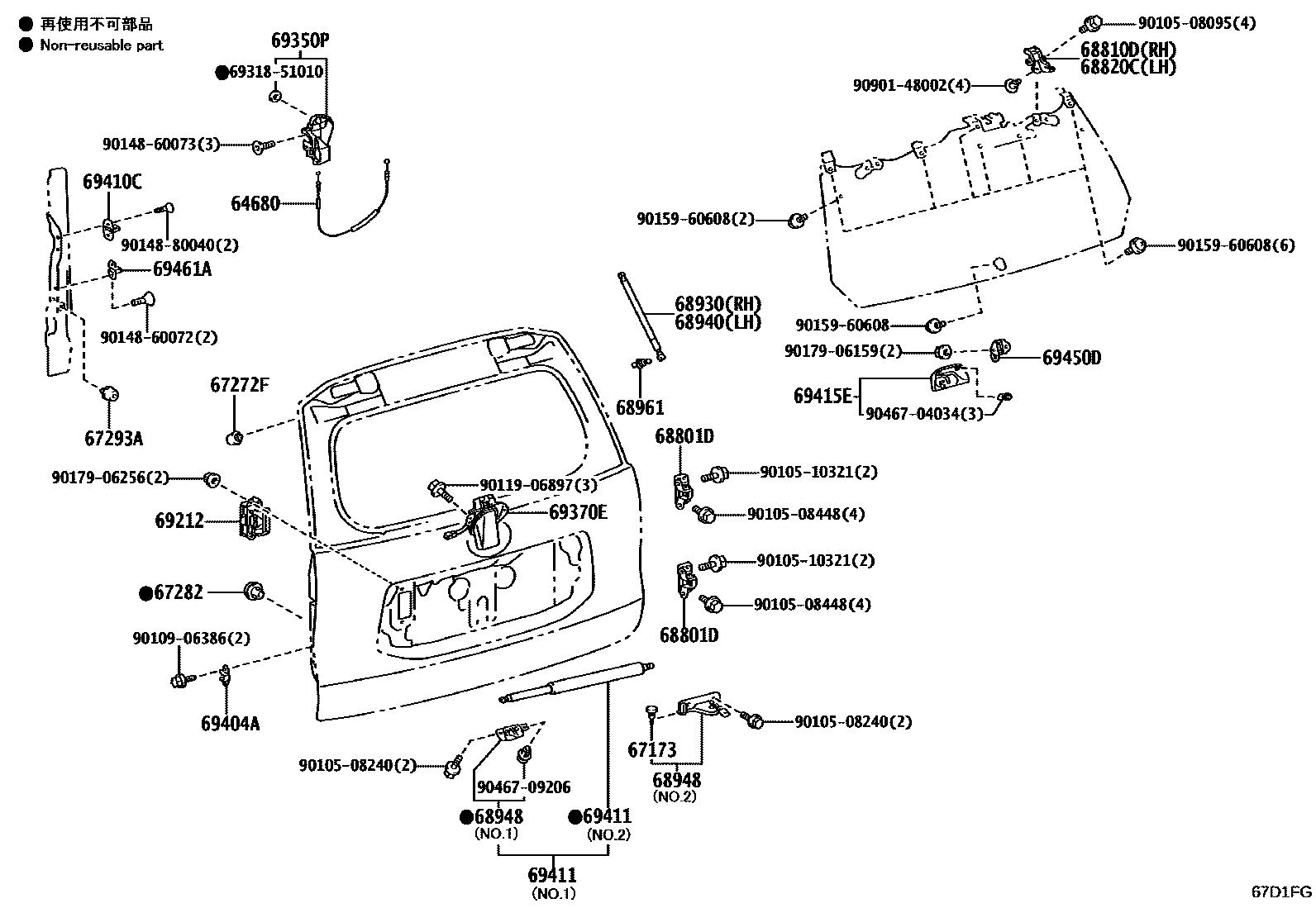

BACK DOOR LOCK & HINGE
64680CABLE ASSY, BACK DOOR LOCK CONTROL
67173CUSHION, BACK DOOR
67272FCUSHION, BACK DOOR STOPPER, NO.2
67282STOPPER, BACK DOOR, NO.1
67293ACUSHION, BACK DOOR STOPPER
68801DHINGE SUB-ASSY, BACK DOOR, RH
68810DHINGE ASSY, BACK DOOR, RH
SPARE TIRE-WITH(UNDER FRAME)
main68810-60051iGRJ150,KDJ150,TRJ150..GCC; GRJ150,KDJ150..ARL,GEN;GDJ150,LJ150,TRJ150..(5F,6FC)..(ARL,GEN)201506-201708
SPARE TIRE-WITH(BACK DOOR); SPARE TIRE-WITH(UNDER FRAME)
68820CHINGE ASSY, BACK DOOR, LH
SPARE TIRE-WITH(UNDER FRAME)
main68820-60011iGRJ150,KDJ150,TRJ150..GCC; GRJ150,KDJ150..ARL,GEN;GDJ150,LJ150,TRJ150..(5F,6FC)..(ARL,GEN)201506-201708
SPARE TIRE-WITH(BACK DOOR); SPARE TIRE-WITH(UNDER FRAME)
68930STAY ASSY, BACK WINDOW, RH
main68930-0W020iGRJ150,KDJ150,TRJ150..GCC; KDJ150..6F..GEN;KDJ150..5FC..(ARL,GEN);GRJ150,LJ150,TRJ150..ARL,GEN201308-201506
SPARE TIRE-WITH(UNDER FRAME)
main68930-0W010iGRJ150,KDJ150,LJ150..RHD; GRJ150..6FC..GEN;KDJ150..LHD..GEN; GRJ150..ARL; KDJ150,LJ150..RHD; KDJ150,TRJ150..LHD..GEN201506
BRUNEI SPEC&SPARE TIRE-WITH(UNDER FRAME); HONG KONG SPEC&SPARE TIRE-WITH(UNDER FRAME); PAKISTAN SPEC&SPARE TIRE-WITH(UNDER FRAME); PHILIPPINES SPEC&SPARE TIRE-WITH(UNDER FRAME); VIETNAM SPEC&SPARE TIRE-WITH(UNDER FRAME)
68940STAY ASSY, BACK WINDOW, LH
main68940-0W020iGRJ150,KDJ150,TRJ150..GCC; KDJ150..6F..GEN;KDJ150..5FC..(ARL,GEN);GRJ150,LJ150,TRJ150..ARL,GEN201308-201506
SPARE TIRE-WITH(UNDER FRAME)
main68940-0W010iGRJ150..5FC..ARL; TRJ150..GCC; TRJ150..LHD..GEN;GRJ150,KDJ150,LJ150..GEN200908-201308
CHINA SPEC; HONG KONG SPEC&SPARE TIRE-WITH(UNDER FRAME); PAKISTAN,TUNISIA SPEC&SPARE TIRE-WITH(UNDER FRAME); SPARE TIRE-WITH(UNDER FRAME)
68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
68961BOLT, BACK DOOR STAY
main68961-20140×2iKDJ150..6F..ARL;GRJ150,TRJ150..RHD..MTM; KDJ150..6F..GCC; KDJ150..LHD..5FC..GEN; TRJ150..RHD200908-201110
CHILE SPEC&SPARE TIRE-WITH(UNDER FRAME); MOZANBEEK SPEC&SPARE TIRE-WITH(UNDER FRAME); SOUTH AMERICA SPEC(EURO 3 CONFORMITY)&SPARE TIRE-WITH(UNDER FRAME); SPARE TIRE-WITH(UNDER FRAME)
69212HANDLE, BACK DOOR OUTSIDE, LH
69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
main69110-60230iGRJ150,KDJ150,LJ150,TRJ15#..GCC,GEN; GRJ150,KDJ150..5FC..ARL; GRJ150..5FC..ARL; GRJ150..ARL200908-201204
SOUTH AFRICA SPEC; SOUTH AFRICA SPEC&SPARE TIRE-WITH(UNDER FRAME); SPARE TIRE-WITH(UNDER FRAME)
main69110-60231iGRJ150,KDJ150,LJ150,TRJ15#..GCC,GEN; GRJ150,KDJ150..5FC..ARL; GRJ150..5FC..ARL; GRJ150..ARL201205-201302
SOUTH AFRICA SPEC; SOUTH AFRICA SPEC&SPARE TIRE-WITH(UNDER FRAME); SPARE TIRE-WITH(UNDER FRAME)
main69110-60232iGDJ150,GRJ150..6FC..ARL; GRJ150,KDJ150,LJ150,TRJ15#..GCC,GEN; GRJ150..ARL201506-201511
SOUTH AFRICA SPEC; SOUTH AFRICA SPEC&SPARE TIRE-WITH(UNDER FRAME); SPARE TIRE-WITH(UNDER FRAME)
main69110-60233iGDJ150,GRJ150..6FC..ARL; GRJ150,KDJ150,LJ150,TRJ15#..GCC,GEN; GRJ150..ARL201512-201708
SOUTH AFRICA SPEC; SOUTH AFRICA SPEC&SPARE TIRE-WITH(UNDER FRAME); SPARE TIRE-WITH(UNDER FRAME)
main69110-60240iGRJ150,KDJ150..ARL; KDJ150..5FC..GCC;GRJ150,TRJ150..GCC; TRJ150..LHD..GEN;GRJ150,KDJ150,LJ150..GEN200908-201204
REAR SEAT-DOUBLE FOLD&PARALLEL SEAT,9 PERSONS SEAT; SPARE TIRE-WITH(BACK DOOR)&REAR SEAT-DOUBLE FOLD&PARALLEL SEAT,9 PERSONS SEAT
main69110-60241iGRJ150,KDJ150,LJ150,TRJ150..GEN; GRJ150,KDJ150,TRJ150..GCC; GRJ150,KDJ150..ARL; LJ150201205-201302
REAR SEAT-DOUBLE FOLD&PARALLEL SEAT,10PERSONS SEAT; REAR SEAT-DOUBLE FOLD&PARALLEL SEAT,9 PERSONS SEAT; SPARE TIRE-WITH(BACK DOOR)&REAR SEAT-DOUBLE FOLD&PARALLEL SEAT,9 PERSONS SEAT
main69110-60242iGRJ150,KDJ150,LJ150,TRJ150..GEN; GRJ150,KDJ150,TRJ150..GCC; GRJ150,KDJ150..ARL; LJ150201303-201308
REAR SEAT-DOUBLE FOLD&PARALLEL SEAT,10PERSONS SEAT; REAR SEAT-DOUBLE FOLD&PARALLEL SEAT,9 PERSONS SEAT; SPARE TIRE-WITH(BACK DOOR)&REAR SEAT-DOUBLE FOLD&PARALLEL SEAT,9 PERSONS SEAT
69370ELOCK ASSY, BACK WINDOW
main69370-60020iGRJ150,KDJ150,TRJ150..GCC; KDJ150..6F..GEN;KDJ150..5FC..(ARL,GEN);GRJ150,LJ150,TRJ150..ARL,GEN201308-201506
SPARE TIRE-WITH(UNDER FRAME)
69404ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH
69410CPLATE ASSY, BACK DOOR LOCK STRIKER
69411CHECK, BACK DOOR
main68650-09030supersedes 68650-09020iGRJ150,KDJ150,TRJ150..GCC; TRJ155;GDJ150,GRJ150,KDJ150,LJ150,TRJ150..ARL,GEN201506-201708
NO.1; SPARE TIRE-WITH(BACK DOOR),NO.1
NO.1; SPARE TIRE-WITH(BACK DOOR),NO.1
NO.2; SPARE TIRE-WITH(BACK DOOR),NO.2
main68650-0W021supersedes 68650-0W011iGRJ150,KDJ150,TRJ150..GCC; TRJ155;GRJ150,KDJ150,LJ150,TRJ150..ARL,GEN201003-201205
NO.2; SPARE TIRE-WITH(BACK DOOR),NO.2
main68650-0W022supersedes 68650-0W012iGRJ150,KDJ150,TRJ150..GCC; TRJ155;GRJ150,KDJ150,LJ150,TRJ150..ARL,GEN201206-201308
NO.2; SPARE TIRE-WITH(BACK DOOR),NO.2
main68650-09010iGRJ150,KDJ150,TRJ150..GCC; KDJ150..6F..GEN;KDJ150..5FC..(ARL,GEN);GRJ150,LJ150,TRJ150..ARL,GEN201308-201506
NO.1; SPARE TIRE-WITH(UNDER FRAME),NO.1
main68650-09020iGRJ150,KDJ150,TRJ150..GCC; GRJ150,KDJ150..ARL,GEN;GDJ150,LJ150,TRJ150..(5F,6FC)..(ARL,GEN)201506-201708
NO.1; SPARE TIRE-WITH(UNDER FRAME),NO.1
NO.2; SPARE TIRE-WITH(UNDER FRAME),NO.2
main68650-0W011iGRJ150,KDJ150,TRJ150..GCC; GRJ150,KDJ150..6F..GEN;GRJ150,KDJ150,LJ150,TRJ150..(4FC,5F,5FC)..(ARL,GEN)200912-201205
NO.2; SPARE TIRE-WITH(UNDER FRAME),NO.2
main68650-0W012iGRJ150,KDJ150,TRJ150..GCC; GRJ150,KDJ150..6F..GEN;GRJ150,KDJ150,LJ150,TRJ150..(4FC,5F,5FC)..(ARL,GEN)201206-201308
NO.2; SPARE TIRE-WITH(UNDER FRAME),NO.2
69415ECOVER, BACK DOOR LOCK STRIKER
SPARE TIRE-WITH(UNDER FRAME)
69450DSTRIKER ASSY, BACK WINDOW LOCK
SPARE TIRE-WITH(UNDER FRAME)
69461ASTOPPER, BACK DOOR SIDE MALE
6931851010SEAL, FRONT DOOR LOCK HOLE, LH
main69318-51010
9010508095
main90105-08095
9010508240
main90105-08240
9010508448
main90105-08448
9010510321
main90105-10321
9010906386
main90109-06386
9011906897
main90119-06897
9014860072
main90148-60072
9014860073
main90148-60073
9014880040
main90148-80040
9015960608
main90159-60608
9017906159
main90179-06159
9017906256
main90179-06256
9046704034
main90467-04034
9046709206
main90467-09206
9090148002
main90901-48002
37 parts on this diagram · 2 diagrams in section
