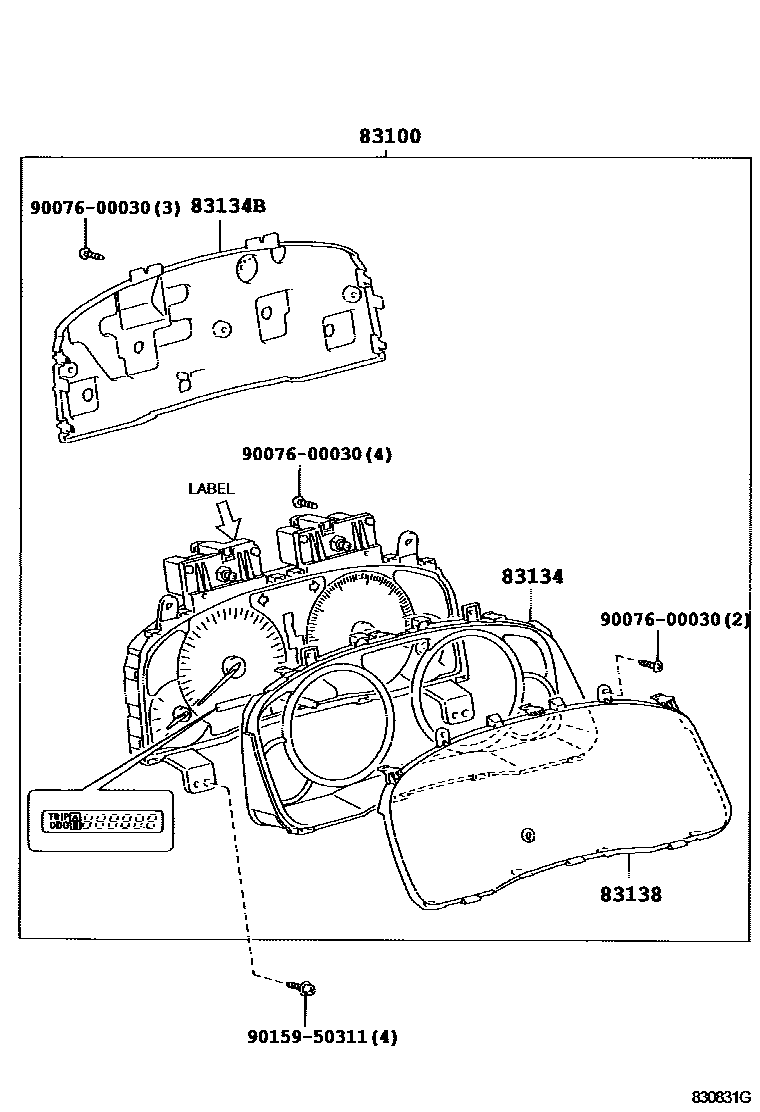

METER

83100METER ASSY, COMBINATION

main83800-60A20i200408-200908

main83800-60A60i200408-200908

main83800-60D90i200608-200712

main83800-60D91i200801-200807

main83800-60D92i200808-200908

main83800-60E00i200608-200712

main83800-60E01i200801-200807

main83800-60E02i200808-200908

main83800-6D282i200608-200807

main83800-6D283i200808-200908

main83800-6D291i200408-200608

LABEL=83800-6D291

main83800-6D292i200608-200807

main83800-6D293i200808-200908

main83800-6D312i200608-200908

main83800-6D340i200209-200304

main83800-6D341i200304-200408

main83800-6D350i200209-200304

main83800-6D351i200304-200408

main83800-6D360i200301-200304

main83800-6D361i200304-200408

LABEL=83800-6D361

main83800-6D362i200408-200908

LABEL=83800-6D362

main83800-6D370i200301-200304

main83800-6D371i200304-200408

LABEL=83800-6D371

main83800-6D372i200408-200908

LABEL=83800-6D372

main83800-6D390i200209-200408

main83800-6D400i200301-200408

LABEL=83800-6D400

main83800-6D500i200309-200409

main83800-6D501i200409

main83800-60A50supersedes 83800-60A40i200408-200908

SPEEDOMETER-MILE & KM/H

main83800-60C00i200408-200908

CHINA SPEC&ABS-WITH

main83800-60C10supersedes 83800-60A30i200408-200908

CHINA SPEC&ABS-WITH

main83800-60C20i200408-200908

NIGERIA SPEC

main83800-60D80i200608-200712

SPEEDOMETER-OPTITRON(KM/H)

main83800-60D81i200801-200807

SPEEDOMETER-OPTITRON(KM/H)

main83800-60D82i200808-200908

SPEEDOMETER-OPTITRON(KM/H)

main83800-6D320i200301-200408

SPEEDOMETER-OPTITRON(KM/H),LABEL=83800-6D320

main83800-6D322i200408-200608

SPEEDOMETER-OPTITRON(KM/H),LABEL=83800-6D322

main83800-6D323i200608-200807

SPEEDOMETER-OPTITRON(KM/H)

main83800-6D324i200808-200908

SPEEDOMETER-OPTITRON(KM/H)

main83800-6D330supersedes 83800-6D300i200209-200408

SPEEDOMETER-OPTITRON(KM/H),LABEL=83800-6D330

main83800-6D332supersedes 83800-6D301i200408-200608

SPEEDOMETER-OPTITRON(KM/H),LABEL=83800-6D332

main83800-6D333supersedes 83800-6D302i200608-200908

SPEEDOMETER-OPTITRON(KM/H)

main83800-6D480i200301-200408

CHINA SPEC&ABS-WITH

main83800-6D490i200209-200301

CHINA SPEC

main83800-6D510supersedes 83800-6D380i200209-200408

SPEEDOMETER-MILE & KM/H

main83800-6D520supersedes 83800-6D380i200209-200408

TRANSFER-PART TIME&SPEEDOMETER-MILE & KM/H

main83800-6D530supersedes 83800-6D380i200209-200408

TRANSFER-PART TIME

main83800-6D540supersedes 83800-6D440i200209-200408

SPEEDOMETER-MILE & KM/H,LABEL=83800-6D540

main83800-6D541supersedes 83800-6D441i200408-200908

SPEEDOMETER-MILE & KM/H,LABEL=83800-6D541

main83800-6D560i200301-200408

SPEEDOMETER-MILE & KM/H,LABEL=83800-6D560

main83800-6D561supersedes 83800-6D401i200408-200908

SPEEDOMETER-MILE & KM/H,LABEL=83800-6D561

main83800-6D570supersedes 83800-6D410i200301-200408

SPEEDOMETER-MILE & KM/H,LABEL=83800-6D570

main83800-6D571supersedes 83800-6D411i200408-200908

SPEEDOMETER-MILE & KM/H,LABEL=83800-6D571

main83800-6D580supersedes 83800-6D420i200209-200408

SPEEDOMETER-MILE & KM/H,LABEL=83800-6D580

main83800-6D581supersedes 83800-6D421i200408-200908

SPEEDOMETER-MILE & KM/H,LABEL=83800-6D581

main83800-6D590supersedes 83800-6D430i200209-200408

SPEEDOMETER-MILE & KM/H,LABEL=83800-6D590

main83800-6D591supersedes 83800-6D431i200408-200908

SPEEDOMETER-MILE & KM/H,LABEL=83800-6D591

main83800-6D600i200209-200301

AREA OF ARABIC EXP. SAUDI SPEC

main83800-6D610i200209-200304

NIGERIA SPEC&TRANSFER-PART TIME

main83800-6D611i200304-200408

NIGERIA SPEC&TRANSFER-PART TIME

main83800-6D620i200209-200301

AREA OF ARABIC EXP. SAUDI SPEC&TRANSFER-PART TIME

main83800-6D630i200209-200304

NIGERIA SPEC

main83800-6D631i200304-200408

NIGERIA SPEC

main83800-6D640i200209-200304

AREA OF ARABIC EXP. SAUDI SPEC; SAUDI ARABIA SPEC

main83800-6D641i200304-200408

AREA OF ARABIC EXP. SAUDI SPEC,LABEL=83800-6D641; SAUDI ARABIA SPEC,LABEL=83800-6D641

main83800-6D642i200408-200908

AREA OF ARABIC EXP. SAUDI SPEC,LABEL=83800-6D642; SAUDI ARABIA SPEC,LABEL=83800-6D642

main83800-6D650i200209-200304

NIGERIA SPEC

main83800-6D651i200304-200408

NIGERIA SPEC,LABEL=83800-6D651

main83800-6D652i200408-200908

NIGERIA SPEC,LABEL=83800-6D652

main83800-6E160supersedes 83800-6D270i200209-200408

SOUTH AFRICA SPEC

main83800-6E170supersedes 83800-6D260i200209-200408

SOUTH AFRICA SPEC

main83800-6E260supersedes 83800-6D290i200301-200408

INDIA SPEC,LABEL=83800-6E260; SOUTH AFRICA SPEC,LABEL=83800-6E260

main83800-6E270supersedes 83800-6D280i200301-200408

SOUTH AFRICA SPEC,LABEL=83800-6E270

main83800-6E271supersedes 83800-6D281i200408-200908

SOUTH AFRICA SPEC,LABEL=83800-6E271

main83800-6E320i200301-200408

SOUTH AFRICA SPEC&SPEEDOMETER-OPTITRON(KM/H),LABEL=83800-6E320

main83800-6E322i200408-200908

SOUTH AFRICA SPEC&SPEEDOMETER-OPTITRON(KM/H),LABEL=83800-6E322

main83800-6E330supersedes 83800-6D310i200209-200408

SOUTH AFRICA SPEC,LABEL=83800-6E330

main83800-6E331supersedes 83800-6D311i200408-200908

SOUTH AFRICA SPEC&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL),LABEL=83800-6E331

main83800-6E340supersedes 83800-6D300i200209-200408

SOUTH AFRICA SPEC,LABEL=83800-6E340

main83800-6E341supersedes 83800-6D301i200408-200908

SOUTH AFRICA SPEC,LABEL=83800-6E341

main83800-6E350supersedes 83800-6D300i200209-200408

SOUTH AFRICA SPEC&SPEEDOMETER-OPTITRON(KM/H),LABEL=83800-6E350

main83800-6E352supersedes 83800-6D301i200408-200908

SOUTH AFRICA SPEC&SPEEDOMETER-OPTITRON(KM/H),LABEL=83800-6E352

83134COVER, COMBINATION METER, NO.1

main83821-6C850i200309-200409

main83821-6D040i200209

SOUTH AFRICA SPEC&SPEEDOMETER-OPTITRON(KM/H); SPEEDOMETER-OPTITRON(KM/H)

83134BCOVER, COMBINATION METER, NO.2

main83822-6C850i200309-200409

83138GLASS, SPEEDOMETER

main83852-6C850i200309-200409

main83852-6D040i200209

SOUTH AFRICA SPEC&SPEEDOMETER-OPTITRON(KM/H); SPEEDOMETER-OPTITRON(KM/H)

9007600030

main90076-00030

9015950311

main90159-50311

6 parts on this diagram · 5 diagrams in section
