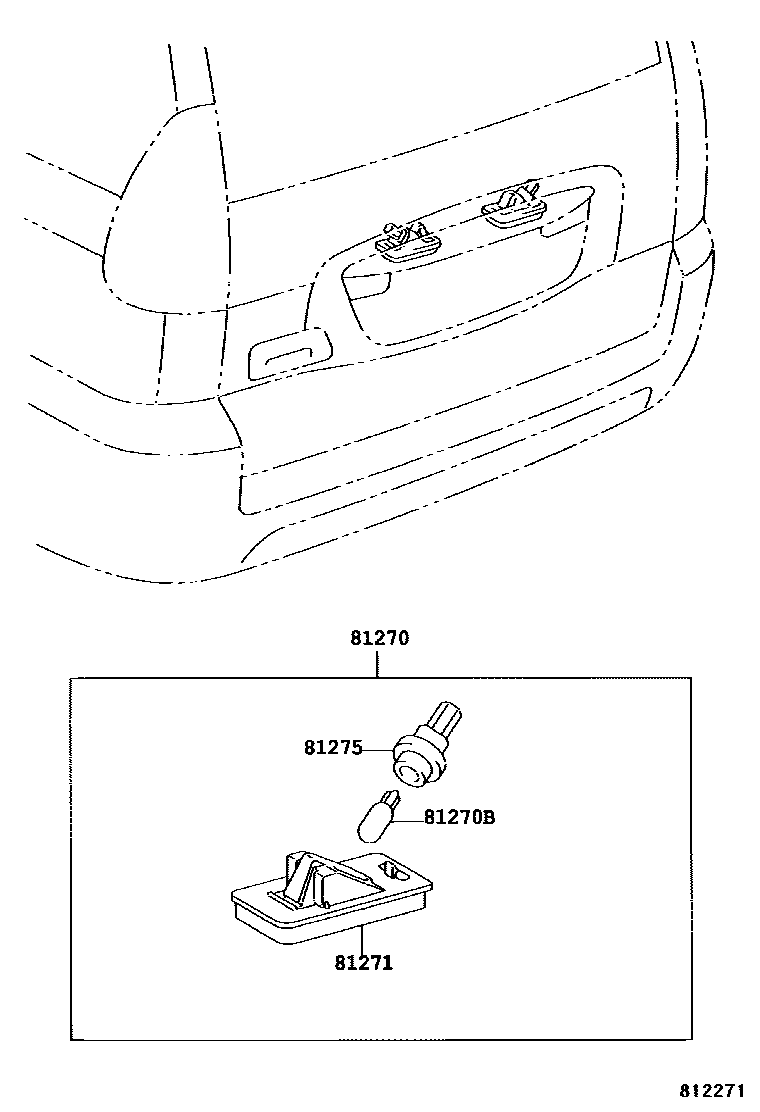

REAR LICENSE PLATE LAMP

0001 1 0002 1W(SPARE TIRE CARRIER=BACK DOO

81270LAMP ASSY, LICENSE PLATE

main76802-60040iGRJ12#,KDJ120,KZJ120,LJ12#,TRJ12#..ARL,GCC,GEN200704-200908

main81270-60330×2iGRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN200209-200609

SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE

main81270-60331×2iGRJ120,KDJ120,KZJ120,LJ120,TRJ120..ARL,GCC,GEN200610-200804

SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE

main81270-60332×2iTRJ120..4FC..GEN200810-200908

COLD SPEC&SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-12050×2iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209-200908

12V 5W

81271LENS, LICENSE PLATE LAMP

main81271-24010×2iGRJ120..5FC..CHI200309-200604

main81271-60330×2iGRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN200209-200610

SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE

main81271-60331×2iGRJ120,KDJ120,KZJ120,LJ120,TRJ120..ARL,GCC,GEN200610-200805

SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE

main81271-60332×2iTRJ120..4FC..GEN200810-200908

COLD SPEC&SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE

81275SOCKET AND WIRE, LICENSE PLATE LAMP

main00000-00000iGRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN200209-200908

NOT APPLICABLE

main90075-99011×2iGRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120..ARL,GCC,GEN200209-200908

SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE

4 parts on this diagram · 2 diagrams in section
